SOS Paper Bag Machines - with handles unit
Curioni Sun Teramo can cover the entire range of bags that can be produced with or without a handle, using a gearless or gear train technology, with just two bag making machines.
The Sun Master bag makers can be fitted with handles makers in a twisted paper version or in a flat paper version.
Gearless Technology

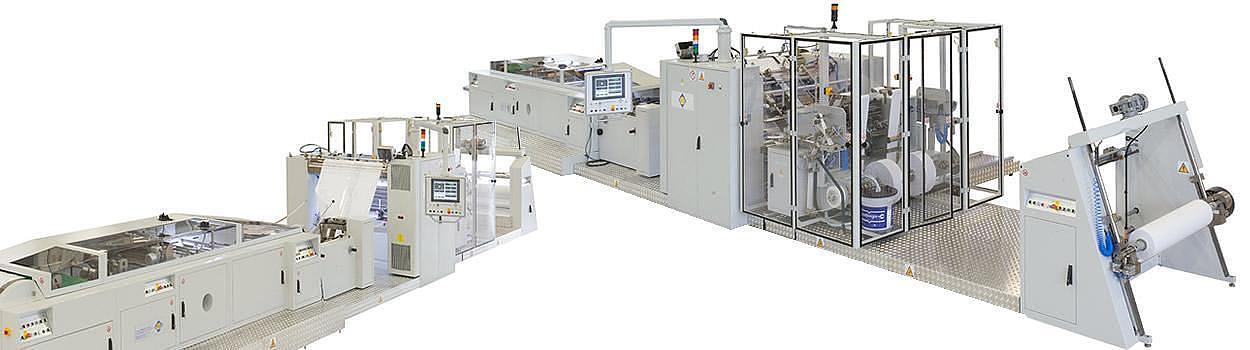

SUN MASTER 541
CURIONI SUN MASTER 541 is a designed for the production of medium to large square-bottom paper bags, with twisted or flat paper handles.
- Bag width from 220 to 540 mm
- Bag width with handle from 240 to 540 mm
- Bag length from 270 to 650 mm
- Bottom width from 70 to 200 mm
- Cut length from 350 to 780 mm
- Reel width from 590 to 1430 mm
- Max. diameter of the reel 1500 mm
- Inner core diameter 76 mm
- Weight of workable paper 80 – 130 g/m2

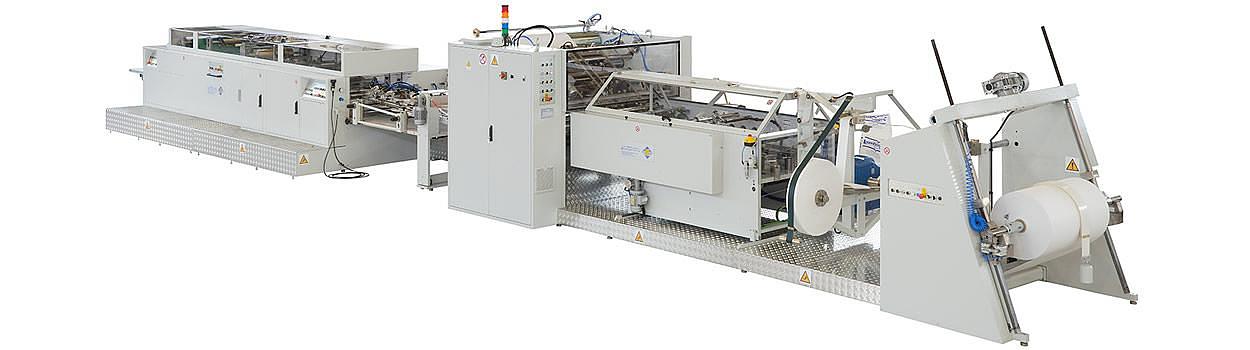

SUN MASTER 350
CURIONI SUN MASTER 350 is a designed for the production of small to medium square-bottom paper bags, with twisted or flat paper handles.
- Bag width from 110 to 350 mm
- Bag width with handle from 180 to 350 mm
- Bag length from 220 to 450 mm
- Bottom width from 60 to 150 mm
- Cut length from 270 to 500 mm
- Reel width from 350 to 1050 mm
- Max. diameter of the reel 1500 mm
- Inner core diameter 76 mm
- Weight of workable paper 80 – 130 g/m2
Gear Train
SUN MASTER 540EVO
CURIONI SUN MASTER 540 is a designed for the production of medium to large square-bottom paper bags, with twisted or flat paper handles.
- Bag width from 220 to 540 mm
- Bag width with handle from 240 to 540 mm
- Bag length from 320 to 650 mm
- Bottom width from 80 to 200 mm
- Cut length from 400 to 780 mm
- Reel width from 720 to 1430 mm
- Max. diameter of the reel 1500 mm
- Inner core diameter 76 mm
- Weight of workable paper 80 – 130 g/m2

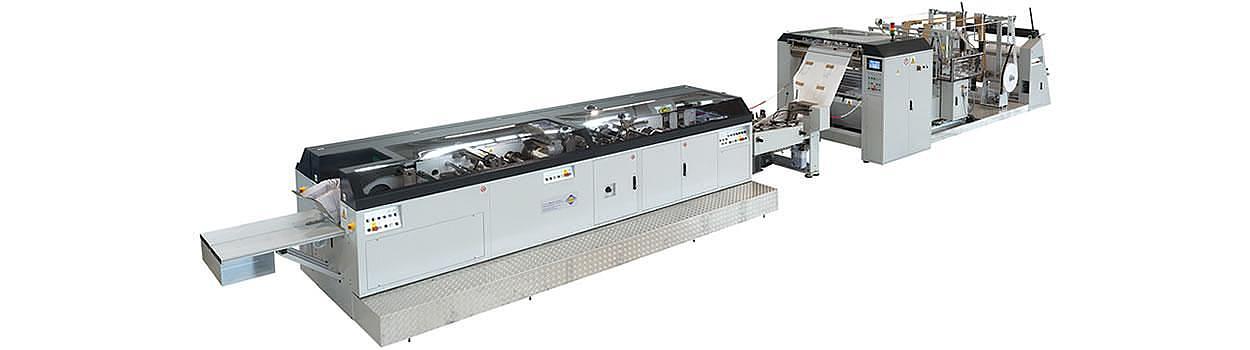

SUN MASTER 545
CURIONI SUN MASTER 545 is a designed for the production of small to medium square-bottom paper bags, with twisted or flat paper handles.
- Bag width from 220 to 540 mm
- Bag width with handle from 240 to 540 mm
- Bag length from 270 to 650 mm
- Bottom width from 70 to 200 mm
- Cut length from 350 to 780 mm
- Reel width from 590 to 1430 mm
- Max. diameter of the reel 1500 mm
- Inner core diameter 76 mm
- Weight of workable paper 80 – 130 g/m2
SUN MASTER 355
CURIONI SUN MASTER 350 is a designed for the production of small to medium square-bottom paper bags, with twisted or flat paper handles.
- Bag width from 110 to 350 mm
- Bag width with handle from 180 to 350 mm
- Bag length from 220 to 450 mm
- Bottom width from 60 to 150 mm
- Cut length from 270 to 500 mm
- Reel width from 350 to 1050 mm
- Max. diameter of the reel 1500 mm
- Inner core diameter 76 mm
- Weight of workable paper 80 – 130 g/m2

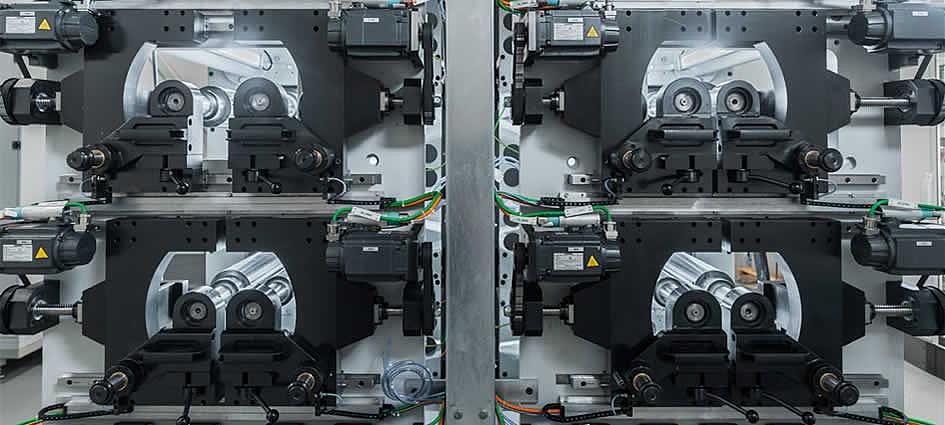

In-line Flexo printing press
In view of the increasing demand for paper bag making machine equipped with inline printing machine, Curioni Sun is now in a position to satisfy customers’ request with an in-line printing press customized for the SUN MASTER machines.
Flexographic stack type printing press up to 4 printing units
Inline installation with SUN MASTER paper bag making machine with matching printing size
Full servo operated machine
Sleeve type anilox rolls
Closed chamber doctor blade inking system
Automatic computer controlled positioning
Automatic computer control pressure setting
Automatic camera operated register control
Electric heated drying system
Industrial touch 19” PC for setting and supervision of the machine
