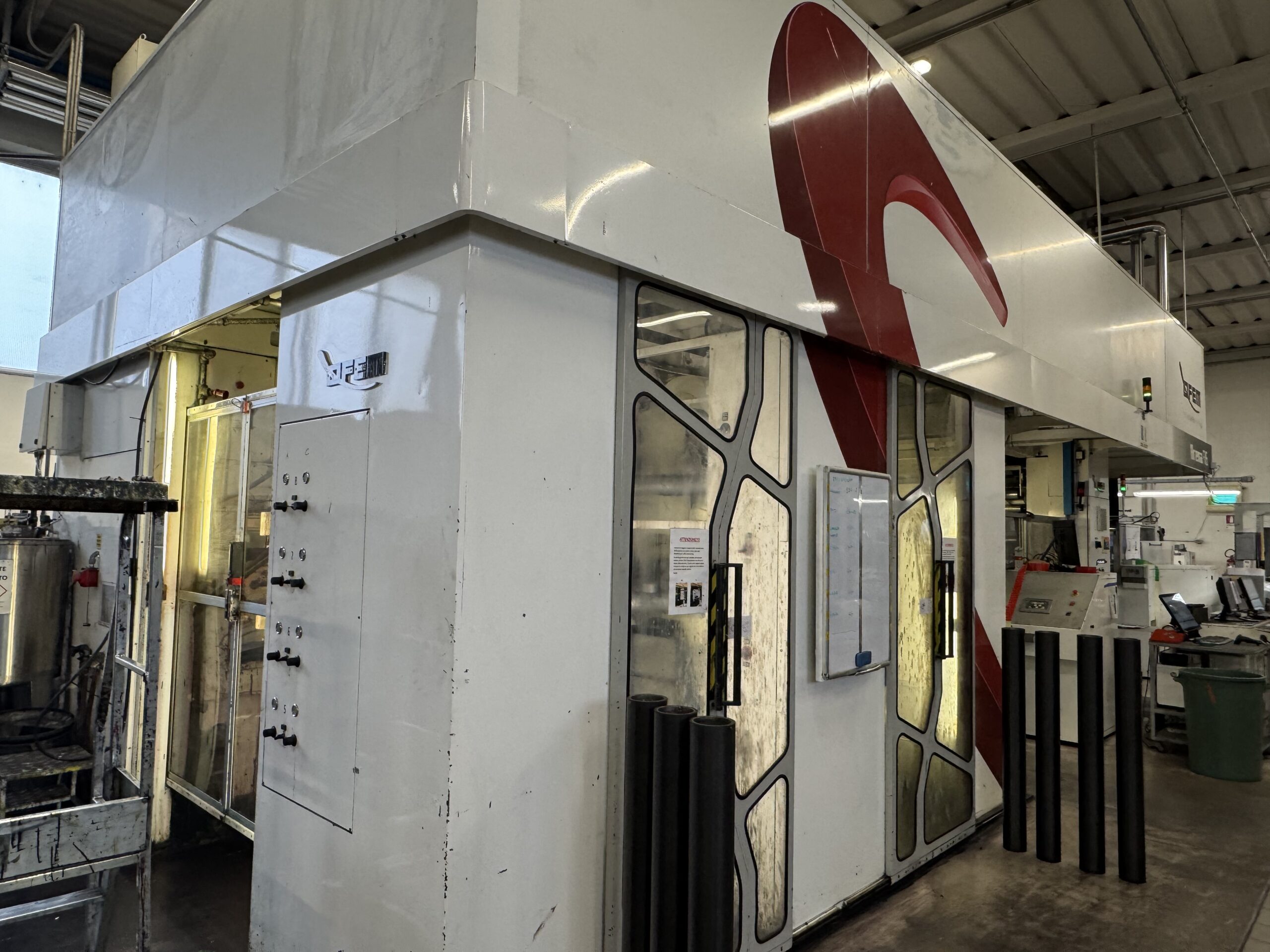

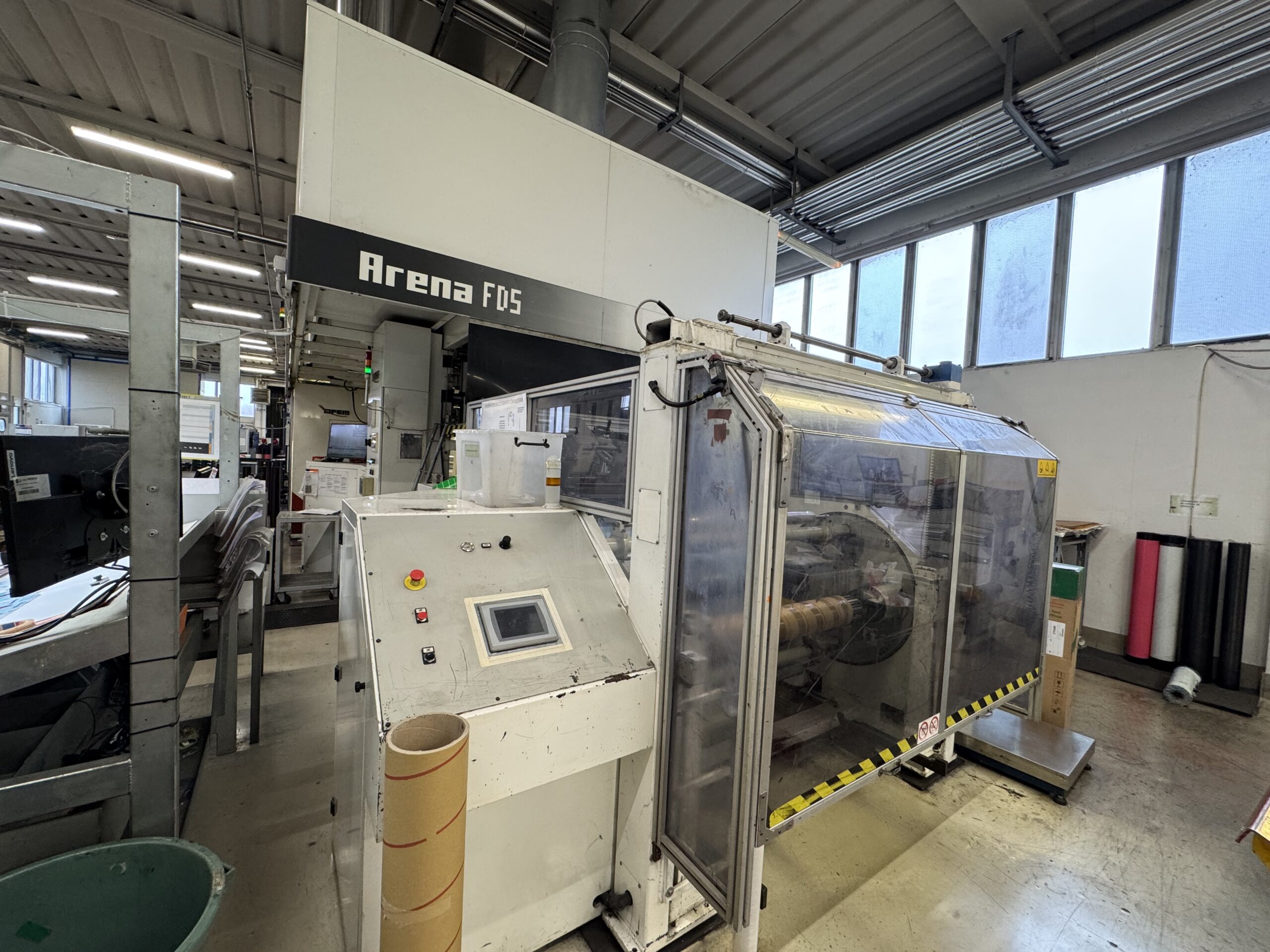

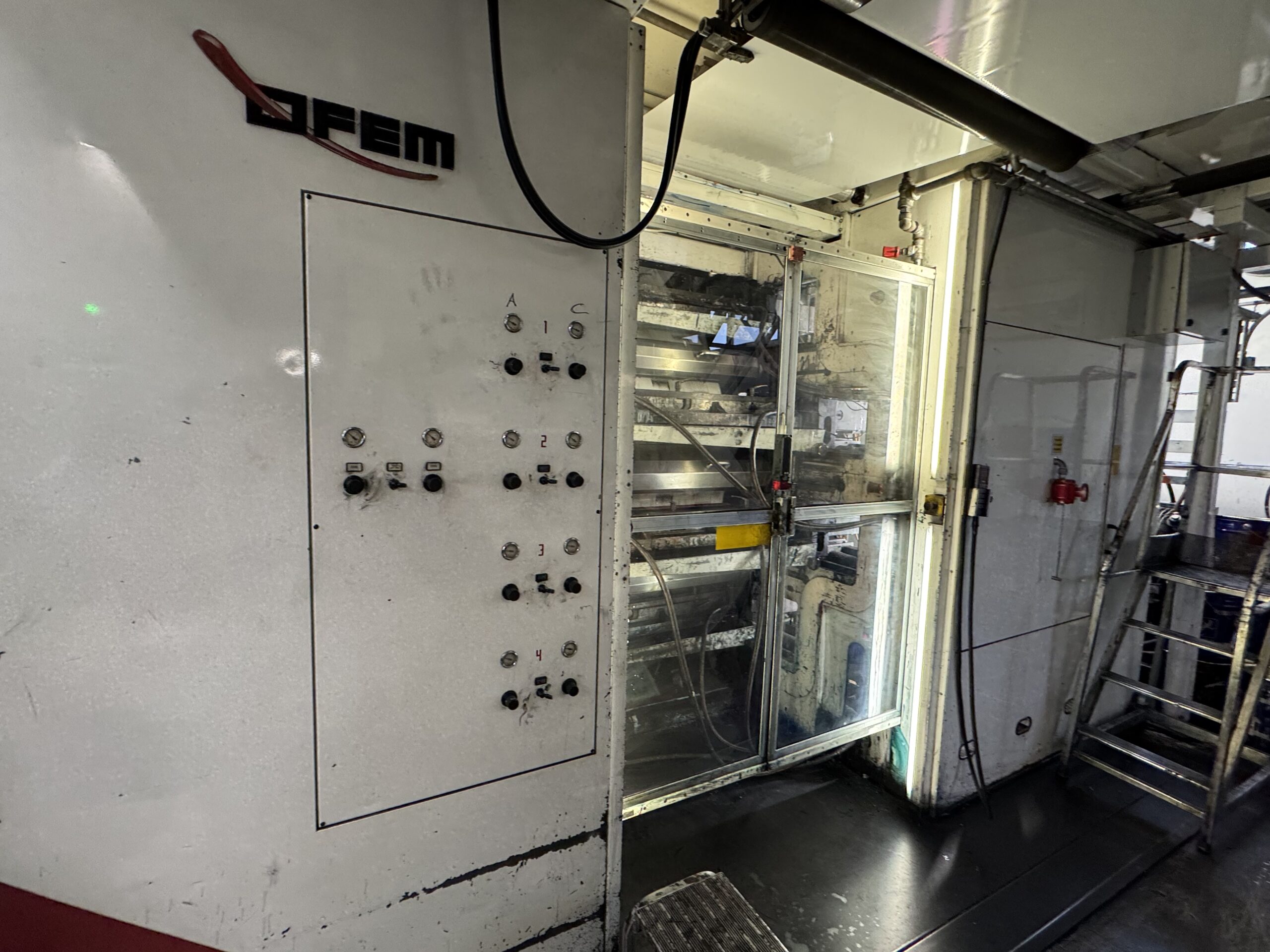

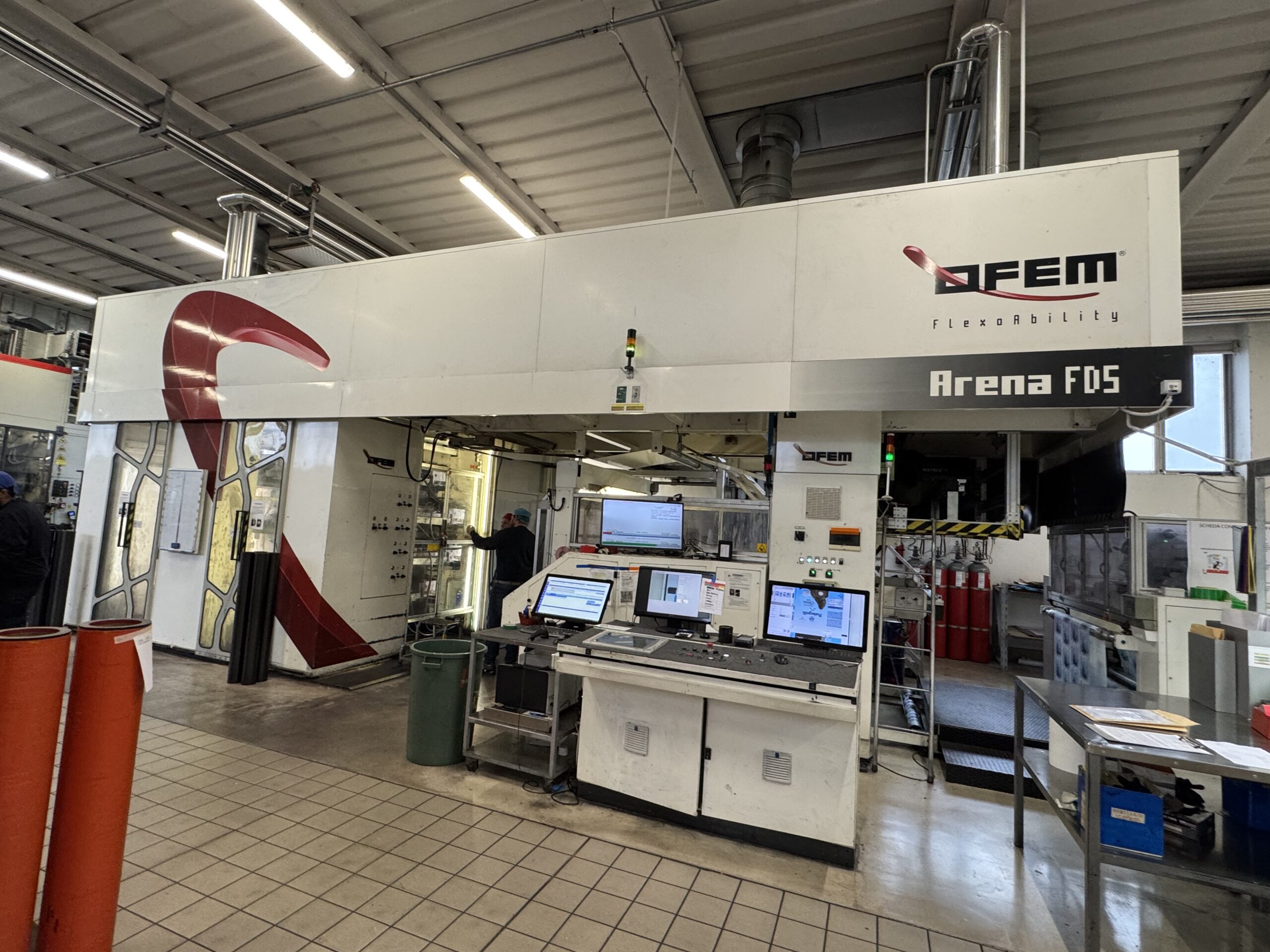

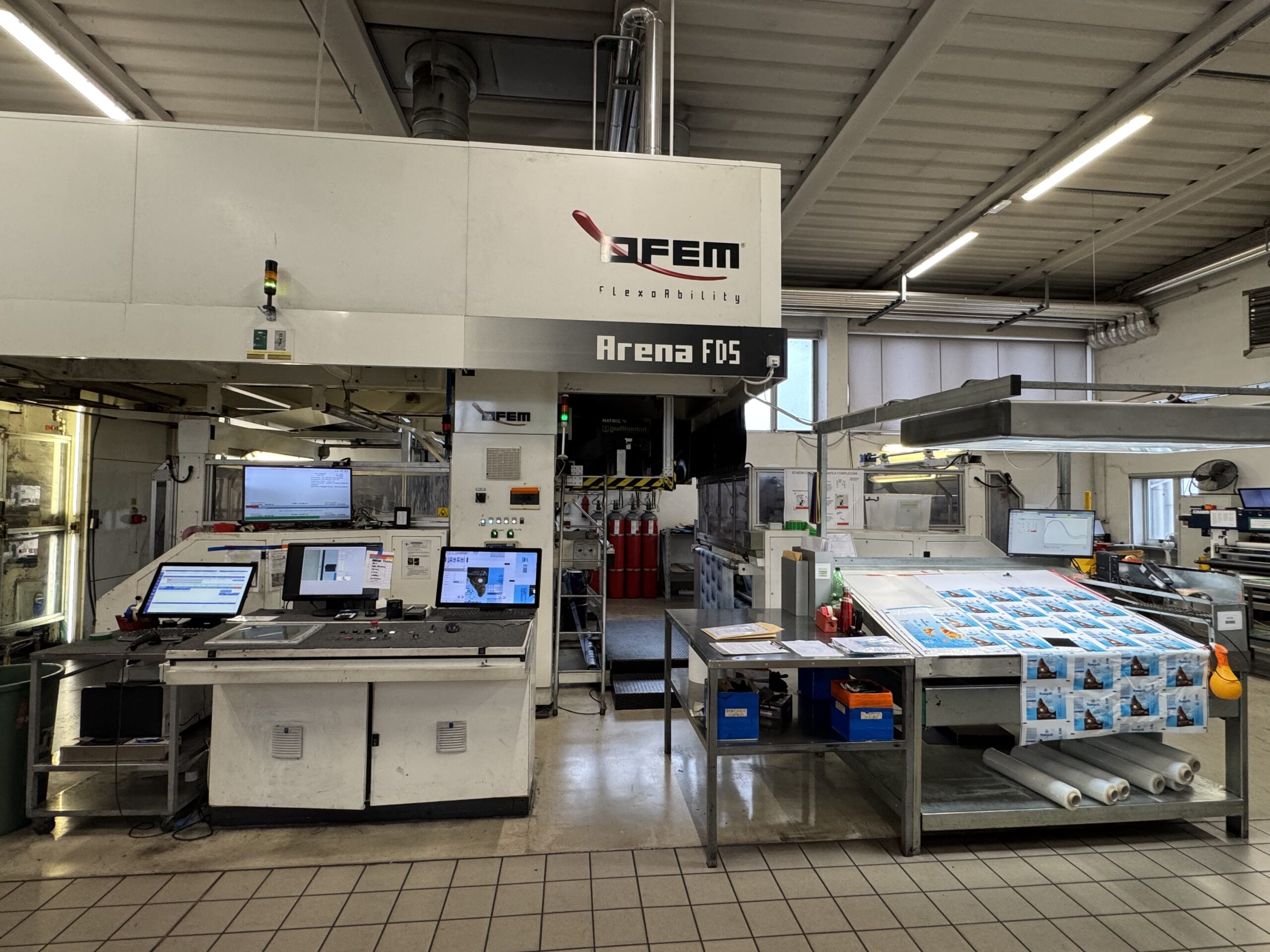

OFEM ARENA GL FDS – 8-Color Gearless Flexographic Printing Press
Year 2004, refurbished in 2022.
8-color gearless flexographic printing press suitable for printing on paper and plastic films using solvent-based inks. The machine features a maximum printing width of 1,200 mm, web width of 1,250 mm, printing repeat range from 340 to 800 mm, and maximum mechanical speed of 350 m/min.

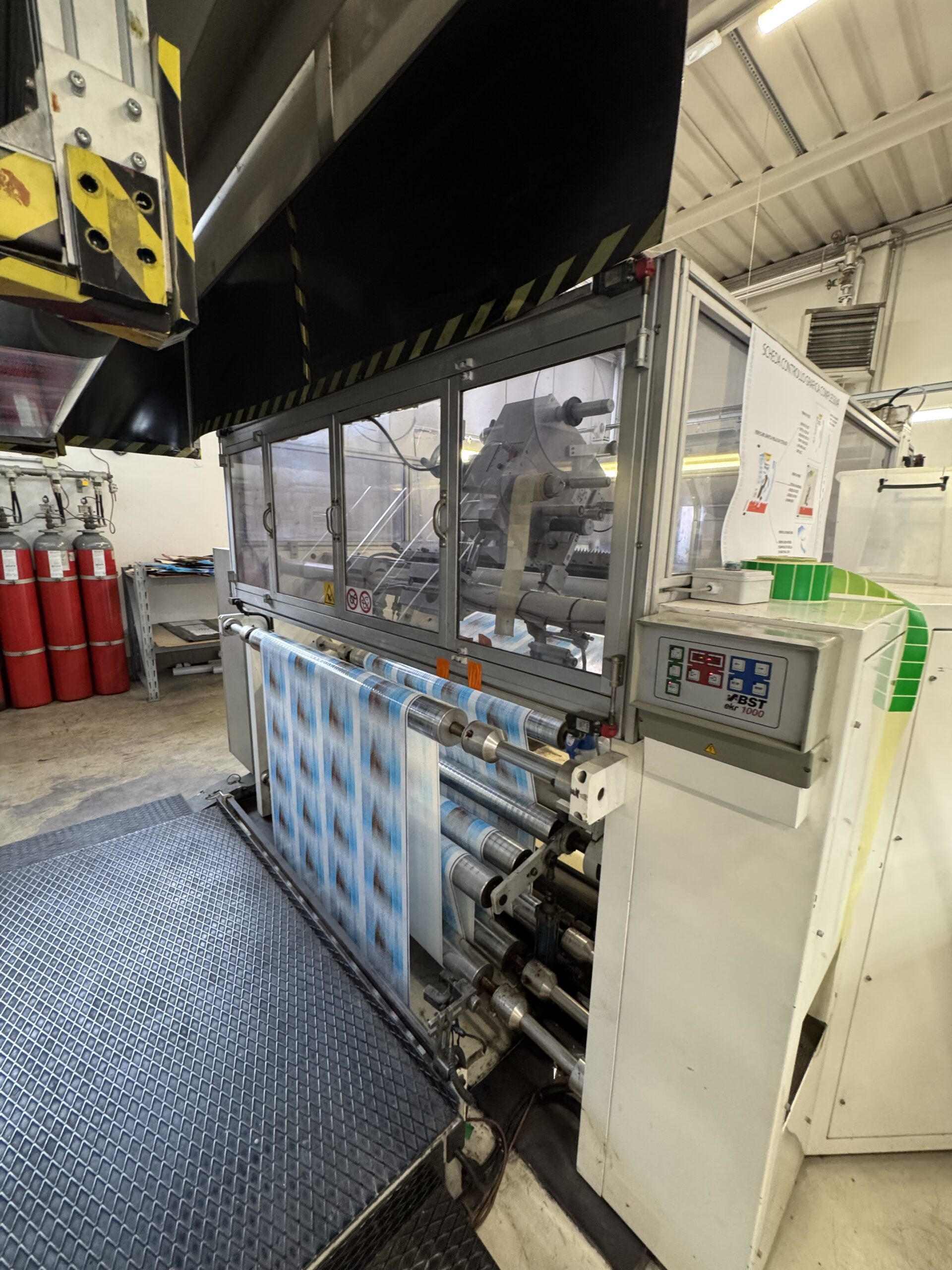

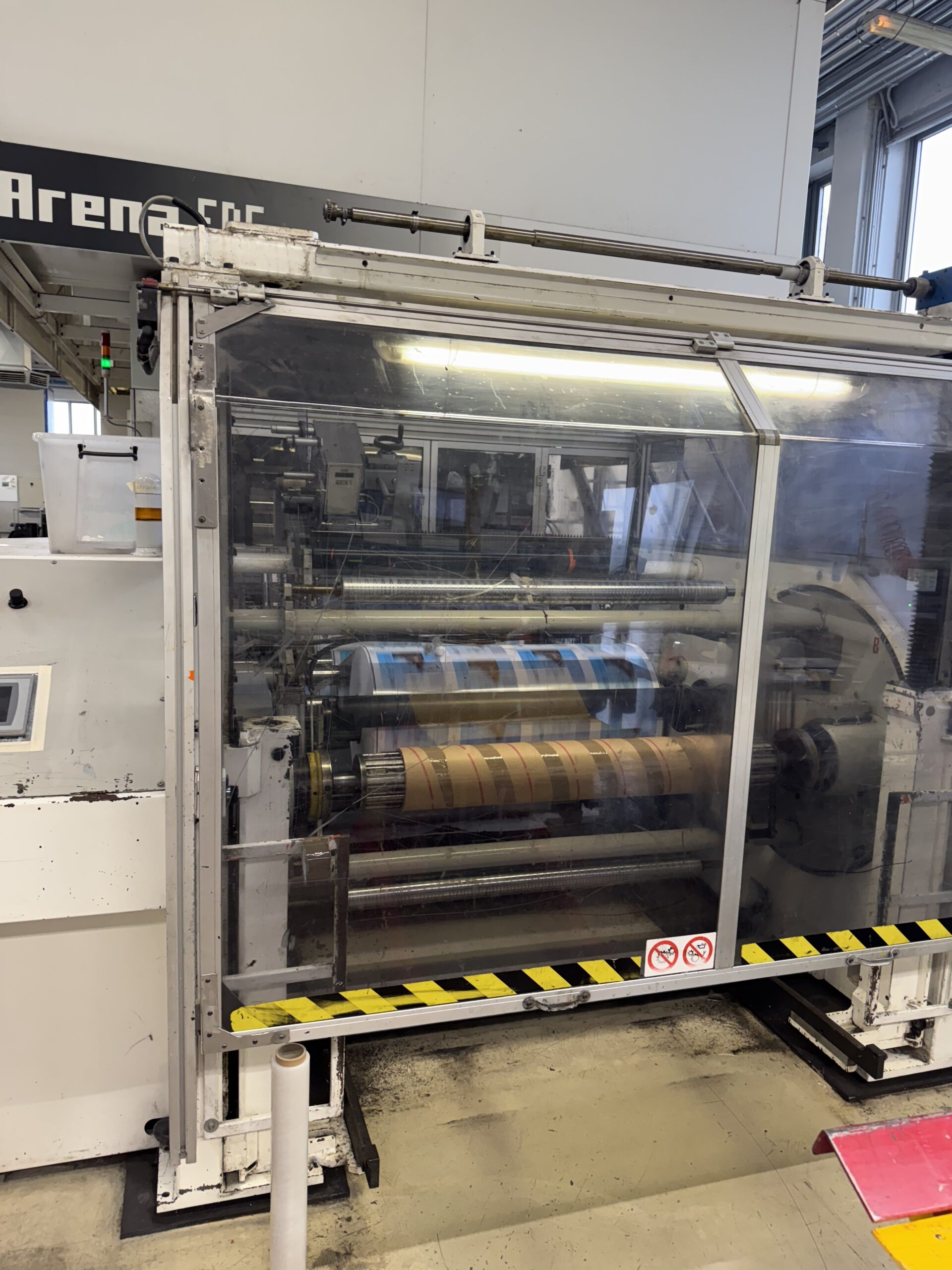

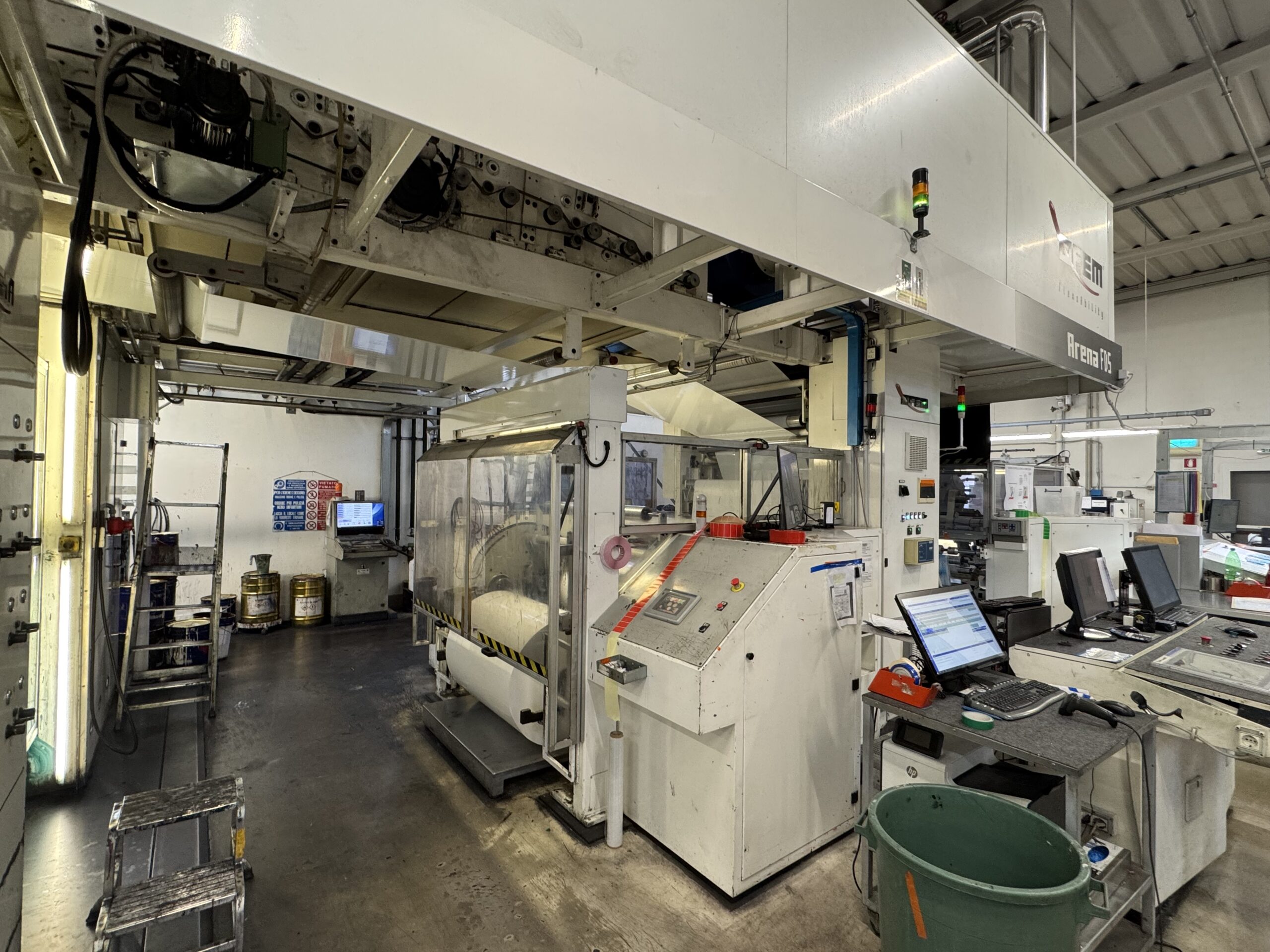

Equipped with automatic unwinder and rewinder for rolls up to 800 mm in diameter, printing unit washing system, diathermic oil heating system and Grafikontrol MATRIX 100% video inspection system.
Available for sale.
Specifications
| Manufacturer | OFEM |
| Model | ARENA GL FDS |
| Year | 2004 |
| Condition | Used |
| Gearless | yes |
| Print width (mm) | 1200 mm |
| Material passage (mm) | 1250 mm |
| Print development min. – max. | 340 mm - 800 mm |
| Mechanical speed (m/min) | 350 m/min |
| Material that can be processed | Paper and plastic films |
| Inks | Solvent based |
| Doctor blade groups / quantity | 10 |
| Washing of printing units | Yes |
| Type of unwinder | AutomatIc |
| Max. diameter on unwinder (mm) | 800 |
| Winder type | AutomatIc |
| Max. diameter on winder (mm) | 800 |

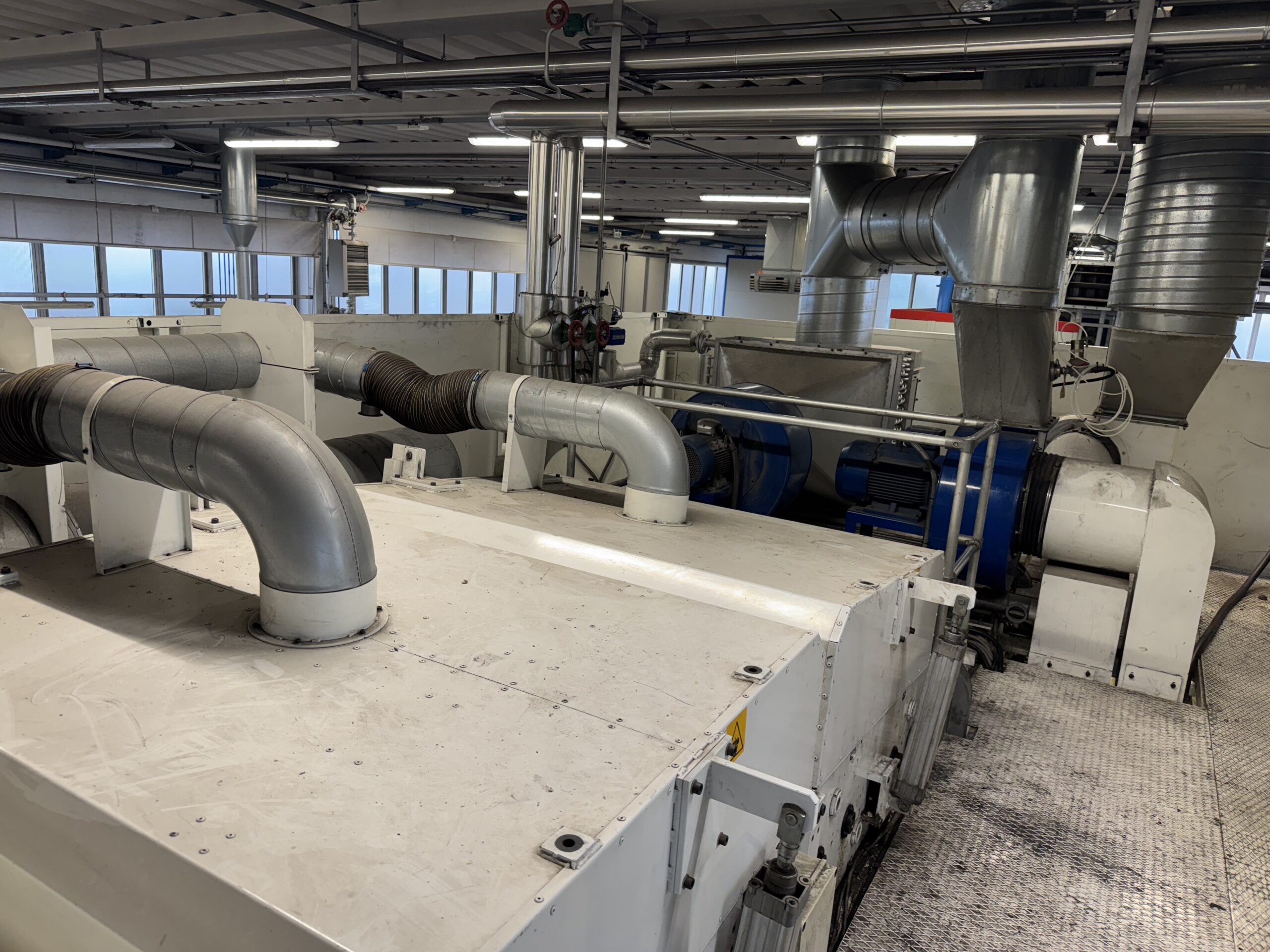

| Heater | Diathermic oil |
| Video camera | Yes, Grafikontrol MATRIX 100% |
| Additional information | 25 anilox - 200 printing sleeves - 2 sets of carriers - plate mounter |
