2021 GARANT MATASIM (with window unit)| Flat and satchel paper bag machine
2021 GARANT MATASIM (with window unit)| Flat and satchel paper bag machine
Location:
Description
Pre-owned GARANT MATASIM flat and satchel bag making machine from 2021

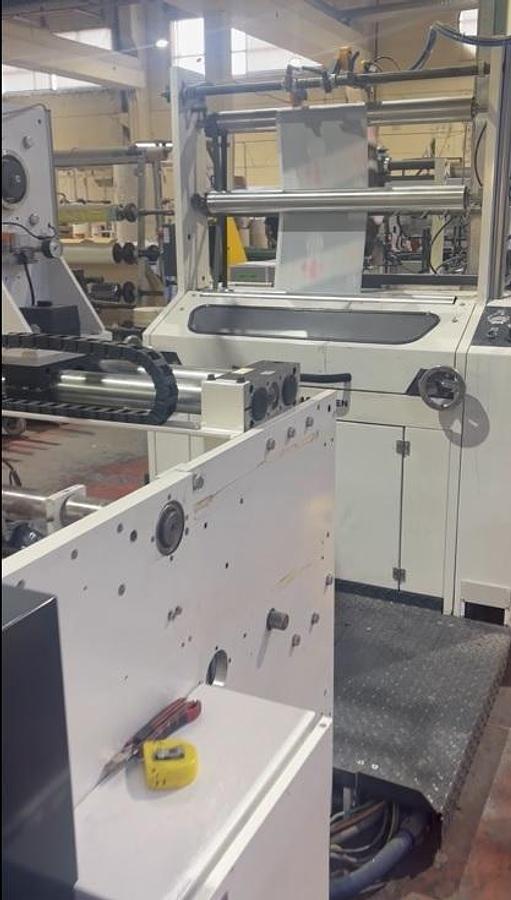

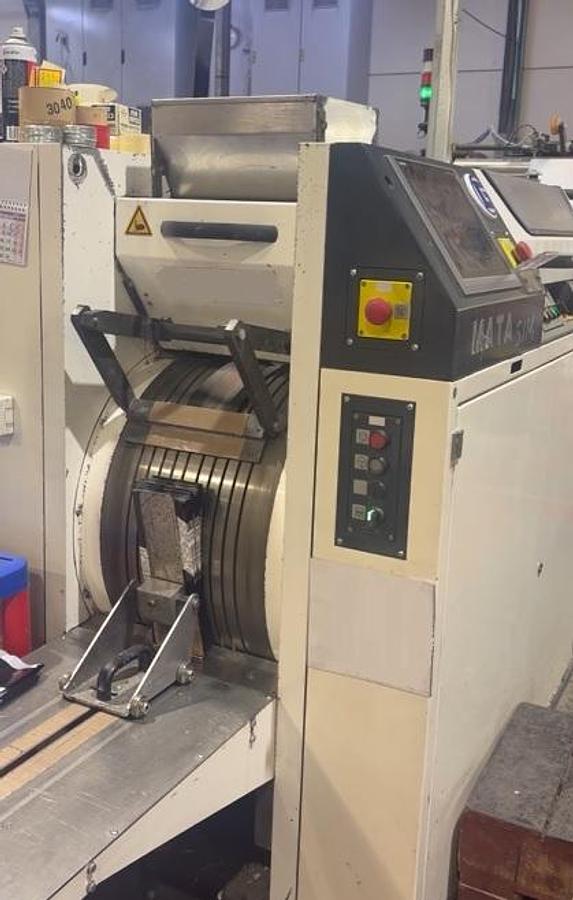

Automatic Flat & Satchel Paper Bag Making Machine, designed for the production of flat and side-gusseted paper bags with perforated edges and side seams, operating directly from paper reels.
The machine is equipped with unwinder for reels up to 1,300 mm in diameter and 900 mm in width, automatic web tension control, servo-driven perforating and draw units, a tube forming section with interchangeable format plates, and automatic seam pasting and bottom gluing systems.
It features Siemens S7 PLC control, Siemens servo motors, an electronic line shaft and a photocell registration system for processing pre-printed paper reels. The touchscreen operator panel allows easy adjustment of production parameters, while the job memory system can store up to 100 orders for quick changeovers.
The machine produces bags with widths from 60 to 280 mm, cut-off lengths from 105 to 560 mm, and side gussets up to 70 mm (140 mm opened), with a maximum speed of 700 bags/min, depending on bag size and paper quality.
Year: 2021 – Currently in production (visible in middle-east) and available for sale.
Specifications

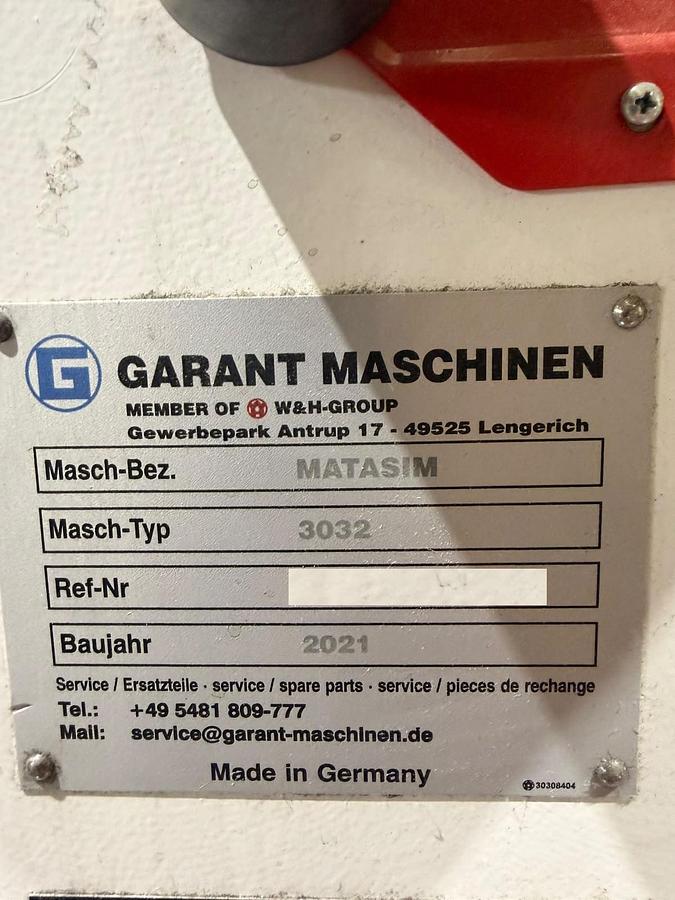

| Manufacturer | Garant Maschinen |
| Model | MATASIM |
| Year | 2021 |
| Condition | Used (visible in production) |
| Bag types | Flat paper bags and side-gusseted (satchel) paper bags |
| Max. paper reel diameter | 1300 mm ( 51”) |
| Max. paper reel width | 900 mm (35.4") |
| Bag width (min - max) | 60 - 280 mm (2.4 – 11") |
| Cut-off length | 105 - 560 mm (4.13 – 22") |
| Max. side gusset depth | 70 mm (2.8") |
| Maximum opened side gusset | 140 mm (5.5") |
| Max. Speed | 700 bags/min (depending on bag size, paper quality etc.) |

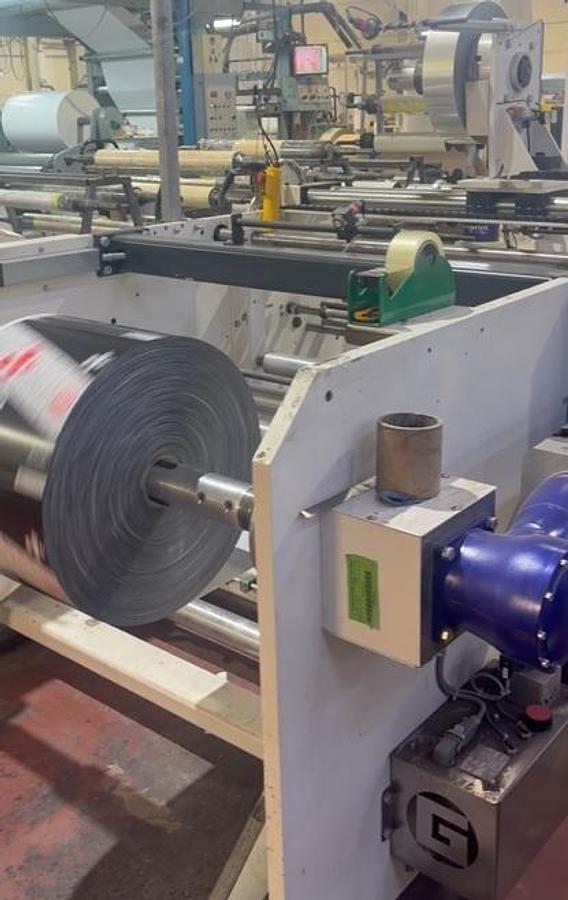

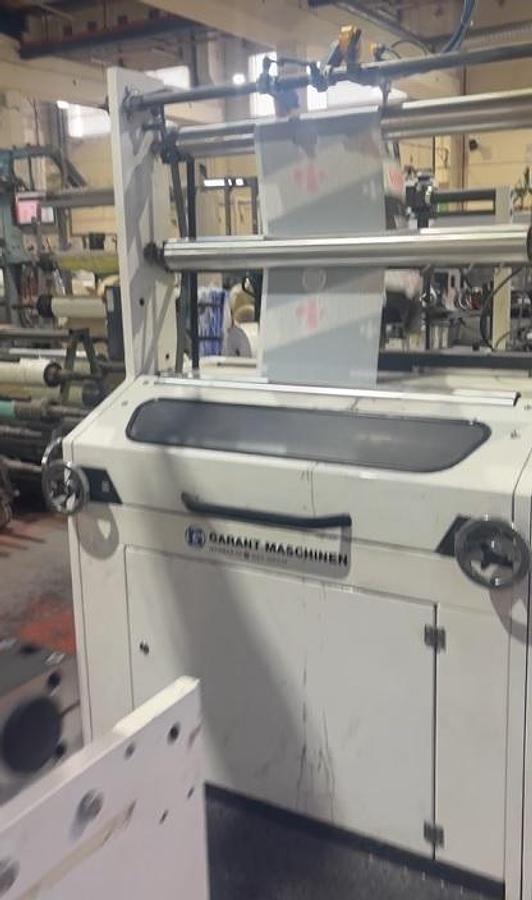

| UNWIND | Max. Roll width 900 mm / 35.4“ | max roll diameter up to 1.300 mm / 51” | manual lateral adjustment | automatic web tension control | servo-motor driven brake for the paper unwind with suspended dancer roller | hydraulic reel lift in system | 1 unwind shaft, pneumatic, for core diameter 76 mm / 3” |
| DRAW UNIT | in rear section with wear-resistant Servo-drive: With flexible web tension adjustment between main machine and rear section |with pneumatic draw rolls |
| SEAM PASTING | Non contact application nozzle | electro-pneumatic glue pump, glue application quantity depending on web speed |

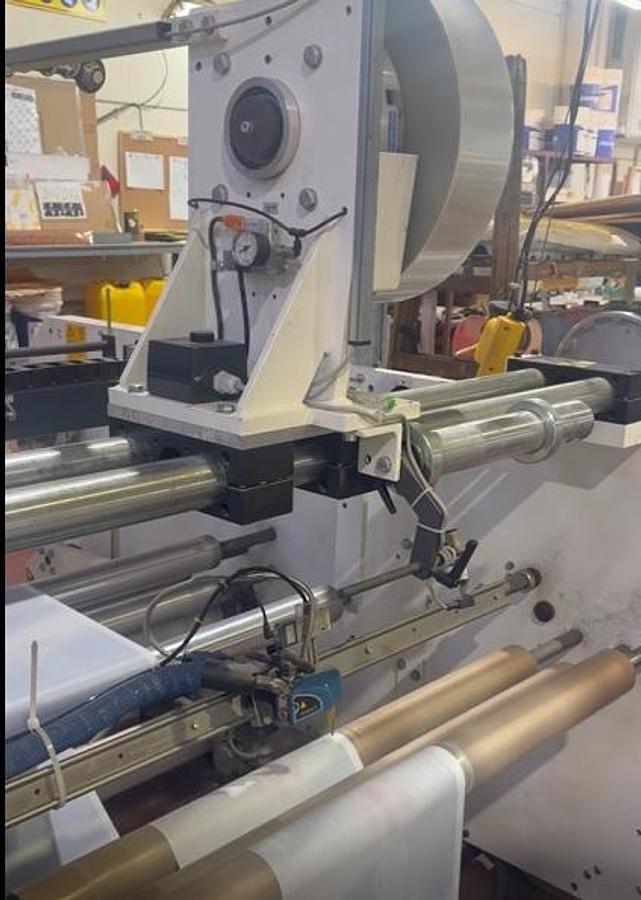

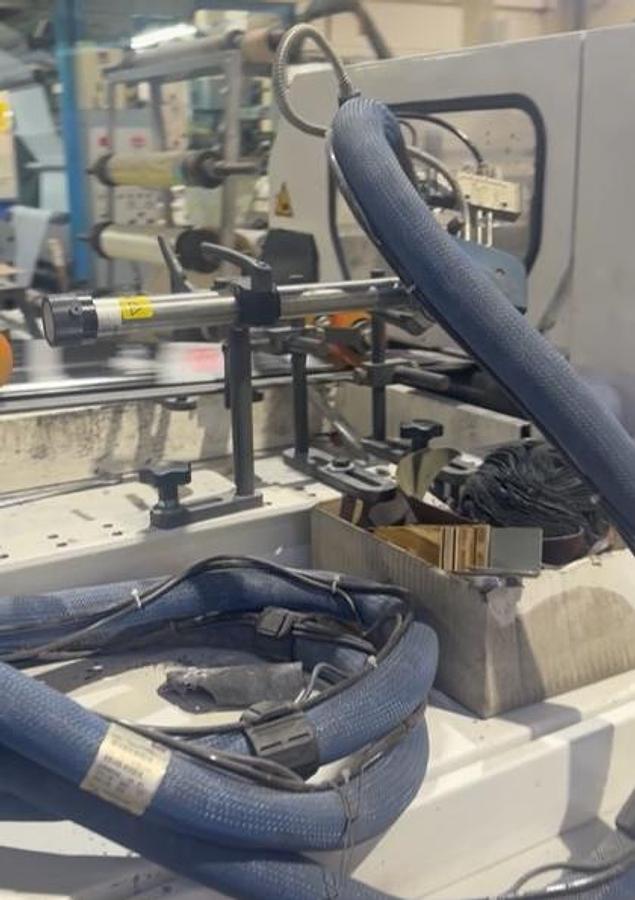

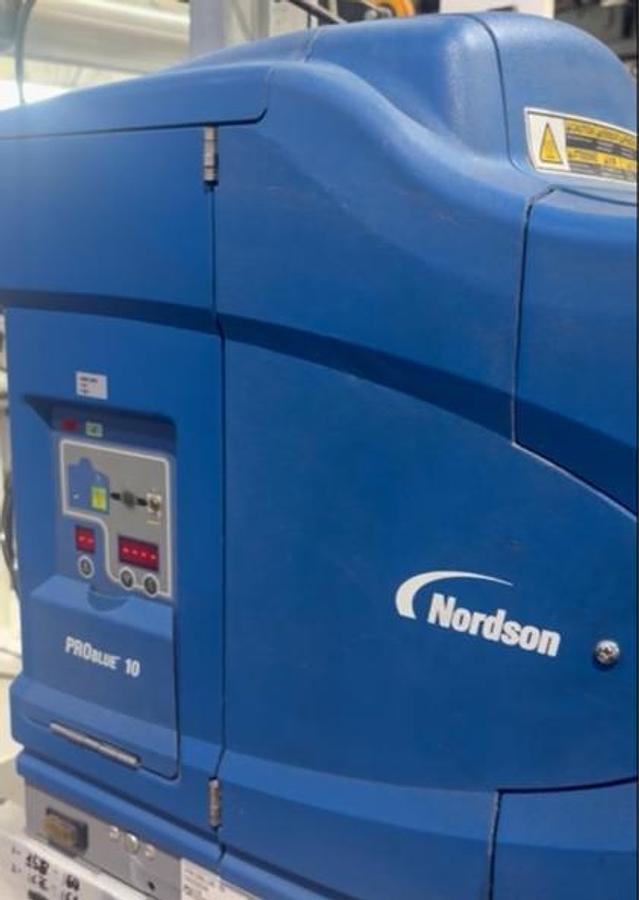

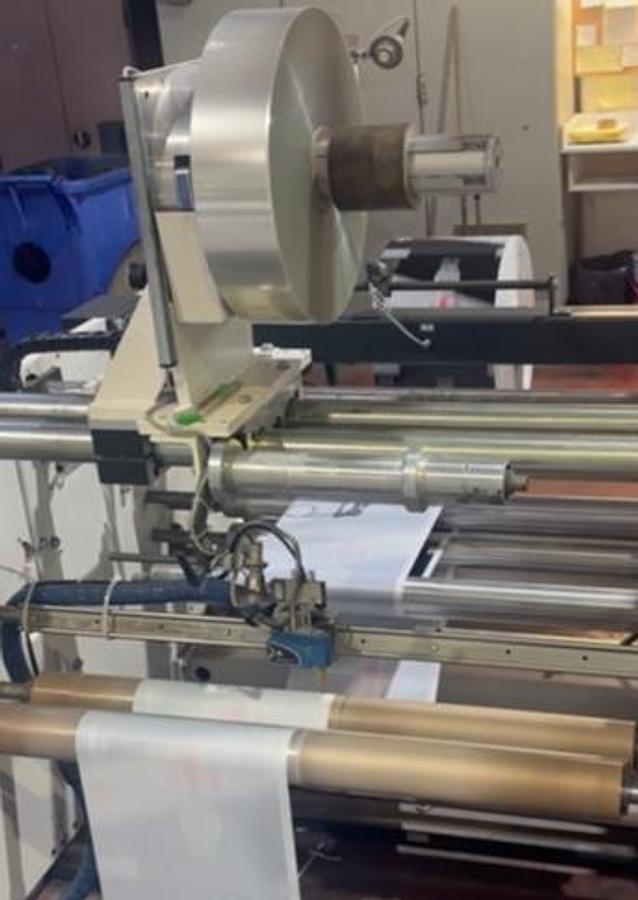

| SIGHT STRIP ARRANGEMENT / WINDOW APPLICATION UNIT) | max. film width: 340 mm | max. roll diameter: 600 mm | pneumatic winding shaft (with one-sided bearing) | web break sensor | end of roll detection | pneumatic brake | winding position manually moveable across the whole working width by means of a spindle | web guiding parts | Hotmelt unit, type Nordson, with 2 nozzles to glue sight strip with paper web, incl. connecting parts |

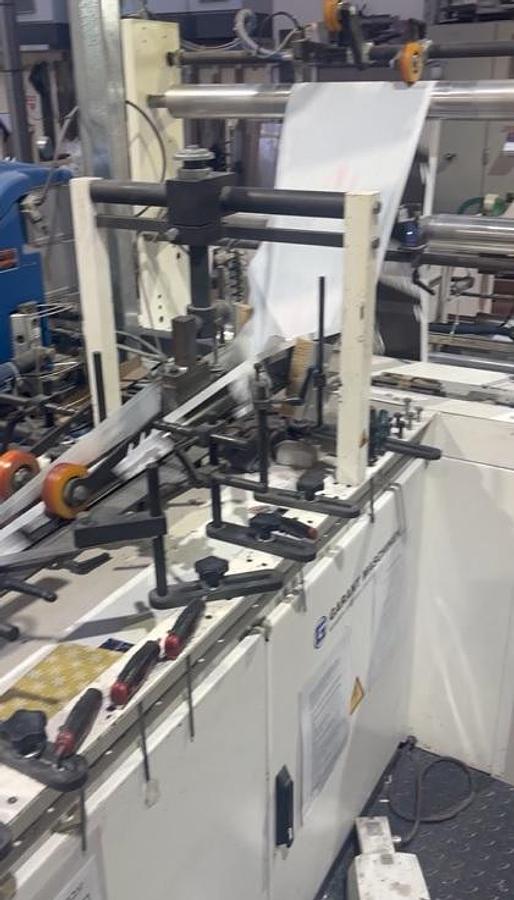

| TUBE FORMING | Tube forming table | Size plate holder for size plate exchange | Bars to form the gusset | Pressure rollers |
| DRAW UNIT after the tube former | Servo drive: No change gears required | fast reproducibility of repeat orders | low-wear drive | variation of cut-off length in 1 mm steps | Input of cut-off lengths via the control panel (touch screen) | Web tension adjustment via cut-off length variation in 0,1 mm steps | Mechanical lift-off of the draw rolls |
| CONTROL SYSTEM (for pre-printed rolls) | Print color system to process pre-printed rolls, integrated into the Siemens-PLC, consisting of: Sensor with lateral adjustment during operation | Attachment parts | Wiring | Cutting position adjustment on operator panel (touch screen) of the bag machine |
| TEAR OFF UNIT | Tear-off roller the tear-off position can be adjusted during production |
| TOP FOLDING CYLINDER | with cam controlled folding blade and paste bar |
| PHOTO-ELECTRIC WEB BREAK SENSORS | To stop the machine in case of a web break |
| BOTTOM FOLDING CYLINDER | With cam controlled folding blade |
| BOTTOM GLUEING SYSTEM | Designed for high viscosity adhesives (paste), with: Glue box | servo-driven glue roller | pneumatic lift-off of the glue roller and continuous rotation when machine stops | Glue application segment (depending on bag width) |

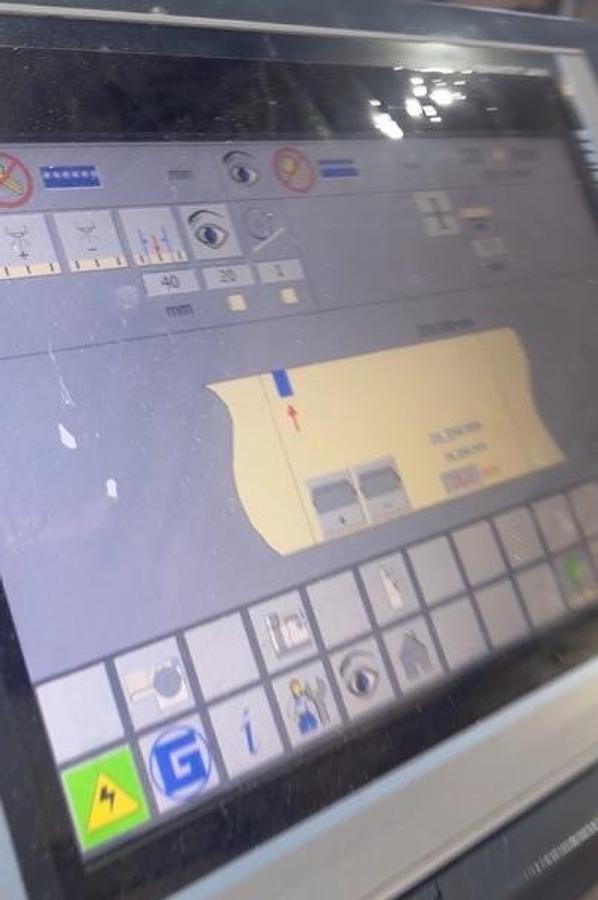

| TOUCH PANEL | to enter job relevant parameters, with: Speed indicator | Control panel | Error indicator |
| JOB STORAGE & RETRIEVAL SYSTEM | for fast set-up of repeat orders | To store max 100 orders | Job specific parameters are stored in the job storage | When the repeat order is set up, longitudinal parameters will adjust automatically |
| DRIVE TECHNOLOGY / CONTROL | SIEMENS S7 control unit | SIEMENS servo motors | Wear resistant, low-maintenance drives with timing belts | Electronic line shaft to synchronize main machine and rear frame | Switch cabinet integrated into the machine frame |
| DELIVERY SECTION | Delivery table | Infinitely adjustable counter |
| Machine Colour | White / anthracite |
| Electrical connection | 230/400 V, 60 Hz., 3 Phase with Neutral |
| Compressed air connection | 6 bar |
| Connected load | 69 KVA |
| Visible in operation | Yes |
