2013 GARANT MATADOR NG/SERVO 6805G – Automatic Flat & Satchel Paper Bag Making Machine
High-performance servo-driven machine for the production of flat and side-gusseted paper bags with perforated edges, directly from paper rolls.
Equipped with Siemens servo motors and S7 PLC control, automatic registration system for pre-printed paper, Nordson gluing units, and a dedicated sight strip unit for producing paper bags with transparent windows.

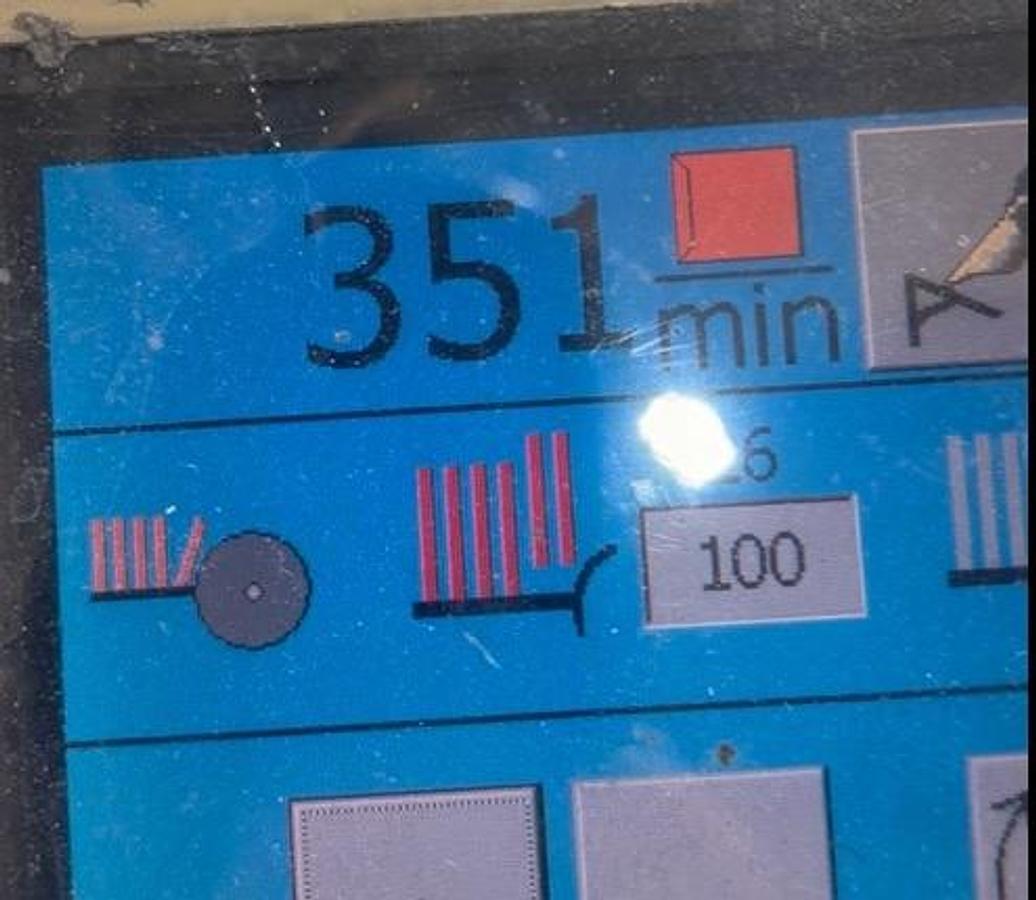

Features include servo-driven perforating and feeding systems, electronic bag length adjustment, automatic bottom folding and pasting, touchscreen control with job memory for up to 100 recipes, and automatic bag counting and delivery.
Bag width: 60–380 mm | Cut-off length: 160–760 mm | Maximum open gusset: 140 mm | Maximum reel width: 1,060 mm.
Year: 2013 – Currently in production and available for sale.
Specifications

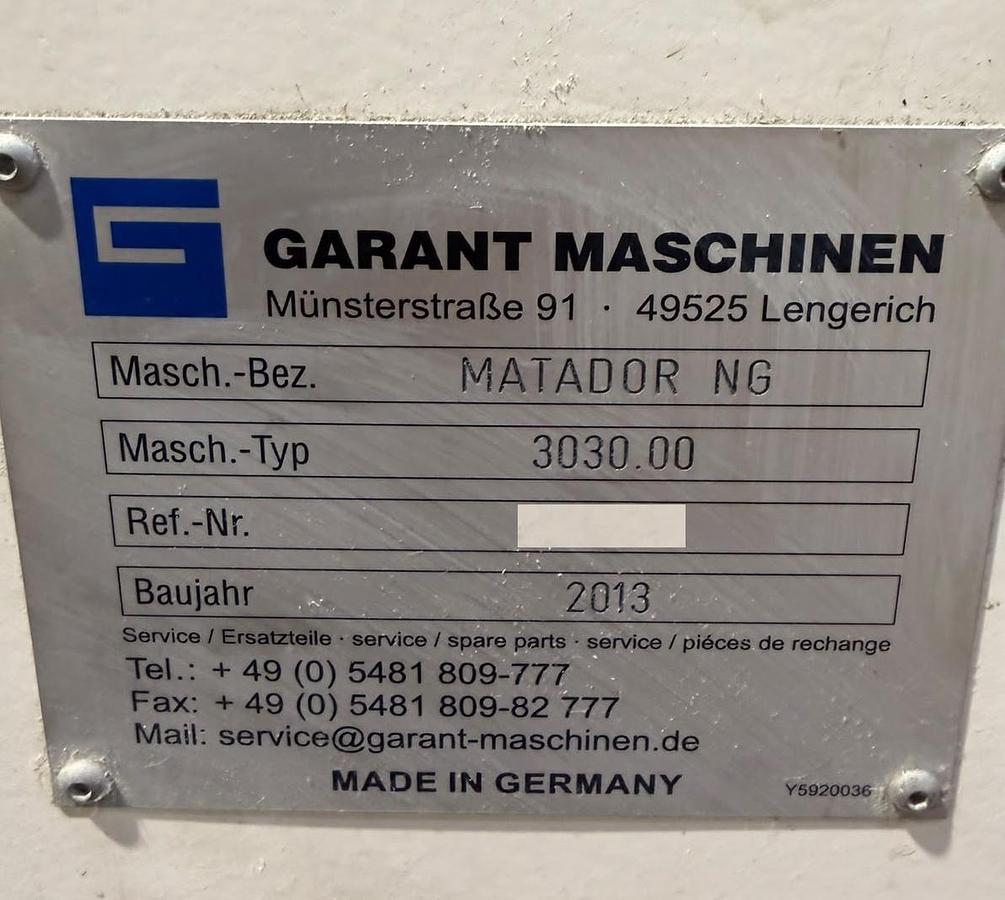

| Manufacturer | Garant Maschinen |
| Model | Matador NG/SERVO |
| Year | 2013 |
| Condition | Used (visible in production) |
| Bag types | Flat paper bags and side-gusseted (satchel) paper bags |

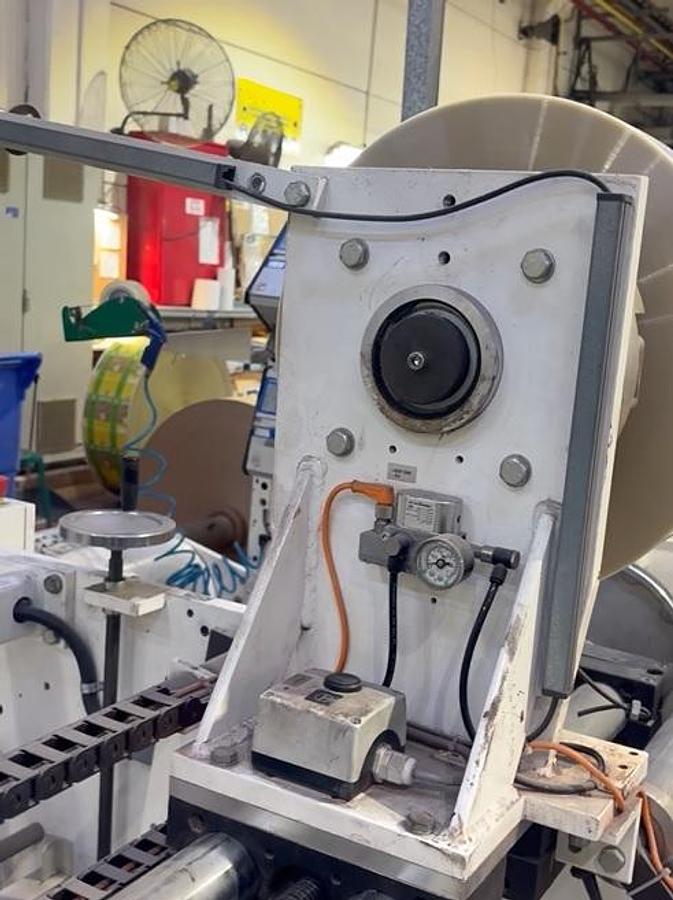

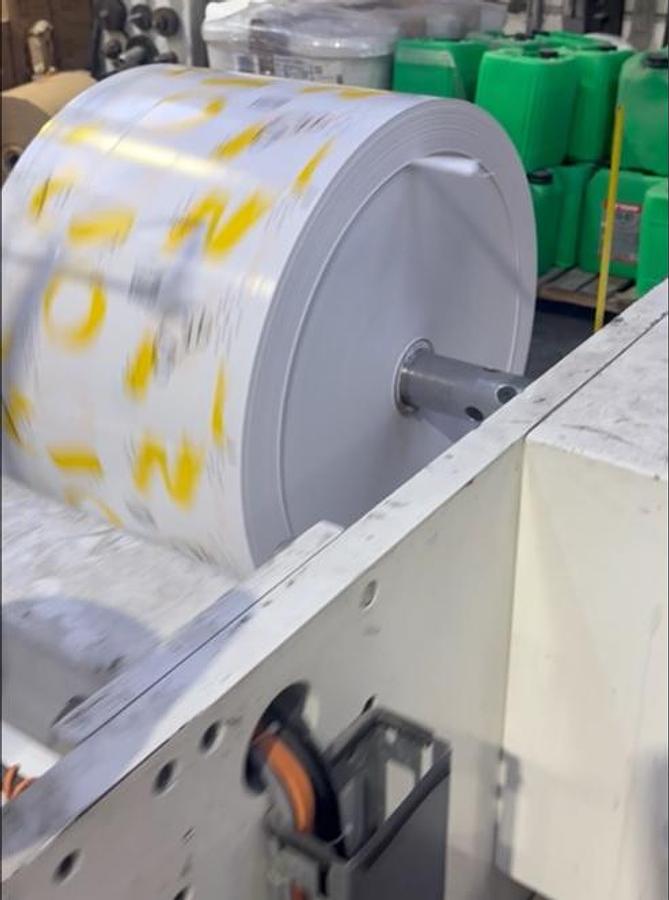

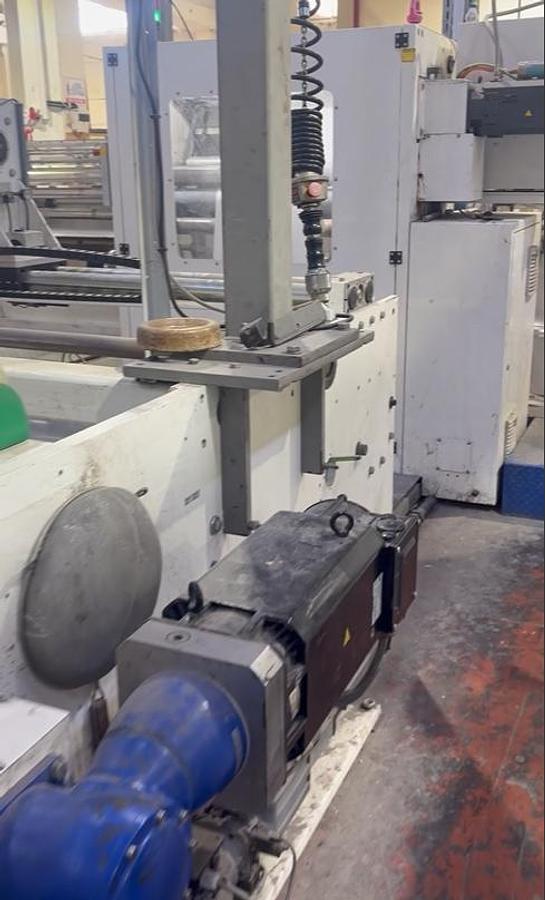

| Unwinder (Ref. 6974G) | Max reel diameter 1300 mm | Manual lateral width adjustment | Servo-driven reel braking and driving | Hydraulic reel loading system | Pneumatic expanding shaft, diameter 76 mm (3") | Web break detection sensor |
| Bag width (min - max) | 60–380 mm |
| Cut-off length with 2 stations | 160–380 mm |
| Cut-off length with 1 station | 381–760 mm |
| Max. side gusset depth | 70 mm |
| Maximum opened side gusset | 140 mm |
| Max. paper reel width | 1060 mm |
| Max. paper reel diameter | 1300 mm |
| Sight Strip / Window Application Unit (Ref. 6975G) | Sight strip arrangement, Designed for paper bags with transparent film windows | Maximum film width: 340 mm | Maximum film reel diameter: 600 mm | Pneumatic film shaft, 76 mm core diameter | Pneumatic brake | Film web break and end-of-roll sensors | Lateral adjustment across the working width | Nordson hot-melt gluing system with 2 application nozzles |

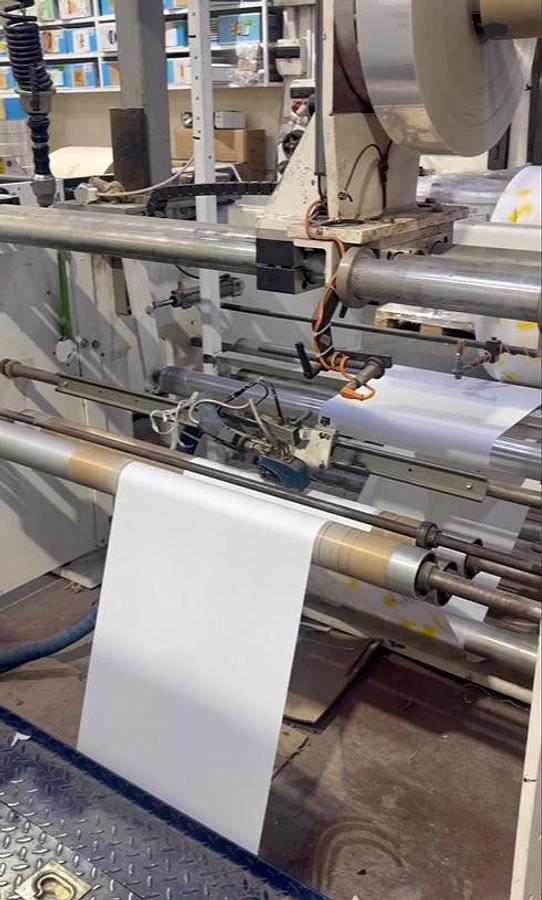

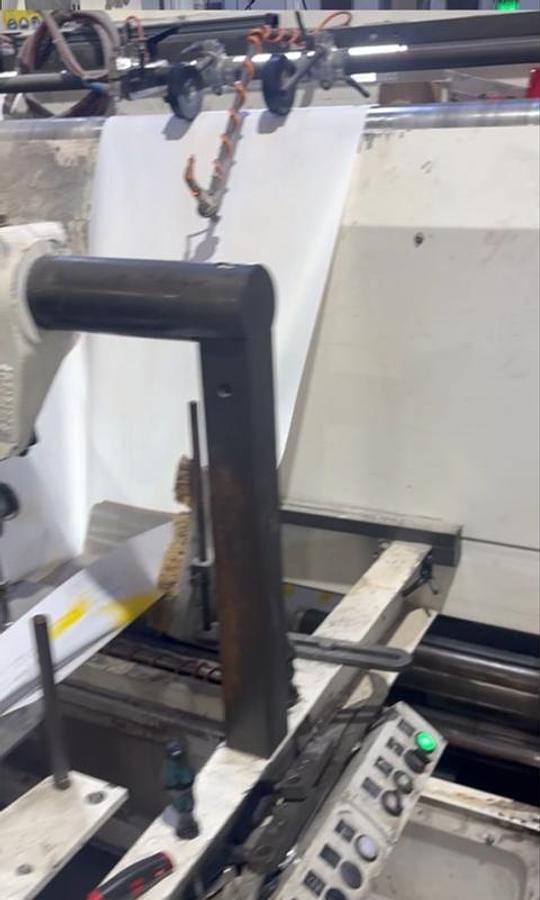

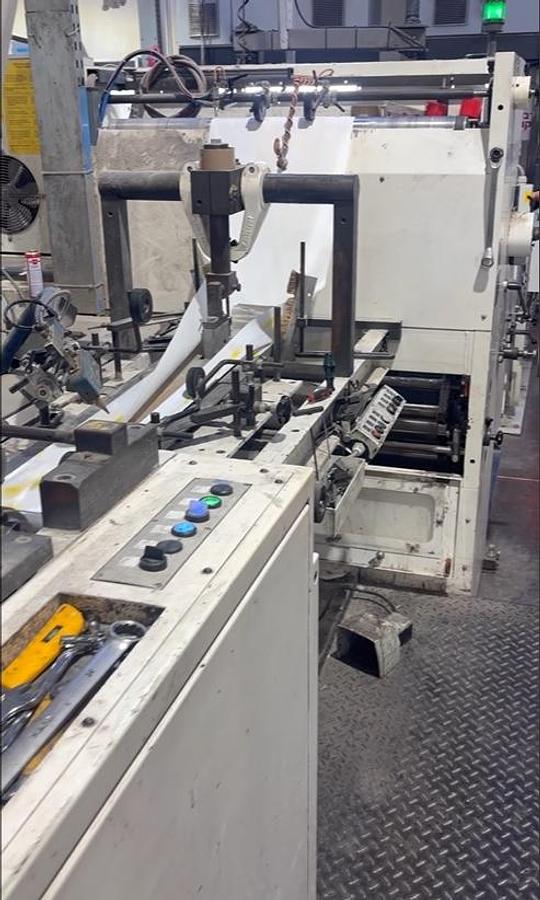

| Feeding, Perforating & Tube Forming | Servo-driven web feeding system | Adjustable web tension control | Servo-driven perforating shaft with water cooling | Cooling unit | Perforated cuff/flap height: 15 mm | Tube forming table with interchangeable size plates | Side gusset forming blades | Pneumatic draw rollers | Servo-driven draw unit with direct drive | Electronic cut-off length adjustment via touchscreen | Cut-off length adjustment in 1 mm increments | Web tension fine adjustment in 0.1 mm increments | Quick-change draw unit system | Electronic registration photocell for pre-printed paper |

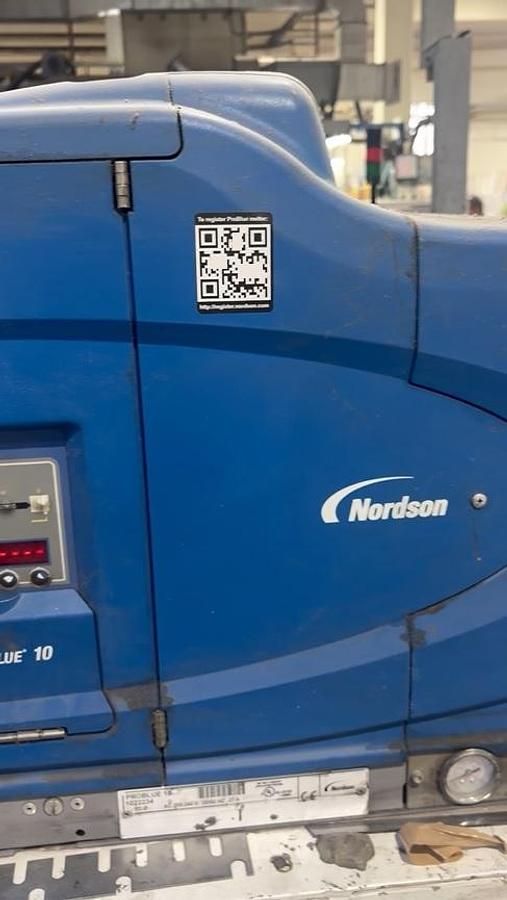

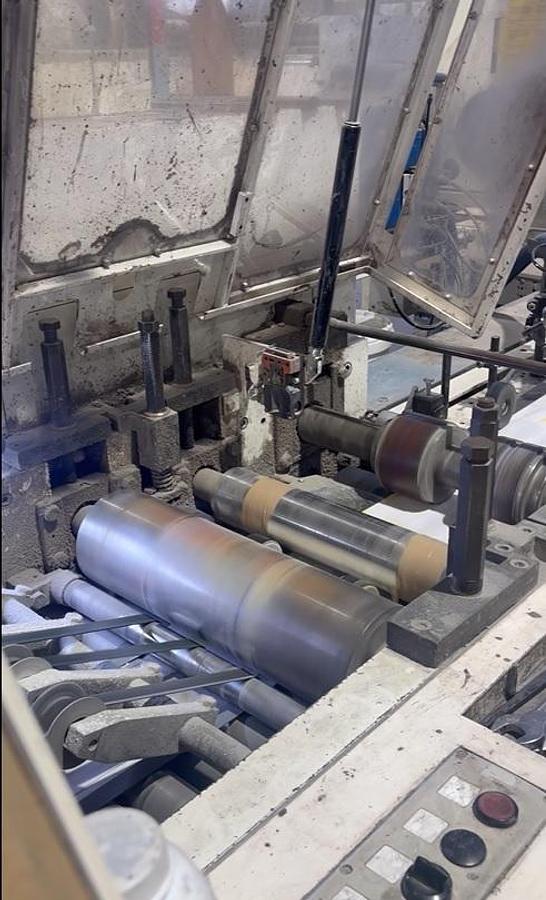

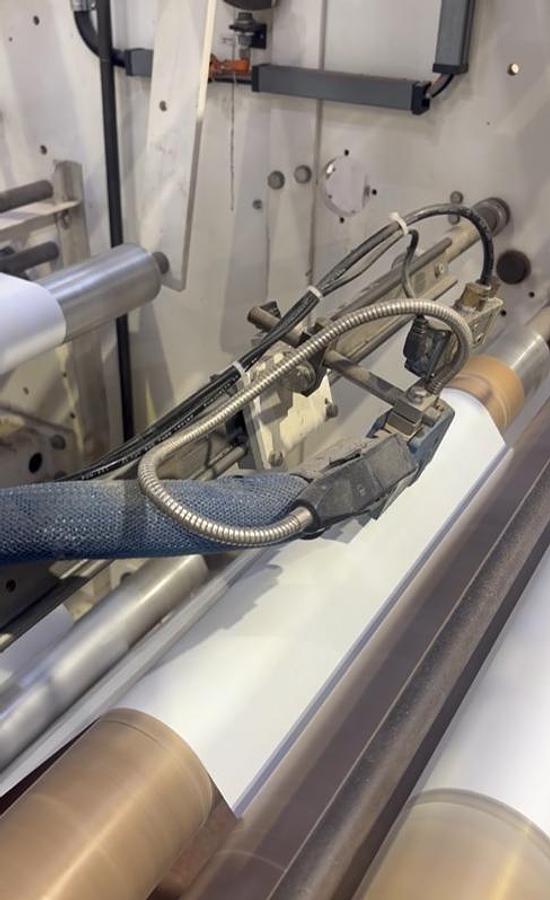

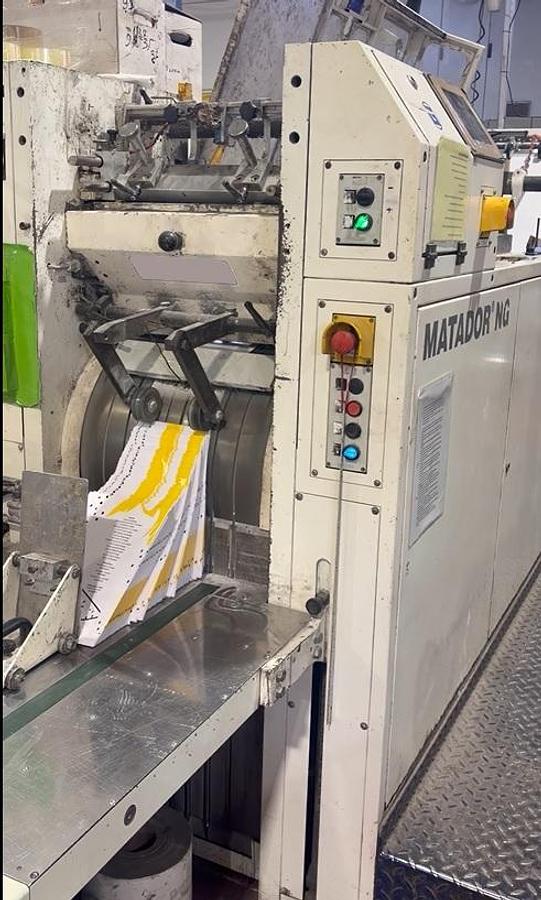

| Bottom Forming & Gluing | Tear-off unit with adjustable cutting position | Motorized 360° tear-off adjustment for bottom cuff setting | Top folding cylinder with cam-controlled folding blade and paste pad | Bottom folding cylinder with cam-controlled folding blade | Servo-driven bottom pasting roller | Pneumatic glue roller lift-off | Automatic glue refill and level control | Nordson seam pasting system with contactless application nozzle | Automatic glue quantity adjustment according to production speed |
| Electrical & Control System | Siemens S7 PLC | Siemens servo motors | Electronic line shaft synchronization | Low-maintenance timing belt drives | Touchscreen operator panel | Digital speed and fault indication | Job storage and retrieval system for up to 100 production recipes | Electrical connection: 400 V – 50/60 Hz | Installed electrical load: 75 kVA |
| Delivery Section | Height-adjustable delivery table | Belt conveyor for finished bag bundles | Adjustable bag counter |
| Additional information | Electrical control cabinet and connecting cables | Automatic registration system for pre-printed paper | Hydraulic reel loading system | Transparent window application unit |
