2004 GARANT NP-38/SERVO - Flat & satchel paper bag making machine
2004 GARANT NP-38/SERVO - Flat & satchel paper bag making machine
Location:
Description
Pre-owned GARANT MATADOR NP-38/Servo year 2004, flat and satchel paper bag making machine, equipped with servo-driven draw units and a photocell registration system for processing pre-printed paper reels.

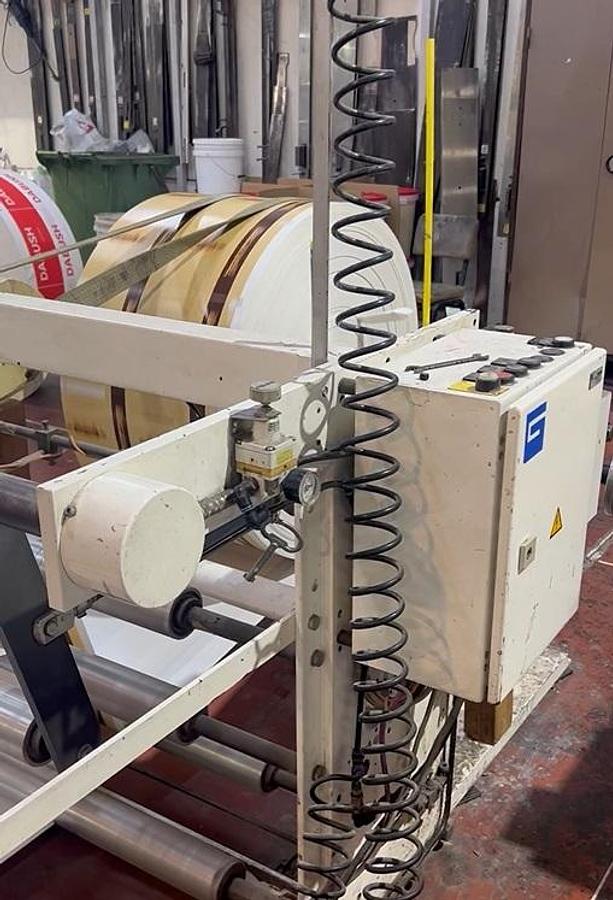

The machine features a mono unwinder for reels up to 1,300 mm in diameter, with hydraulic reel lifting, a perforating station, a tube forming section with interchangeable format plates and side gusseting equipment, and a tear-off unit. The servo-driven draw units ensure precise web tension control and allow electronic adjustment of the cut-off length via the operator panel, without the need for changing gears.
The machine is equipped with a Siemens PLC, an operator display for production speed and format adjustments, and an oil circulation lubrication system.
The machine is in good working condition, currently in daily production, and available for inspection in operation.
Visible in production in Middle-east and available for sale, subject to prior sale.
Specifications
| Manufacturer | Garant Maschinen |
| Model | MATADOR NP-38/SERVO |
| Year | 2004 |
| Condition | Used (visible in production) |
| Type | Flat & satchel paper bag making machine |
| Max. reel width | 1060 mm |
| Max. reel diameter | 1300 mm |
| Bag width (min - max) | 60 – 380 mm |
| Cut off lenght (min - max) | with 2 station 200 - 300 mm | with 1 station 301 - 600 mm |
| max. side gusset width | 140 mm |
| Photocell for pre-printed material | Yes |
| Output (depending on bag size and paper quality) | with 2 stations: max. 1.200 bags/min | with 1 station: max. 600 bags/min |
| Operator panel | Display with speed indication of bag per minute, operation of the photocell adjustment, adjustment of the cut-off length |
| Electrical connection | 230/400 V, 50/60 cycles |
| Visible in operation | yes |
