La Meccanica Fumagalli | Slitter-Rewinder for paper rolls (overhauled)
Location:Italy
Available quantity:1
or
Call +39 346 4948054
Description

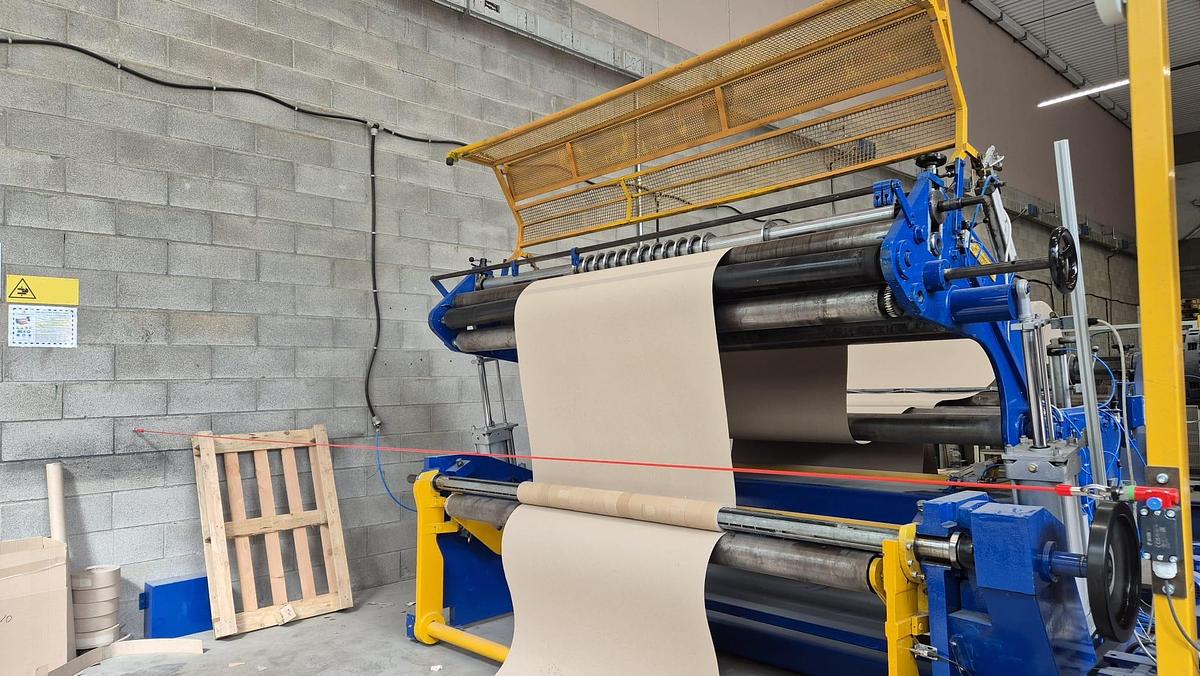

Overhauled Slitter-Rewinder La Meccanica Fumagalli for paper rolls.
The slitter rewinder suitable for processing paper, with a Max. working width of 1,650 mm.
The machine features a maximum unwind and rewind roll diameter of 1,500 mm, automatic web tension control with electronic load cells, an air-cooled pneumatic unwind brake, a 45 kW inverter-controlled main motor and a finished roll unloading device.

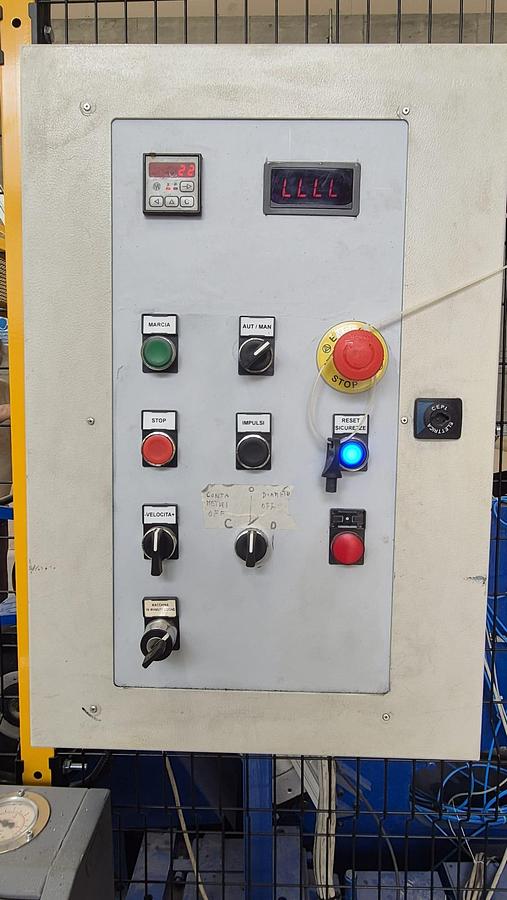

The machine has been overhauled and is equipped with a new electrical control panel and a safety PLC.
Test possible on request,
Available for sale.
Specifications
| Manufacturer | La Meccanica Fumagalli |
| Model | Slitter-Rewinder for paper rolls |
| Condition | Used (test possible on request) |
| Max. unwind roll diameter | 1,500 mm |
| Max. rewind roll diameter | 1500 mm |
| Min. rewind core inside diameter | 76 mm (3") |
| Working width | 1050 – 1650 mm |
| Main motor power | 45 kW (inverter controlled) |
| Max. mechanical speed | 600 m/min |
| Paper grammage | 30–1000 gsm |
| Unwind braking system | Air-cooled pneumatic brake |
| Web tension control | Automatic, with electronic load cells |
| Finished roll unloading device | Included |
| Speed tachometer | Included |
| Meter counter | Included |
