2016 CAVALLERI CT14 SYNCRO | Roll-to-Sheet sheeter

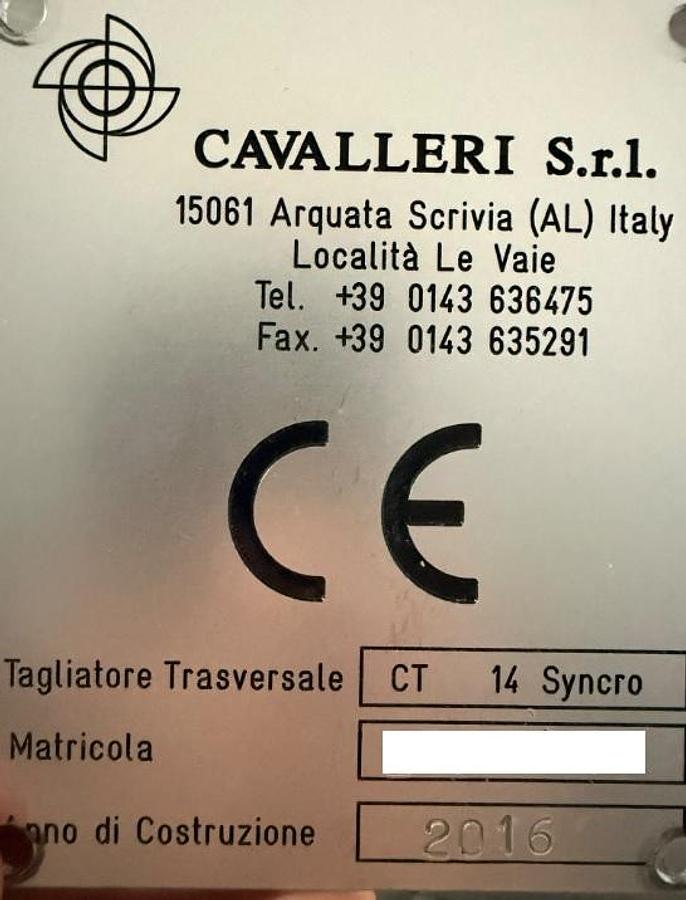

CAVALLERI CT14 SYNCRO – sheeter | Roll-to-Sheet - transversal cutting machine (year 2016)

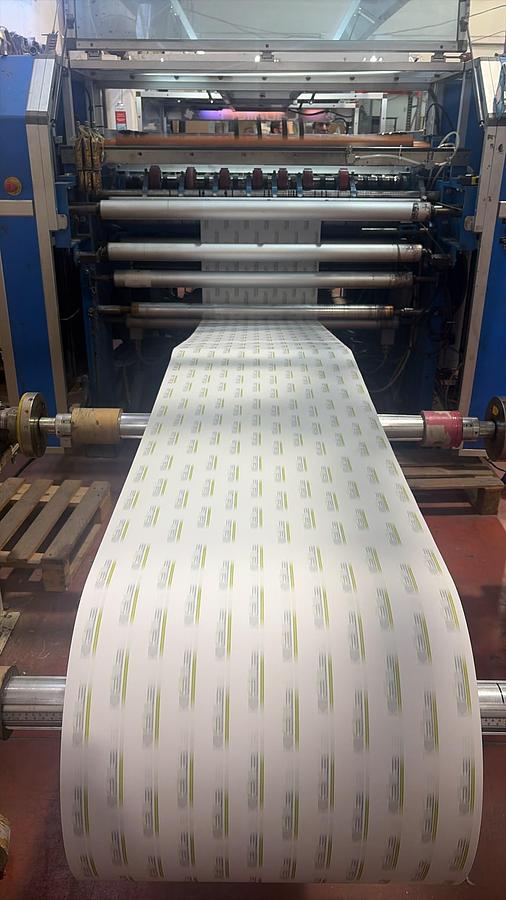

Automatic high-precision sheeter designed for cutting paper, tissue paper, cardboard, plastic films and various flexible materials directly from rolls.

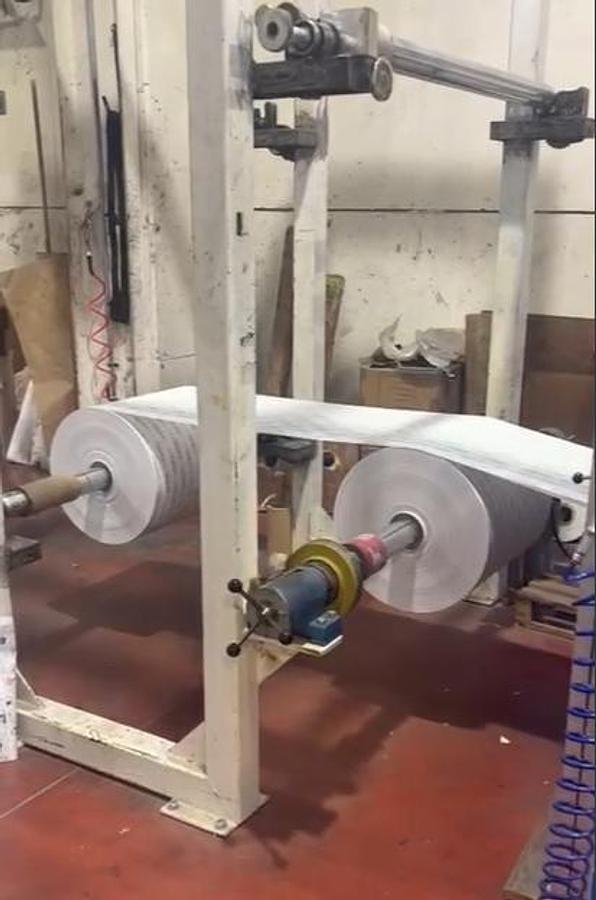

Equipped with 4 synchronized brushless motors, rotary cutting system, motorized longitudinal slitting, automatic high-pile stacking system, electronic ream counter with tab inserter, hydraulic reel lifting system and anti-static equipment.

Maximum working width: 1,200 mm | Cutting length: 250–1010 mm | Maximum speed: 175 cuts/min | Cutting accuracy: ±0.25 mm.

• Register control with reading through precision digital photocell;

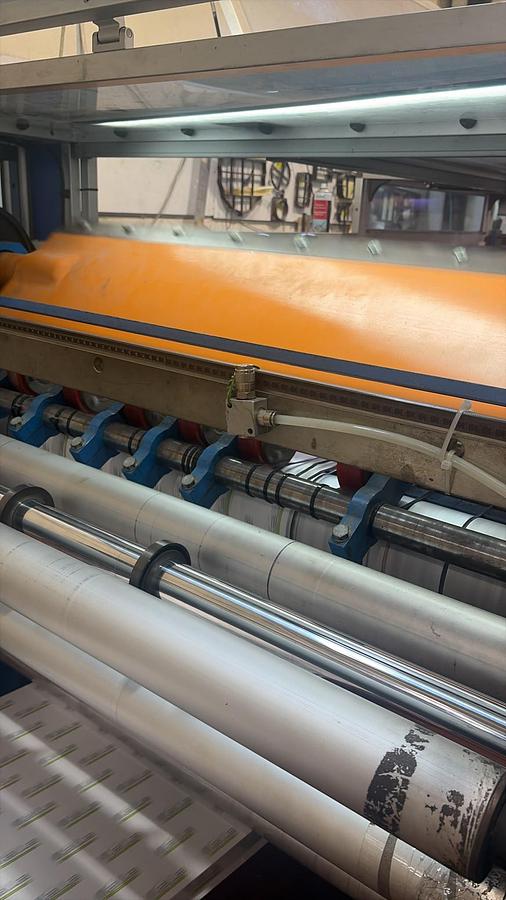

• Rotating cutting knife, mounted on strong bearing, with self-sharpening blades;
• Squaring electrical control system.

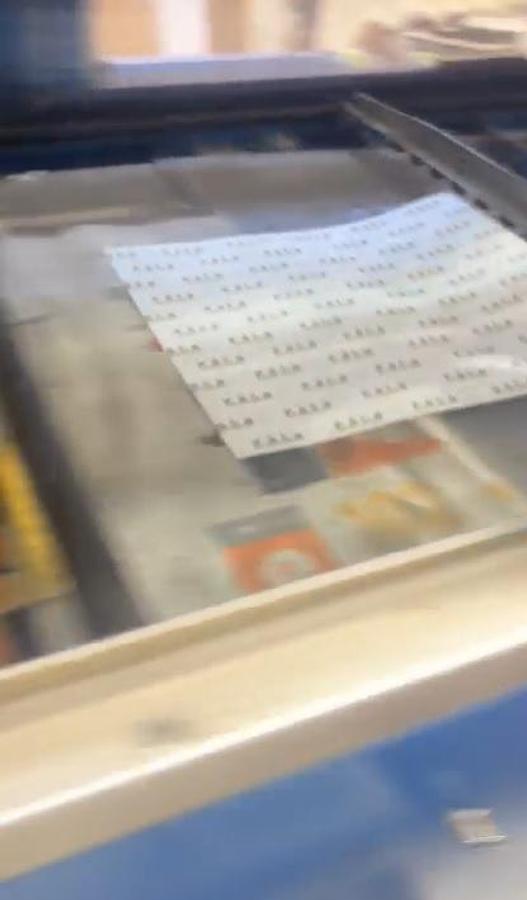

• Cut sheets are carried by conveyor belts and stacked the sheets (from 5 to 25) on a collecting drum.

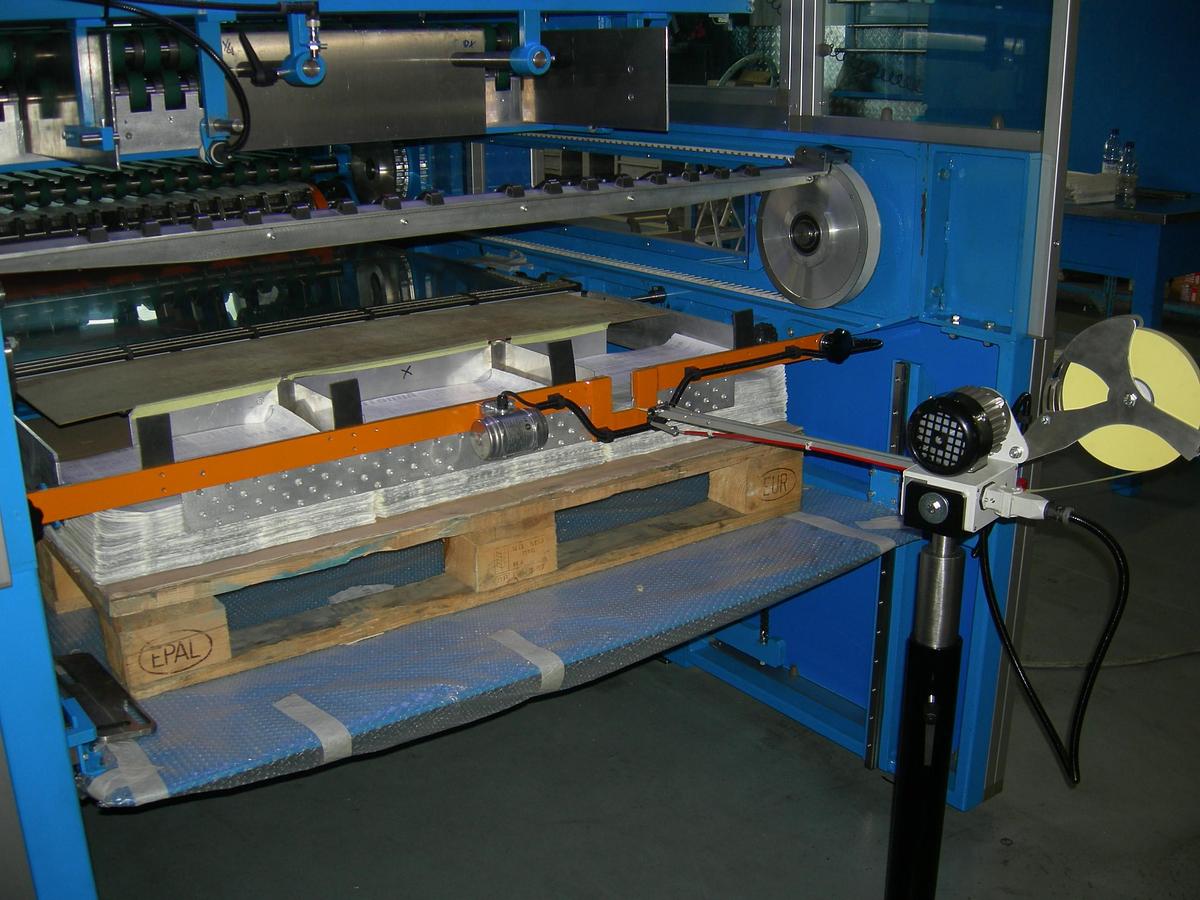

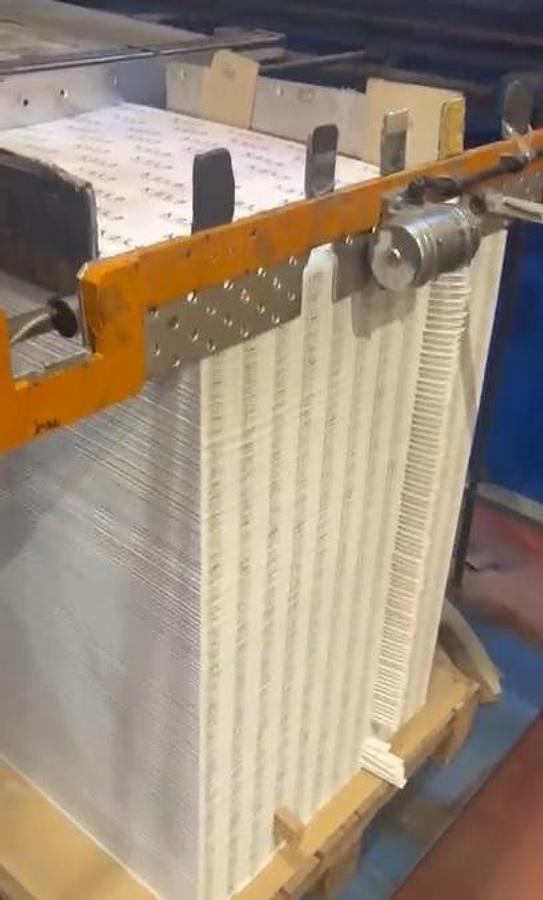

• Synchronized carrier takes the cut sheets from the drum, moves them and lays them down softly on a high pile collecting table. Perfect reams are created by the high accuracy strike plates.
•  Motor–driven collecting table with optical proximity scanner, for high accuracy levelling without manual intervention.
• Upper and lower end-switches for high pile.

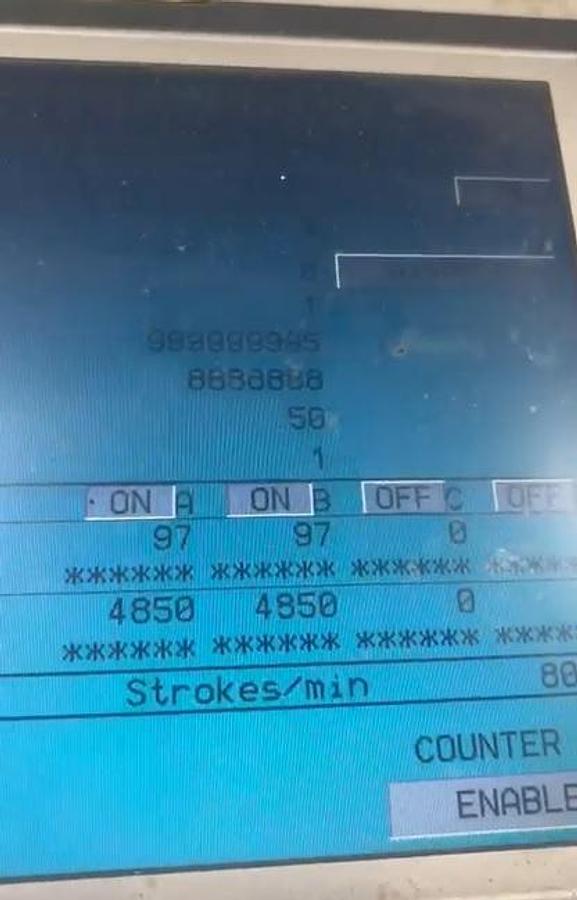

•  Control panel graphic colour 10.4” touch screen
•  Machine with electronic variator with synchronized axis and cut length input from the control panel; by which it is possible to get cut lengths from 250 mm to 1010 mm., speed variation plus other information concerning the production.
• 4 control brushless motors, one for every part of the machine, independent but synchronised themselves, maintenance free and with an high accuracy.

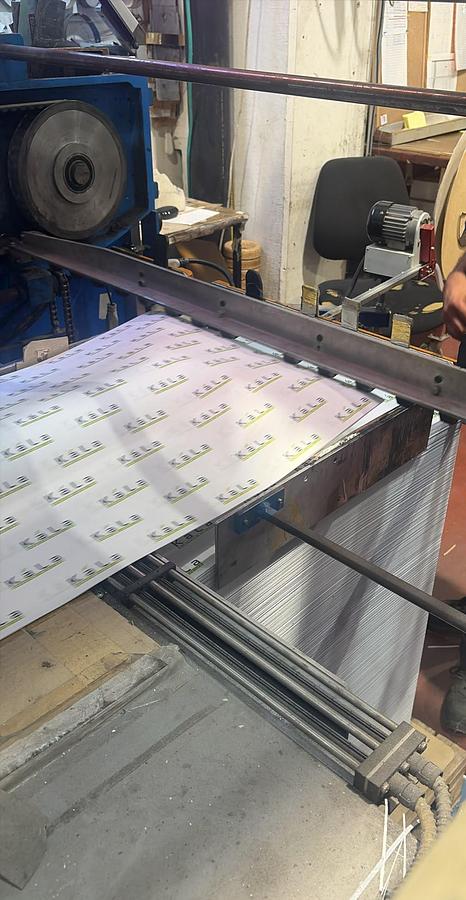

Currently in production.
