1999 FABIO PERINI 702G slitter rewinder + 2003 MACDUE packaging line | for production and packaging of tissue rolls
1999 FABIO PERINI 702G slitter rewinder + 2003 MACDUE packaging line | for production and packaging of tissue rolls
Location:Europe
Description
Pre-owned Fabio Perini 702G semi-automatic slitter rewinder line for AFH and industrial tissue rolls, complete with MacDue semi-automatic packaging equipment.
Tissue converting lines composed by:
- FABIO PERINI 702G slitter rewinder (1999)
- MACDUE packaging line (2003)

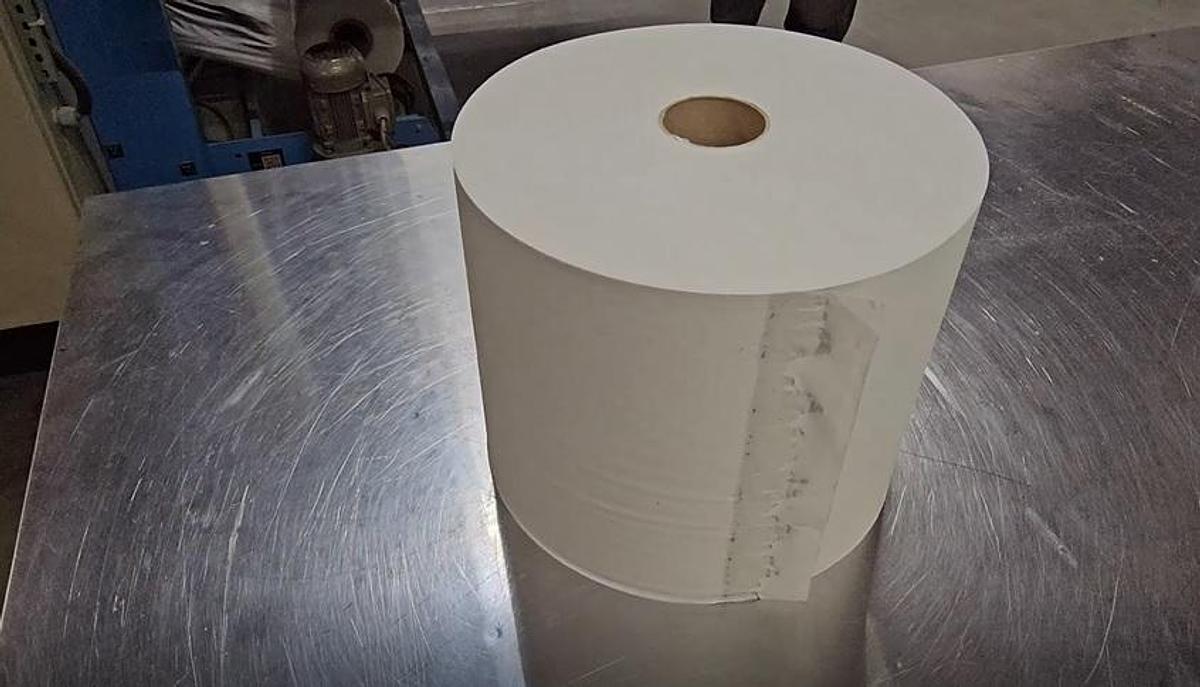

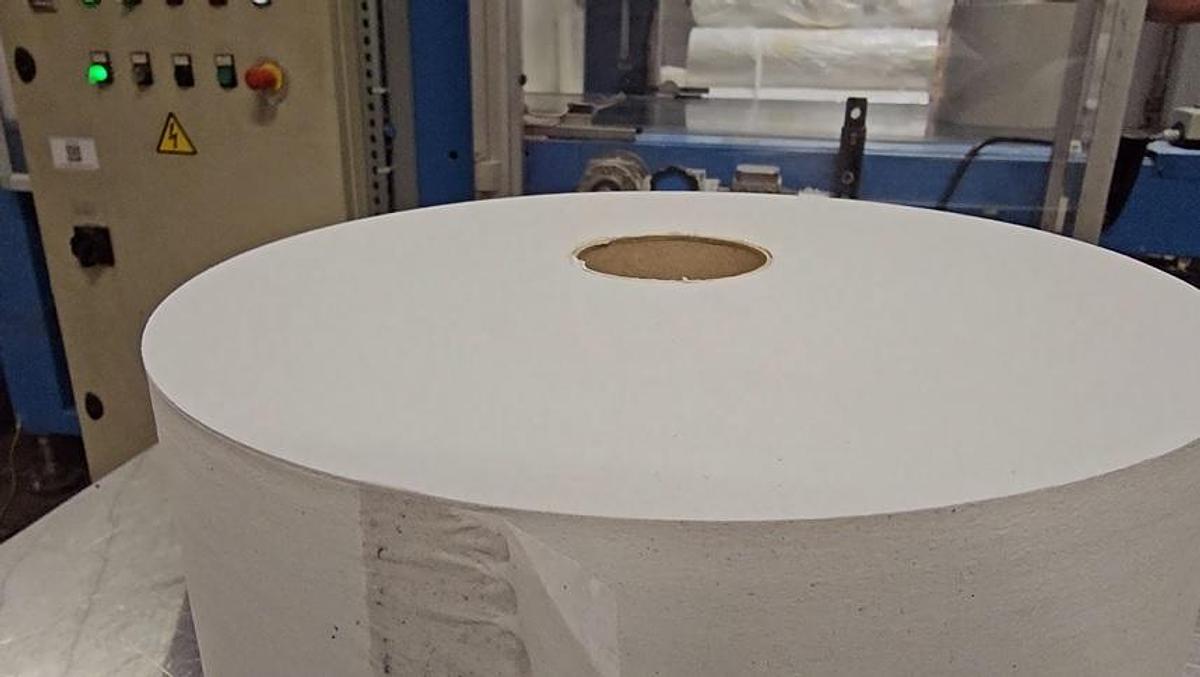

The line is suitable for the production of AFH / industrial toilet rolls, hand towel rolls, kitchen rolls and other industrial tissue rolls, with finished roll diameters from approximately 110 up to 600 mm.

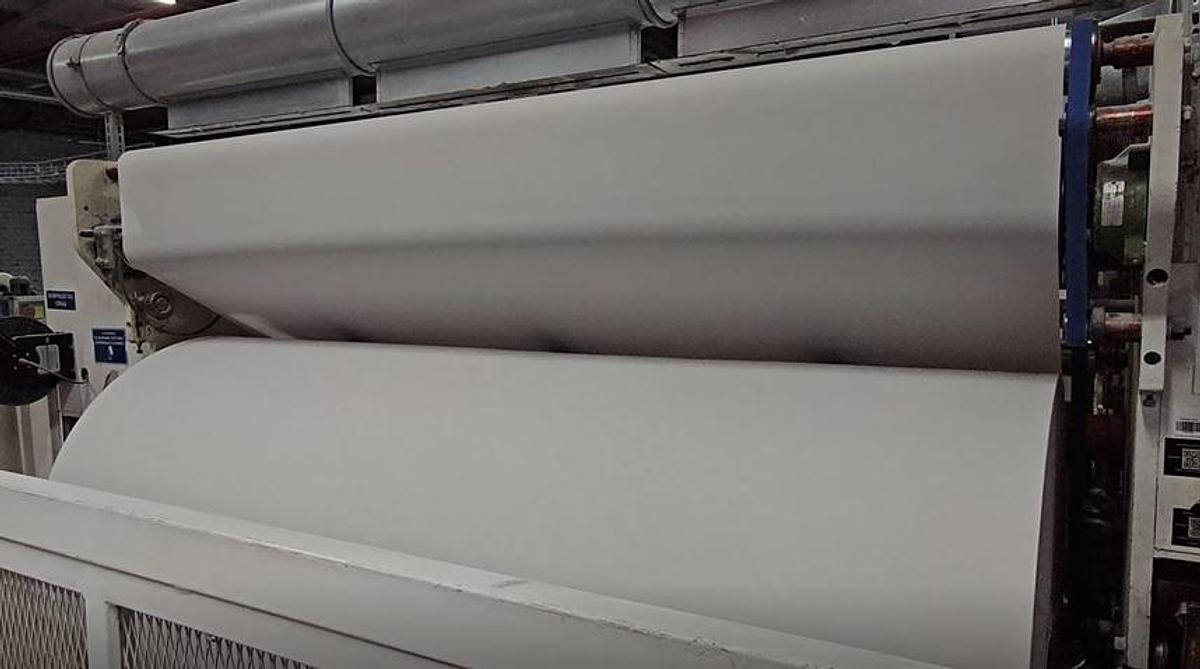

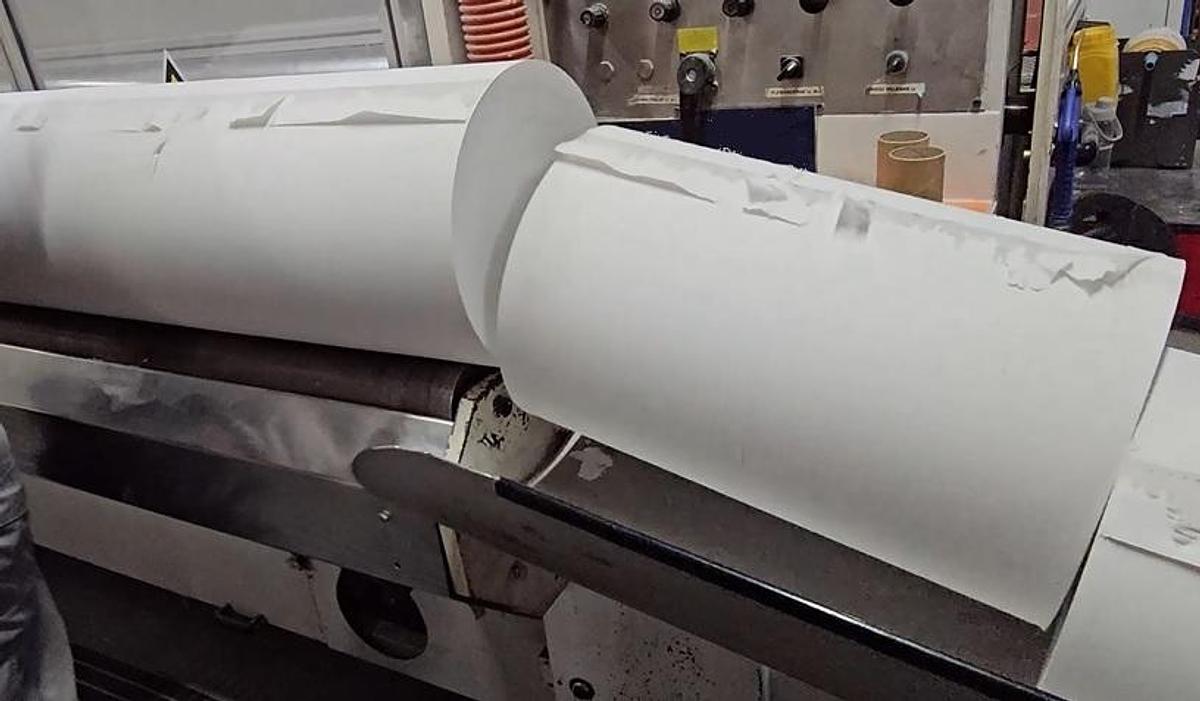

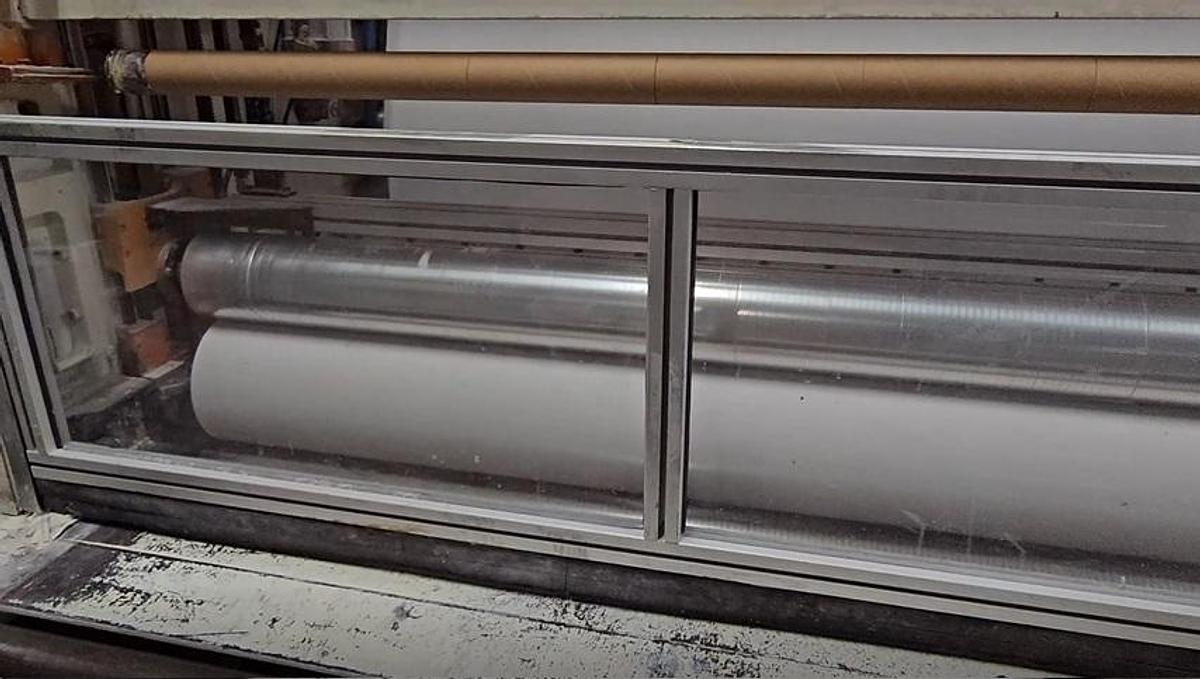

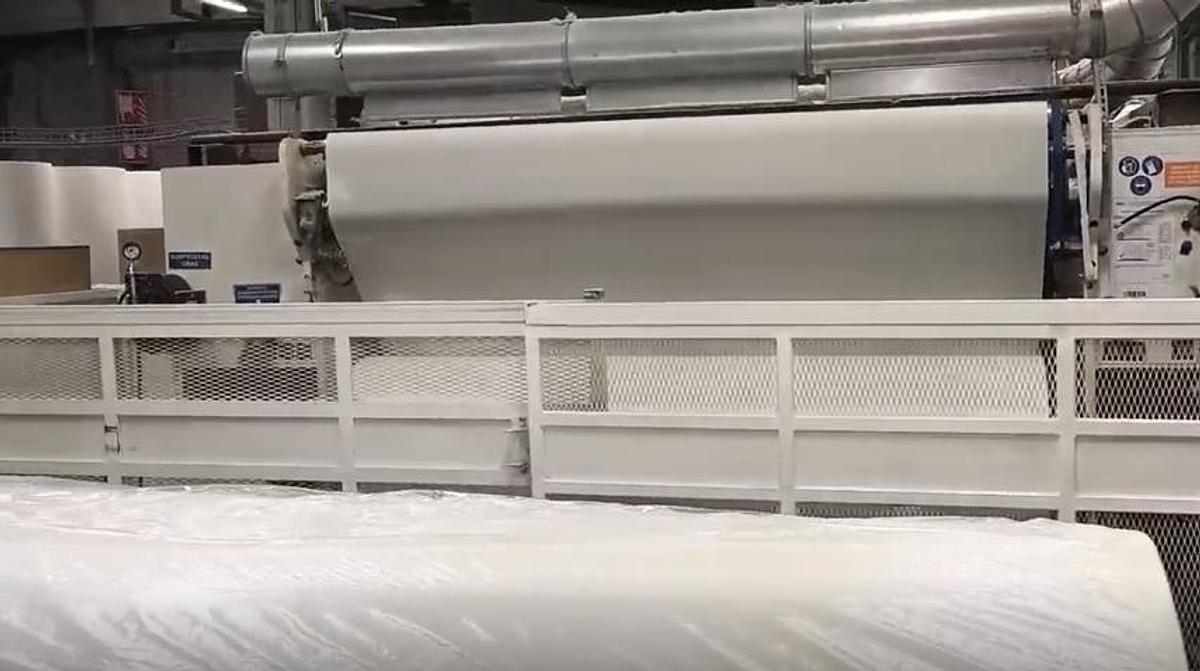

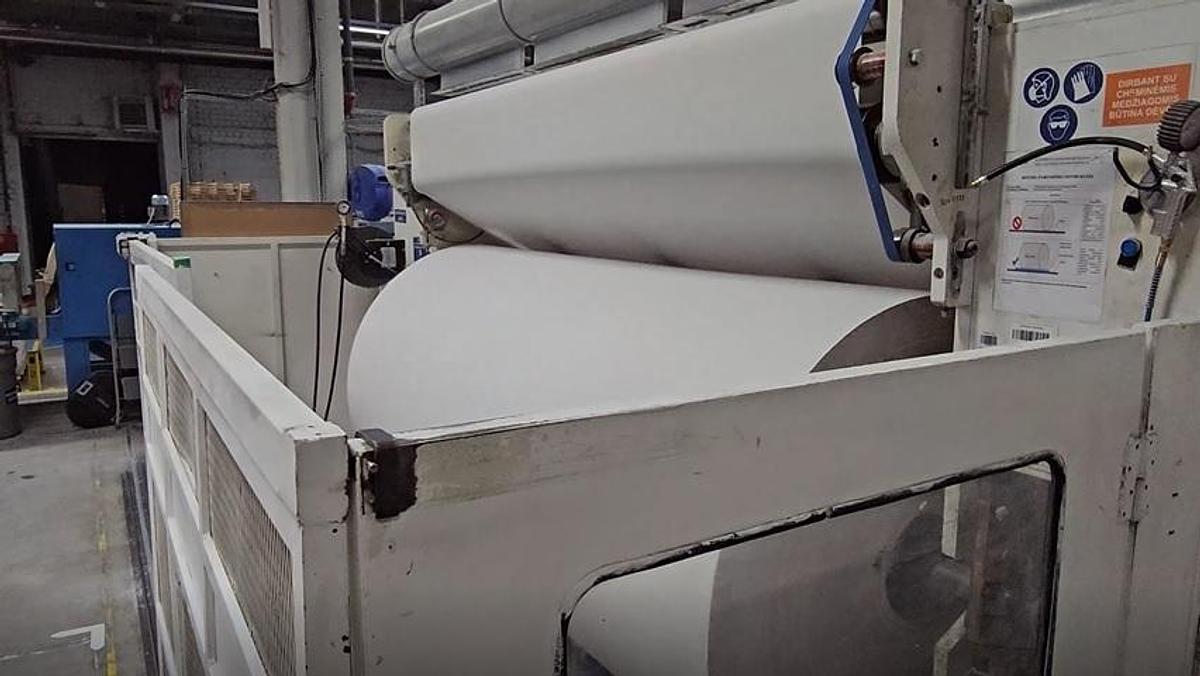

The main converting machine is a Fabio Perini 702G, originally manufactured in 1999. It is a start-and-stop, single-roll winding machine equipped with embossing, perforation, ply bonding, longitudinal slitting and tail sealing.
The machine can work with both removable and non-removable cores as well as in coreless configuration, using dedicated mandrels and adapters.

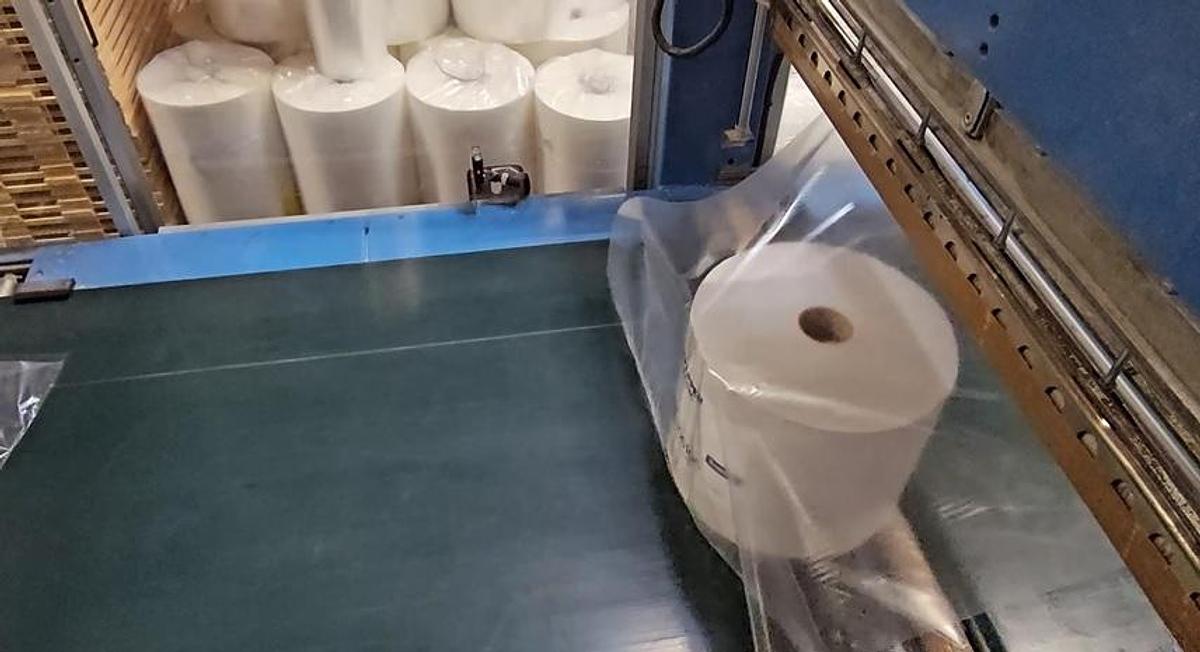

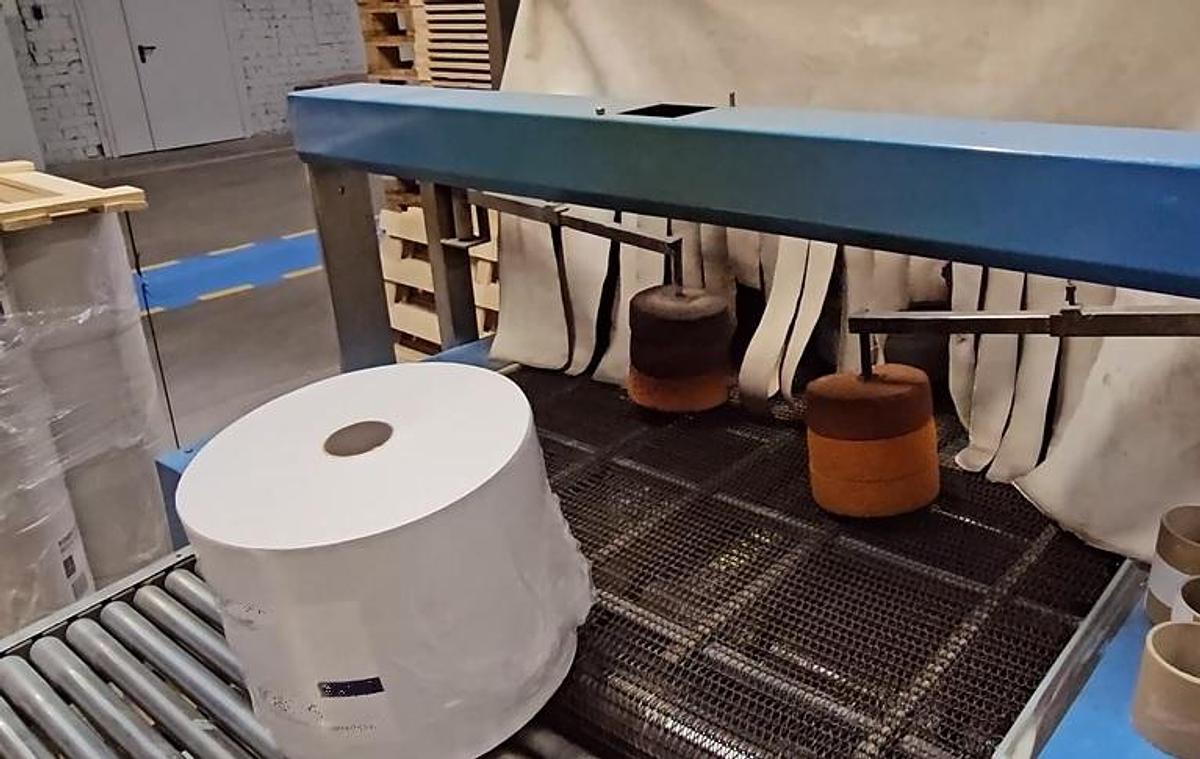

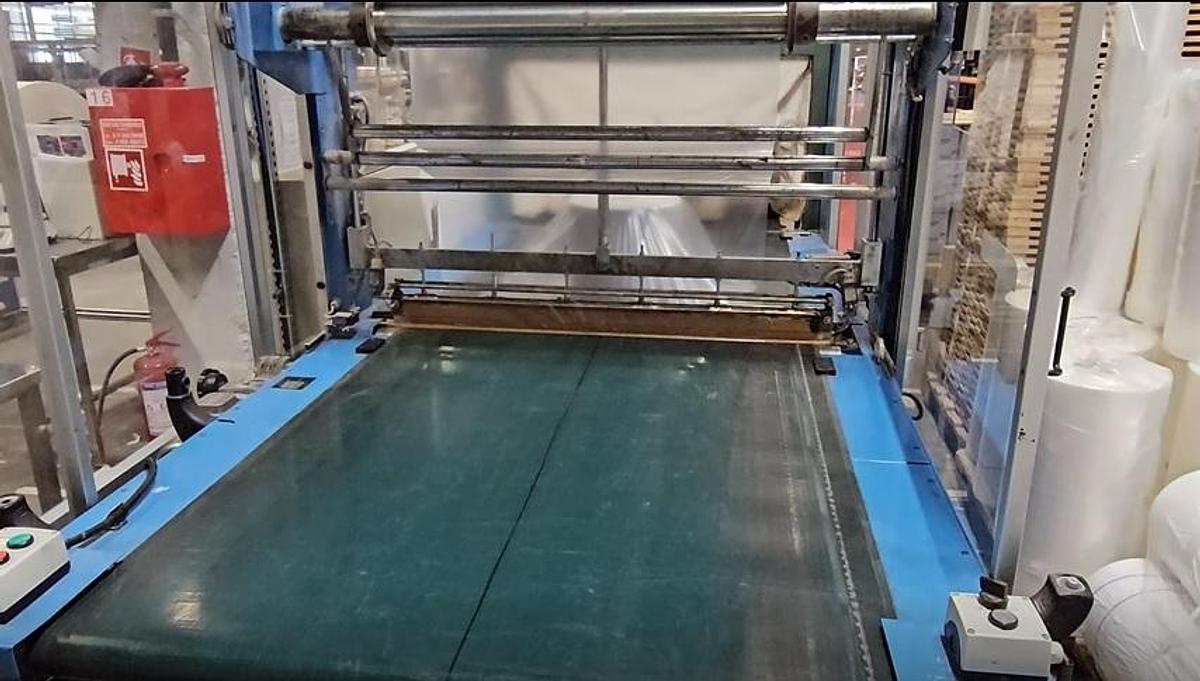

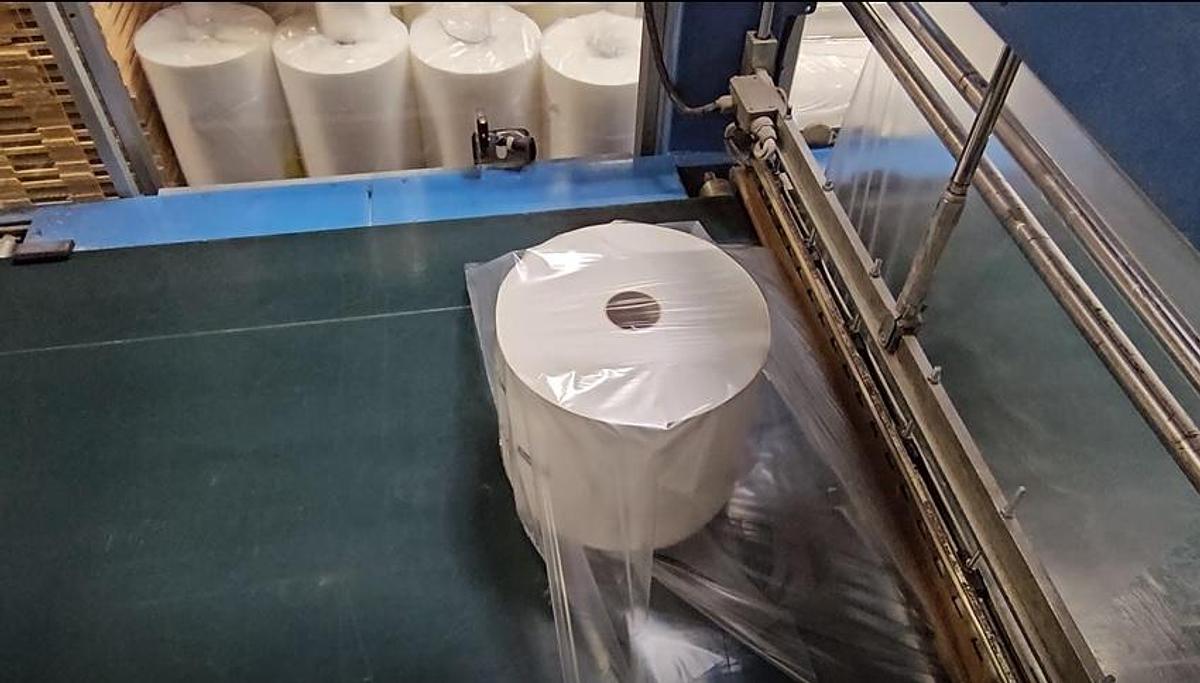

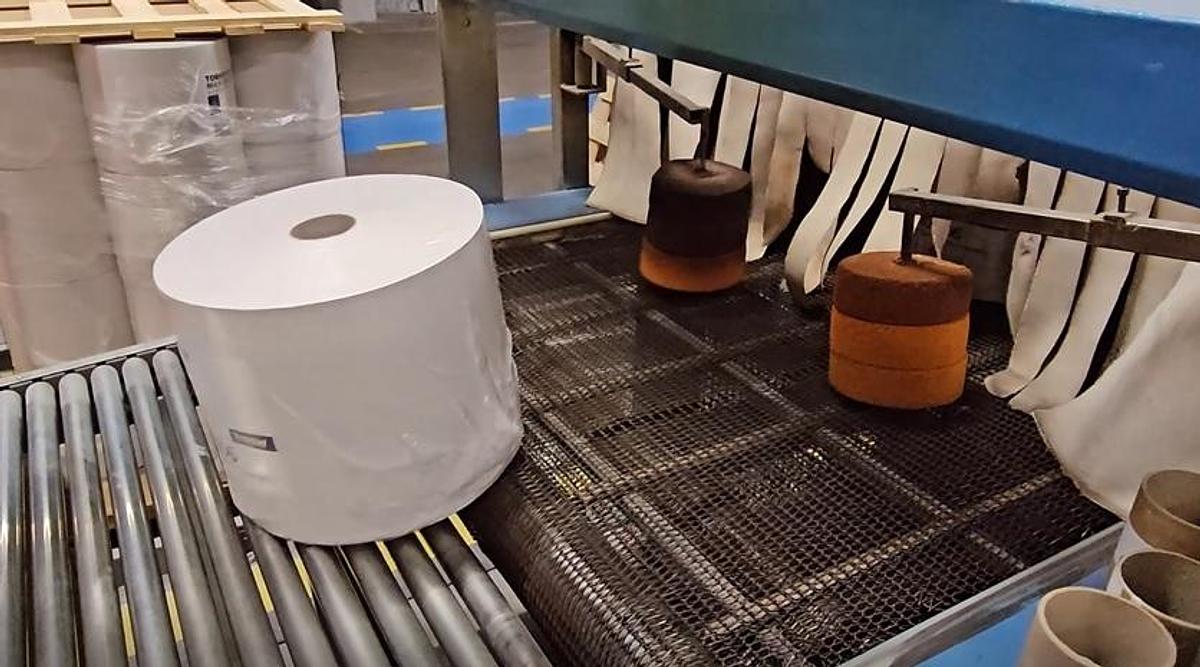

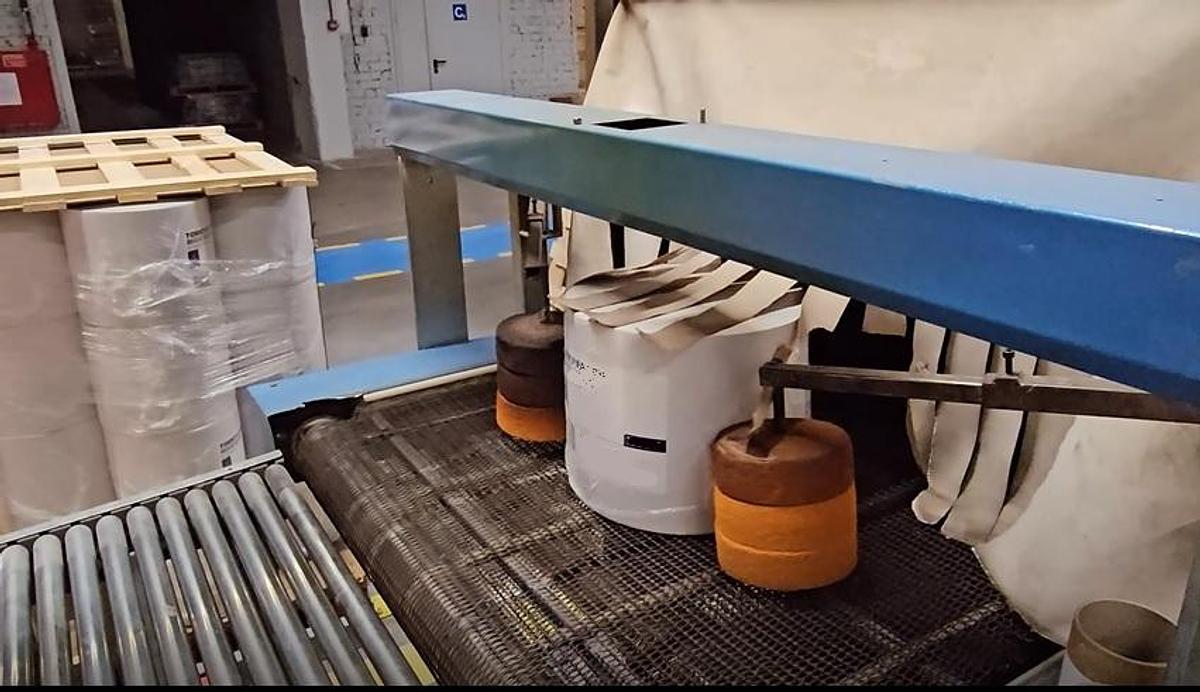

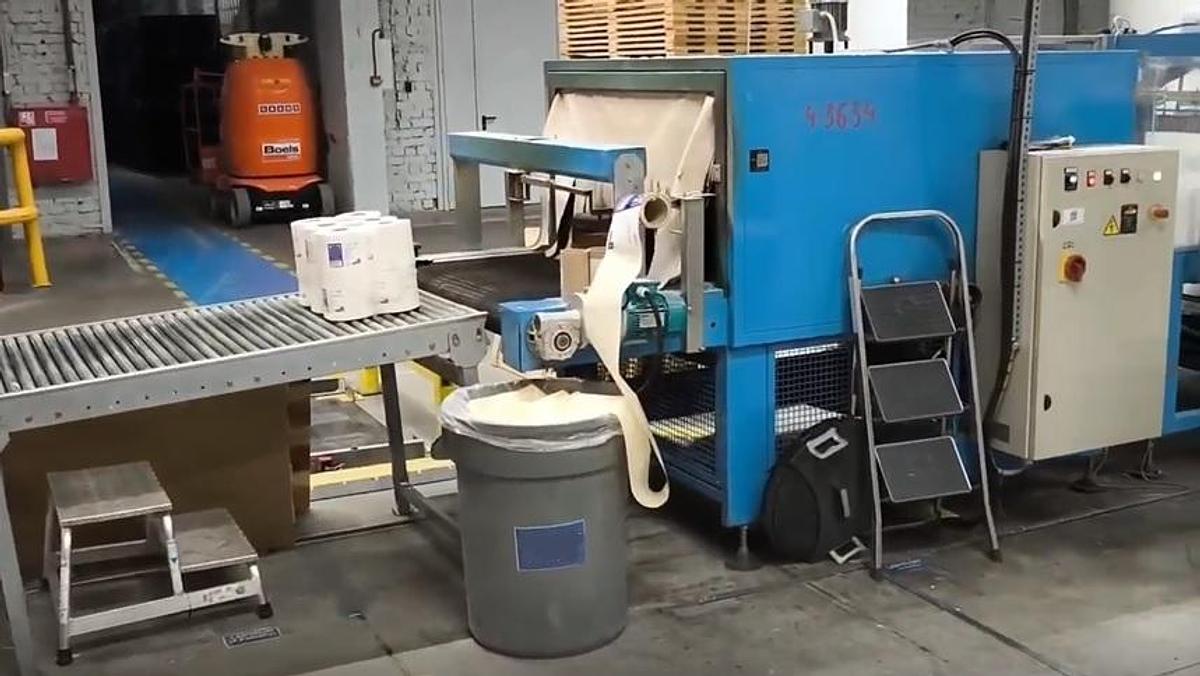

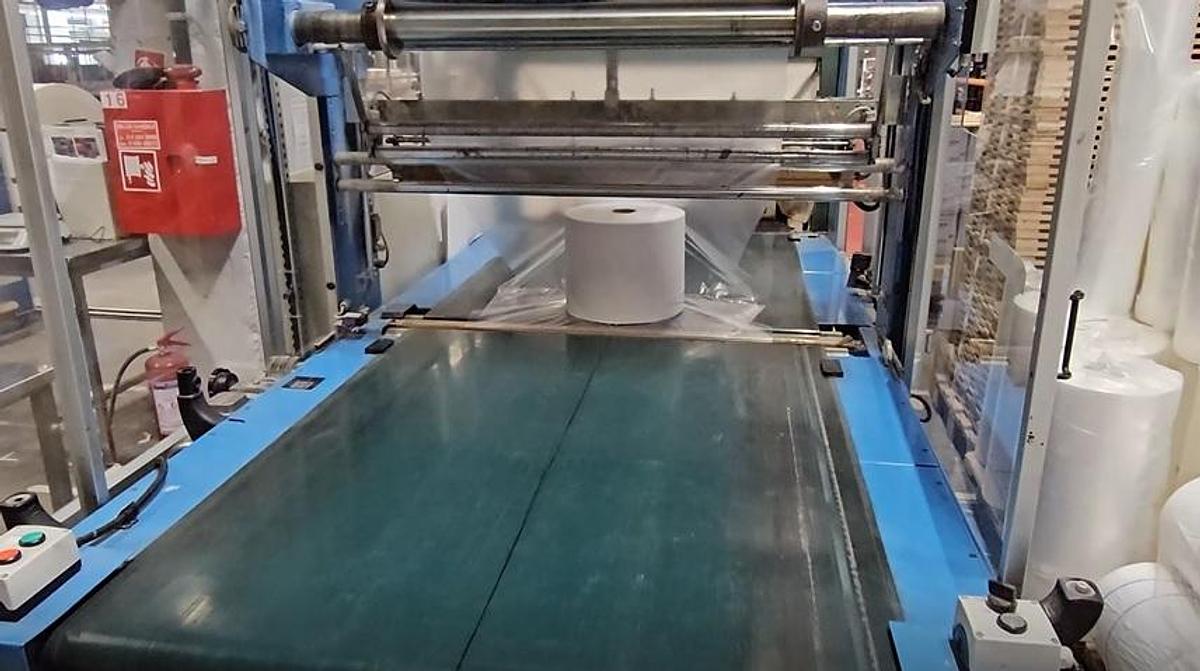

The converting section is completed by a MacDue H.100/A semi-automatic bag sealing and cutting machine and a MacDue T.100-40 shrink tunnel, manufactured in 2003.
The complete line is currently in production, regularly maintained and in good working condition.
The line is visible in production untill end of March 2027 and will be available for dismantling/delivery from April 2027.
Specifications
| Manufacturer | FABIO PERINI / MACDUE |
| Model | tissue converting line (702G slitter-rewinder + packaging line) |
| Condition | Used (visible in production) |
| CONVERTING SECTION – FABIO PERINI 702G | | |
| Year of manufacture | 1999 |
| Machine type | Semi-automatic slitter rewinder |
| Applications | AFH / industrial toilet rolls, hand towels, kitchen/industrial rolls |
| Winding system | Start & Stop, single-roll winding |
| Maximum line speed | Up to 450 m/min |
| Working width (min.-max.) | 1800 – 2800 mm |
| Mother Reel width | 2680 mm |
| Mother Reel diameter | 1500 mm |
| Mother Reel core diameter | 76 / 254 mm |
| Expanding shaft | 76 mm with adapters for 254 mm cores |
| Finished roll diameter (min.-max.) | 110–600 mm |
| Number of unwind stands | 1 |
| Embossing | Dot 13 dots cm2 | italian pattern 0001 |
| Perforation | 1 blade: 630 mm | 2 blades: 315 mm | 4 blades: 157 mm | possibility to run without perforation |
| Ply joining | Ply bonding system |
| Longitudinal slitting | Integrated |
| Minimum finished roll width | 70 mm |
| Roll width adjustment increment | 10 mm |
| Slitting blades installed | 23 working blades |
| Standard finished-roll core diameters | 60 / 71 mm |
| Core diameter working range | Approx. 25–85 mm with dedicated adapters |
| Core configurations | Removable core, non-removable core and coreless |
| Tail sealing | Traversing glue applicator |
| Electrical requirements | Rated voltage 400 V | Installed power 42 kW | Number of phases 3 | Frequency 50 Hz | Short-circuit breaking capacity 50 kA |
| PACKAGING SECTION – MACDUE mod. H.100/A + T.100-40 | | |
| Year | 2003 |
| Packaging system | Semi-automatic bag sealing and cutting unit | The semi-automatic heat tunnel shrink-wraps bags of paper rolls by applying circulating hot air. |
| Product loading and unloading | Manual |
| Maximum bag dimensions | Width 1,000 mm / Height 400 mm / Length up to 800 mm |
| Conveyor speed | Adjustable by potentiometer |
| Electrical requirements - MACDUE mod. H.100/A | Voltage 400 V Frequency 50 Hz Installed power 3 kW |
| Electrical requirements - Shrink tunnel model T.100-40 | Voltage 400 V Frequency 50 Hz Installed power 32 kW |
| Visible in operation | yes |
