2017 DCM IM 183 | Flexopress for already made bags
Featured

2017 DCM IM 183 | Flexopress for already made bags
Location:Europe
Available quantity:1
or
Call +39 346 4948054
Description

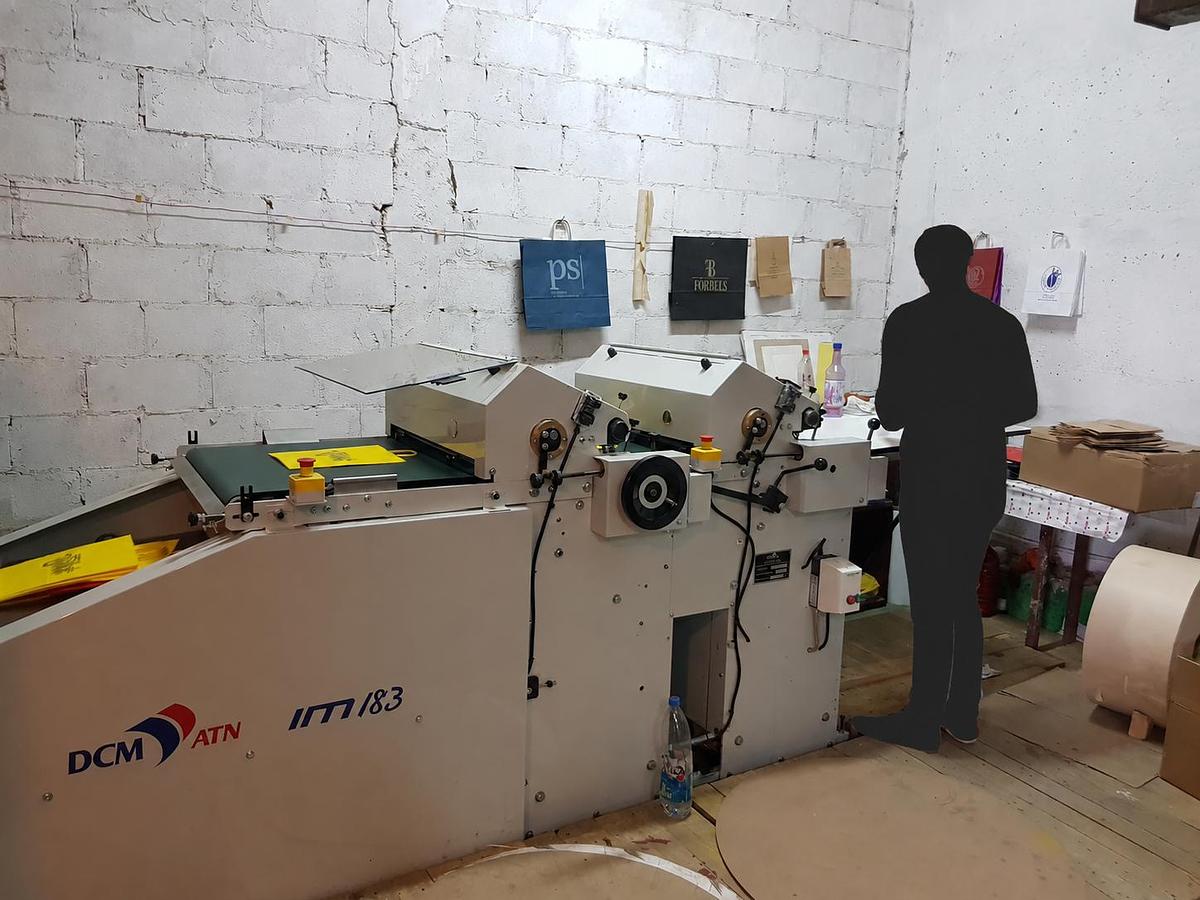

Pre-owned DCM model IM183 - year 2017 (very few working hours, in perfect condition and visible in production).
This flexo printing machine is very practical for printing small or medium-sized runs of paper bags, plastic bags, woven and non woven bags or thin corrugated board in one to three colours in register using a conveyor.
The bags are manually placed in front of locating indexes for feeding into the machine. For a good print registration, the bags are transferred on a conveyor belt between the colors. The bag is carried out through the printing units on a flat belt. The printing is done by standard flexo plates.
Specifications
| Manufacturer | DCM |
| Model | IM 183 |
| Year | 2017 |
| Condition | Used |
| Nr. of printing units | 2 colors |
| Max. bag size | Width: 525 mm x Length: 600 mm |
| Max. print surface | Width: 480 mm x Length: 500 mm |
| Stereo thickness with glue | 3 mm |
| Max. speed | 900 up to 2400 bags per hours |
| Additional information | The machine is composed by: Stereo cylinder, Rubber inking cylinder, steel doctor cylinder, Nip rollers, Ink tray |
| Visible in operation | Yes |
