AKPORT AP SERIES - LDPE 60/1100 - BIO | Blown film extrusion line | year 2022 (never used for production)
AKPORT AP SERIES - LDPE 60/1100 - BIO | Blown film extrusion line | year 2022 (never used for production)
Location:Europe
Available quantity:1
or
Call +39 346 4948054
Description
AKPORT AP Series LDPE 60/1100 blown film extrusion line, manufactured in 2022 but never used for production.
The machine was purchased brand new and it was only operated for initial testing/commissioning purposes .

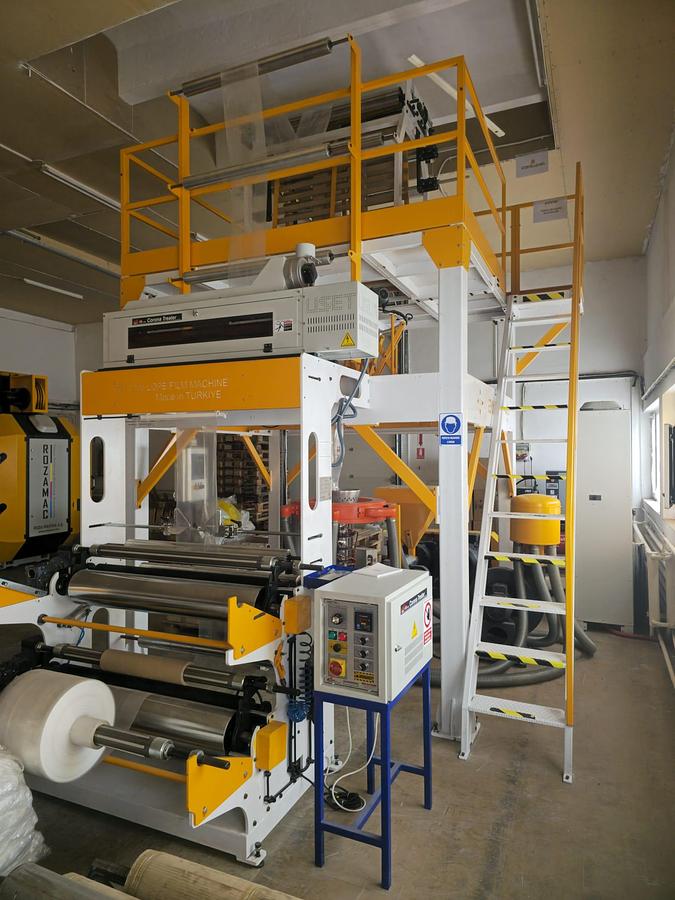

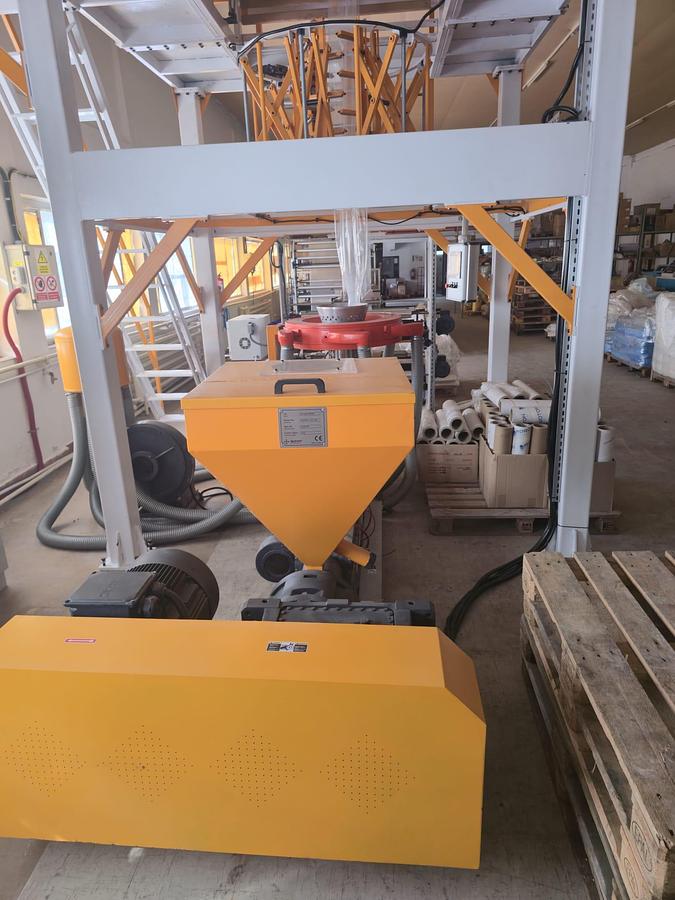

Designed for the production of LDPE and cornstarch-based film, the machine offers a maximum film width of 1,000 mm and a stated production capacity of up to 70 kg/hour. It is equipped with a Ø60 mm extruder, rotating die, fixed 5,000 mm tower, automatic bubble guide, corona treatment and back-to-back winding unit.
The machine is currently installed and available for sale.
Specifications

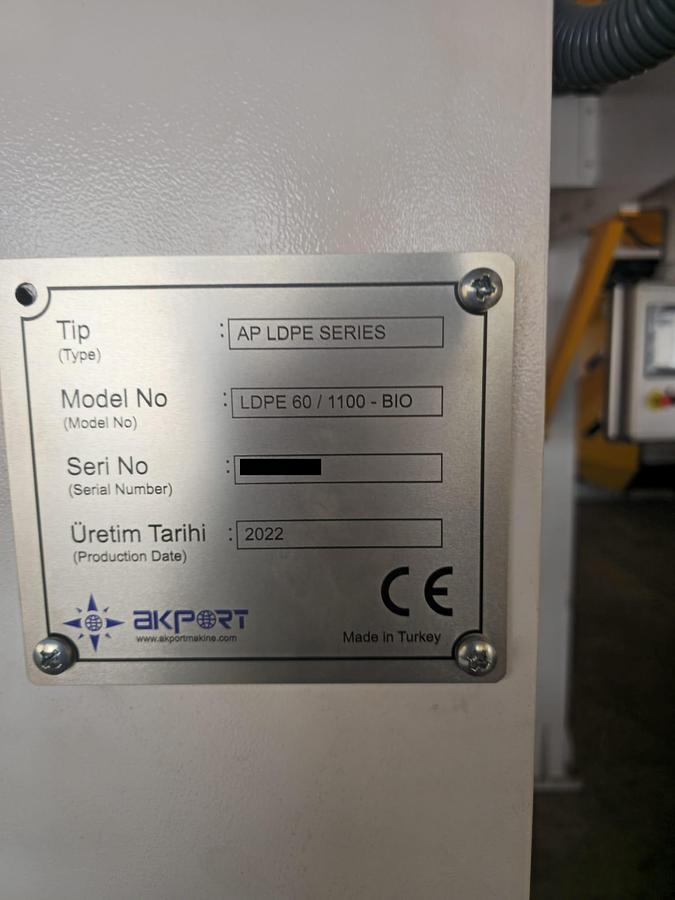

| Manufacturer | AKPORT Makine Sanayi ve Ticaret Ltd.Şti. |
| Model | AP SERIES LDPE 60/1100 - BIO |
| Year | 2022 |
| Condition | Used |
| USED MATERIALS | LDPE; CORNSTARCH |
| MAX FILM WIDTH | 1000 mm |
| THICKNESS of FILM | 1000 mm |
| MAX. CAPACITY | 70 Kg/hour |

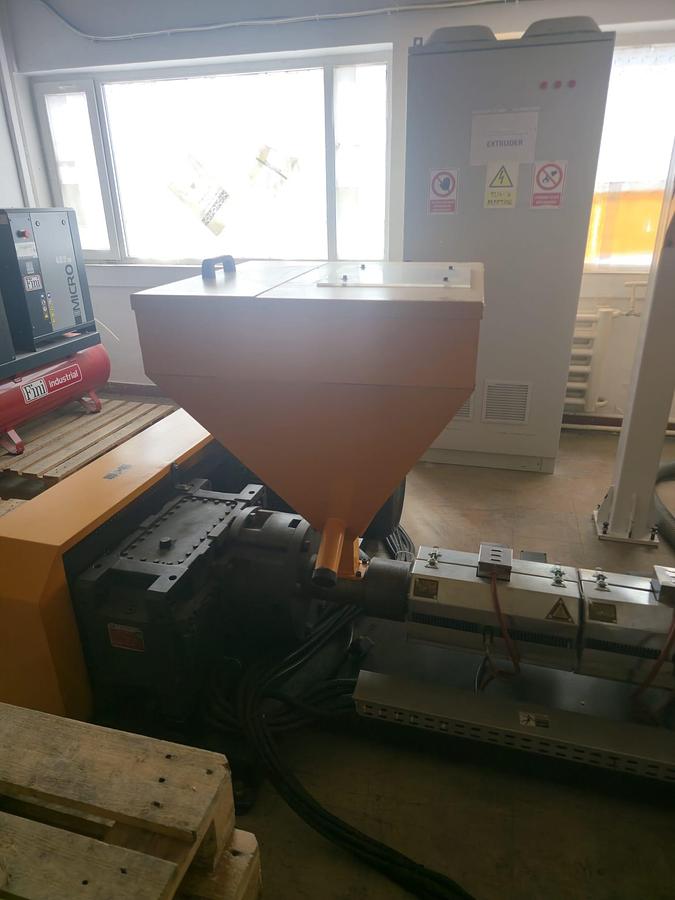

| SCREW DIAMETER | Ø 60 |
| SCREW L/D | 30/1 |
| HEATING METHOD | RESISTANT |
| COVENT COOLING | 3 REGION AIR COOLING 0,18 Kw |
| MAIN MOTOR | MAIN MOTOR: 30 Kw. 1500 d/d AC | MAIN MOTOR DRIVER: 30 Kw. (ABB) |
| REDUCER TYPE | YILMAZ BRAND | WATER COOLED | REDUCTION RATIO 1/9,64 |
| FILTER UNIT | MANUAL CONTROL | SINGLE REGION HEAT CONCRETE |

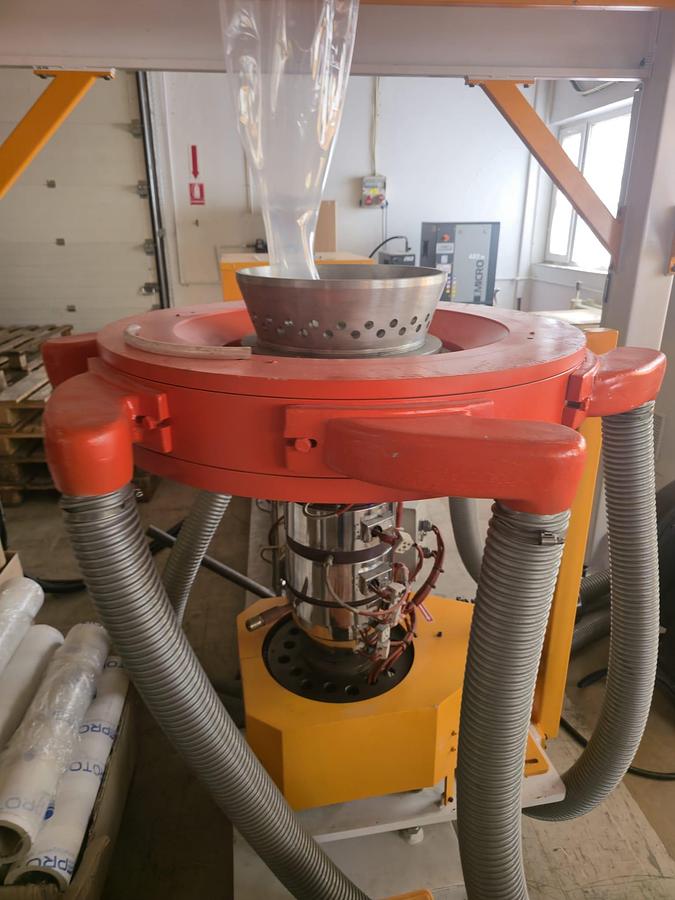

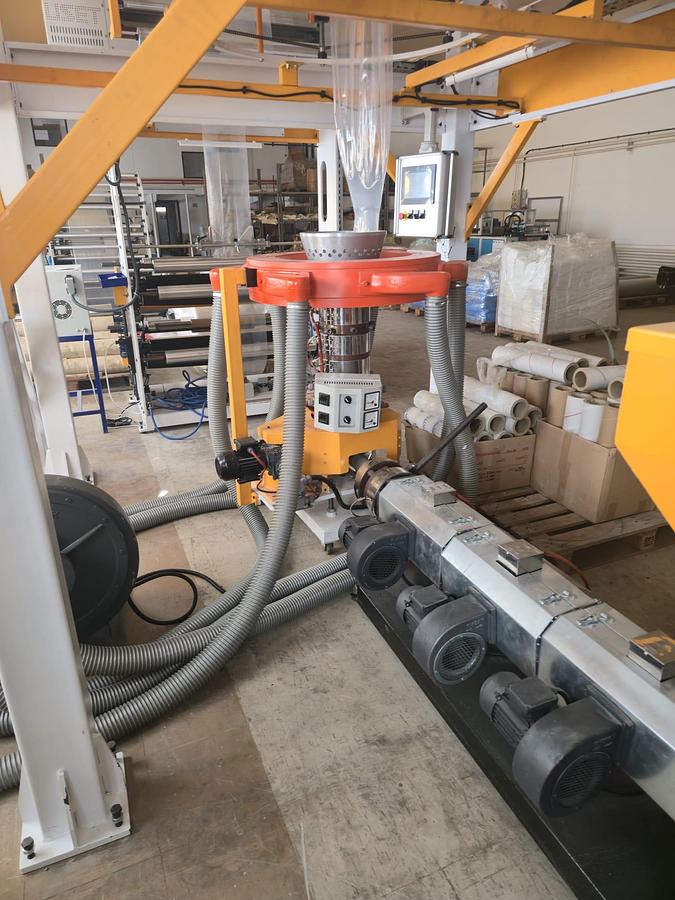

| ROTATING DIE UNIT | DIE TYPE : ROTATING DIE | HEAD CABLES :Ø200-130 | HEAT CONTROL : 2 REGIONS | COOLING METHOD : AIR COOLED | AIR INPUTS : 4 REGIONS | AIR FAN : 4 Kw 2850 rpm |

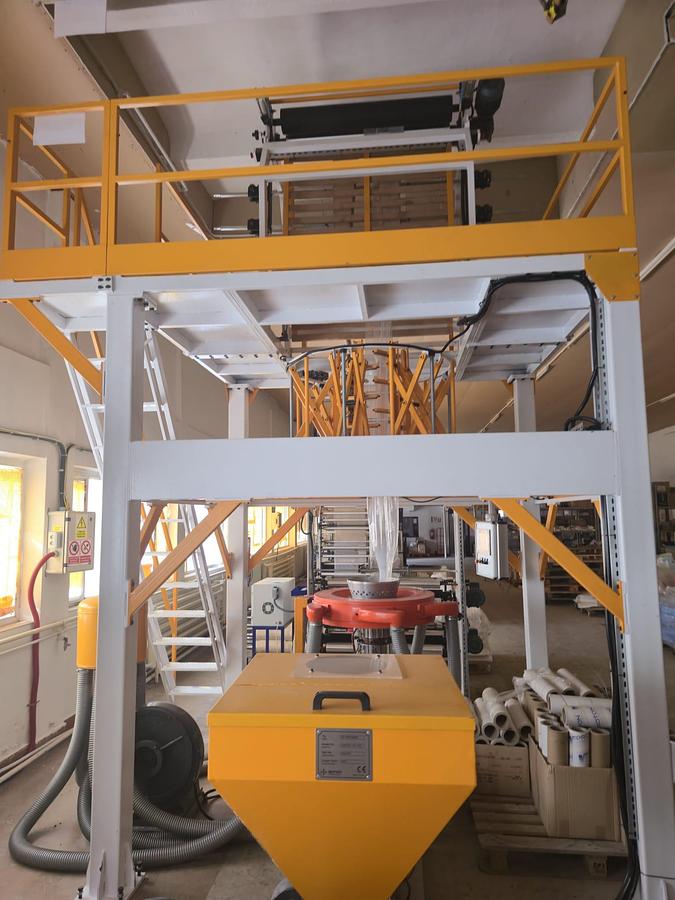

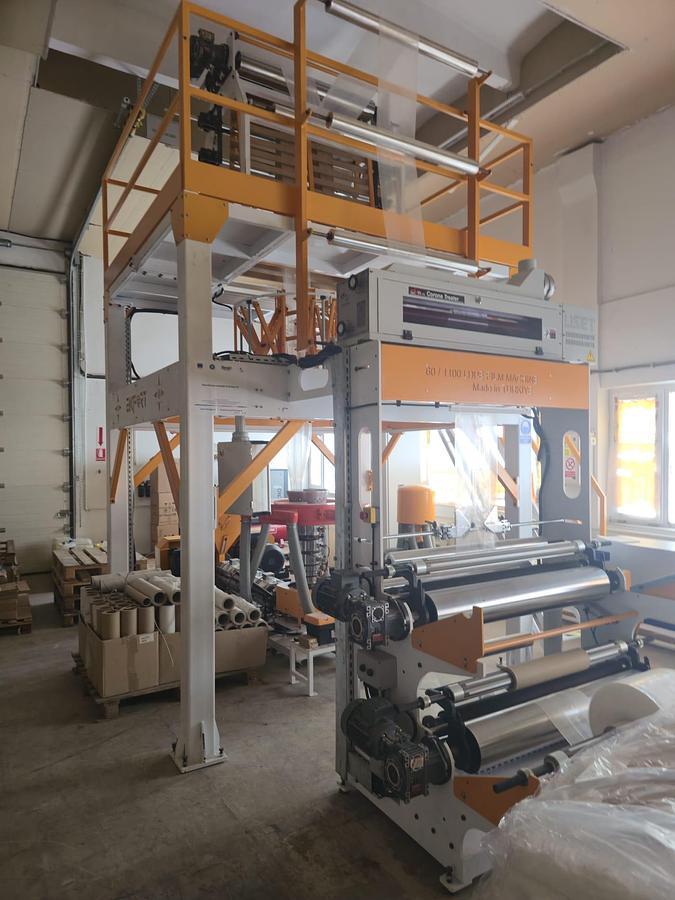

| TOWER | TOWER TYPE : FIXED TOWER | TOWER HEIGHT : 5000 mm | CORONA TREATMENT | ONE STORD TOWER SYSTEM |
| TAKE OFF MOTOR and REDUCER | TAKE OFF ROLL LENGTH : 1100 m | TAKE OFF ROLL DIAMETER : Ø 165 mm | TAKE OFF MOTOR : 1,5Kw 1500d/d AC ( ABB DRIVER) | REDUCER TYPE : YILMAZ – DISABLED REDUCER | SPEED : 10-100 m /min |

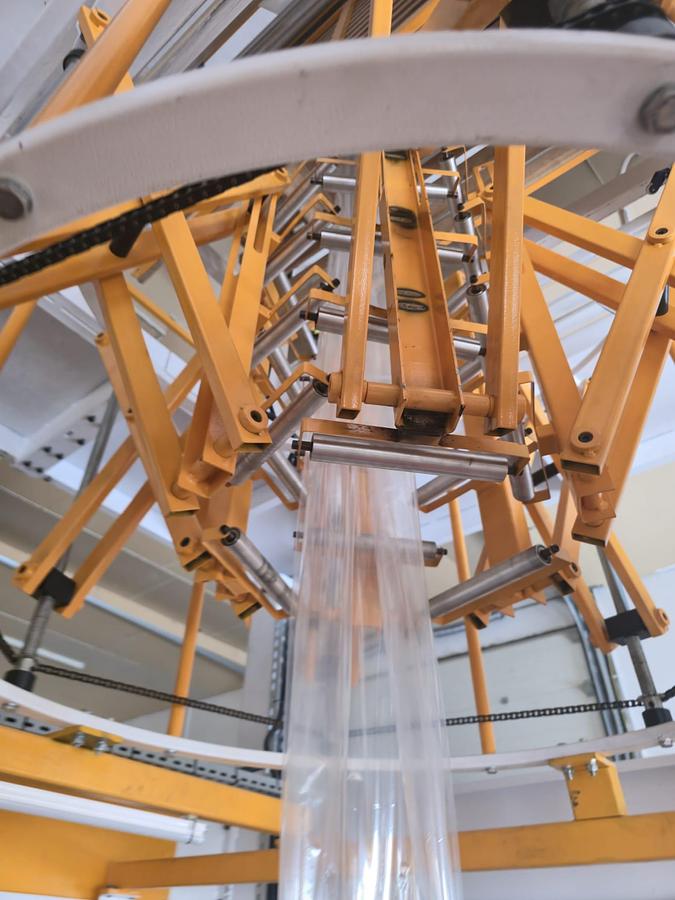

| AUTOMATIC BUBBLE GUIDE | FIXING BUBBLE : 1 PIECE | MOTOR : 0.18Kw 1500 d/d AC REDUCER | REDUCER TYPE : YILMAZ REDUCER |

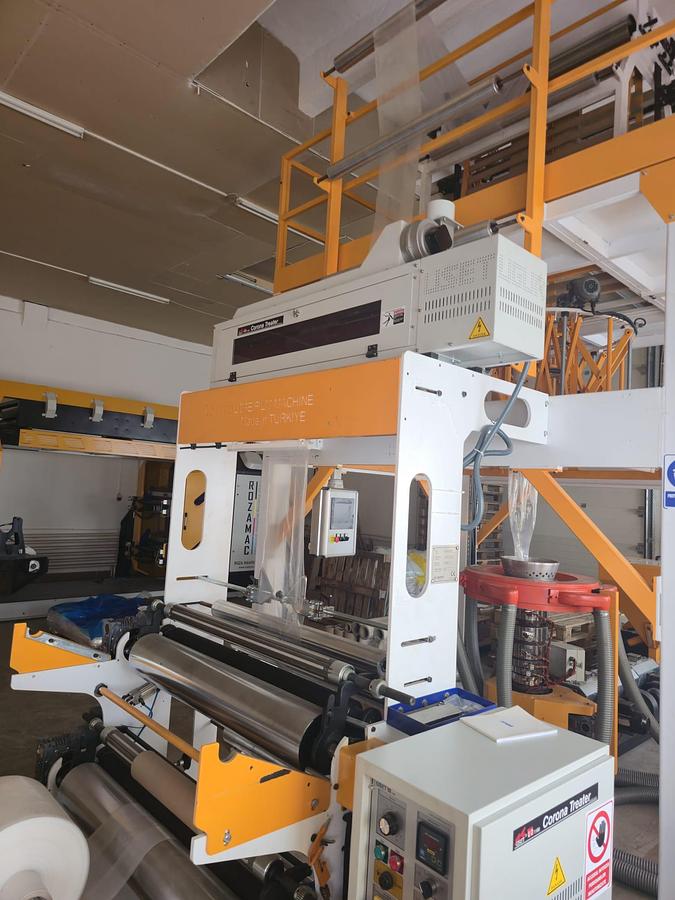

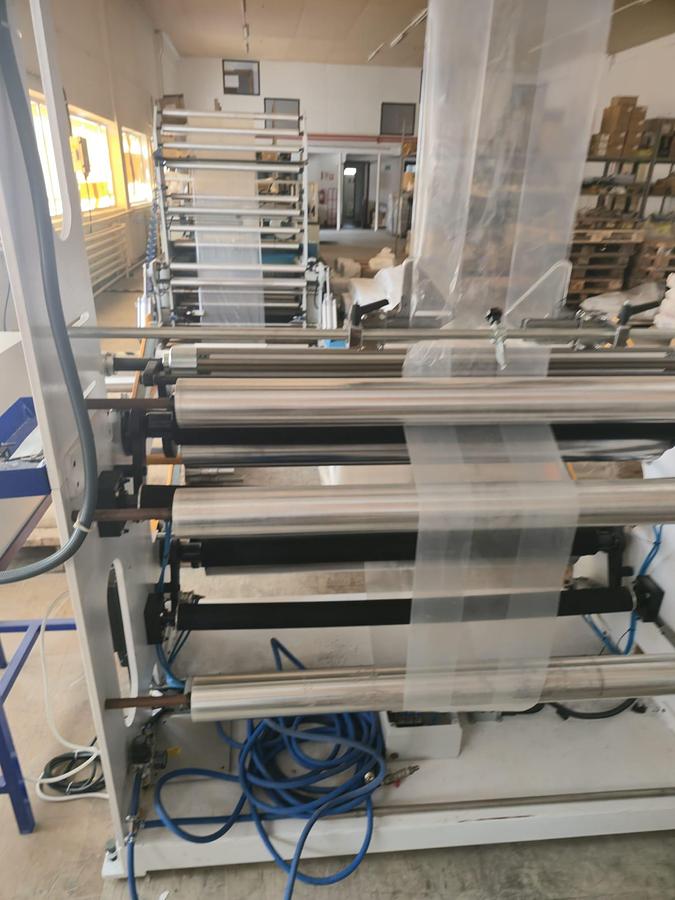

| WINDER UNIT | MANUEL BOBIN CHANGE SYSTEM. | BACK TO BACK WINDER | MAKS. FILM WIDTH : 1000 mm. | MAKS. ROLL DIAMETER : Ø 450 mm. | MAIN ROLLER WIDTH : 1100 mm | MAIN ROLLER DIAMETER : Ø 190 mm | WINDING SYSTEM WITH KRAMEYER | WINDING MOTOR-DRIVER : 1,5 Kw. AC 1500 d/d ABB | AIR SHAFT : 3 PCS |

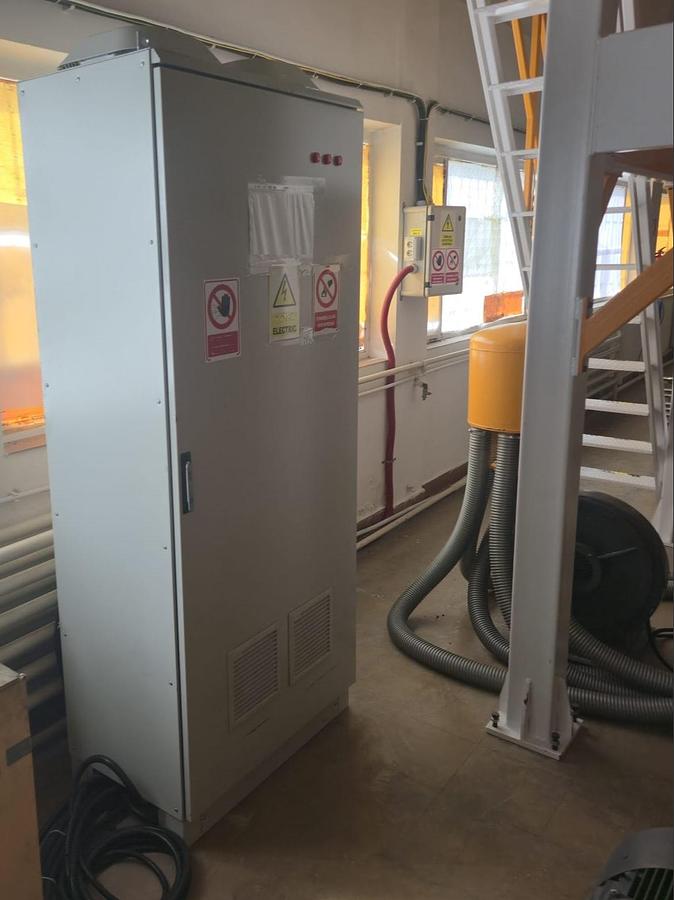

| ELECTRICAL PANEL | ELECTRICAL MATERIAL : ABB BRAND | HEAT CONTROL : 8 ZONES | TOTAL POWER : 57 Kw |

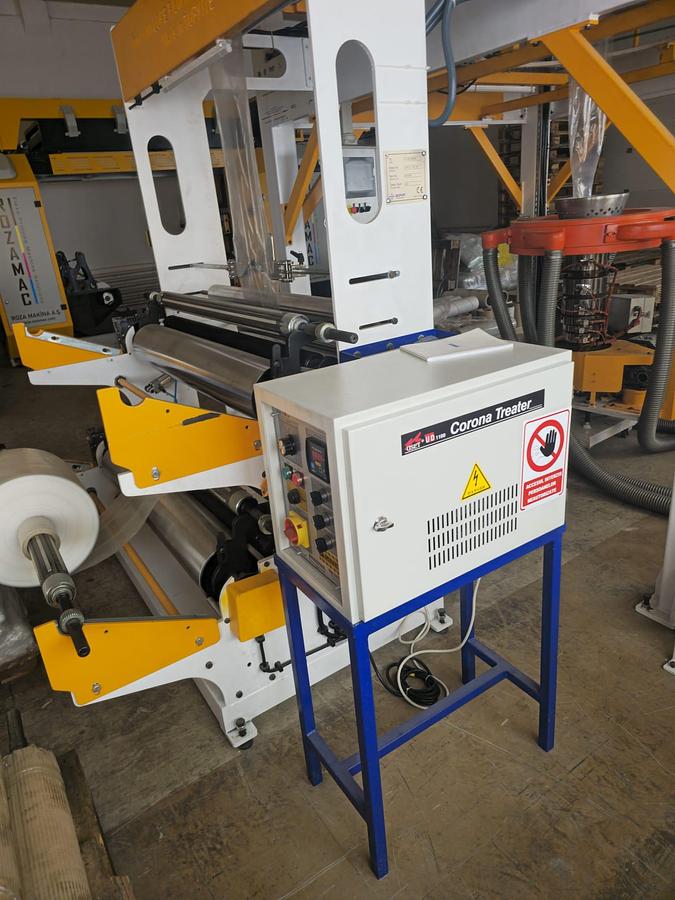

| CORONA TREATER | YES |

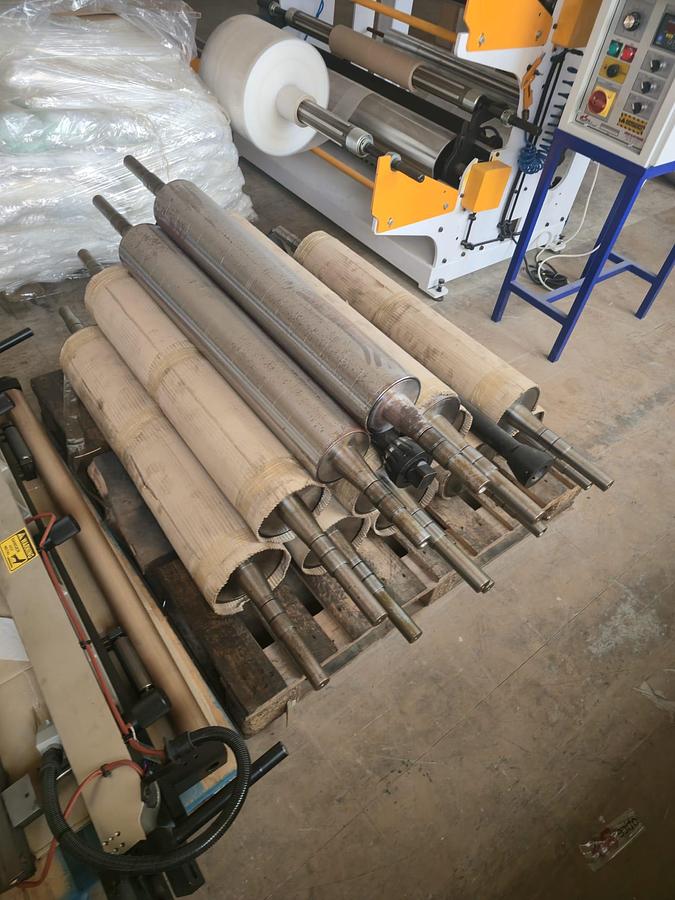

| Additional information | 2 PIECE BANANA ROLLER REDUCTOR CONTROL | 3 UNITS AIR SHAFT | JOINTED BUBBLE GUIDE |
