2018 FLEXOSTAR ATLAS 708GL-1200 | 8 Color CI Flexo Printing Press (Gearless) 1200 mm
2018 FLEXOSTAR ATLAS 708GL-1200 | 8 Color CI Flexo Printing Press (Gearless) 1200 mm
Location:Europe
Available quantity:1
Description

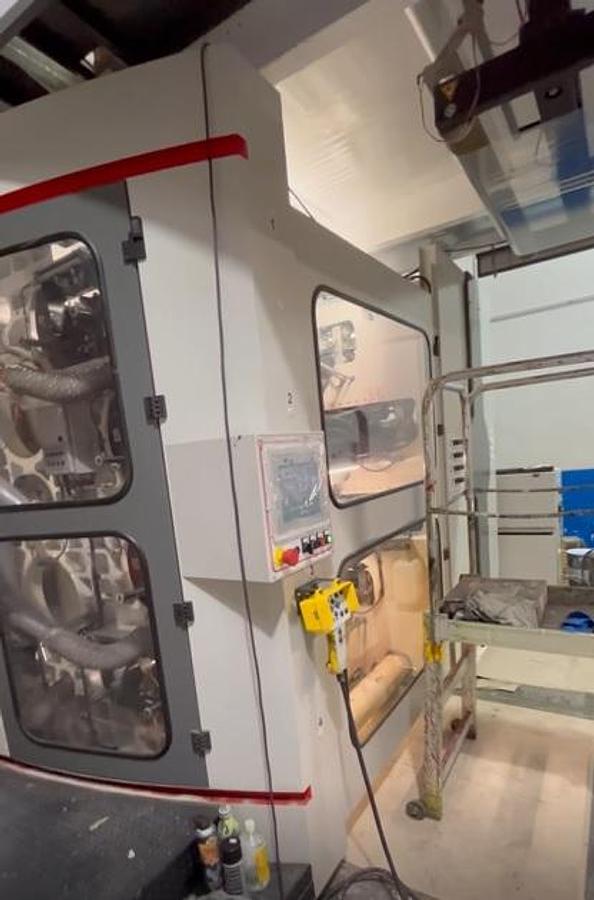

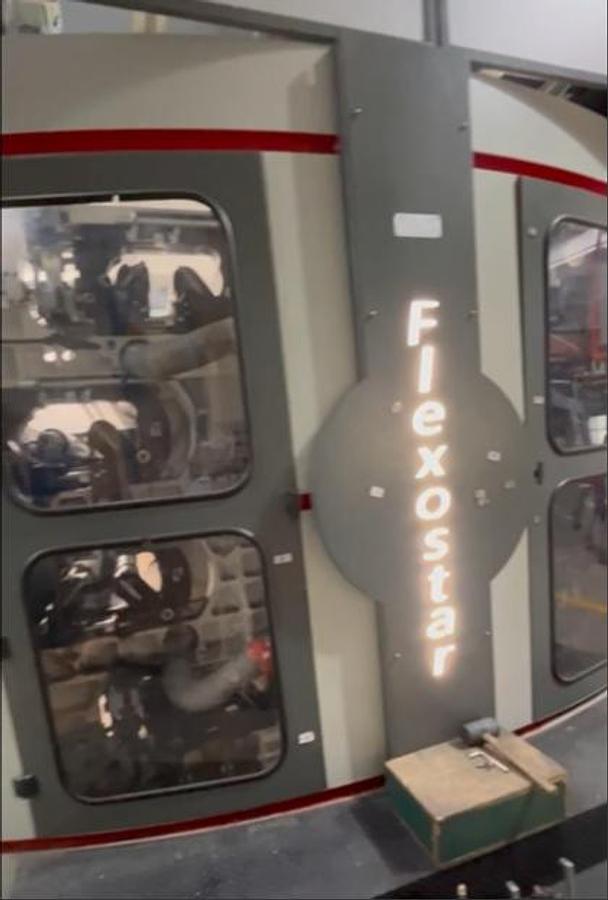

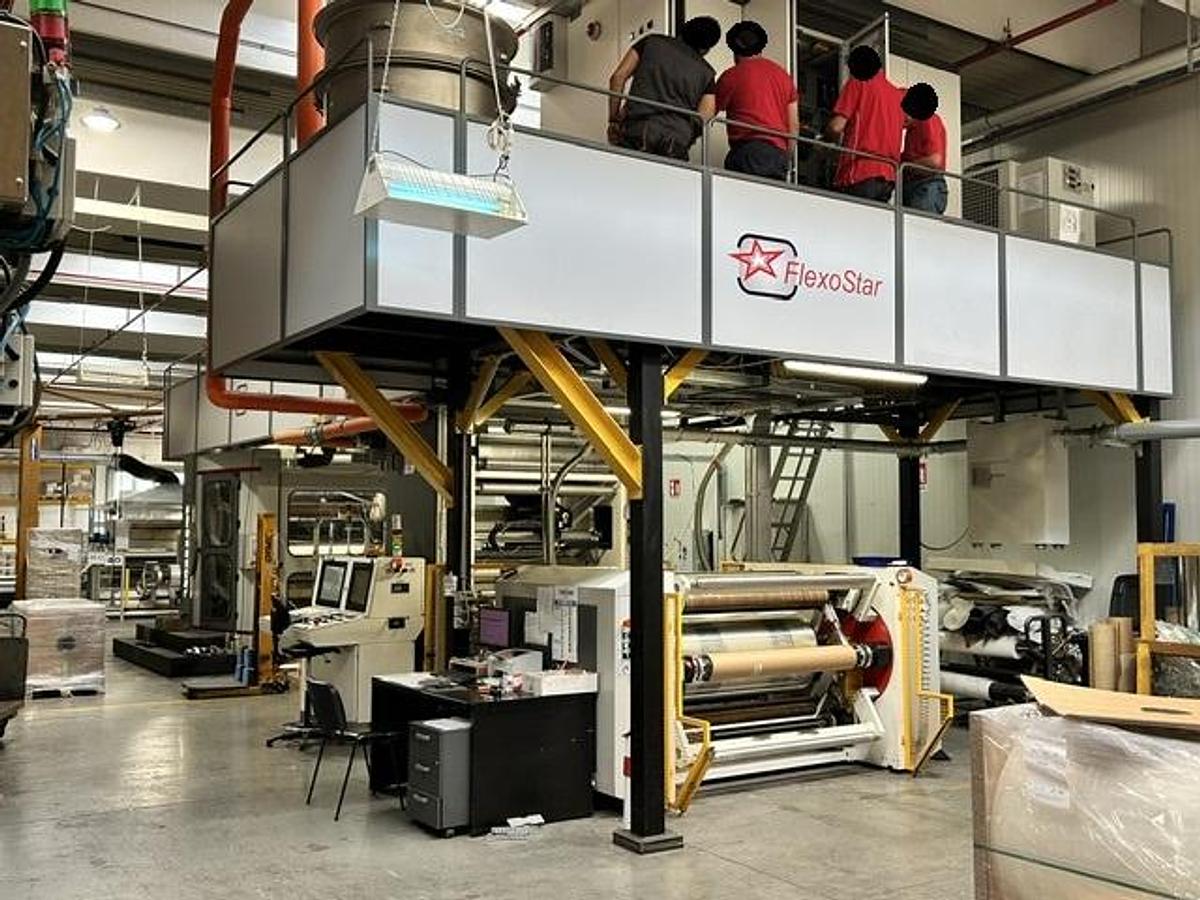

FlexoStar ATLAS 708GL-1200 – 8 Color CI Gearless Flexographic Printing Press
High-performance 8-color Central Impression (CI) flexographic printing press, designed for high-quality printing on flexible plastic films.
The machine features a 1250 mm maximum material width, 1200 mm maximum printing width. It is equipped with gearless/sleeve-type printing technology, motorized register controls, automatic tension control, drying system, automatic turret unwinder and rewinder, web inspection system and PC-HMI supervision.
The press is designed for efficient job changes and high print quality, making it suitable for a wide range of flexible packaging applications.
Available for sale with delivery possible in April 2027 (it is possible to reserve the machine).
Visible in operation.
Specifications
| Manufacturer | FLEXOSTAR |
| Model | ATLAS 708GL-1200 |
| Year | 2018 |
| Condition | Used (visible in production) |
| Gearless | Yes |
| Printing units | 8 |
| Printing possibilities | 8+0 |
| Max. material width | 1250 mm |
| Max. printing width | 1200 mm |
| Printing repeat (Min. - Max.) | 330 - 700 mm |
| Max. mechanical speed | 400 m/min (production speed depending on condition (material,inks, clichè, print repeat, operator skills etc..) |
| Ink type | Solvent-based |
| Unwinder max.reel diameter | 800 mm |

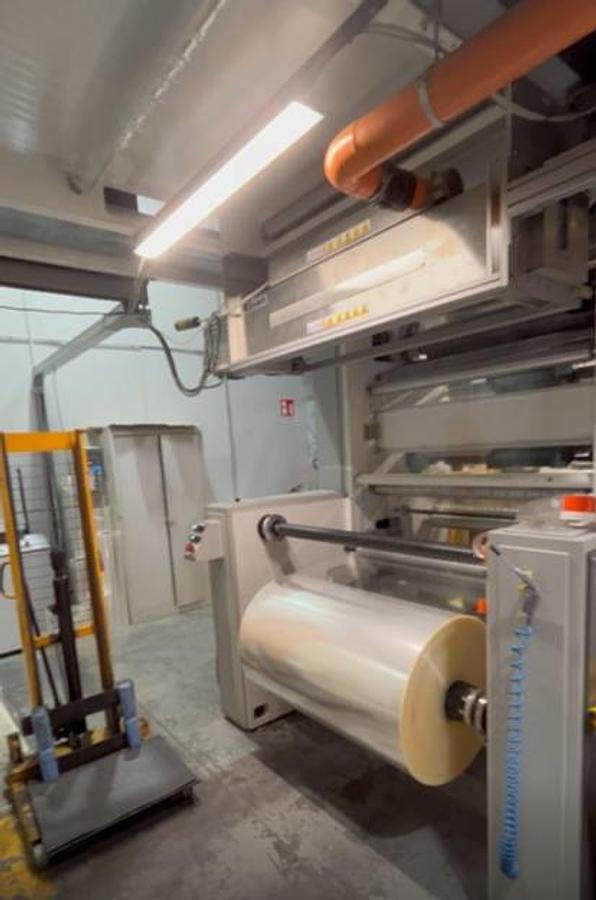

| Unwinder details | Automatic turret unwinder – 2 shafts | Pneumatic expandable shafts | Automatic reel change | Web tension control | Web guiding system | Pneumatic braking / reel holding system |
| Rewinder max.reel diameter | 800 mm |

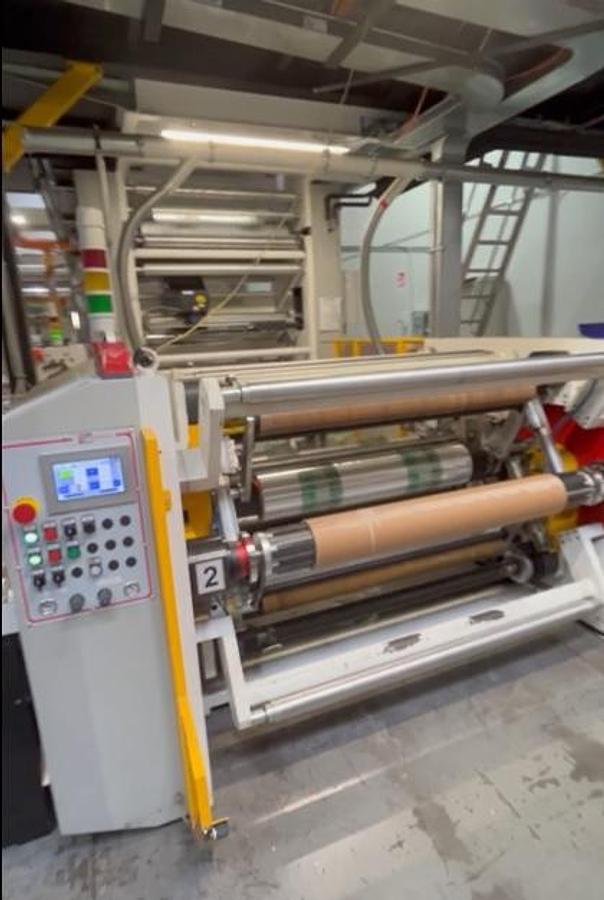

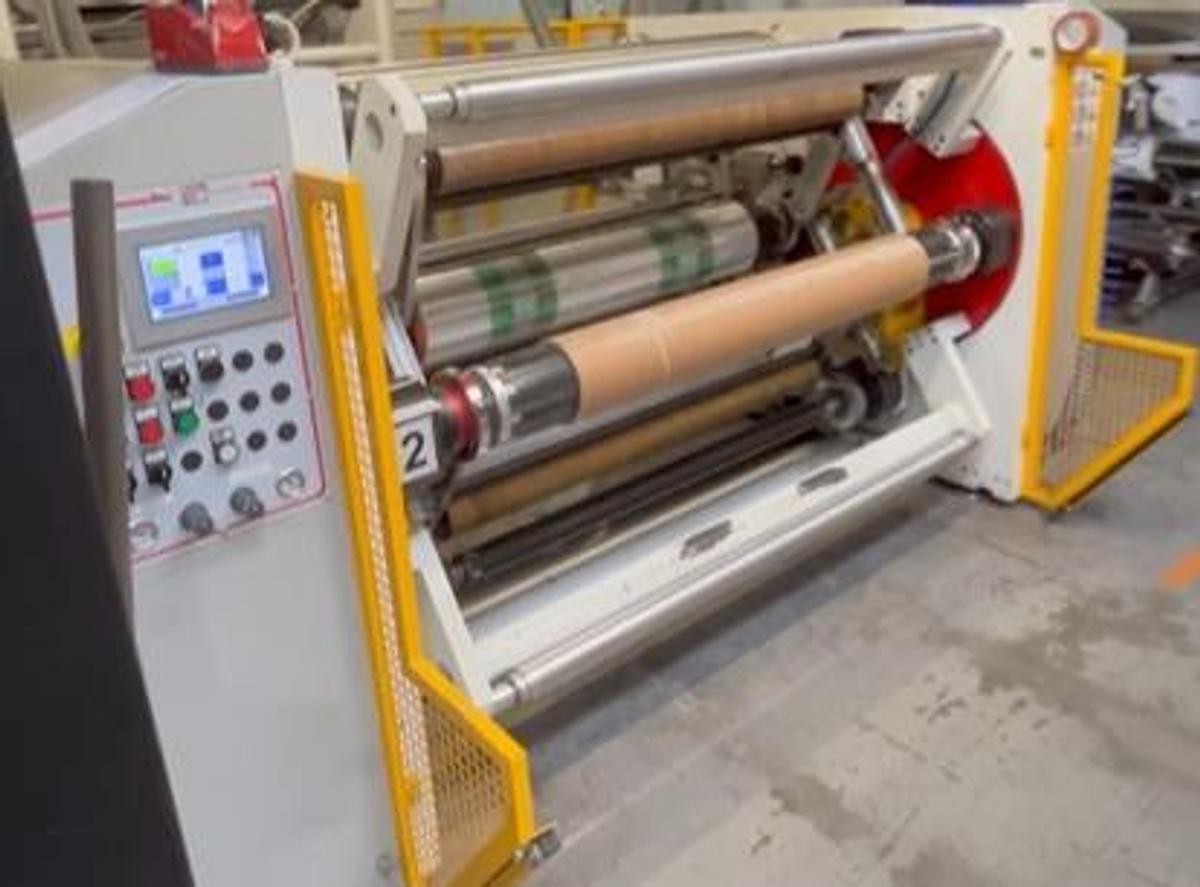

| Rewinder details | Automatic turret rewinder – 4 shafts | Pneumatic expandable shafts | Automatic reel change | Automatic cutting and transfer system | Independent winding stations | Web tension control |
| Slitting & Edge Trim | In-line razor blade slitting system, up to 2 knives, with VENTURI trim waste suction |
| Drying system | Mixed drying system: electrical heating elements for the printing section and a gas burner for the drying tunnel (Drying after each printing unit | Inter-color drying tunnels | Variable air recirculation system | Variable-speed ventilation | Final drying tunnel | Designed for solvent-based inks | Exhaust and solvent vapour extraction system) |
| Register & Print Control | Circumferential register: 360° ! Axial register: ±5 mm | Register control: Motorized | Printing pressure adjustment: Motorized / micrometric | Automatic register system: Smart Register | Print inspection: 3CCD camera system | Defect control system: Included |
| Doctor Blade / Ink System | Enclosed chamber doctor blade system | Stainless-steel ink chambers | Pneumatic doctor blade positioning | Automatic ink washing system | Solvent recovery system | Viscosity control system | Ink circulation system |

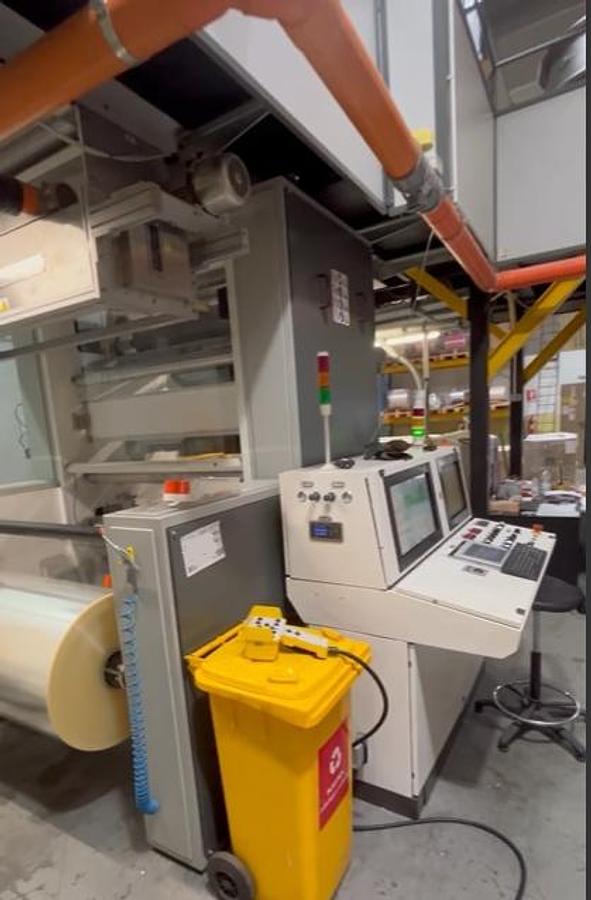

| HMI & Control | PC-HMI machine supervision system | Touch-screen operator panel | PLC-controlled machine functions | Production parameter storage / recipe management | Machine speed control | Register and pressure settings | Tension control | Temperature monitoring | Fault/alarm diagnostics | Remote assistance connection |
| Power requirements / Utilities | Electrical supply: 3-phase, 400 V, 50 Hz | Installed power: approx. 120 kW | Compressed air: approx. 6 bar | Compressed-air consumption: approx. 1,000 l/min |
