2022 MAGRAF KO-50x70 PLUS | SEMIAUTOMATIC CASE-MAKER
2022 MAGRAF KO-50x70 PLUS | SEMIAUTOMATIC CASE-MAKER
Location:Europe
Available quantity:1
Description
Pre-owned Magraf KO-50x70 PLUS semiautomatic hard cover making machine (1 pass- 4 fold)
The machine is in production and in good working order. It was made in 2021.

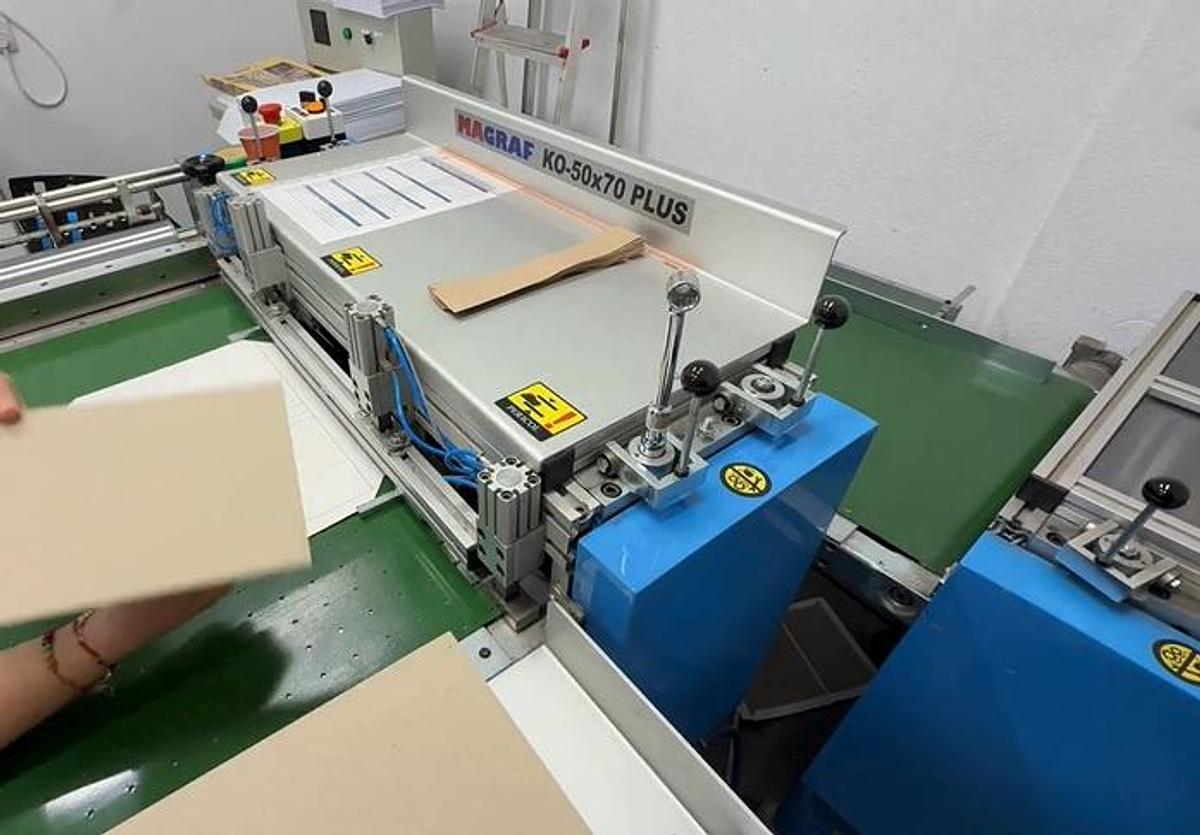

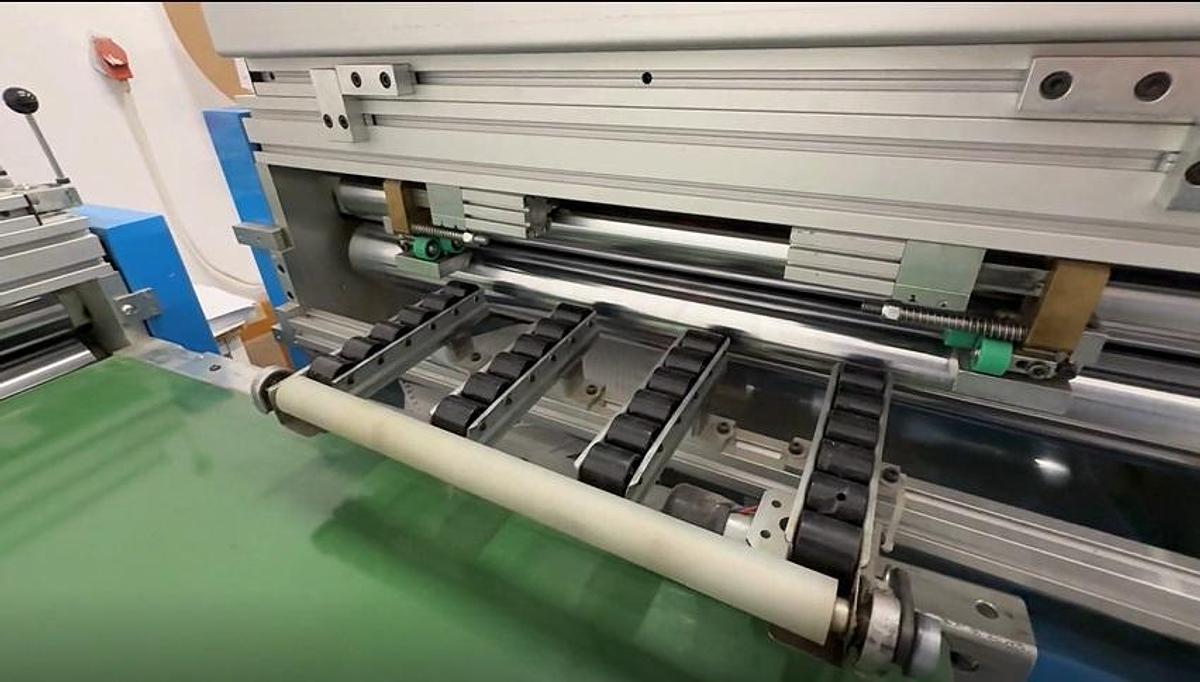

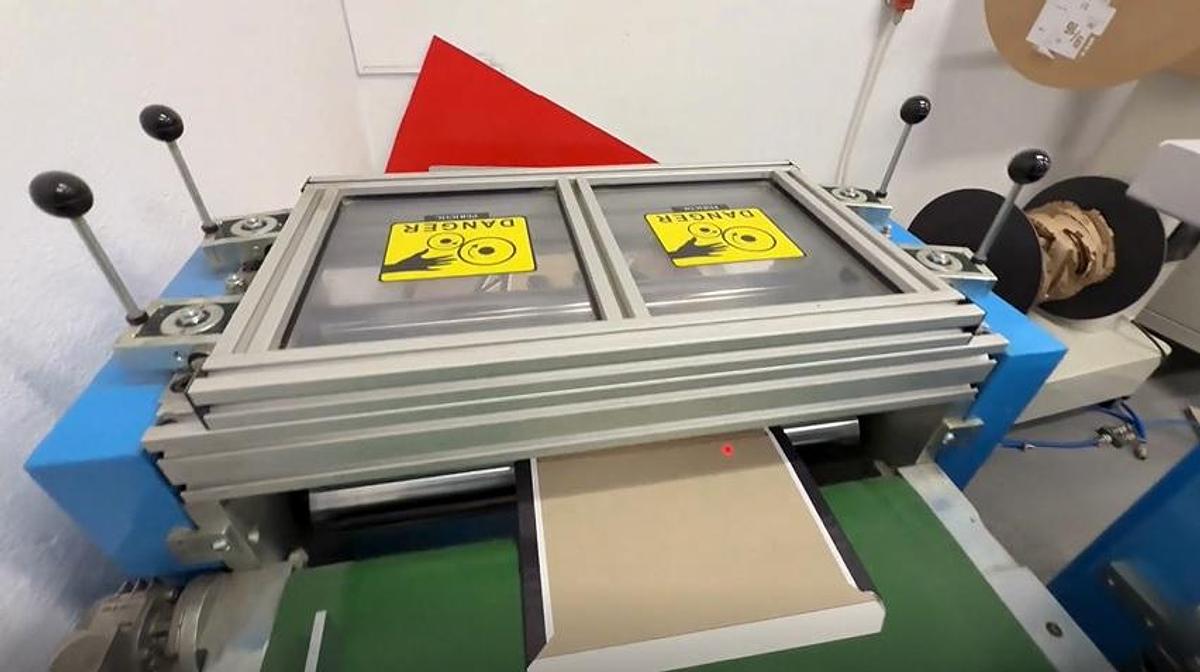

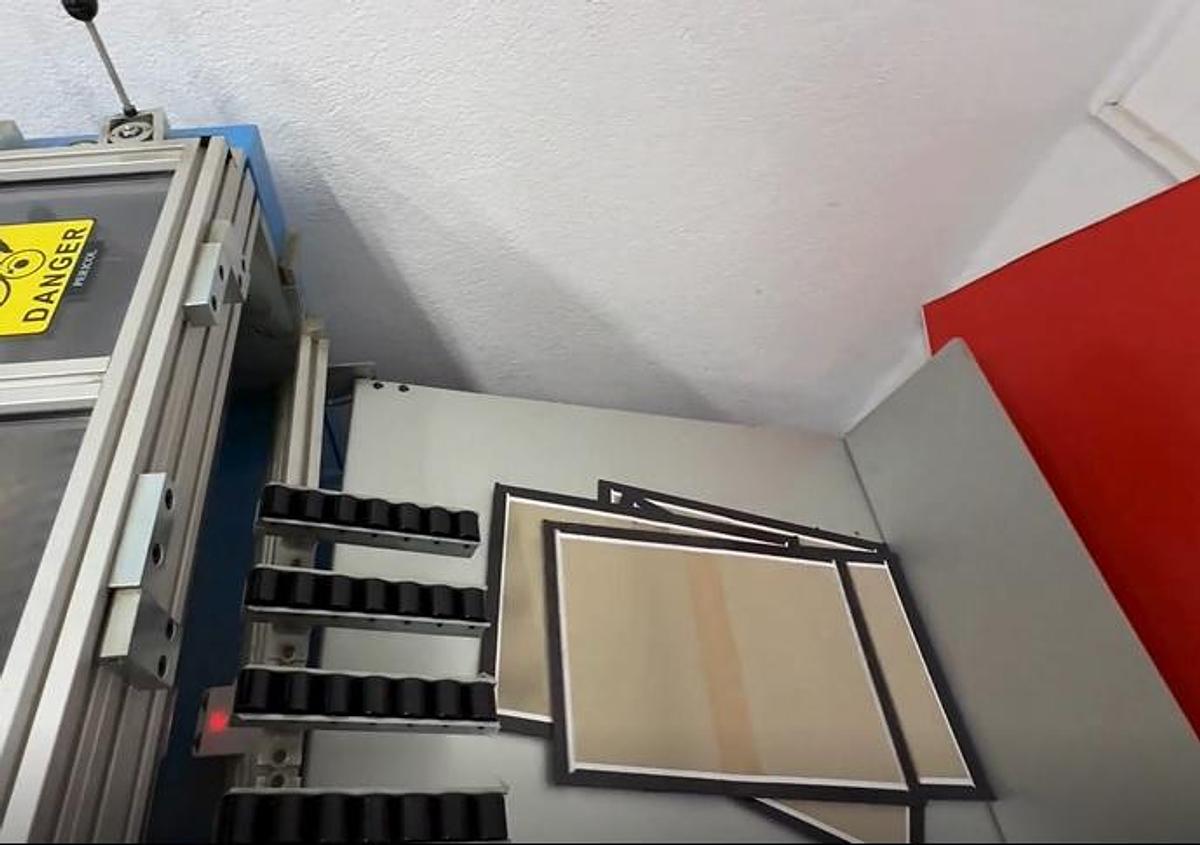

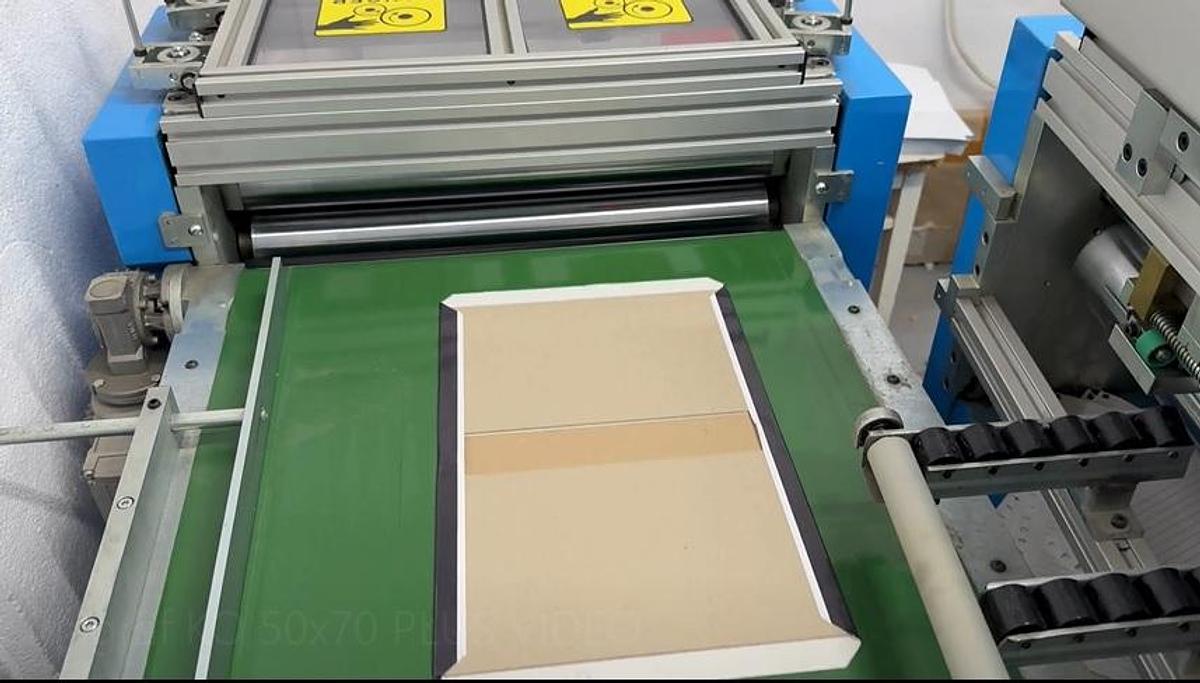

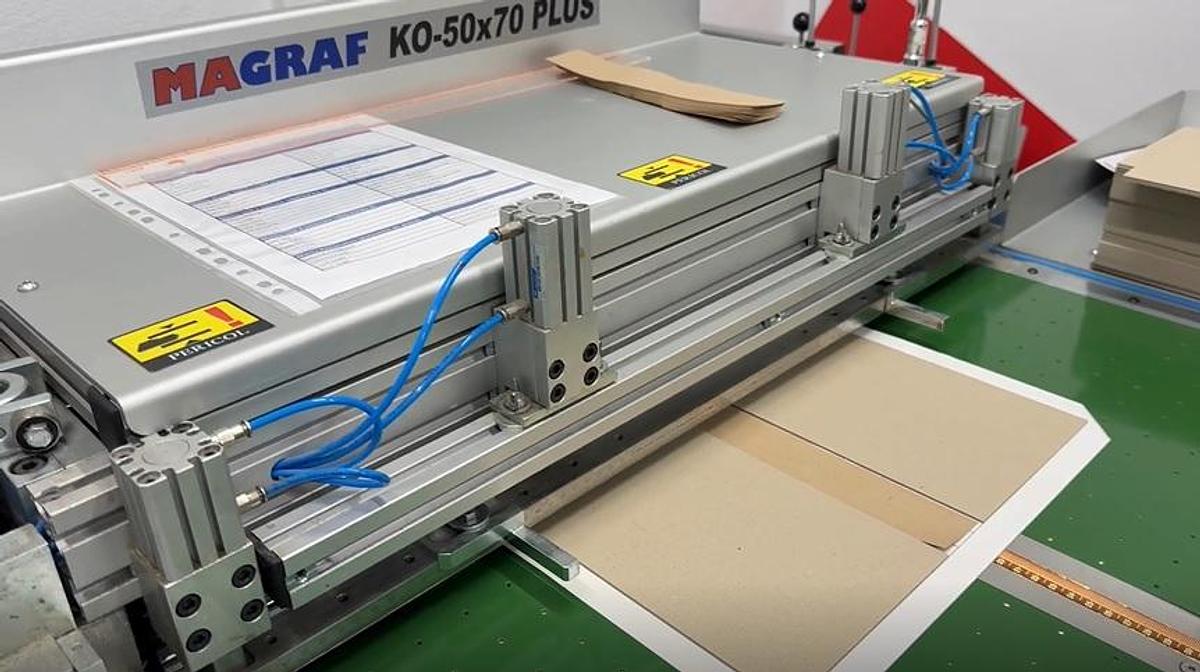

All the operations are executed by the operator seated in front of the machine. The operator passes the cover material into the gluing unit where it receives an even coating of hot gelatin glue. Utilising manual switches, the operator controls the air suction plate for perfect registering of the cover material. After placement of board the cover passes in to the turning unit automatically. The machine is designed with two units. In the first turning unit 2 side folding and 4 corner tucking in takes places automatically and the cover moves to second turning unit where other 2 side folding takes place and final case delivered rear end
Specifications

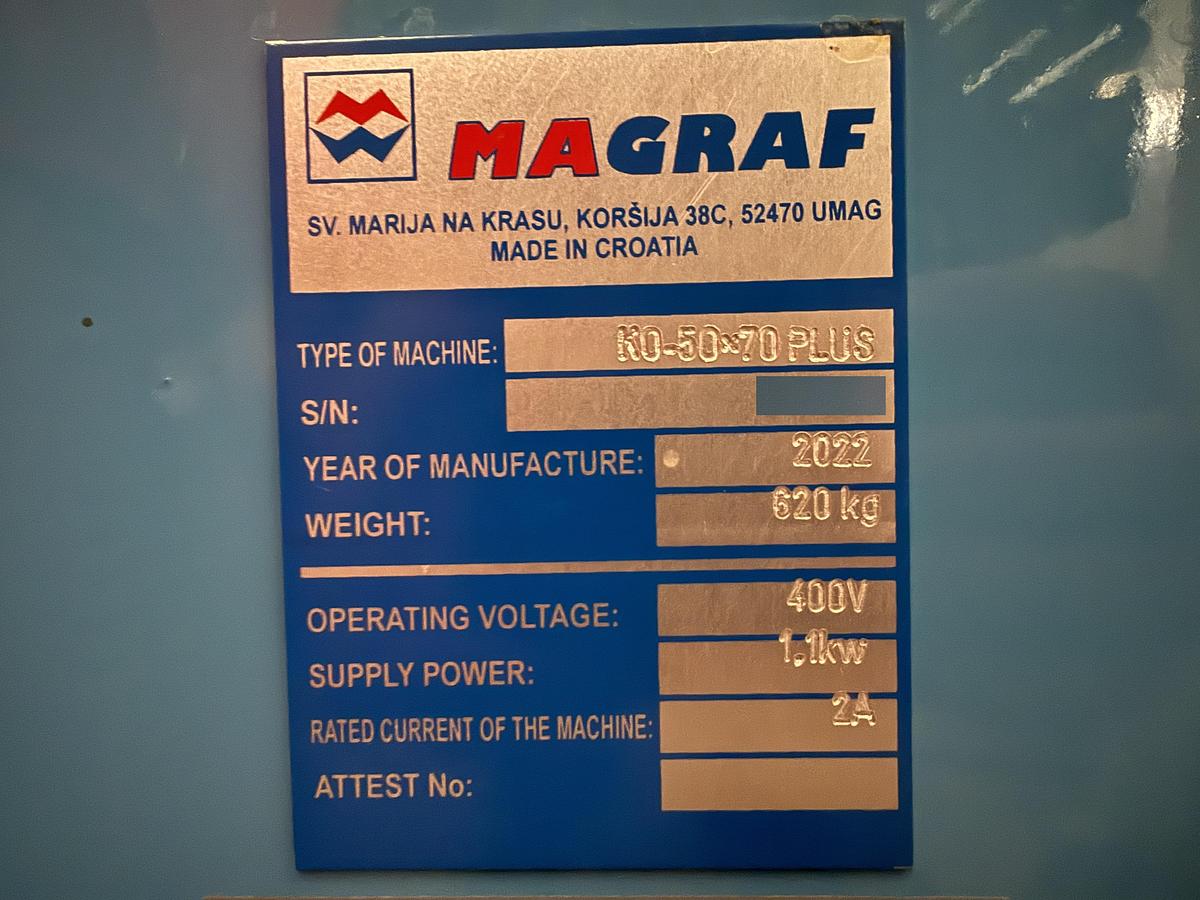

| Manufacturer | MAGRAF |
| Model | KO-50x70 PLUS |
| Year | 2022 |
| Condition | Used |
| Smallest cover format | 105 mm x 170 mm |
| Largest cover format | 460 mm x 750 mm |
| Largest thickness of the material for bonded | 3 mm |
| Speed operation | Up to 300 pieces per hour |
| Materials | paper, laminated paper, plastic, coated paper, clothe etc... |
| Machine Dimensions (approx.) | 1730 mm x 1110mm x 1490mm |
| Machine weight (approx.) | 500kg |
| Additional information | Man power: 1 | Siemens panel |
| Required compressed air | 4 arm, 50 l/min |
| Power supply | Type of current: alternating current 3 Phases | Frequency: 50 Hz | Voltage: 400 V | Rated current: 2 A | Fuse in the supply line: 7 HP | Cross section of the supply line: 1,55 mm2 | Lenght of the connecting cable: 3 m | Pneumatic pressure: 6 atm, 100 l/min |
| Visible in operation | Yes |
