GBC AP-2 Automatic Punching machine

Description

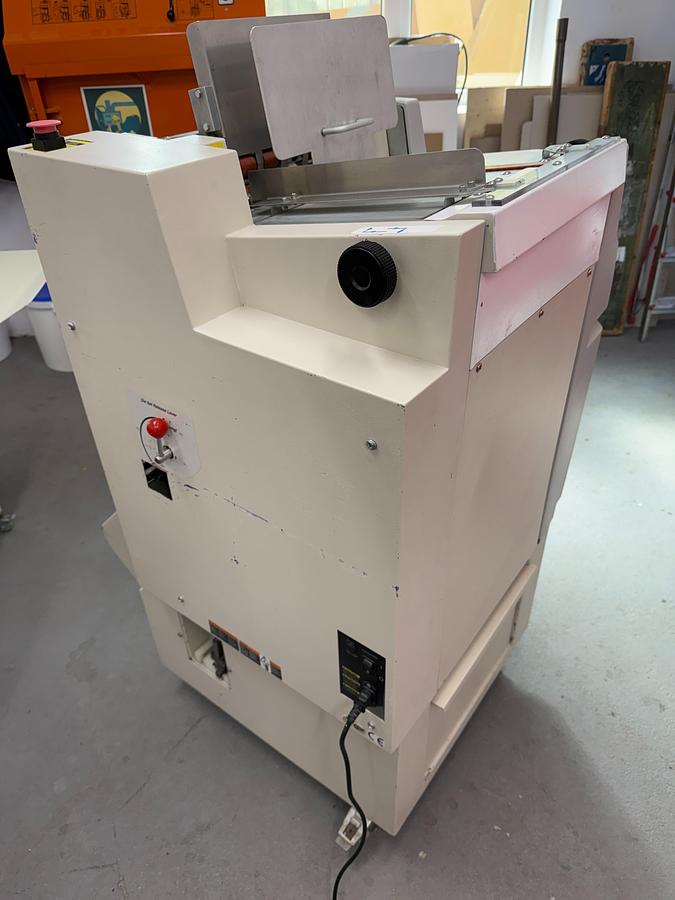

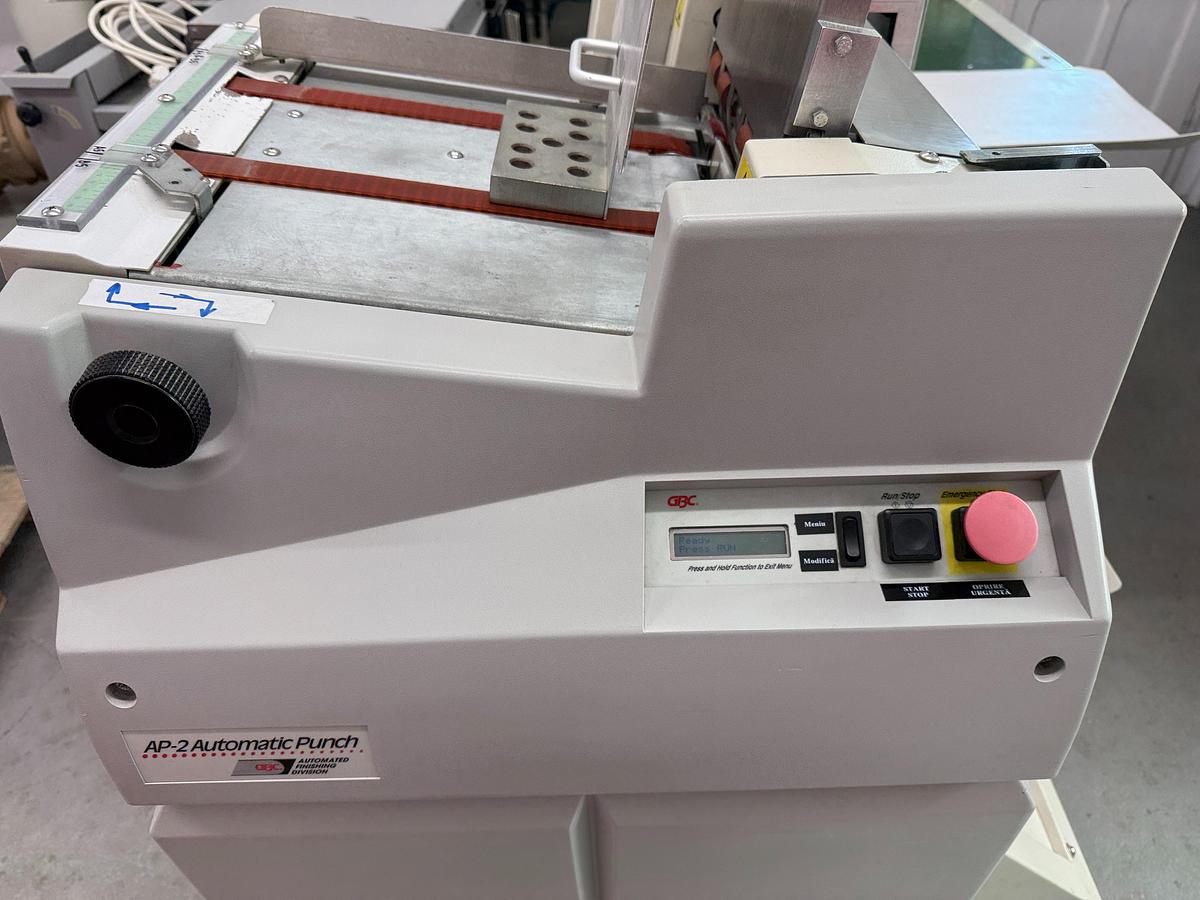

Pre owned GBC AP-2 Automatic Punch

The GBC AP-2 is an automatic paper punching machine designed for medium- to high-volume document finishing applications.

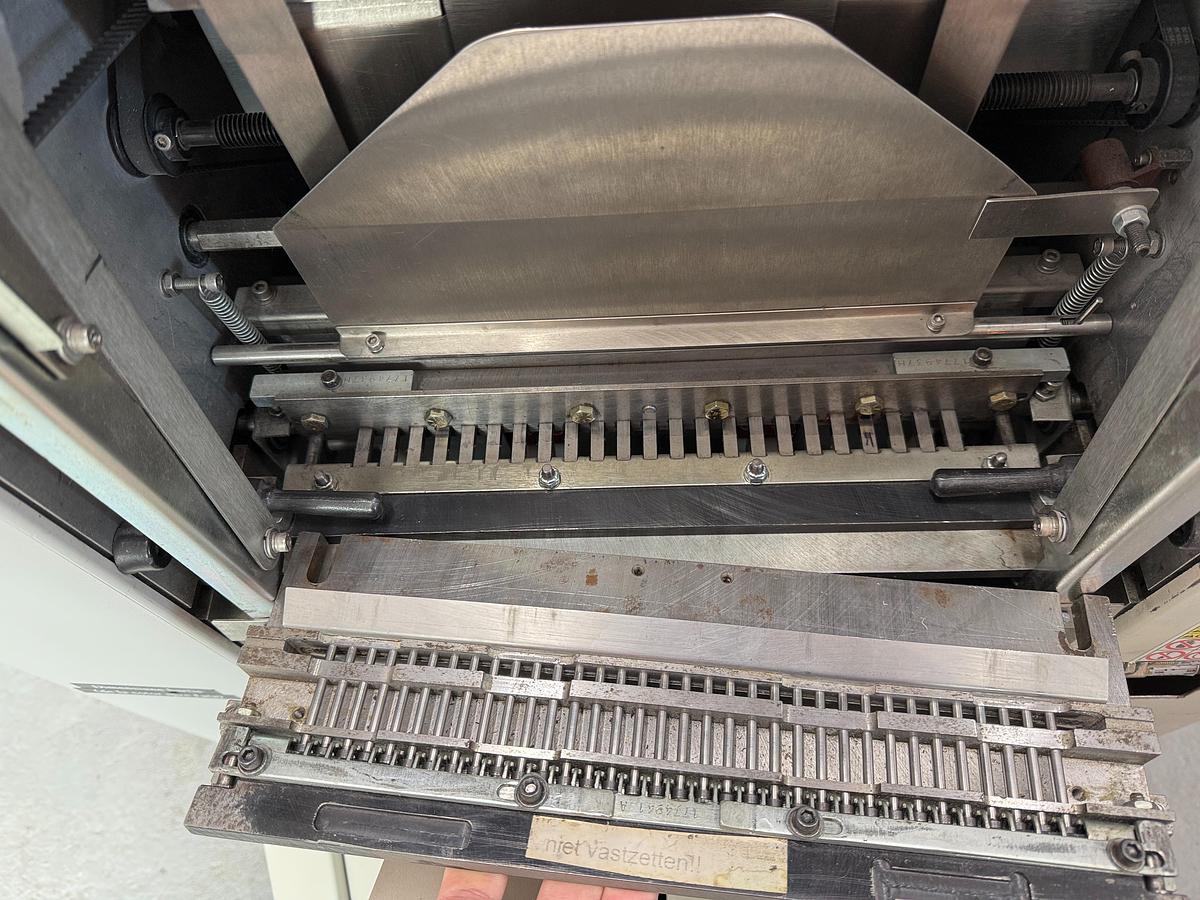

The machine automatically feeds, aligns, punches and stacks sheets, helping reduce manual handling and improve productivity. It is equipped with interchangeable die sets, allowing different punching patterns to be used according to the required binding system. The operator loads the sheets into the feed hopper, selects the operating parameters and starts the automatic punching cycle. Finished sheets are collected in the output stacker, while paper chips are deposited in a dedicated chip drawer.

Suitable for copy shops, printing companies, bookbinding departments and document finishing operations.

The GBC AP-2 can be used for punching manuals, malendars, reports, notebooks,training material, presentation documents, loose-leaf products, documents prepared for spiral, wire, comb or other binding systems, depending on the installed die set.

Visible in operation and available for sale.

Specifications

Manufacturer	GBC
Model	AP-2
Condition	Used
Machine type	Automatic paper punching machine
Minimum sheet size	139.7 × 139.7 mm
Maximum sheet size	304.8 × 298.5 mm
Paper weight range:	70 gsm bond paper \| Up to approximately 163 gsm index stock
Punching capacity	Up to 56,000 sheets per hour, based on 20-hole punching of 70 gsm paper.
Typical production speed	Approximately 3,700 punching cycles per hour, depending on paper type, sheet quantity per cycle and die configuration
Feed hopper capacity	Up to approximately 2,500 sheets of 70 gsm paper
Output stacker capacity	Up to approximately 2,500 sheets of 70 gsm paper
Machine dimensions	635 × 864 × 1,346 mm
Machine weight	Approximately 136 kg
