2002 UTECO AMETHYST | 8 colours flexo press (1400 mm)
Featured
2002 UTECO AMETHYST | 8 colours flexo press (1400 mm)
Location:
Available quantity:1
or
Call +39 346 4948054
Description

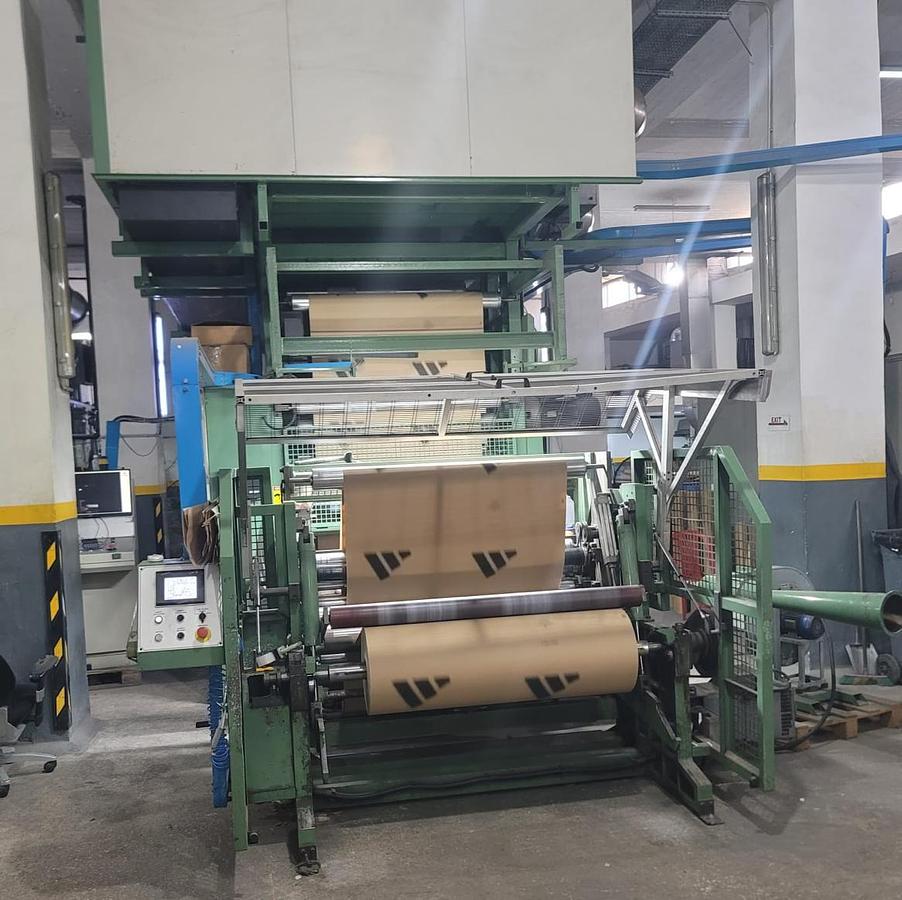

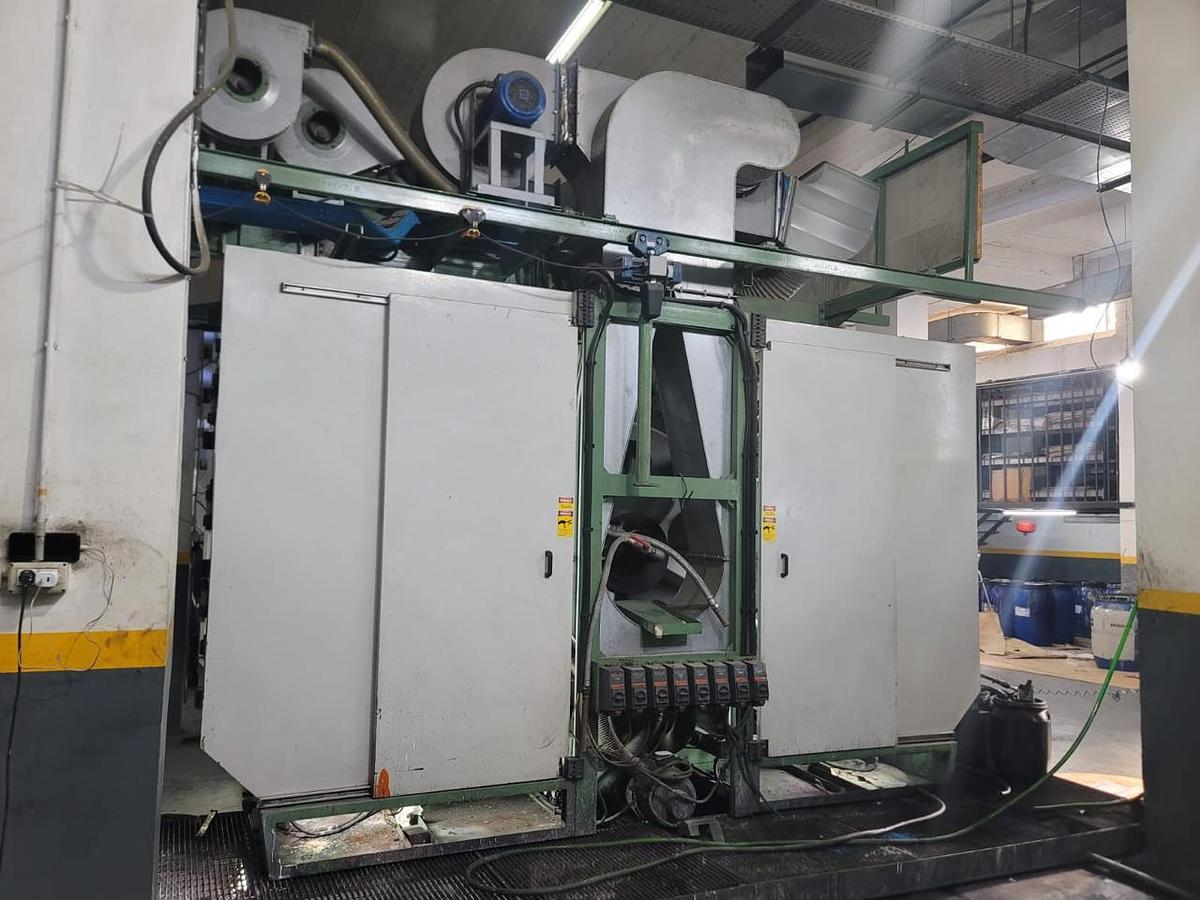

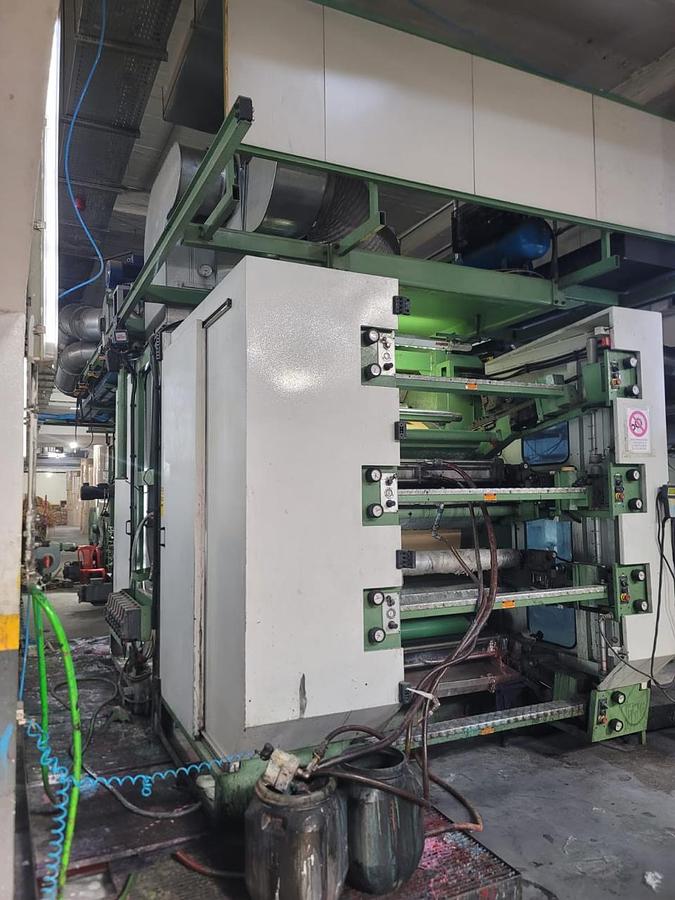

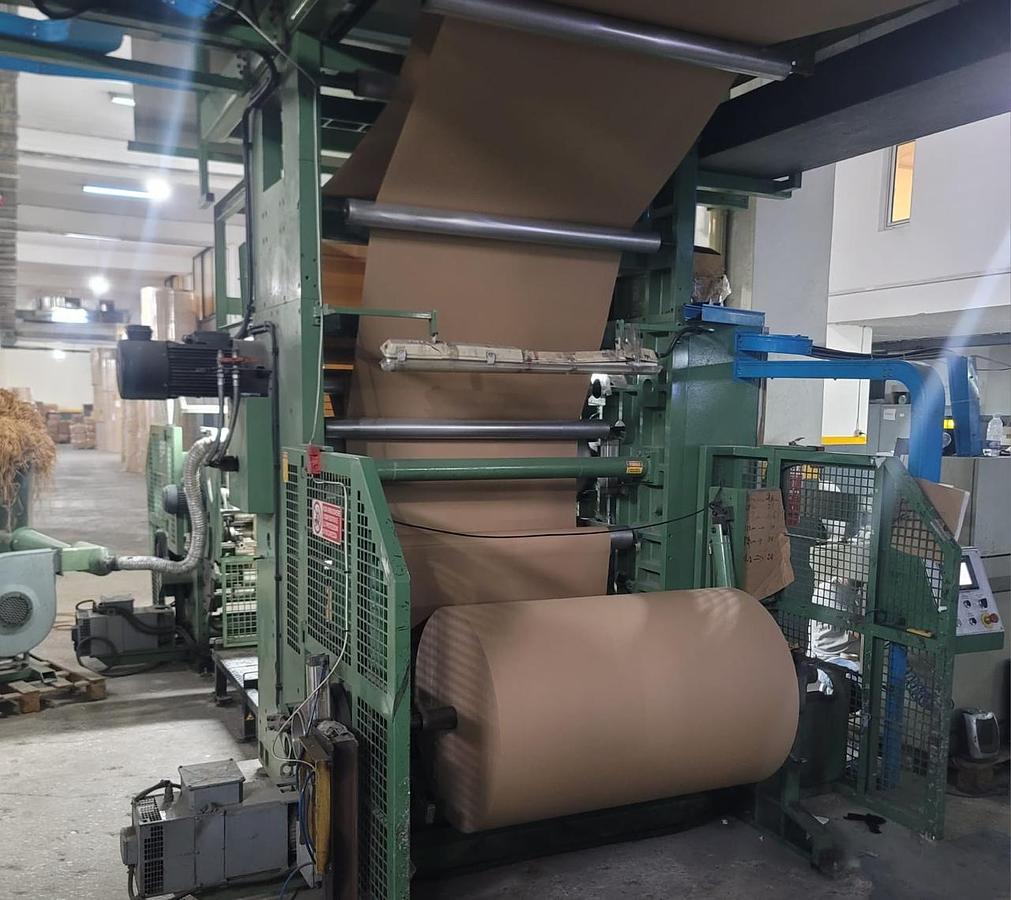

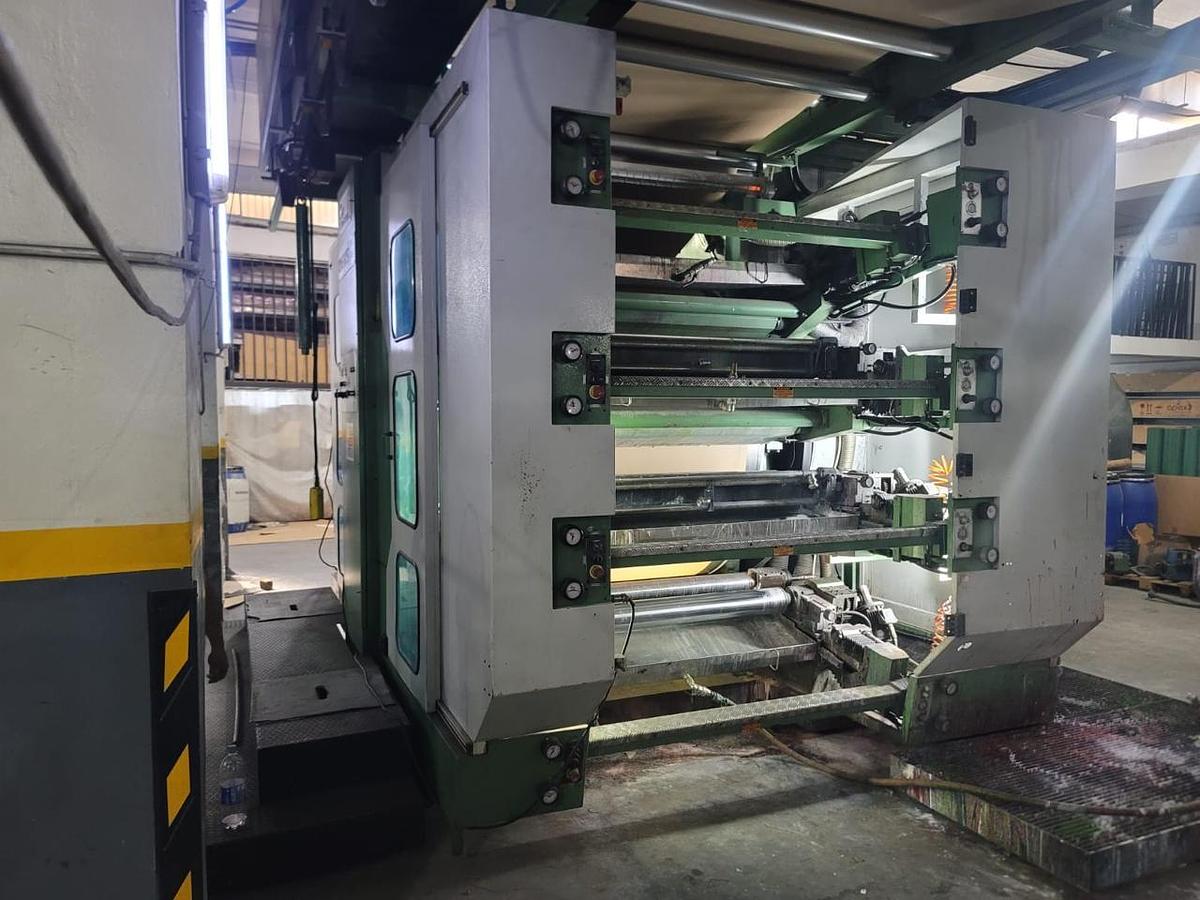

Used Uteco Amethyst flexographic printing press, year 2002, equipped with 8 colors. The machine offers a 1450 mm web width and 1400 mm print width, with print repeat range from 400 to 800 mm. It features fast sleeve change, computer supervision, single unwinder and rewinder with 1250 mm maximum reel diameter, two-zone drying system with independent control, Selectra video camera, web guiding before winding, and CI drum thermoregulation. The press is supplied with anilox rollers, print sleeves, gears, and an in-line slitting system with two suction knives.
Visible in operation and available for sale.
Specifications

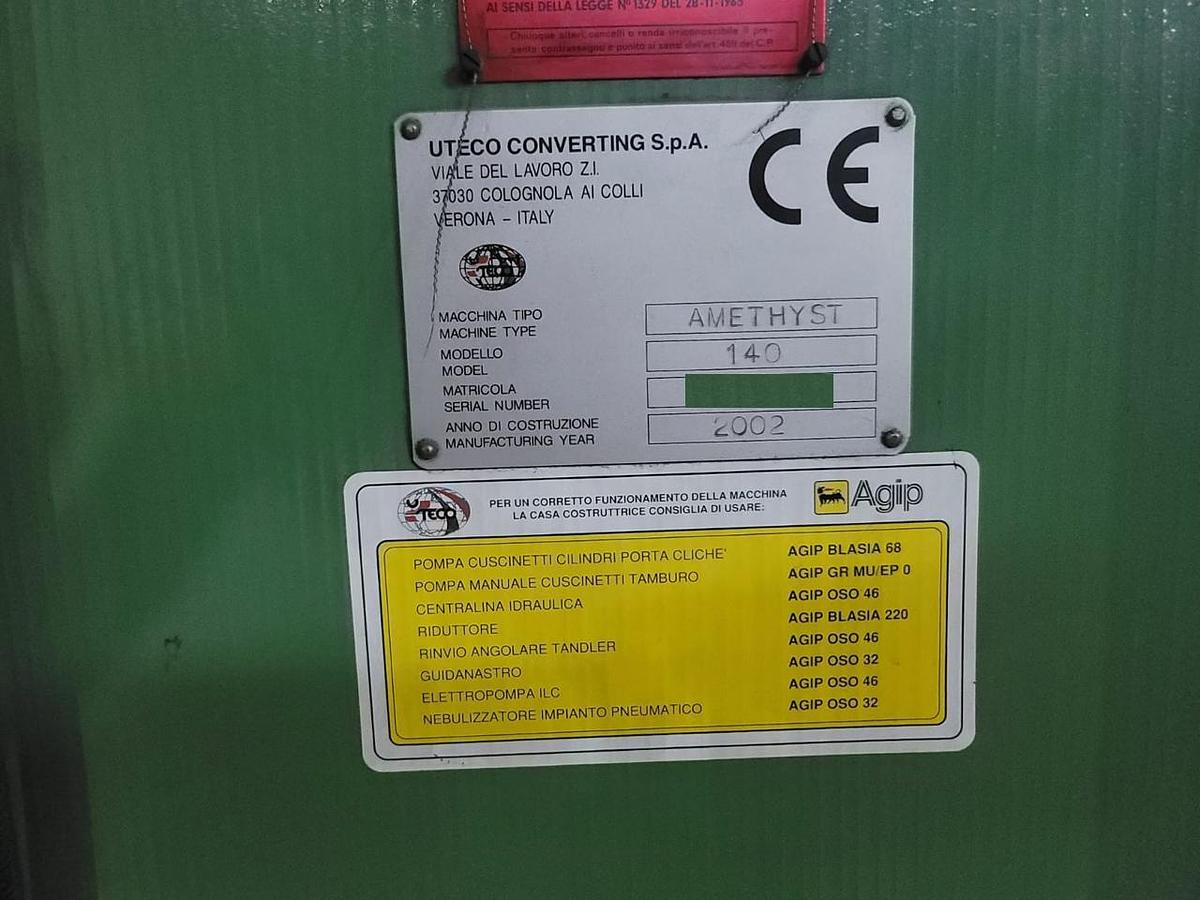

| Manufacturer | UTECO |
| Model | AMETHYST |
| Year | 2002 |
| Condition | Used |
| Number of colors | 8 |
| Printing possibilities | 8+0 |
| Web width | 1450 mm |
| Print width | 1400 mm |
| Minimum print repeat | 400 mm |
| Maximum print repeat | 800 mm |
| Gearless | No |
| Fast sleeve change | Yes |
| Computer supervision | Yes |
| Maximum reel diameter, unwinder | 1250 mm |
| Unwinder type | Single |
| Maximum reel diameter, rewinder | 1250 mm |
| Rewinder type | Single |
| Control | Independent control |
| Video camera | Selectra |
| Web guides | Yes, before winding |
| Drying system | 2 zones, CI unit and tunnel |
| Additional informatio | In-line slitting system with 2 suction knives | Thermoregulation for CI drum. |
| Anilox rollers | 2x 60 lines/cm – volume 20 cm³/m² | 3x 80 lines/cm – volume 18 | 2x 100 lines/cm – volume 18 | 4x 100 lines/cm – volume 15 | 2x 120 lines/cm – volume 12.5 | 4x 220 lines/cm – volume 8 | 4x 320 lines/cm – volume 5.2 |
| Print sleeves | 11x 40 cm | 7x 45 cm | 12x 50 cm | 4x 52 cm | 12x 55 cm | 7x 60 cm | 7x 65 cm | 8x 70 cm |
| Gears | 8x 40 cm | 8x 45 cm | 8x 50 cm | 8x 55 cm | 8x 60 cm | 8x 65 cm | 8x 70 cm | 4x 52 cm |
