2026 (Brand new) VALLIS R10-850 | Roll slitting and rewinding machine
2026 (Brand new) VALLIS R10-850 | Roll slitting and rewinding machine
Location:Europe
Description
Are you looking for a high quality slitter-rewinder?

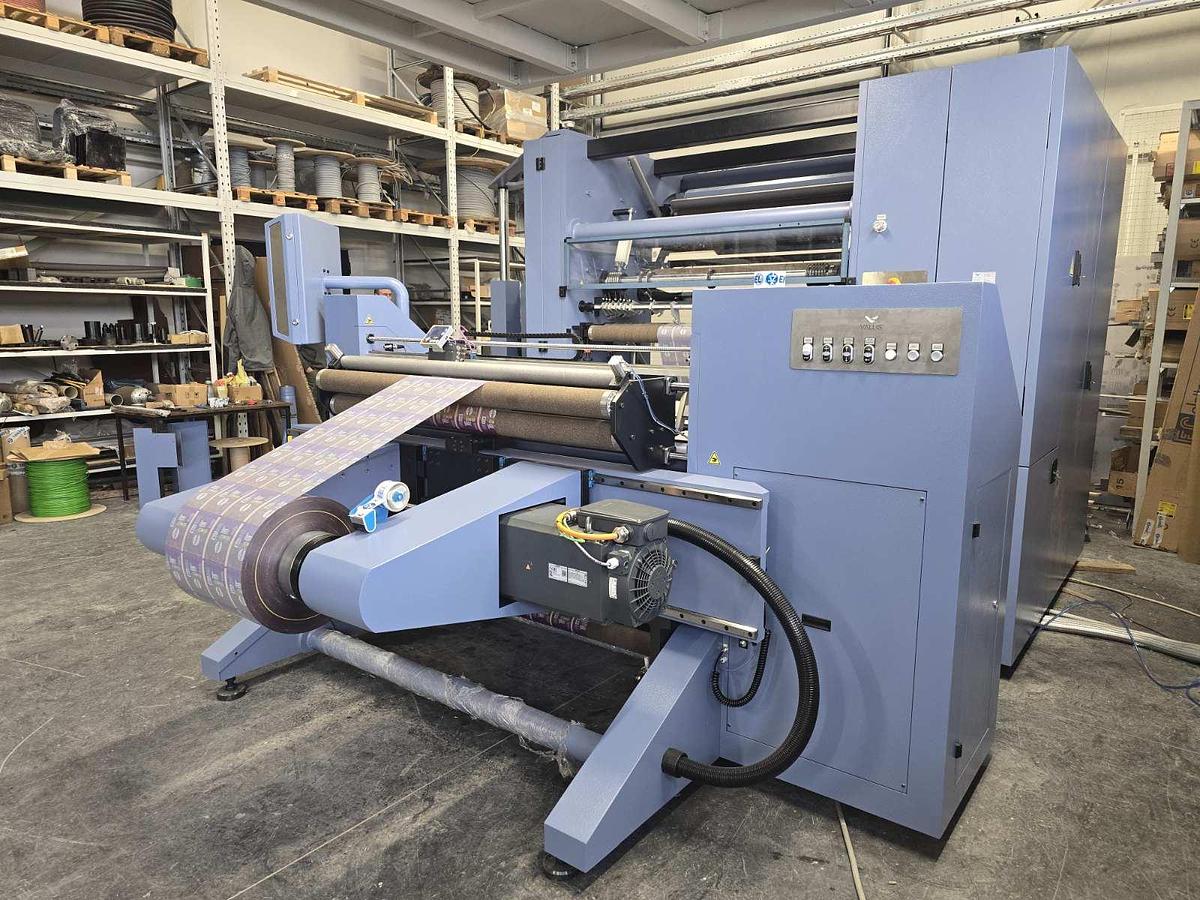

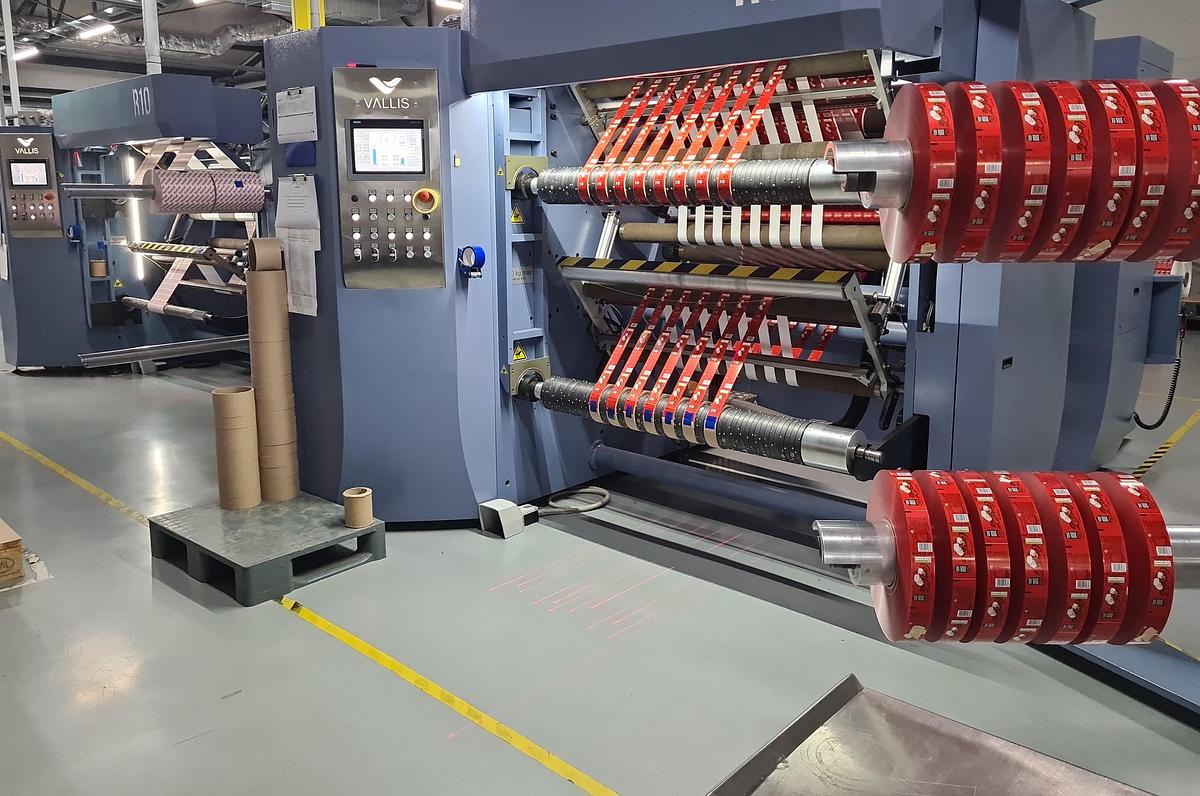

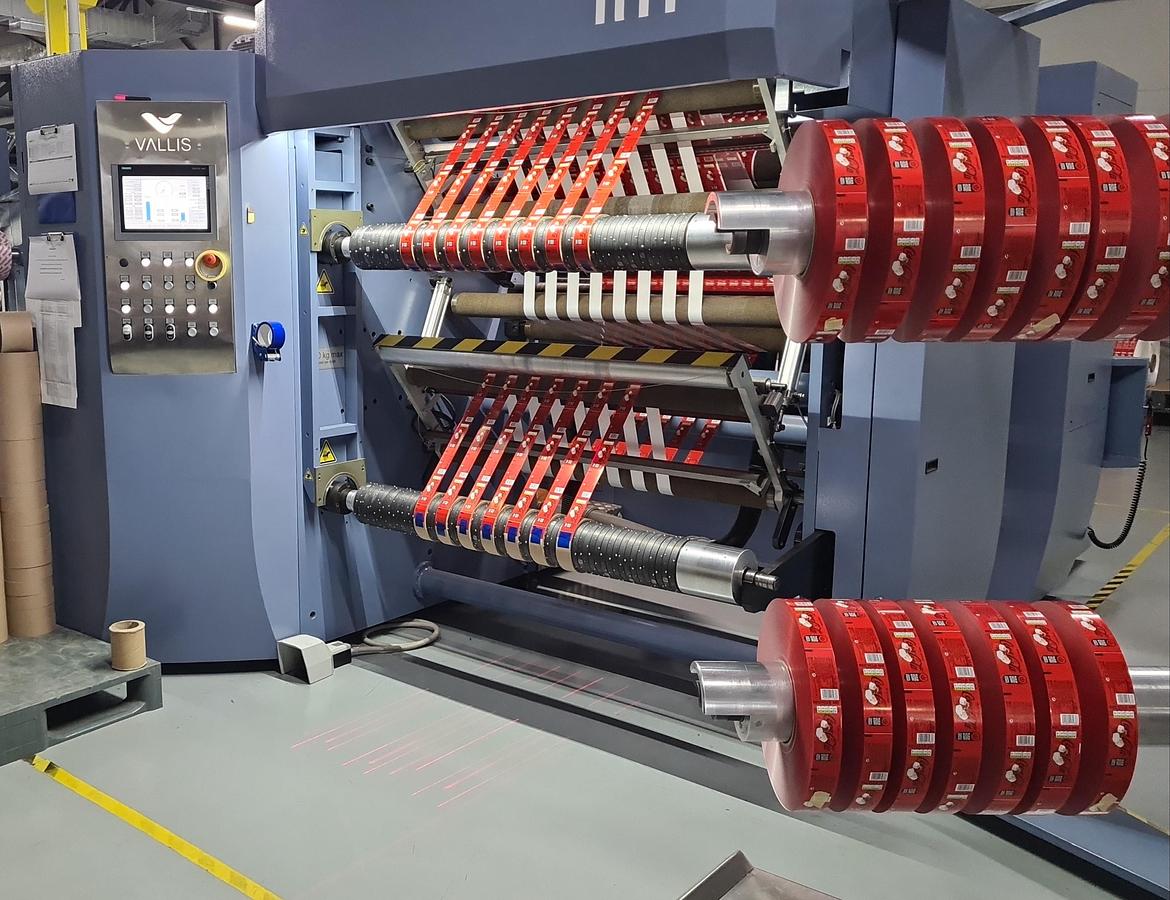

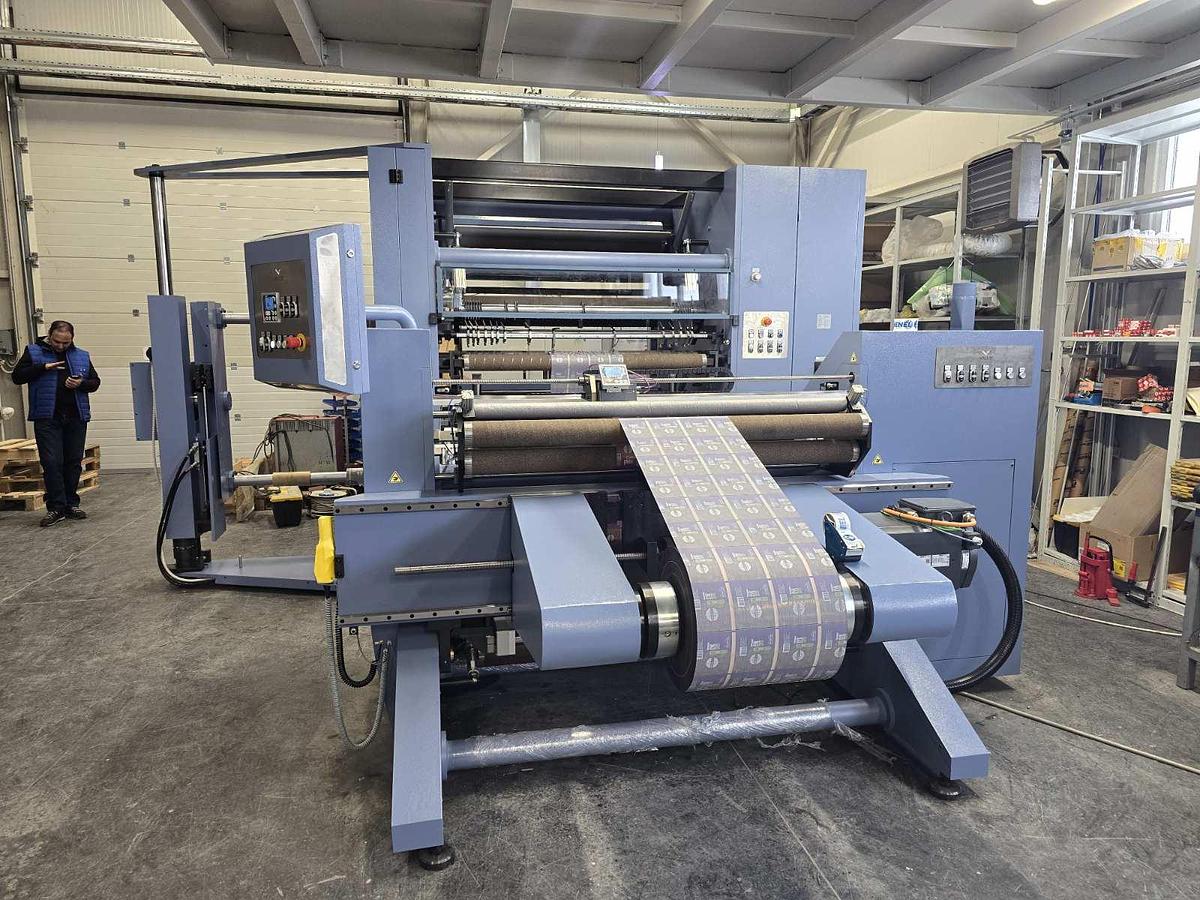

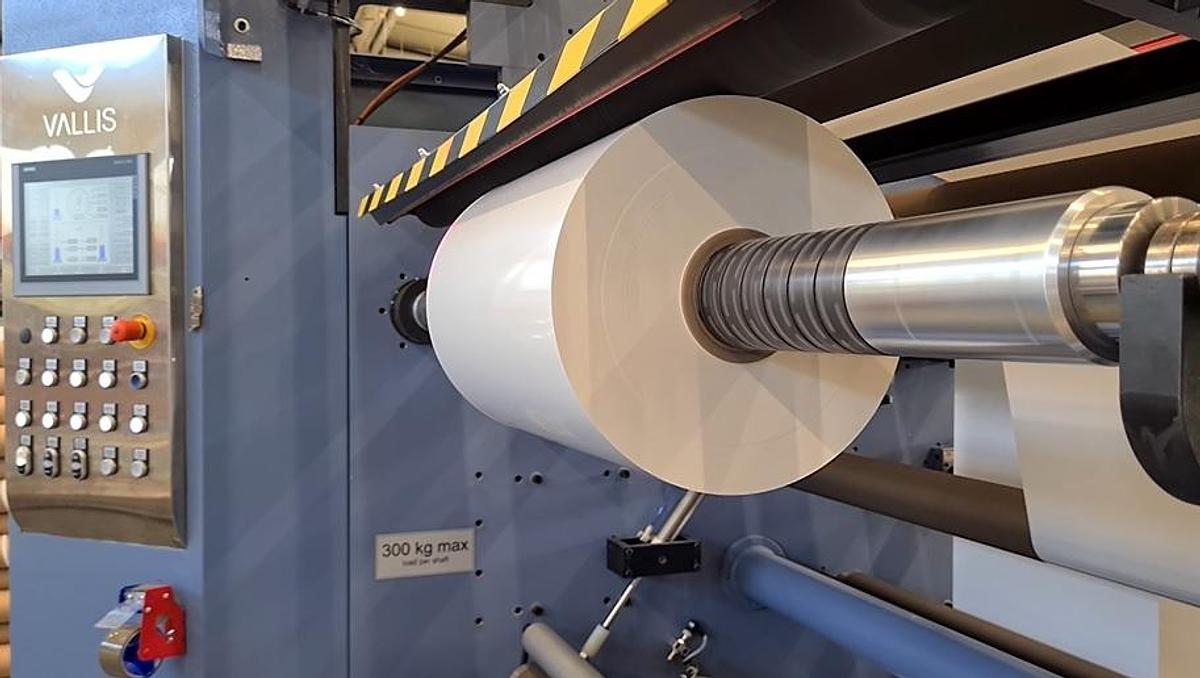

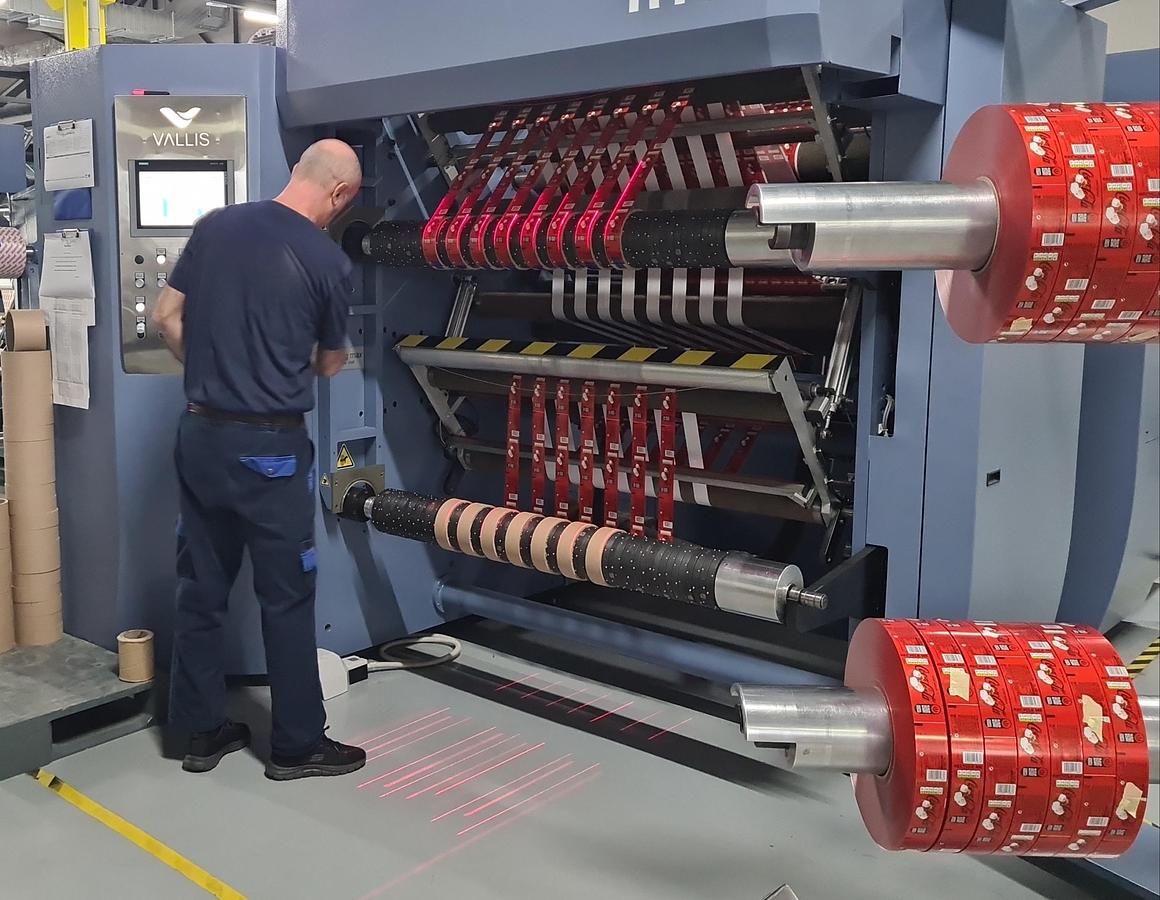

It is immediately avvailable for sale a BRAND NEW VALLIS R10-850 High-performance industrial slitter rewinder for flexible materials, equipped with Siemens Sinamics S120 servo-driven unwinding and rewinding systems, automatic tension control, and BST web guiding system. Featuring a precision razor slit section, dual differential rewind shafts, and handling capabilities up to Ø1300 mm unwind and Ø850 mm rewind rolls. Complete with touchscreen HMI, advanced diagnostics, antistatic system, hydraulic roll loading, and prepared for future rotary knife installation. Reliable and versatile solution for continuous high-quality production.
Test possible on request.
Contact us for inforrmation.
Specifications
| Manufacturer | VALLIS |
| Model | R10-850 | Roll slitting and rewinding machine |
| Year | 2026 |
| Condition | New |
| Max. web width | 1350 mm |
| Max. speed | 700 m/min |
| Max. Unwind diameter | 1300 mm |
| Max. Parent roll weight | 1500 kg |
| Roll lifting | Hydraulic |
| Unwind cores I.D. | 3’’ and 6’’ (76mm and 152mm) |
| Max. Rewind Diameter | 850 mm |
| Minimum Slit Widths | 30mm (for 3’’ friction rings) |
| Materials | Printed / unprinted foil (PE,PP, PET and others), metalised films, laminates, paper |
| Material thickness | 8 - 200 µm |
| Slitting system | Razor blade (optional: rotary knives) |
| Winding cores I.D | 3’’ and 6’’ (76mm and 152mm) |
| Automation system, drives and motors | SIEMENS |
| Web guide system (edge / line giuded) | BST |
| Pneumatics | SMC |
| Additional information | Differential friction shafts on rewinders (optional friction rings for 3’’ and 6’’ cores) | AC digital servo technology (unwind, main drive, rewind) | Shaftless unwind, pneumatic activated core chuck | Motorized unwinder (with dancer system for fine tension control) | Splice table after unwinder | Edge trim suction unit (optional) | Laser guided core positioning system (manual) | Unloading device for rewound rolls |
| Main voltage | 400 V ± 10 %, 3 phases, 50Hz |
| Air supply | 6 - 10 Bar |
