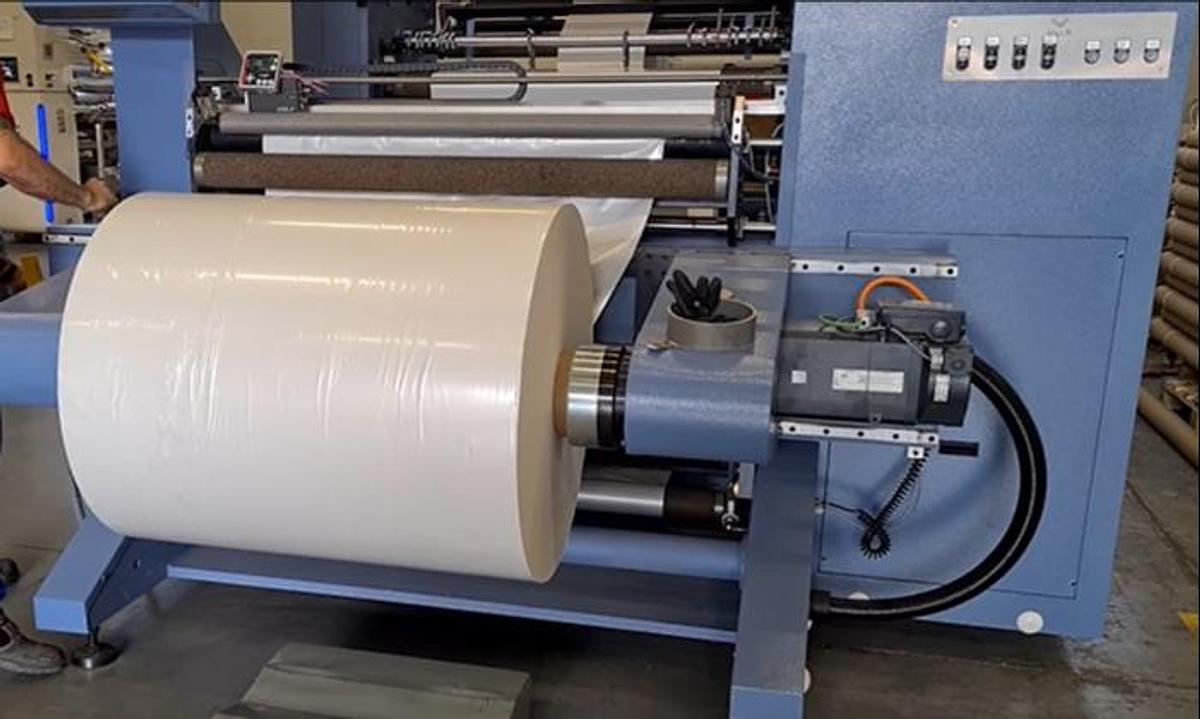

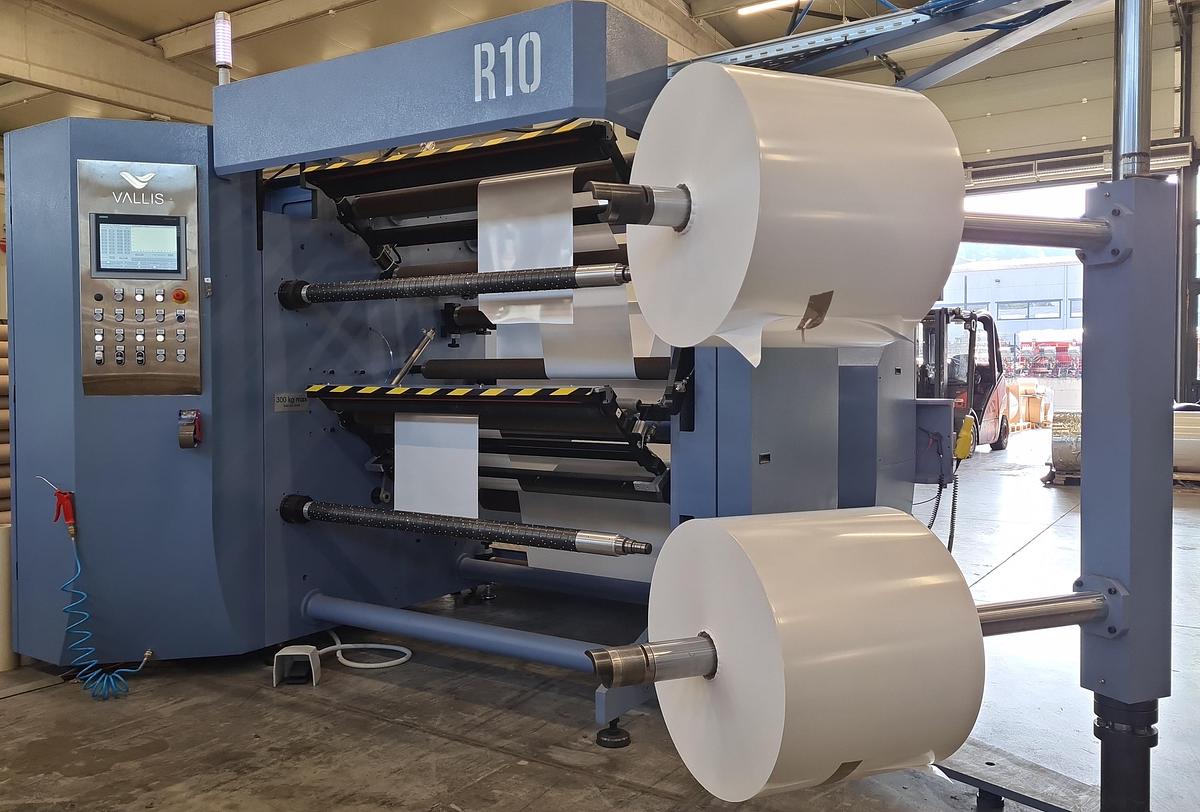

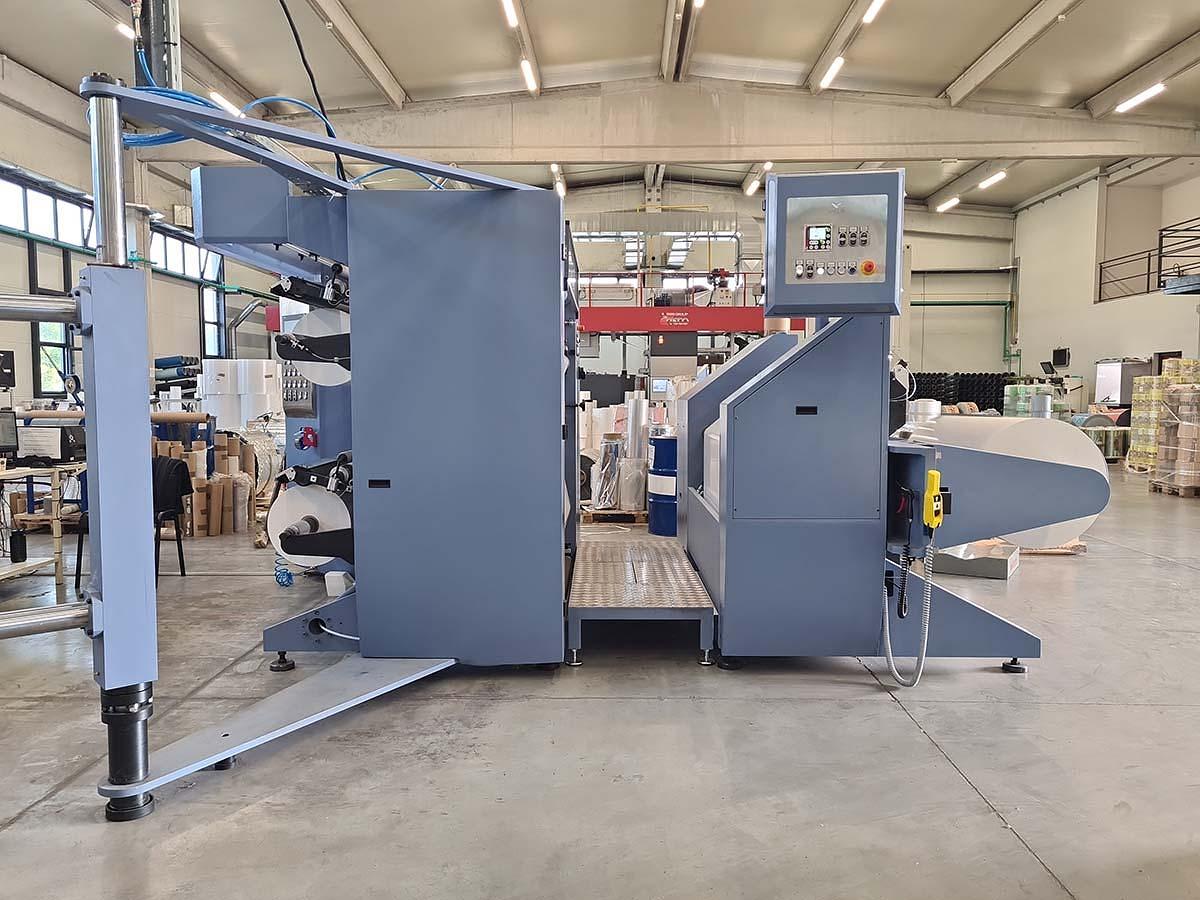

2026 (Brand new) VALLIS R10-620 | Roll slitting and rewinding machine

2026 (Brand new) VALLIS R10-620 | Roll slitting and rewinding machine

Location:Europe

or
Call +39 346 4948054

Description

Are you looking for a high quality slitter-rewinder?

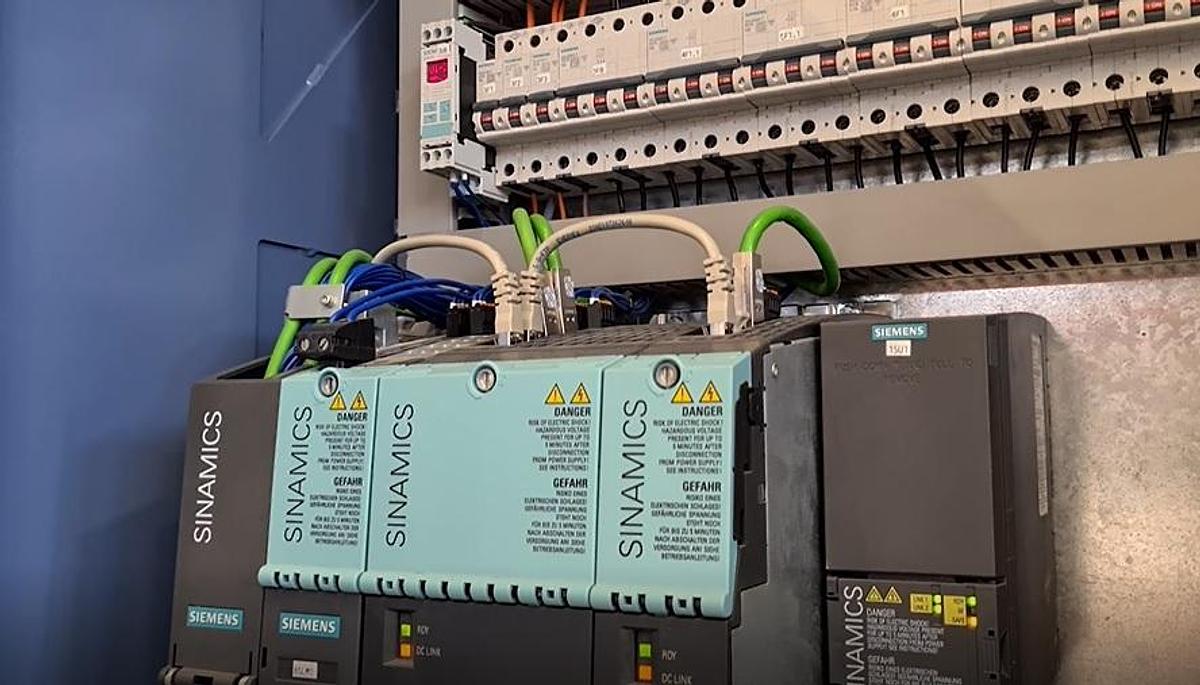

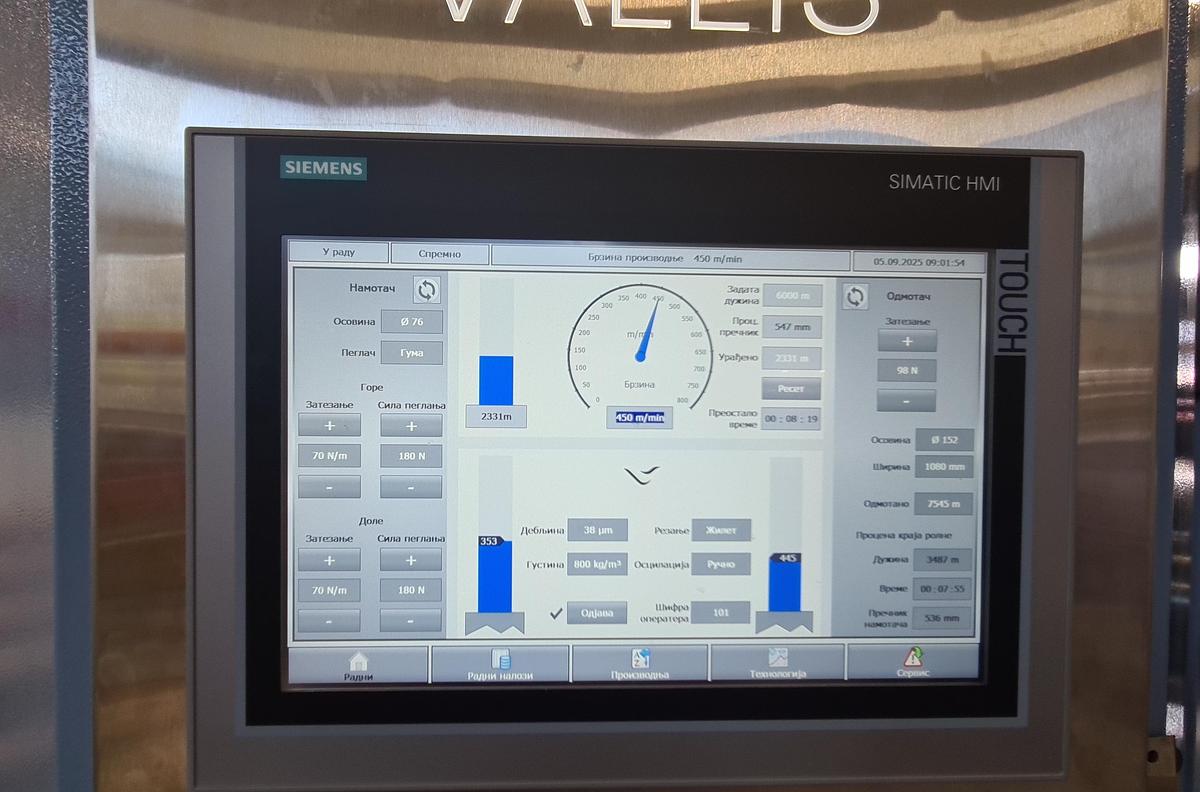

It is immediately avvailable for sale a BRAND NEW VALLIS R10-620 High-performance industrial slitter rewinder for flexible materials, equipped with Siemens Sinamics S120 servo-driven unwinding and rewinding systems, automatic tension control, and BST web guiding system. Featuring a precision razor slit section, dual differential rewind shafts, and handling capabilities up to Ø1000 mm unwind and Ø620 mm rewind rolls. Complete with touchscreen HMI, advanced diagnostics, antistatic system, hydraulic roll loading, and prepared for future rotary knife installation. Reliable and versatile solution for continuous high-quality production.

Test possible on request.

Contact us for inforrmation.

Show All

Specifications

ManufacturerVALLIS
ModelR10-620
Year2026
ConditionNew
Max. web width1300 mm
Max. speed700 m/min
Max. Unwind diameter1000 mm
Max. Parent roll weight1500 kg
Roll liftingHydraulic
Unwind cores I.D.3’’ and 6’’ (76mm and 152mm)
Max. Rewind Diameter620 mm
Minimum Slit Widths40 mm
MaterialsPrinted / unprinted foil (PE,PP, PET and others), metalised films, laminates, paper
Material thickness10-200 µm
Slitting systemRazor blade (optional: rotary knives)
Winding cores I.D3’’ and 6’’ (76mm and 152mm)

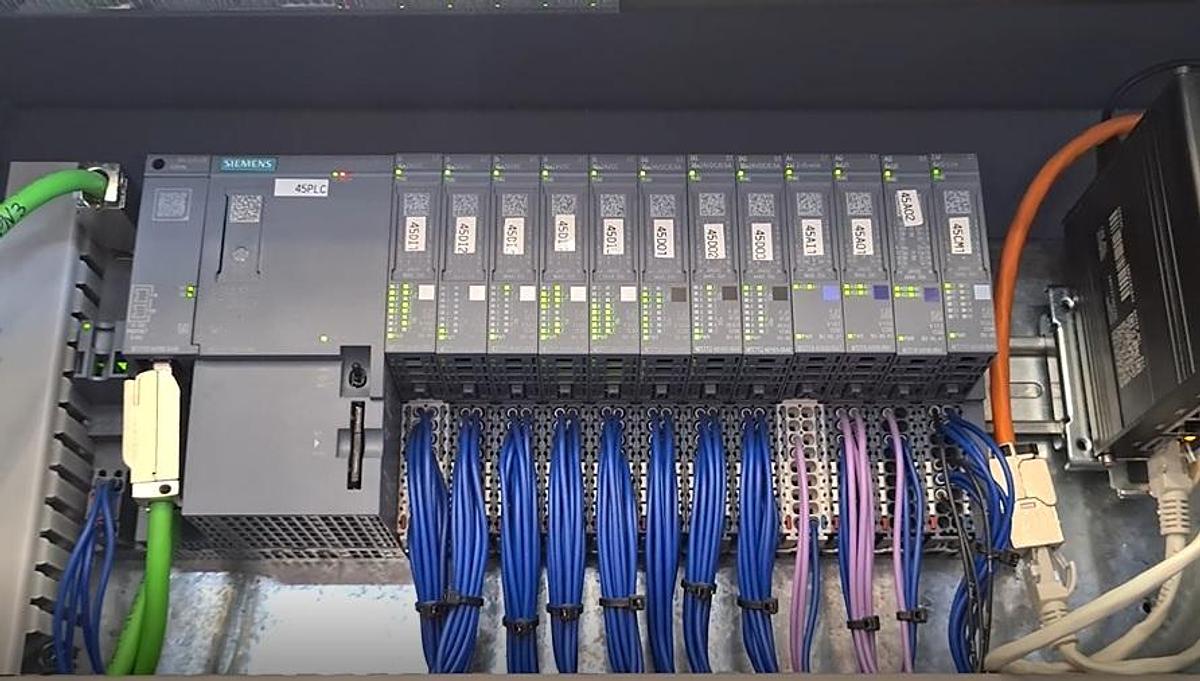

Automation system, drives and motorsSIEMENS
Web guide system (edge / line giuded)BST
PneumaticsSMC

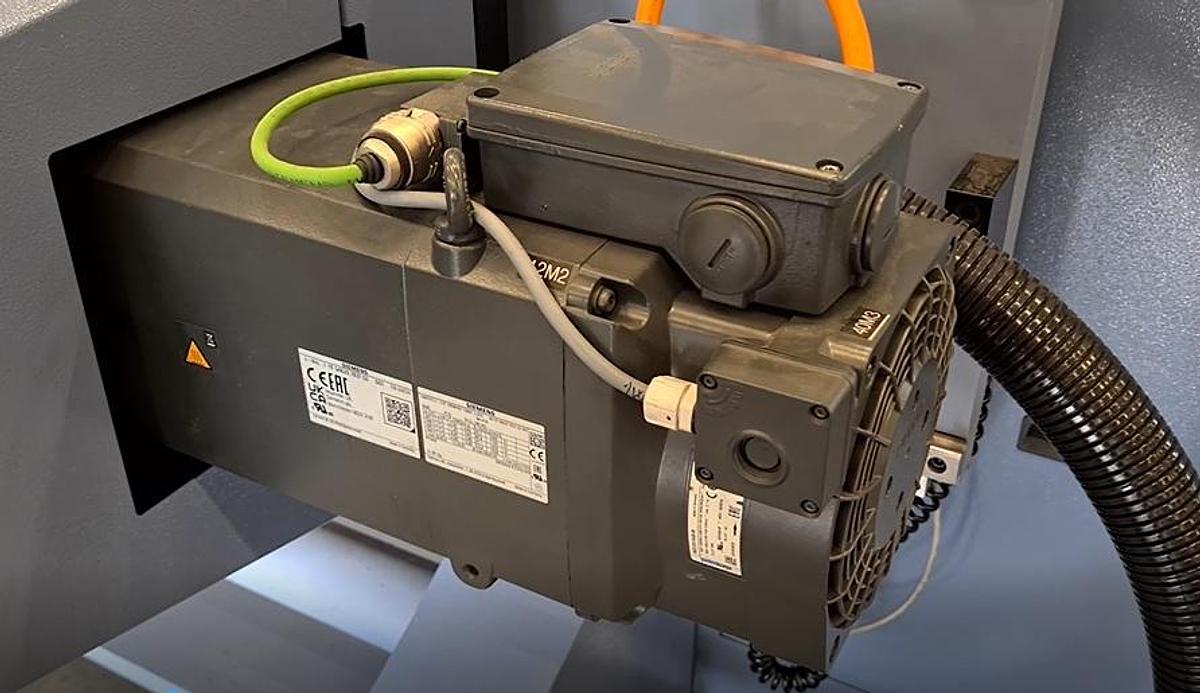

Additional informationAC digital servo technology (unwind, main drive, rewind) | Shaftless unwind, pneumatic activated core chuck | Motorized unwinder (with dancer system for fine tension control) | Edge trim suction unit (optional) | Laser guided core positioning system (manual) | Unloading device for rewound rolls |
Main voltage400 V ± 10 %, 3 phases, 50Hz
Air supply6 - 10 Bar
