2023 ZNEP ZD-F450Q | Automatic TWISTED & FLAT handles shopping bag making machine (2 handles unit)
2023 ZNEP ZD-F450Q | Automatic TWISTED & FLAT handles shopping bag making machine (2 handles unit)
Location:Europe
Available quantity:1
Description

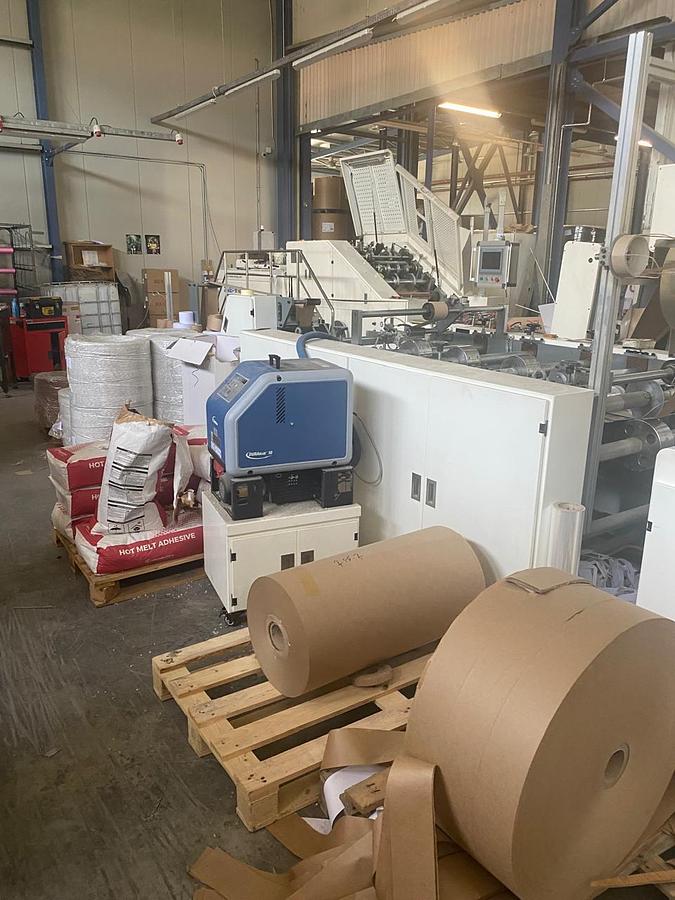

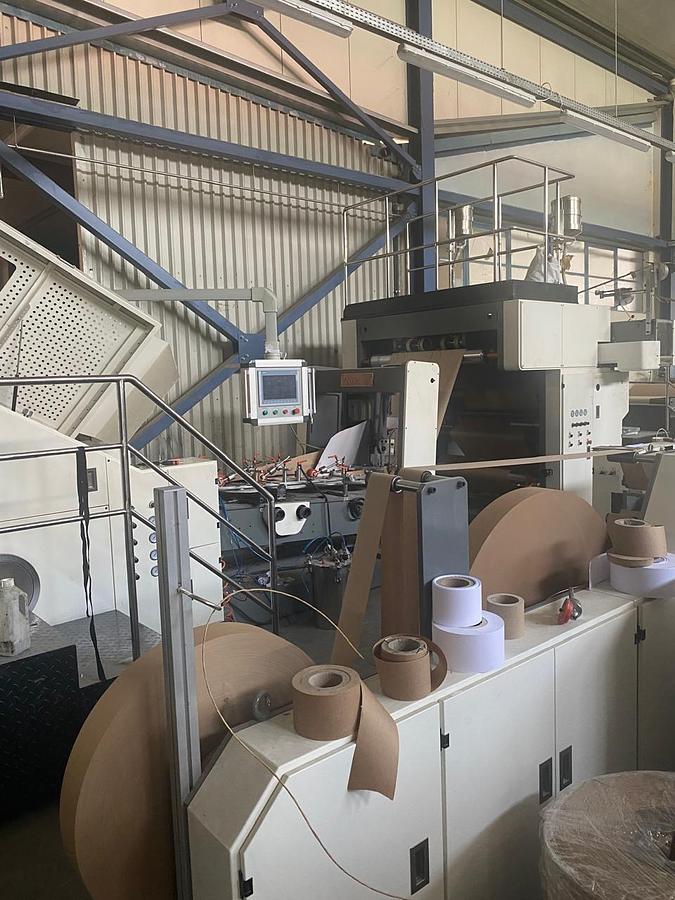

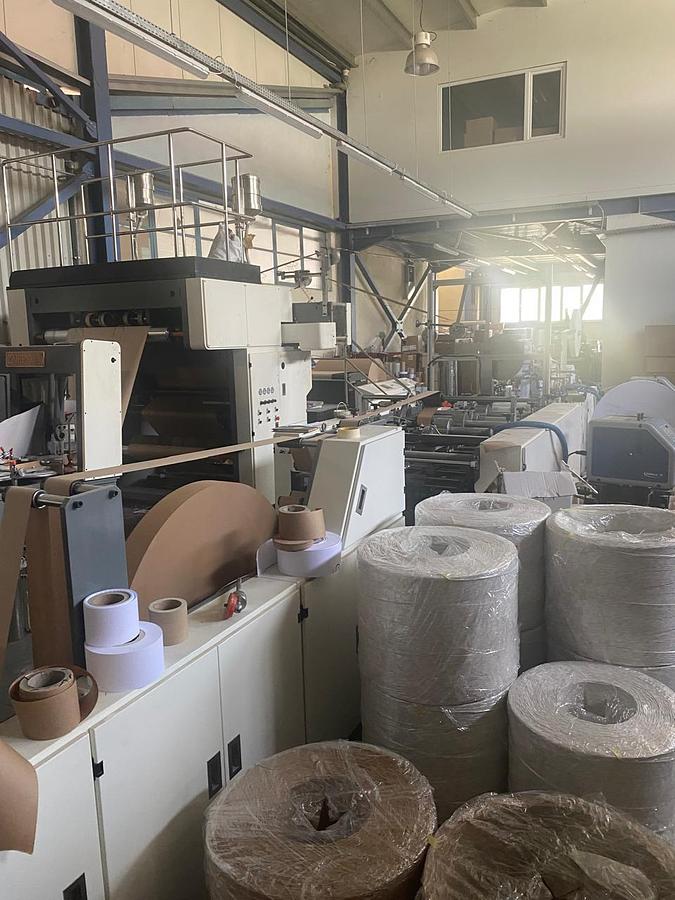

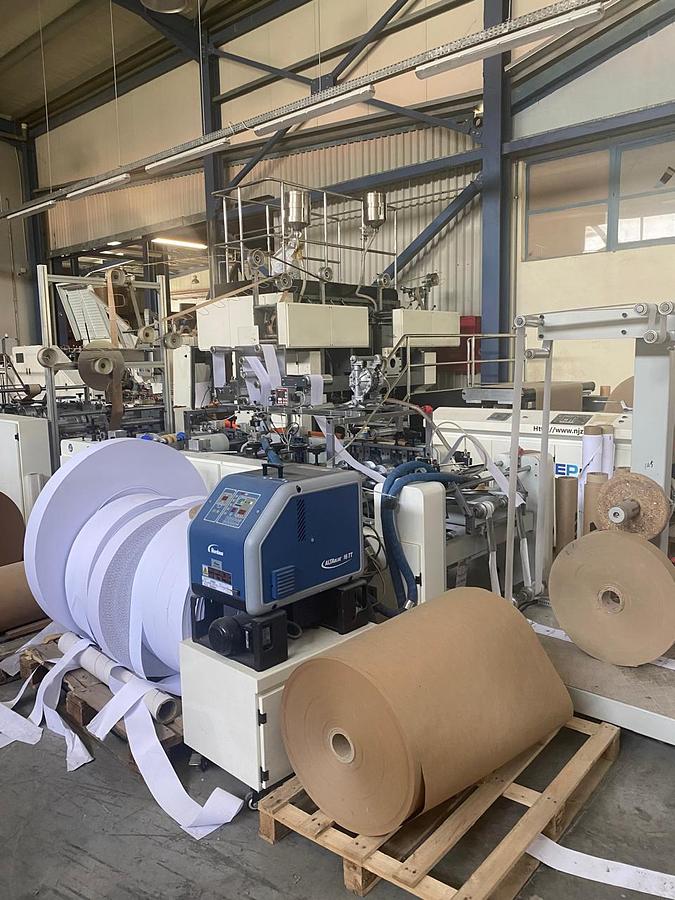

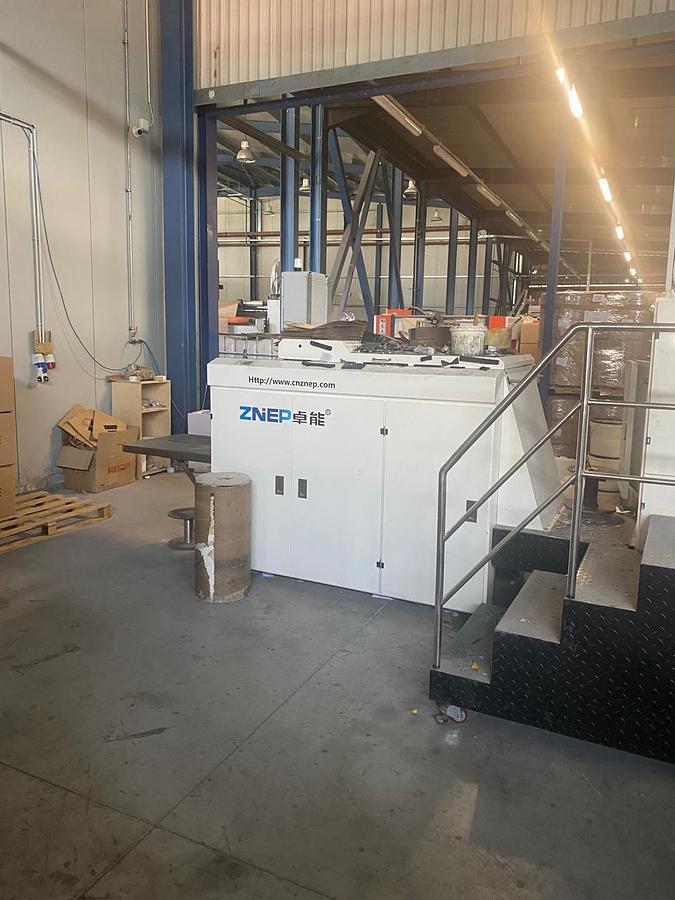

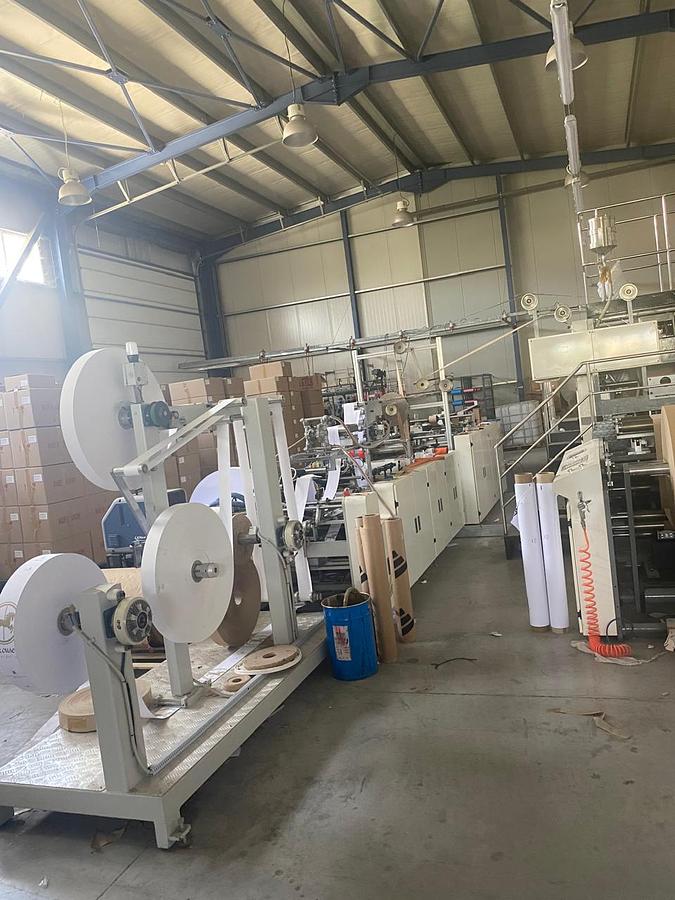

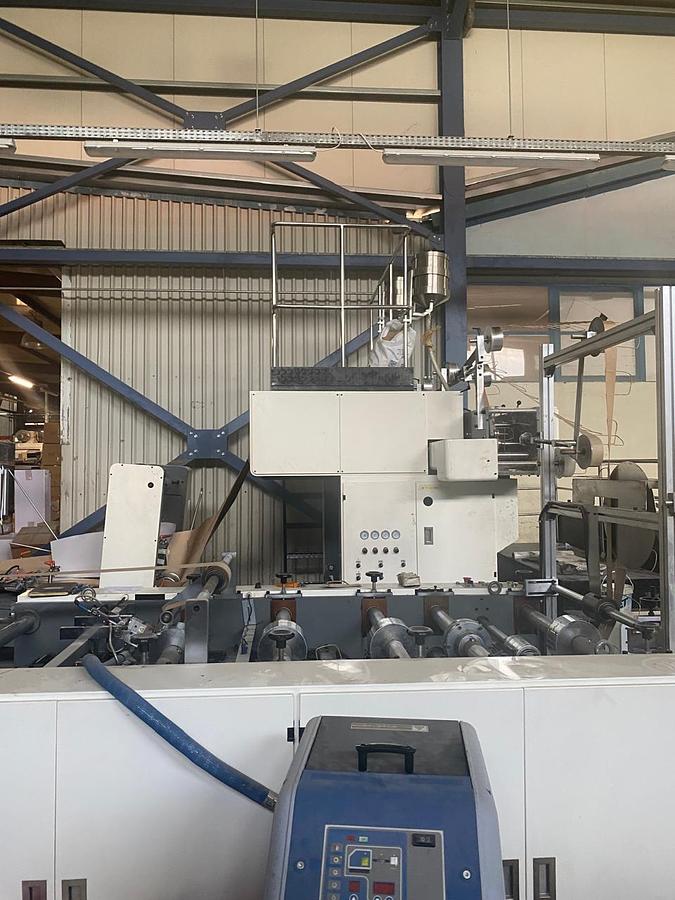

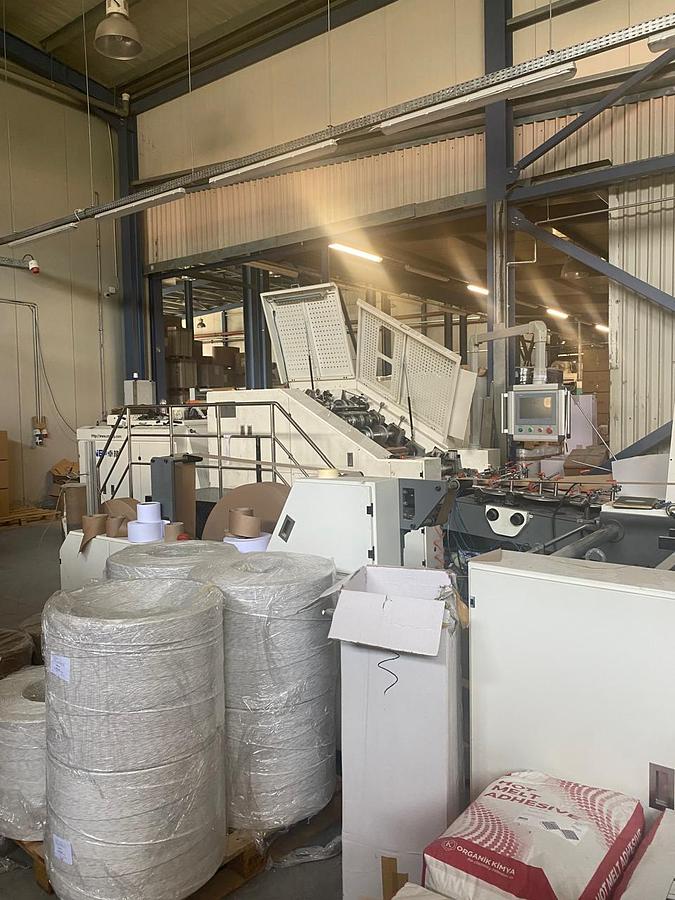

Second-hand ZNEP ZD-F450Q FULLY AUTOMATIC TWISTED & FLAT HANDLES SHOPPING BAG MAKING MACHINE (year 2023)
This machine is specially designed to make paper shopping bags with twisted rope or flat handles (equipped with 2 handles unit) inline fully automatically. T
he handles are produced by the handle-making unit, then cut and pasted onto the paper.

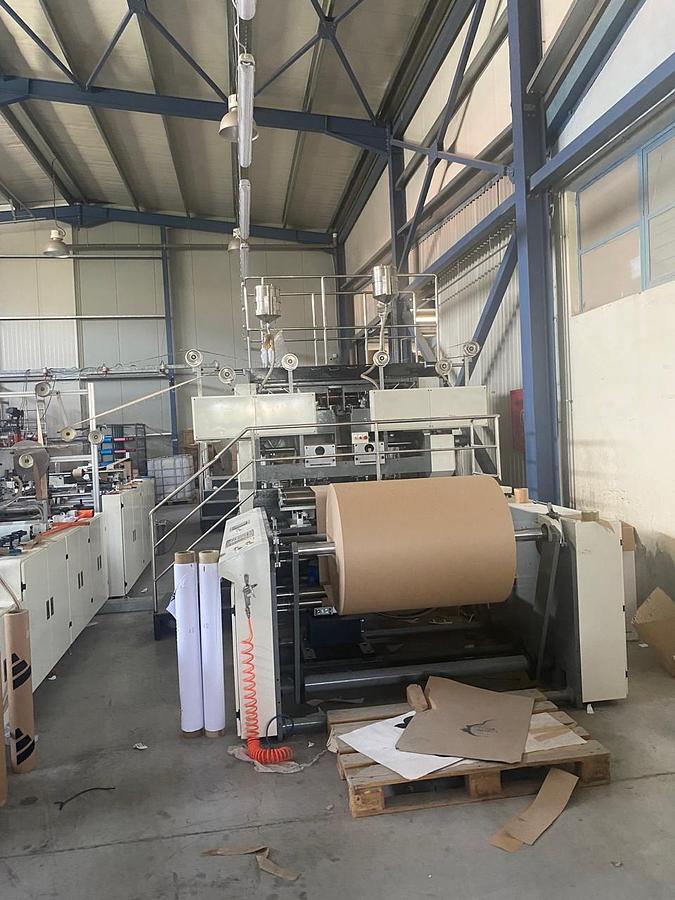

The machine completes the entire process in one line: Paper roll feeding | Handle patching | Side gluing | Tube forming & cutting | Bottom creasing & gluing | Bag collection
It uses servo motors for high precision and stability, easy maintenance, and high efficiency.
Twisted rope and flat handles can be switched easily, allowing dual functionality.
In case of interest, a LISHENG roll to roll 4 col. flexo printing machine can be included in the deal at a special bundled price
Visible in operation and available for sale.
Specifications
| Manufacturer | Nanjing Zono Machine Equipment Co.,Ltd. | ZNEP |
| Model | ZD-F450Q |
| Year | 2023 |
| Condition | Used (visible in production) |
| Finished bag width (min - max) | 230–450 mm |
| Paper tube length | 290–630 mm (including handle height) |
| Bag bottom width (min - max) | 80–220 mm |
| Paper roll width (min - max) | 650 – 1370 mm |
| Max. diameter of the reel | 1500 mm |
| Inner core diameter | 76 mm |
| Weight of paper (min - max) | 80 / 90–150 g/m² |

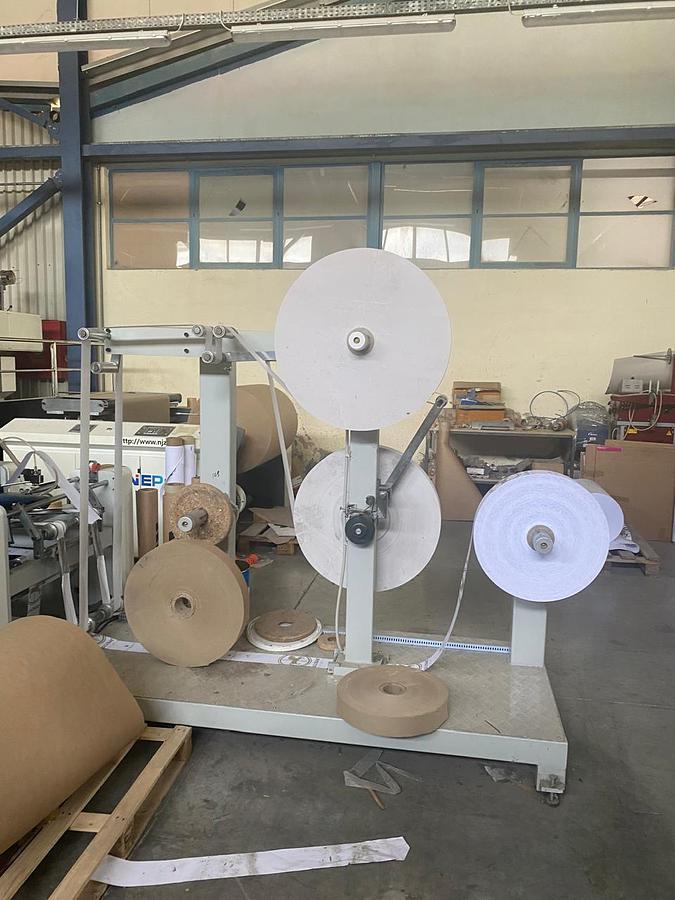

| Handle making unit | 2 Hanldes making unit: 1 for TWISTED handles and 1 for FLAT handles |
| Technical specification of the TWISTED handle making unit | Handle rope height: 90–120 mm | Handle rope distance: 95 mm | Handle rope diameter: Φ3–6 mm | Handle patch length: 190 mm | Handle patch width: 42.5–50 mm | Paper patch roll diameter: Φ1200 mm | Paper patch roll width: 85–100 mm | Paper patch grammage: 80–150 g/m² |
| Technical specification of the FLAT handle making unit | Flat handle height: 100 mm| Flat rope distance: 95 mm | Paper grammage for handle: 100–130 g/m² | Flat rope width: Φ15 mm | Handle patch length: 190 mm | Handle patch width: 42.5–50 mm | Paper patch roll diameter: Φ1200 mm | Paper patch grammage: 100–150 g/m² |
| Dimensions of the machine | 16500 × 5900 × 2500 mm |
| Total power | 33 kW |
| Machine weight | 21.500 kg |
| Additional information | Included new servo motors as spare parts |
