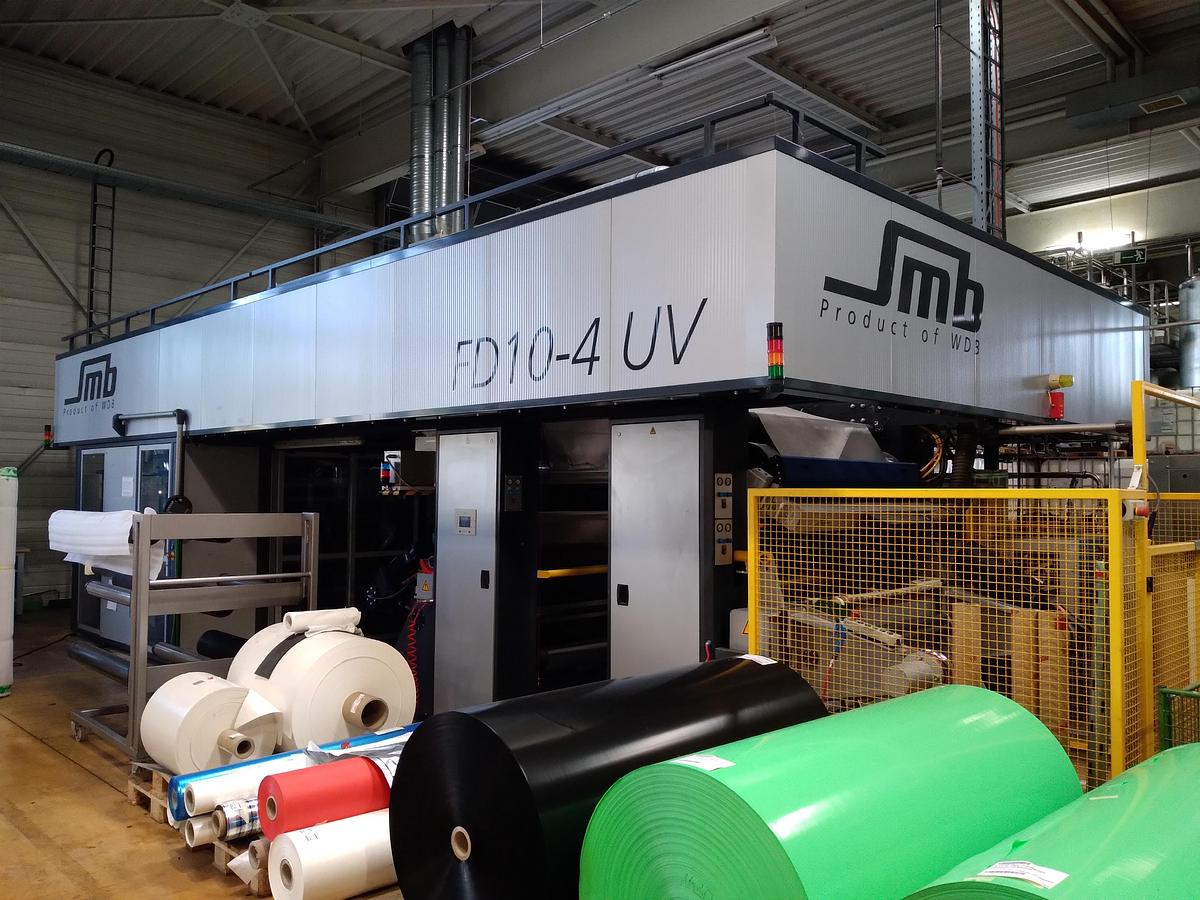

2016 WDB Systemtechnik (Smb) FD10-4/UV | 4 colours flexo printing machine for UV inks
Featured
2016 WDB Systemtechnik (Smb) FD10-4/UV | 4 colours flexo printing machine for UV inks
Location:Europe
or
Call +39 346 4948054
Description

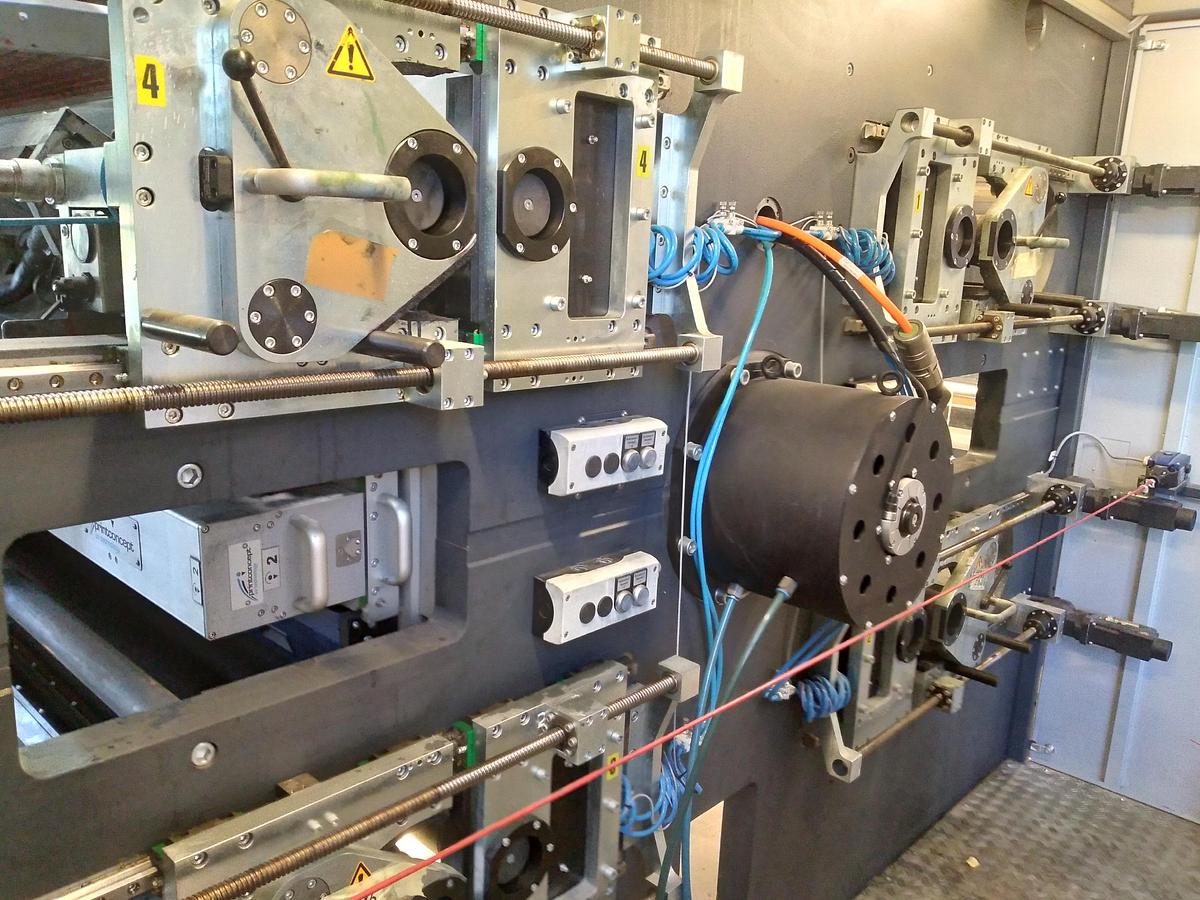

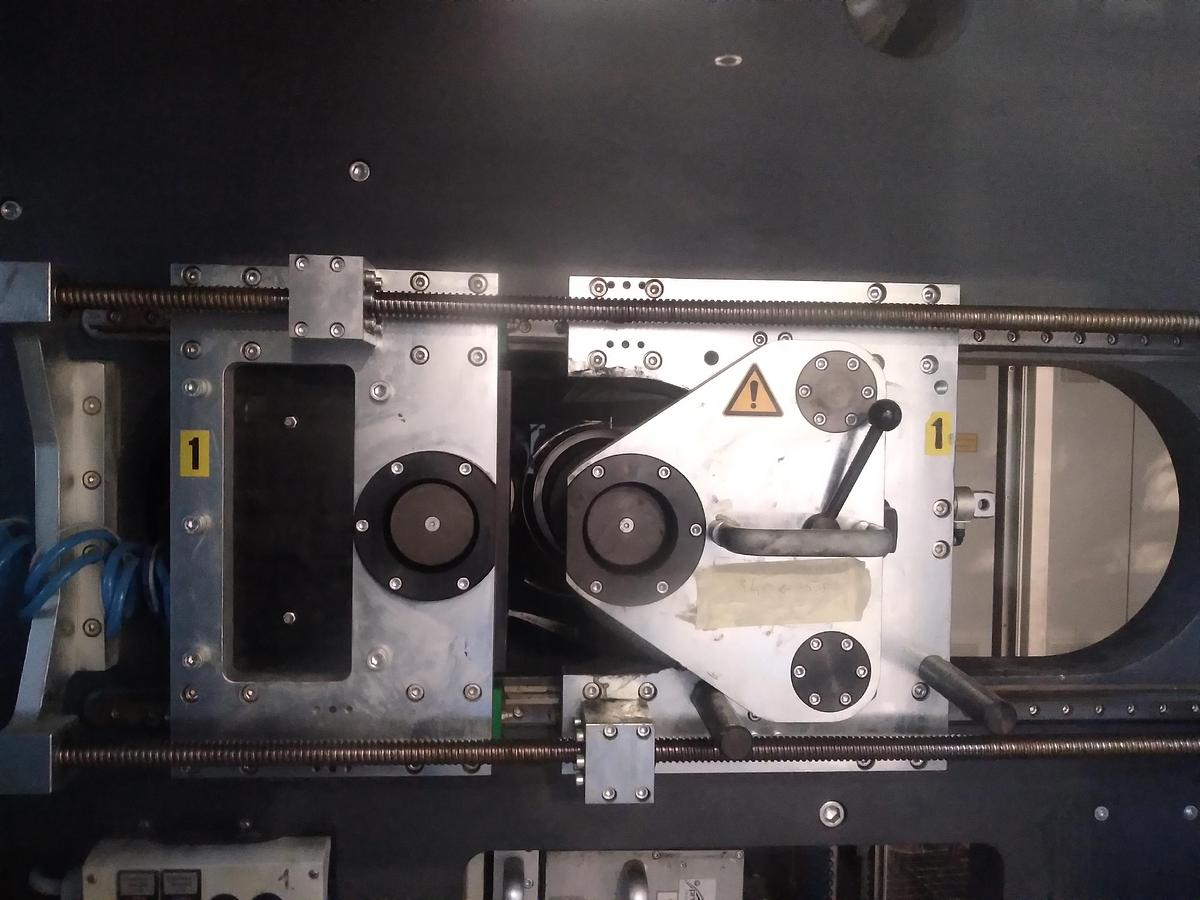

WDB flexographic printing machine suitable for UV inks. 4 printing units, printing width 1350 mm.
The machine was used as a test unit for development purposes and has seen only limited use.
The printing press is in working condition and can be tested at any time.
Specifications
| Manufacturer | WDB Systemtechnik (Smb) |
| Model | FD10-4/UV |
| Year | 2016 |
| Condition | Used (visible in production) |
| Max. print width | 1350 mm |
| Max. material width | 1380 mm |
| Repeat length | 400 – 800 mm |
| Repeat adjustment | 0.1 mm |
| Register adjustment | 0.01 mm |
| Max. roll diameter | 800 mm |
| Inner core diameter | 3" / 6" |
| Max. roll weight | 1500 Kg |
| Web tension | 20 – 350 N |
| Max. speed | 350 m/min |
| Max. speed (UV inks) | 150 m/min (Depends on material, printing form, and ink system) |
| Materials to be printed | PET, OPP, aluminum, and laminates (13–250 µm) |
| Ink system | UV inks and coatings |
| Edge Control | BST web guiding system |

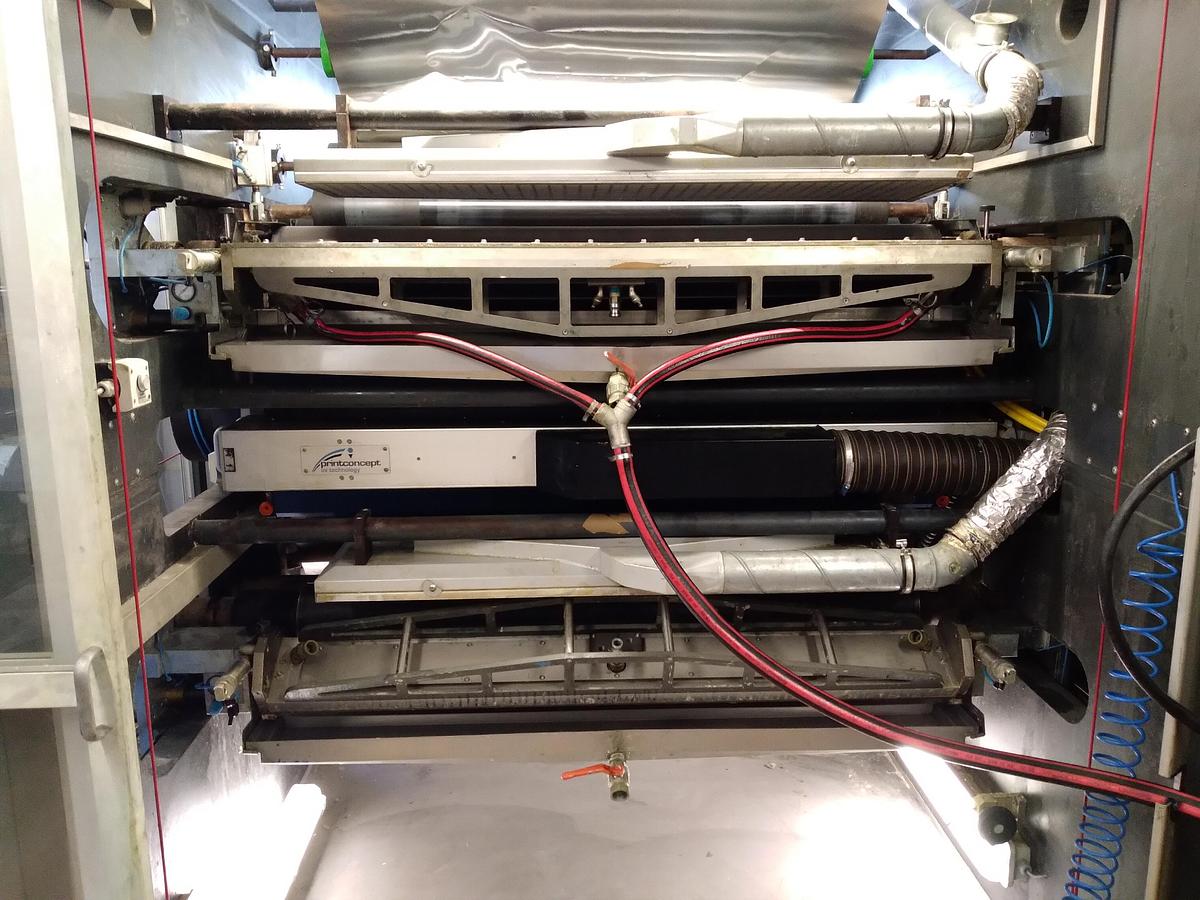

| Drying – Hot Air Tunnel | high-performance dryer with gas heating |
| Drying – IR Heaters | 4 × IR heaters, 8 kW each, installed in the drying tunnel |
| Electrical Supply | Voltage (+/- 10%) 3PE/N 230/400 V |Rated current 230 A | Frequency 50 Hz | Fuse protection 250 A | Short-circuit current (Icq ≤) 10 kA |
| Pneumatic Supply | Operating pressure 6 – 8 | bar Temperature 20 °C | Air quality (ISO 8573-1) Class 5 (dry) |
| Machine dimensions (approx.) | Lenght 11000 x Width 5800 x Height 3700 mm |
| Machine weight (approx.) | 38000 Kg |
