2016 CUT EXPERT VARIOJET and BFT Servotron 40.45+ | waterjet cutter with High-Pressure Unit
2016 CUT EXPERT VARIOJET and BFT Servotron 40.45+ | waterjet cutter with High-Pressure Unit
Location:Europe
Available quantity:1
or
Call +39 346 4948054
Description

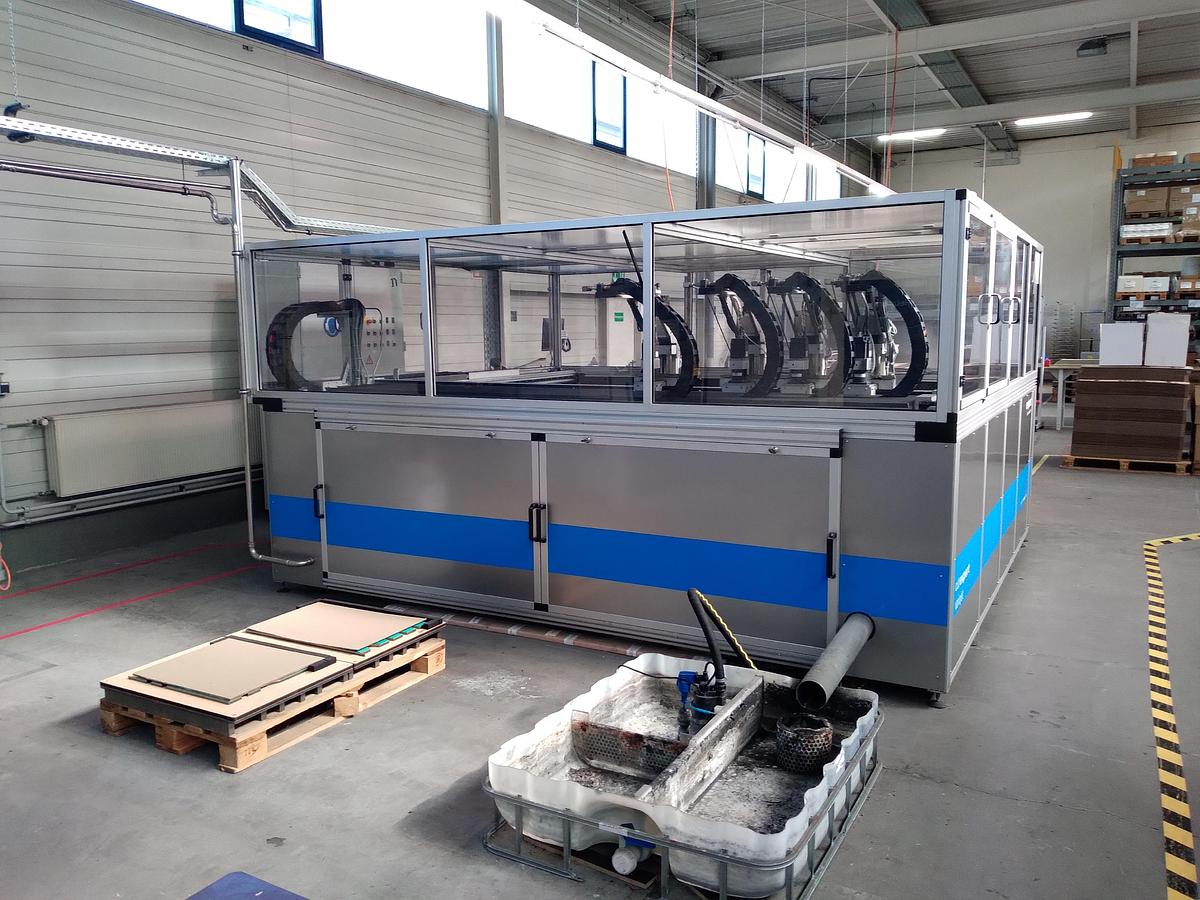

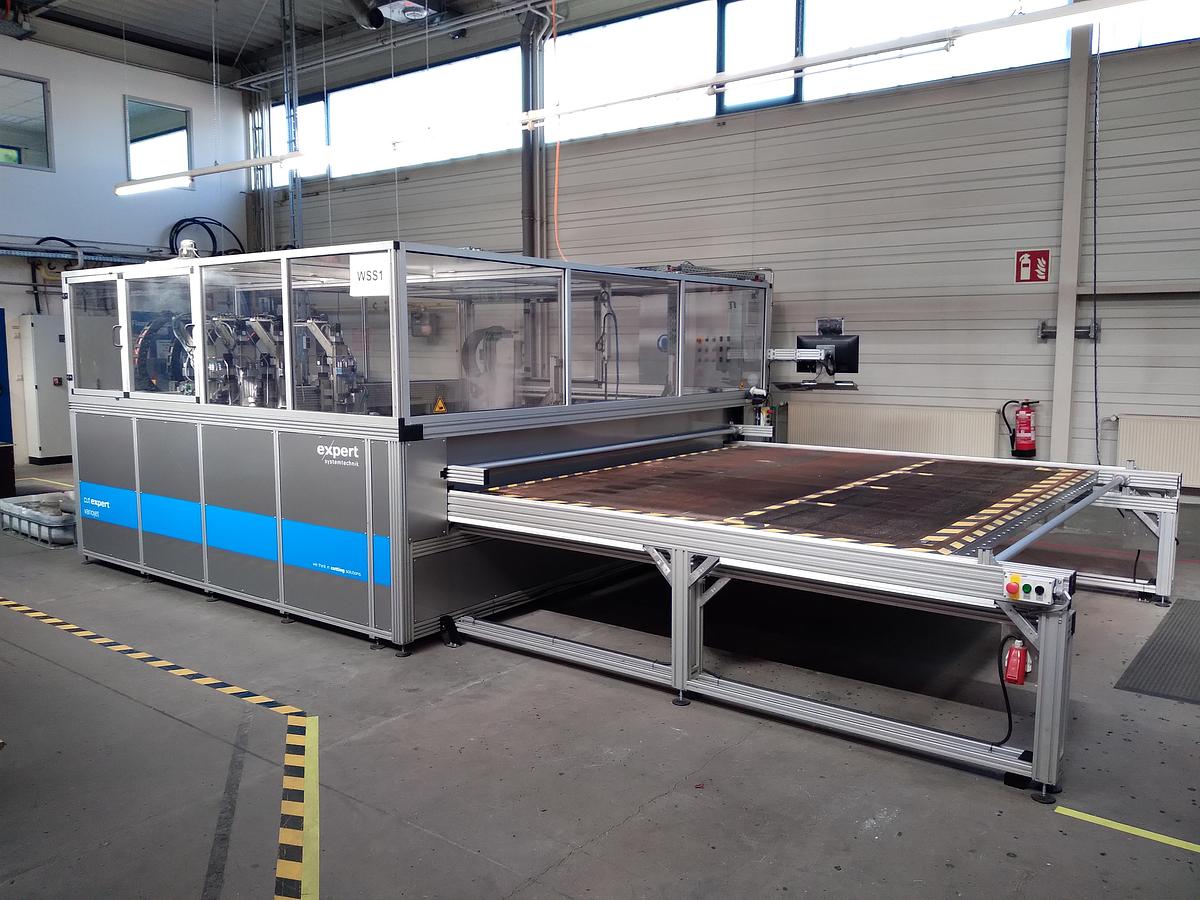

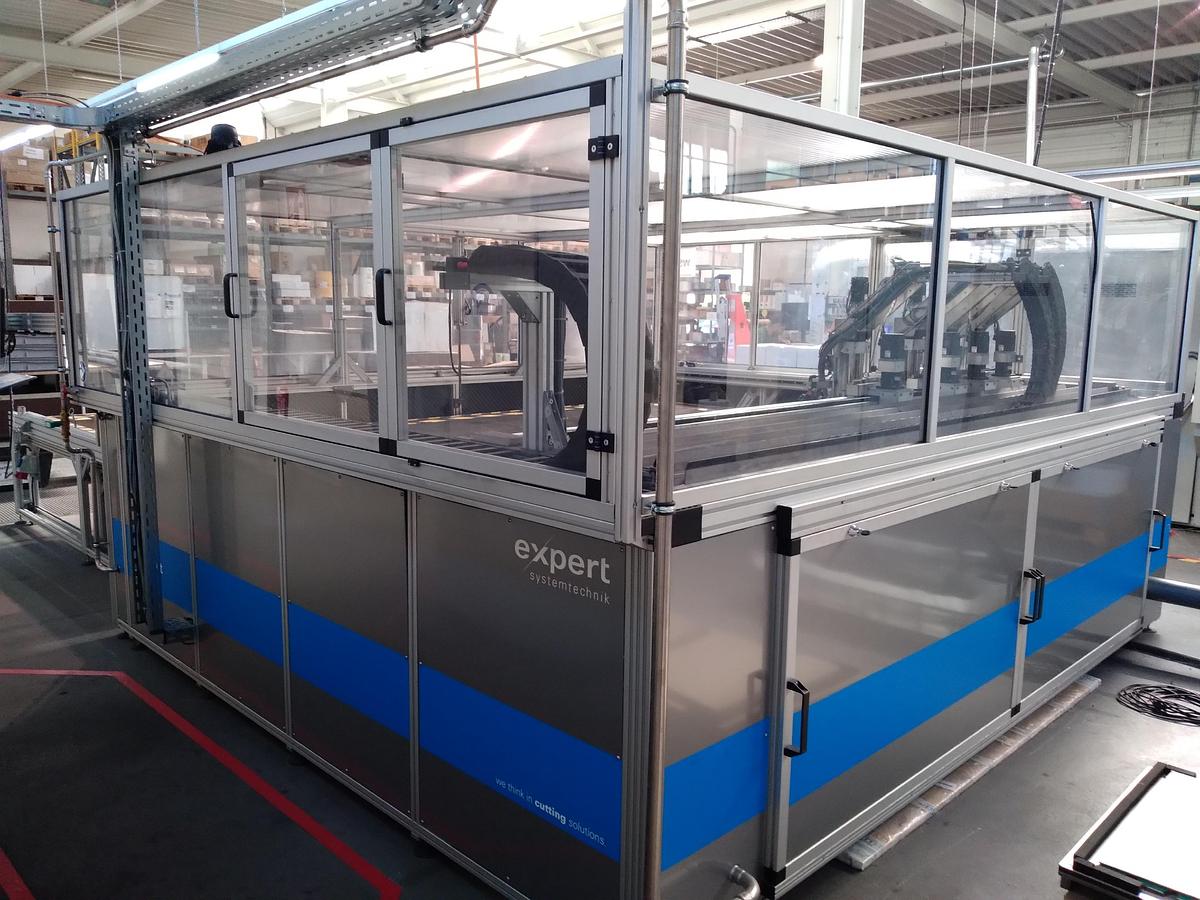

Second-hand Waterjet Cutting System for Sale – CUT EXPERT VARIOJET with High-Pressure Unit Model BFT Servotron 40.45+ (year 2016).
A high-quality waterjet cutting system by Expert Systemtechnik, equipped with a BFT high-pressure pump, is available for sale.
The machine is in good condition and suitable for a wide range of materials.
Specifications
| Manufacturer | Expert international GmbH |
| Model | CUT EXPERT VARIOJET |
| Year | 2016 |
| Condition | Used |

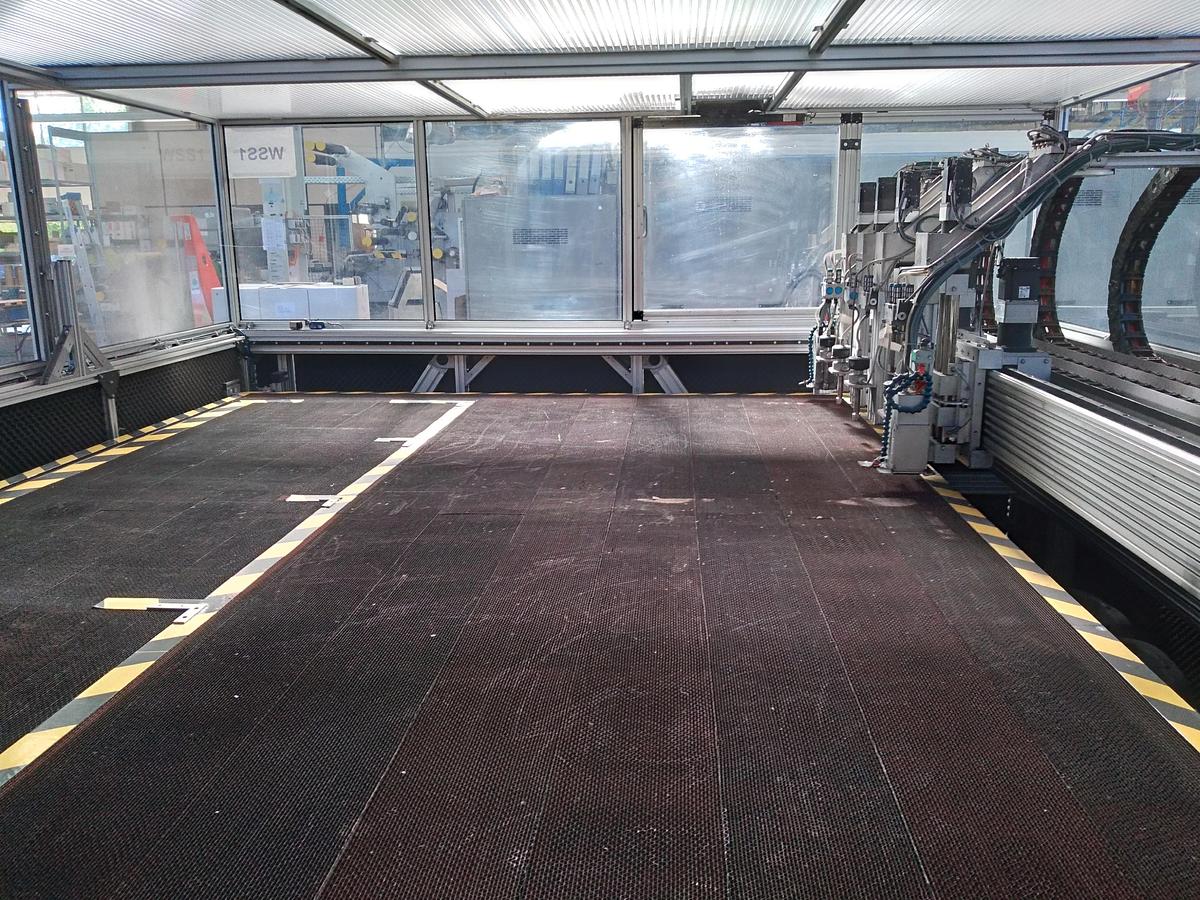

| Cutting area | 1800 mm x 3000 mm |
| Maximum cutting speed | 70 m/min |
| Repeatability | ±0.2 mm |
| Water consumption: approx. | 0.2 l/min |
| Material to be processed | packaging materials, leather, foams, technical textiles, rubber materials, composite materials |

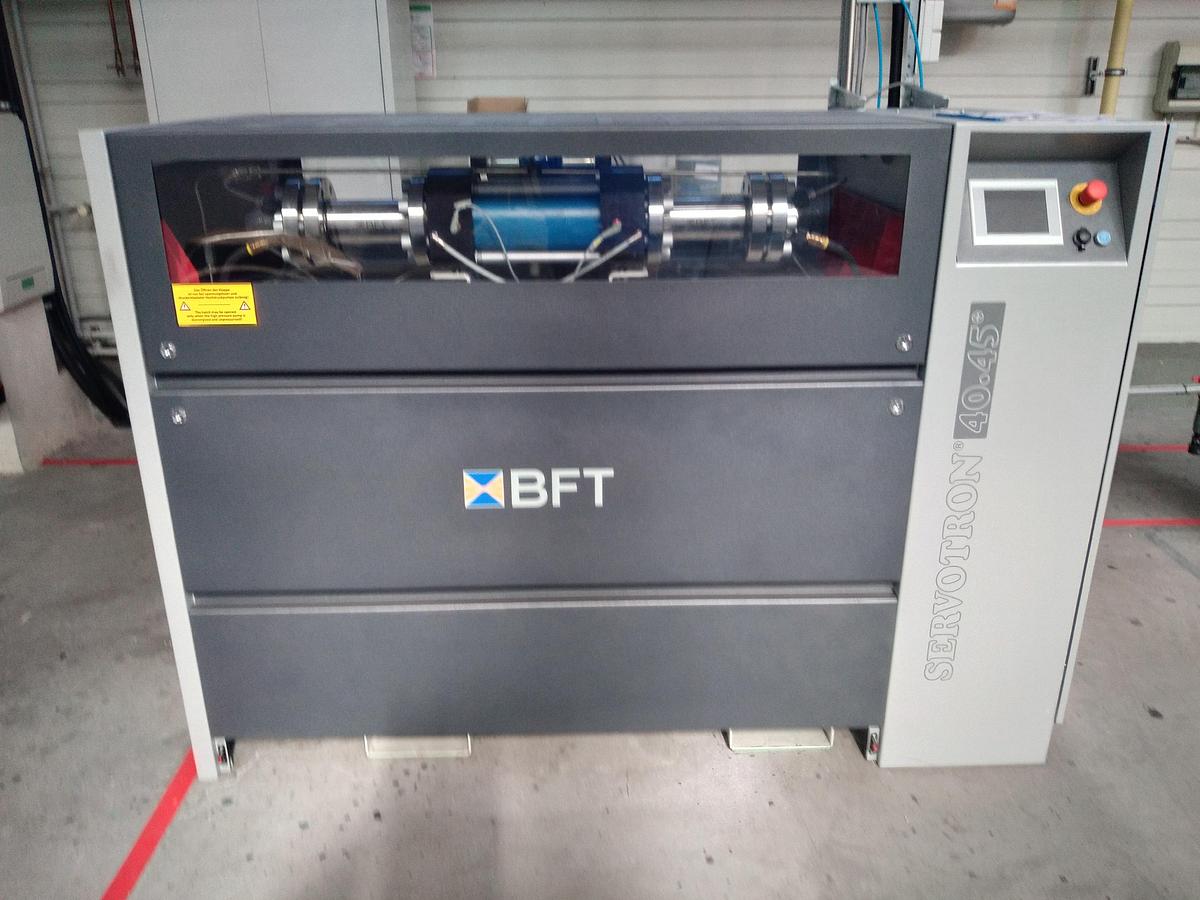

| High-Pressure Unit Model BFT Servotron 40.45+ | Motor power: 45 kW | Maximum conveying capacity: 4.6 l/min | Design pressure: 4200 bar | Maximum operating pressure: 4000 bar | Machine dimensions (X/Y/Z): approx. 2000 mm / 1000 mm / 1400 mm | Weight: approx. 1200 kg |
