2019 Vertical strapping machine from OMS type 08RP with TR1400 strapping head

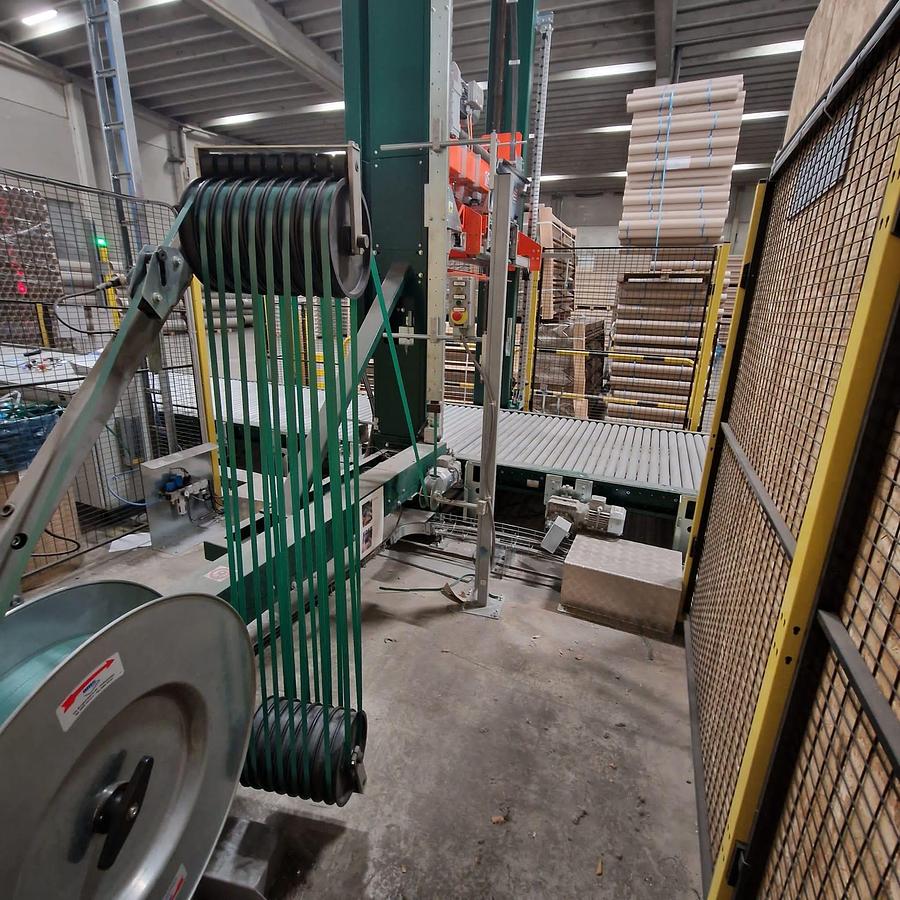

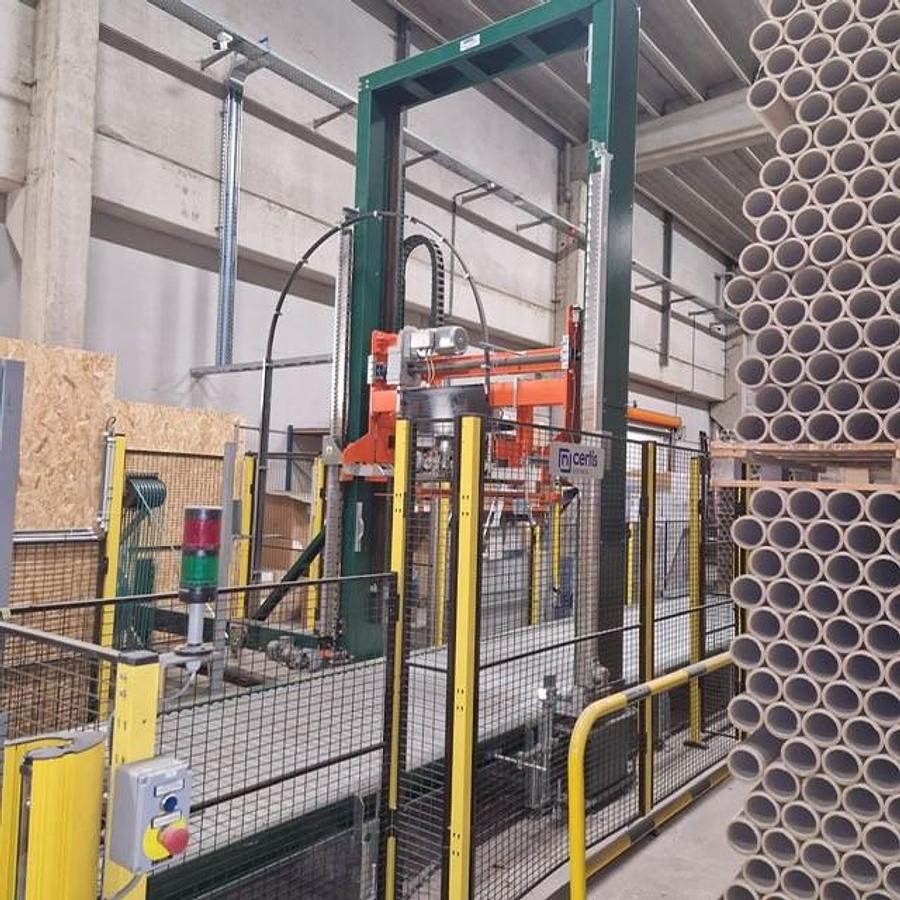

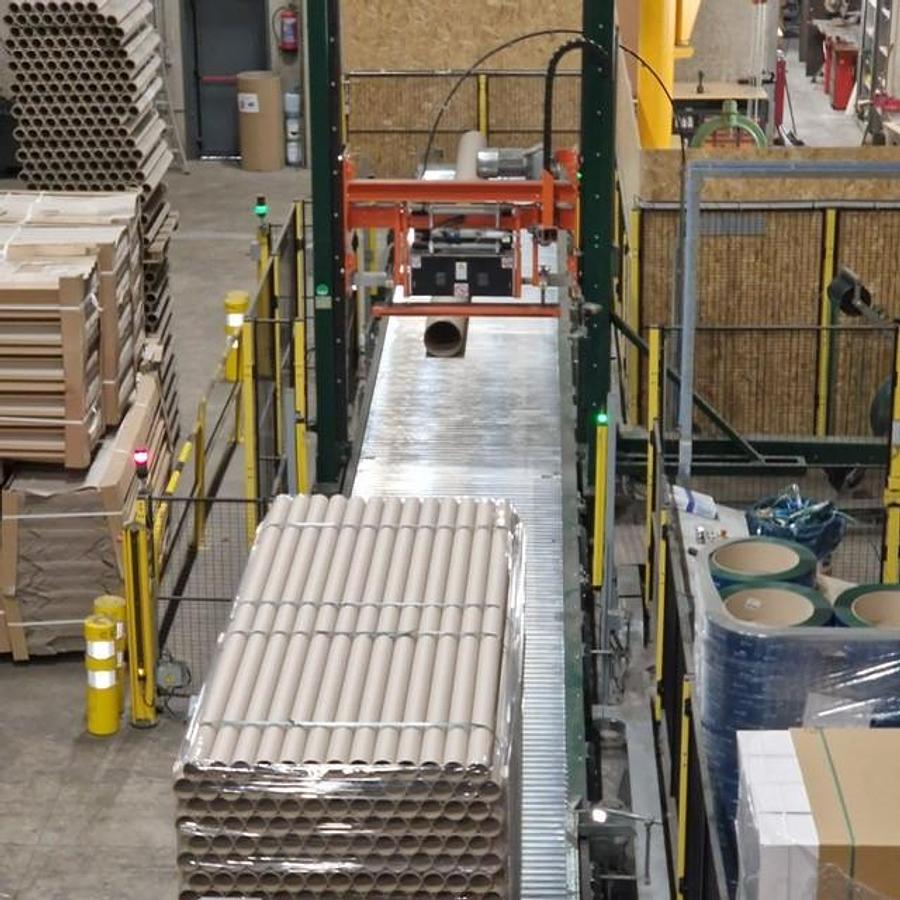

Vertical strapping machine OMS type 08RP with TR1400 strapping head and floating suspension for optimal distribution of strap tension.

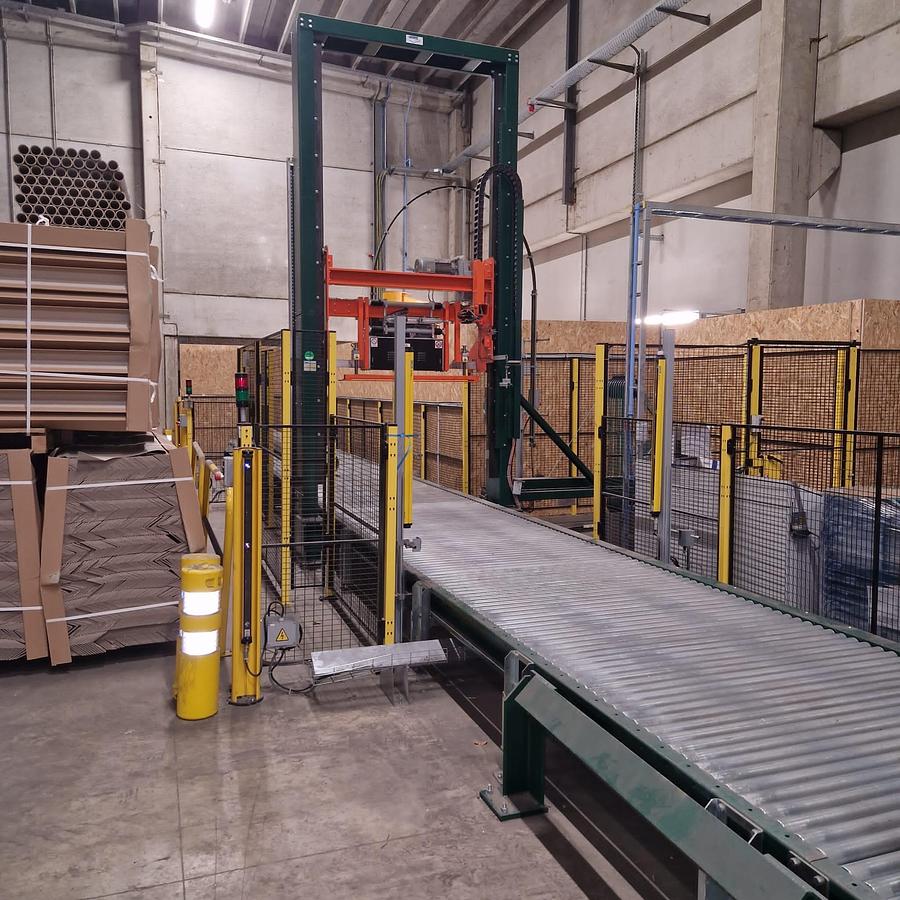

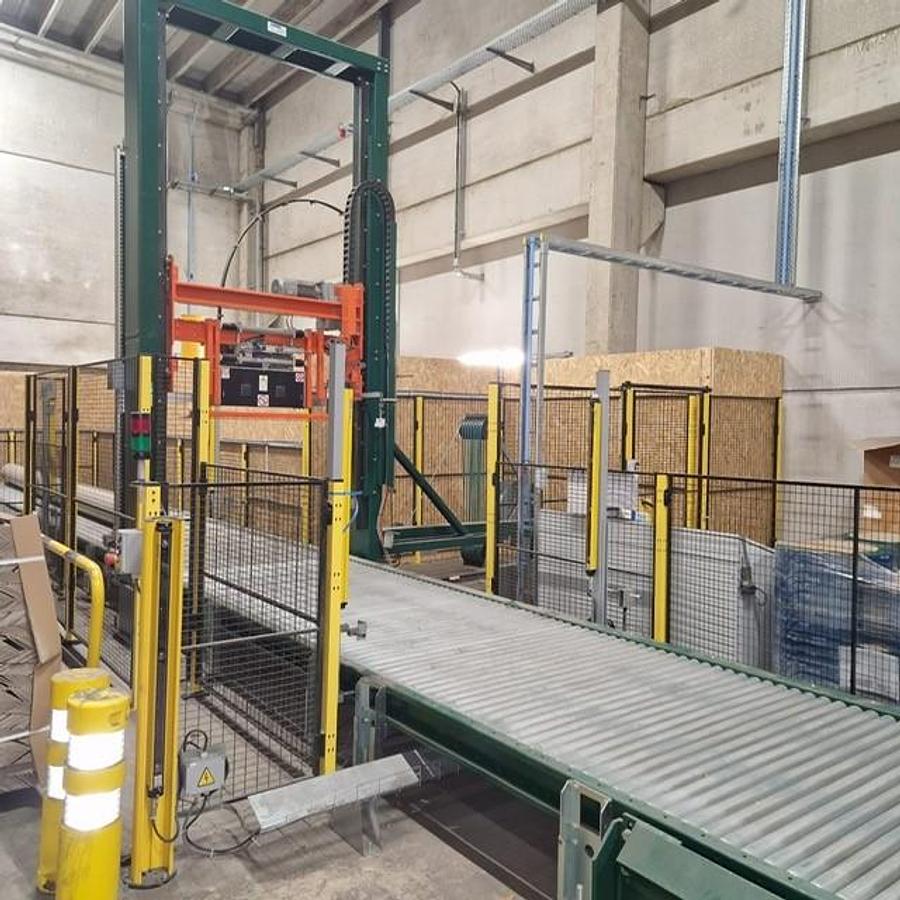

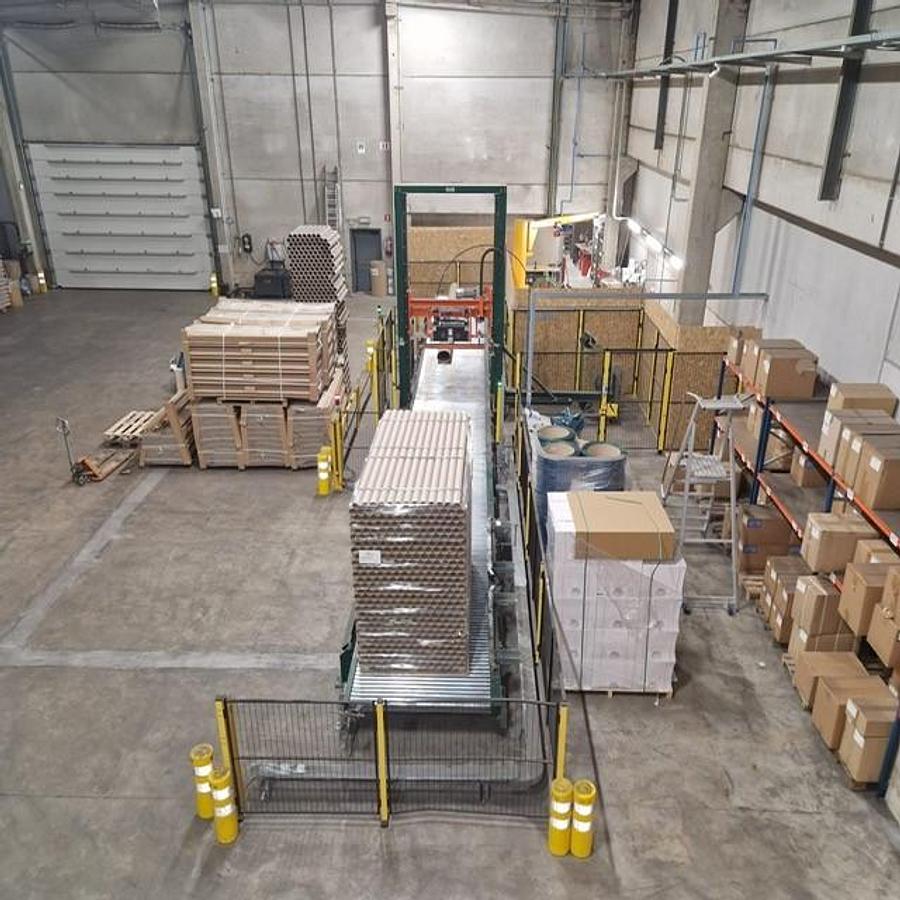

The packaging line is equipped with an additional handling roller conveyor in the strapping machine, so that the line can operate in a continuous flow. The infeed section may be partially occupied during the first 2 or at most 3 strapping cycles (for pallets with L 5000 mm). The same may also occur in the outfeed section when the last 2 strapping cycles still need to be performed (for pallets with L 5000 mm).

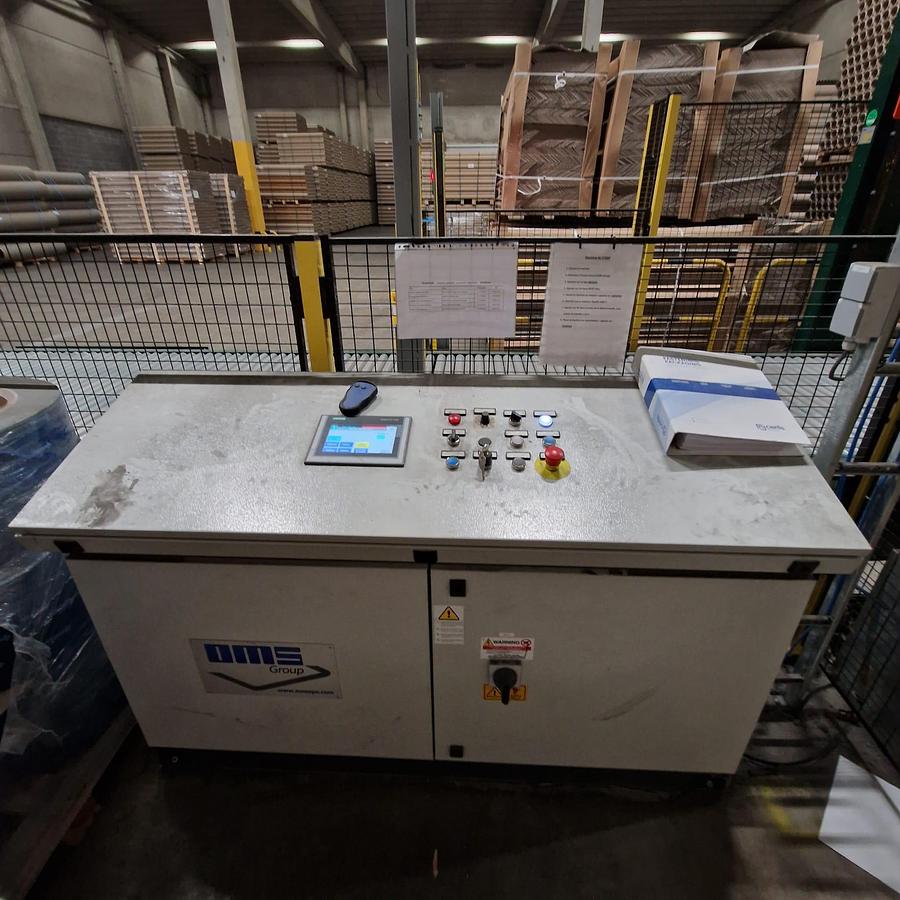

OMS 08RP VERTICAL STRAPPING MACHINE

Pallet Dimensions

Length (Min. - Max.) 1200 mm

Width (Min. - Max.) 800 - 1200 mm

Height (Min. - Max.) 135 - 150 mm

Pallet Dimensions

Length (Min. - Max.) 1200 - 1500 mm

Width (Min. - Max.) 800 - 1200 mm

Height (Min. - Max.) 400 - 2400 mm

Capacity: 15–20 pallets/hour

Number of strappings: 2–6 straps, depending on package length

Transport direction: Shortest side first

Transport height: Min.: 1200 mm | Max.: 5000 mm

Useful roller conveyor width:1200 mm

Alignment: approx. 1380 mm | approx. centered on the conveyor (the pallet is positioned against the stop)

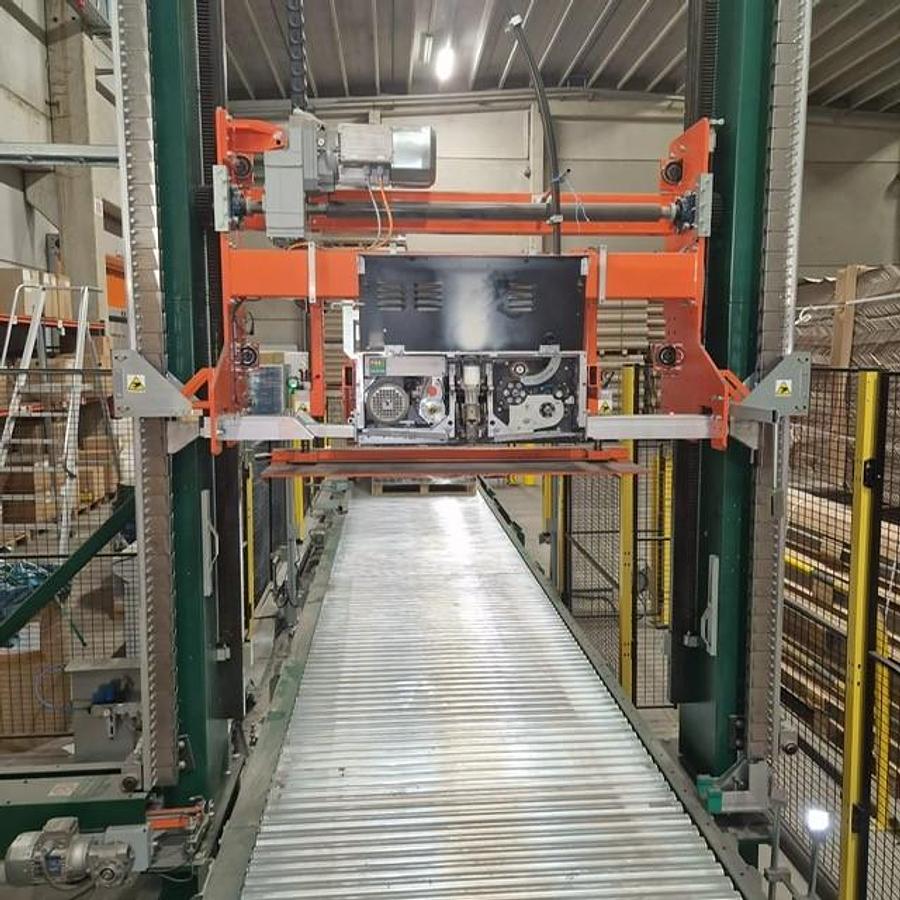

TR1400 STRAPPING HEAD

Technical characteristics:

• Sealing: thermal welding with sealing tool
• Strap width: 12, 15.5 mm
• Strap type: PP / PET up to 0.90 mm
• Tension force: adjustable 0–2300 N
• Speed: 5.5 m/sec during feeding and retraction, and 0.25 m/sec during tensioning
• Power supply: 3 x 380 V – 50 Hz

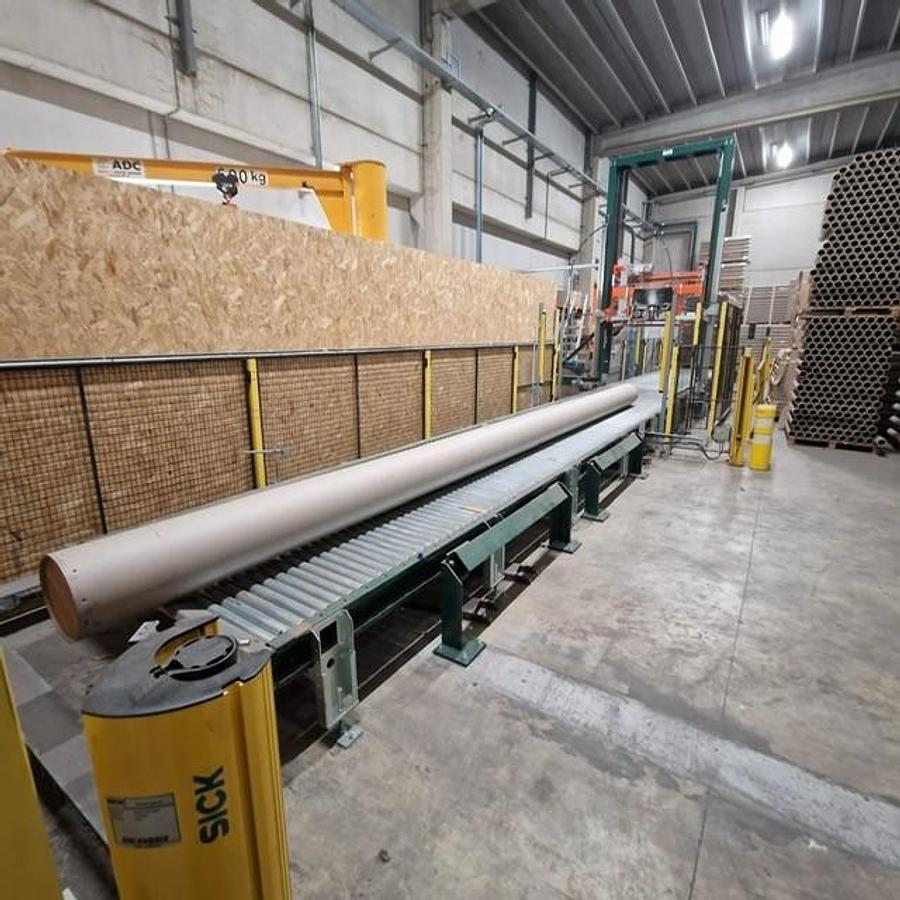

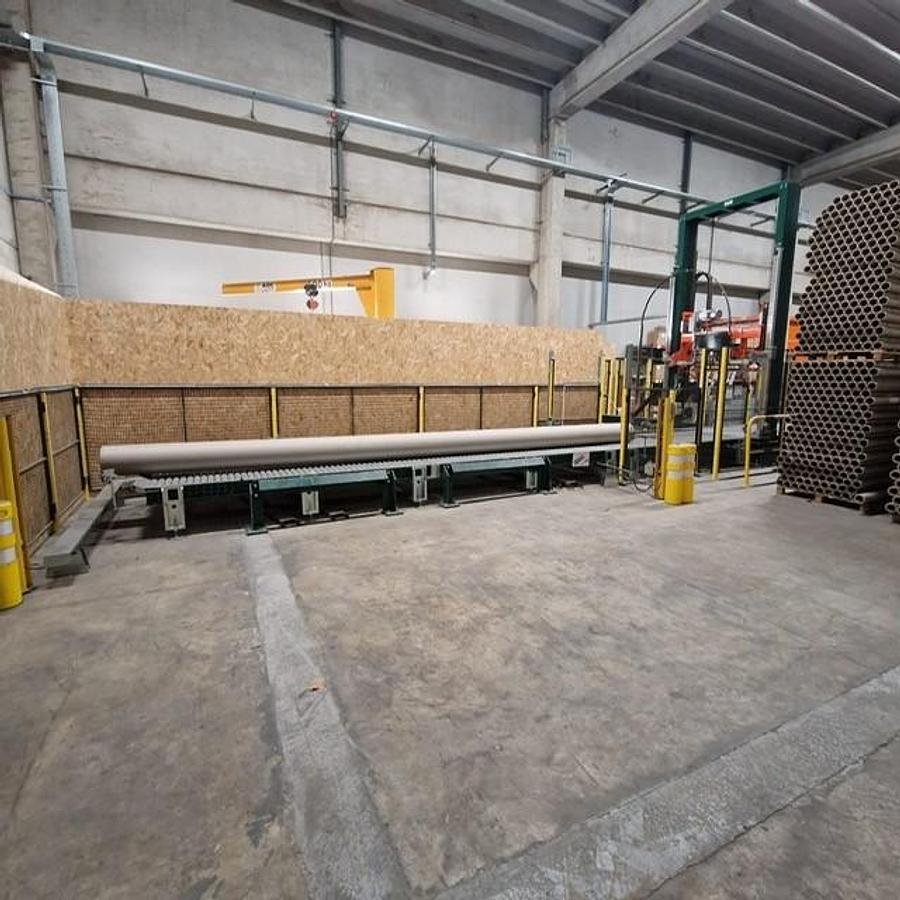

TRANSPORT SYSTEM; Infeed roller conveyor for pallet — side loading via forklift

• Length: approx. 5990 mm
• Working height: 500 mm
• Width between profiles: 1380 mm
• Roller diameter: 60 mm — galvanized steel, max load capacity 800 kg
• Tangential drive
• Roller pitch: approx. 65 mm
• Speed: 12 m/min (frequency controlled — Siemens G120C)
• Equipped with 1 positioning photoelectric sensor (SICK) for stop position
• Drive: geared motor 0.55 kW
• Equipped with side impact buffers (forklift protection) and side ultrasonic detection for forklift presence

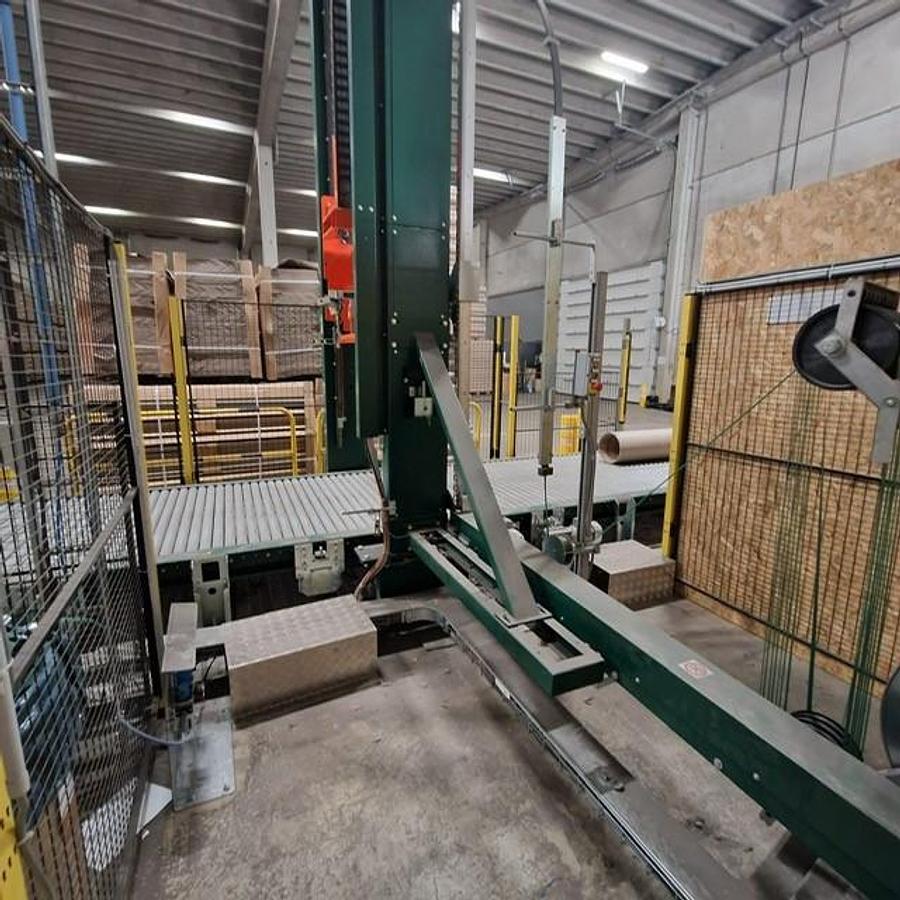

Manipulation roller conveyor for pallet inside the strapping machine

• Length: approx. 5990 mm
• Working height: 500 mm
• Width between profiles: 1380 mm
• Roller diameter: 60 mm — galvanized steel, max load capacity 800 kg
• Tangential drive
• Roller pitch: approx. 65 mm
• Speed: 12 m/min (frequency controlled — Siemens G120C)
• Equipped with 1 positioning photoelectric sensor (SICK) for stop position + encoder for position detection during strapping operations
• Drive: geared motor 0.55 kW

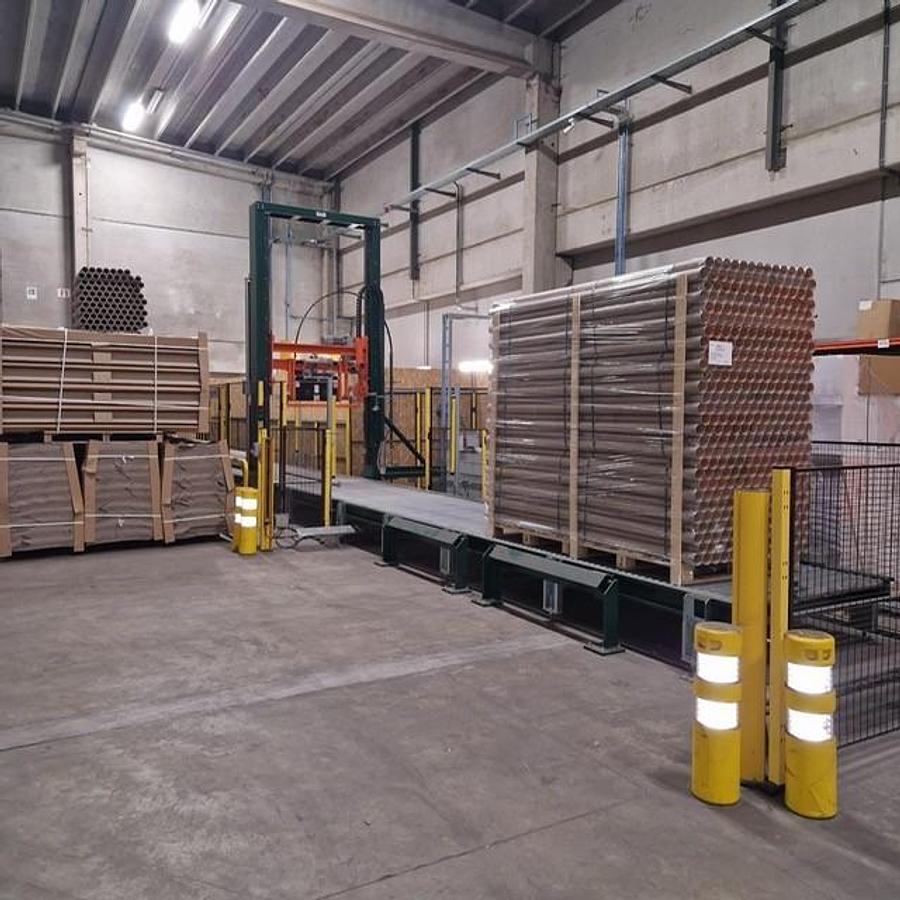

Outfeed roller conveyor for pallet — side discharge via forklift

• Length: approx. 5990 mm
• Working height: 520 mm
• Width between profiles: 1380 mm
• Roller diameter: 60 mm — galvanized steel, max load capacity 800 kg
• Tangential drive
• Roller pitch: approx. 65 mm
• Speed: 12 m/min (frequency controlled — Siemens G120C)
• Equipped with 1 positioning photoelectric sensor (SICK) for stop position
• Drive: geared motor 0.55 kW
• Equipped with side impact buffers (forklift protection) and side ultrasonic detection for forklift presence
