2022 HONCO HKS-1100W Roll to sheet cutting machine

Description

Available a 2nd hand HONCO HKS-1100W Roll to sheet cutting machine (year 2022).

This machine is suitable for cross cutting various papers, adhesive sticker, PVC, Paper-plastic coating material jumbo roll into sheet with high speed and high precision. Equipped with conveyor stacker, you can collect finished sheets and don’t need to stop machine which can help you improve efficiency largely.

Visible in operation.

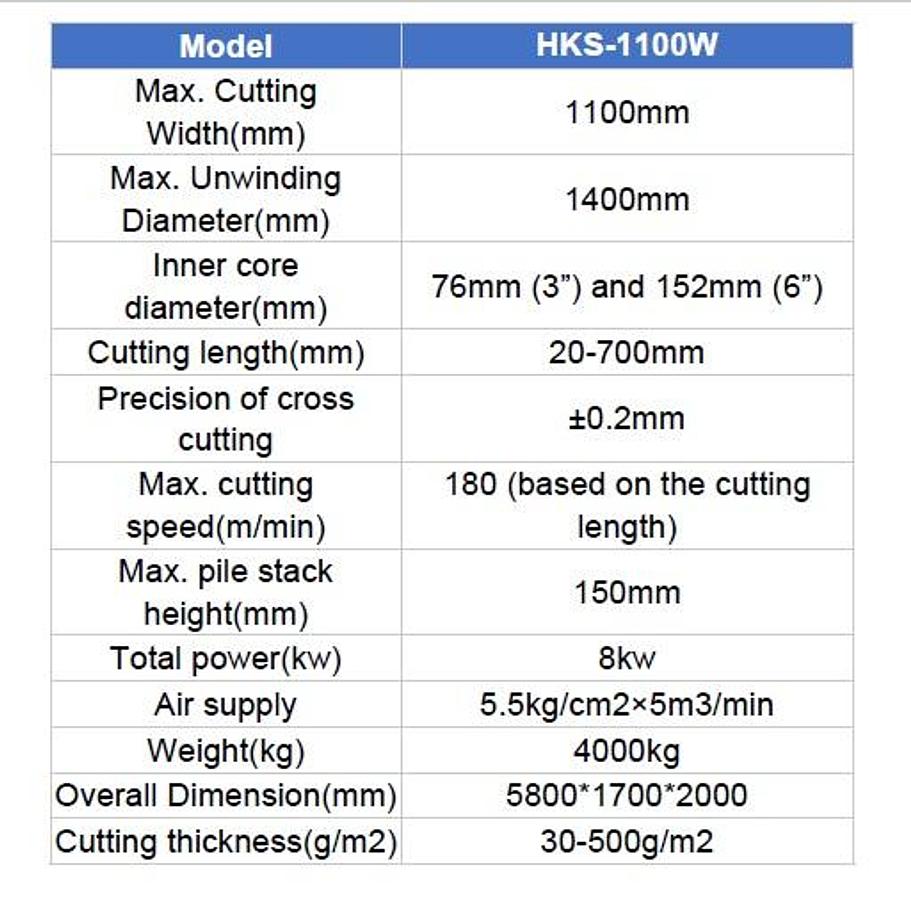

Specifications

Manufacturer	HONCO (HONGKE Machinery Co.)
Model	HKS-1100W
Year	2022
Condition	Used (visible in production)
Max. Cutting Width (mm)	1100 mm
Max. Unwinding Diameter Φ	1400 mm
Roll Max. weight	2000 kg
Inner core diameter	76mm (3”) and 152mm (6”)
Cutting length(min. - max.)	20 - 700mm
Cutting thickness	30-500g/m2
Precision of cross cutting	±0.2mm
Max. cutting speed	180 m/min (based on the cutting length)
Max. pile stack height	150 mm
Total power	8kw
Air supply	5.5kg/cm2×5m3/min
Machine weight	4000 kg
Overall Dimension (mm)	580017002000
Additional information	Shaft-less unwinder \| Ultrasonic web guiding system (EPC) \| Tension control Anti-curve device \| Slitting function \| Dance rolls \| Color Code \| Pneumatic nip rubber roller \| Heavy-duty casting blade holder \| Anti-static device \| Air blowing system \| Servo motor with driver \| Synchronous belt and wheel transmission mechanism \| Auto Stacker and Conveyor \| LCD colorful touch screen and PLC \| Electrical Cabinet
