2016 SIMEC Vertical line - Anilox, sleeves, cylinders Washing Machine (with Bicarbonate)
Featured
2016 SIMEC Vertical line - Anilox, sleeves, cylinders Washing Machine (with Bicarbonate)
Location:Italy
or
Call +39 346 4948054
Description
Pre-owned SIMEC GROUP PROFIL VERTICAL LINE (Year 2016)
Vertical Anilox Washing Machine Using Bicarbonate
Designed for cleaning sleeves, anilox, cylinders from 500 to 1730 mm in width.
The VERTICAL-LINE consists of two main units:

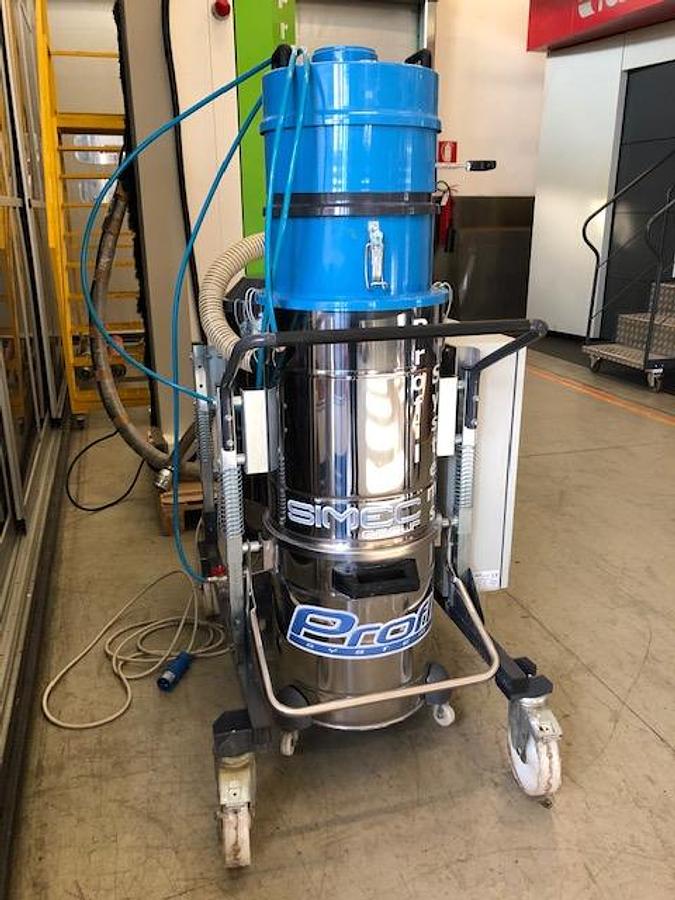

• PROJECTION UNIT

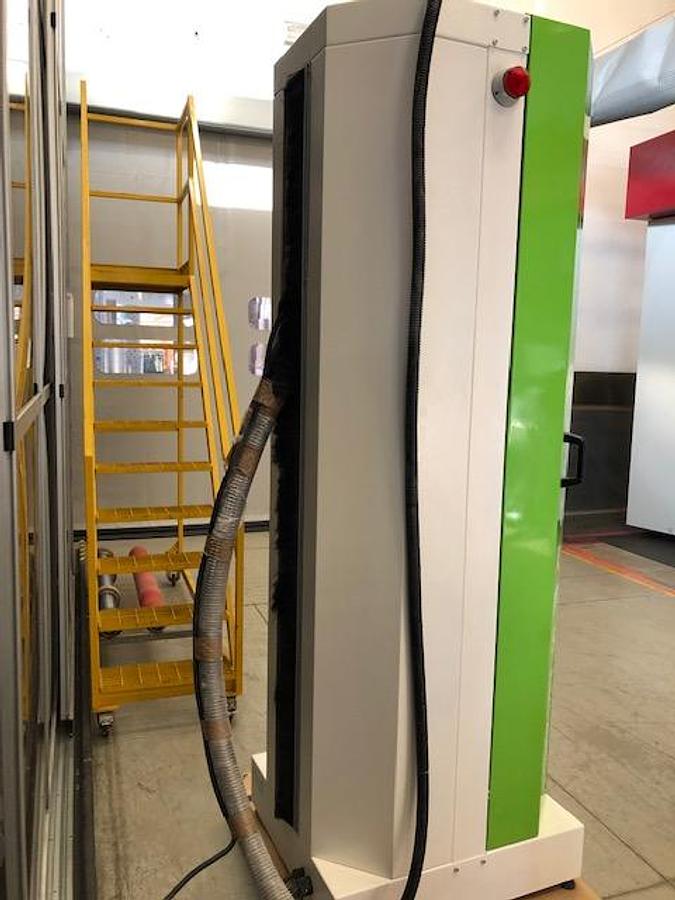

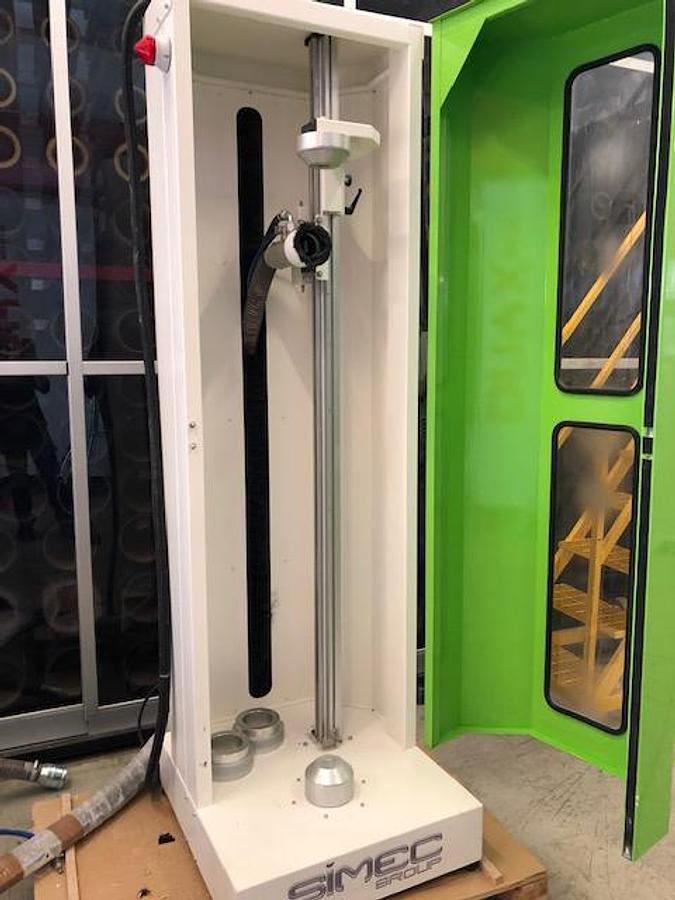

• LINEAR GUIDE
A great commercial opportunity: the machine is practically new, with very few operating hours.
It was used for approximately 3 months and then decommissioned due to a change in printing technology.
In excellent condition, stored in a covered and protected environment.

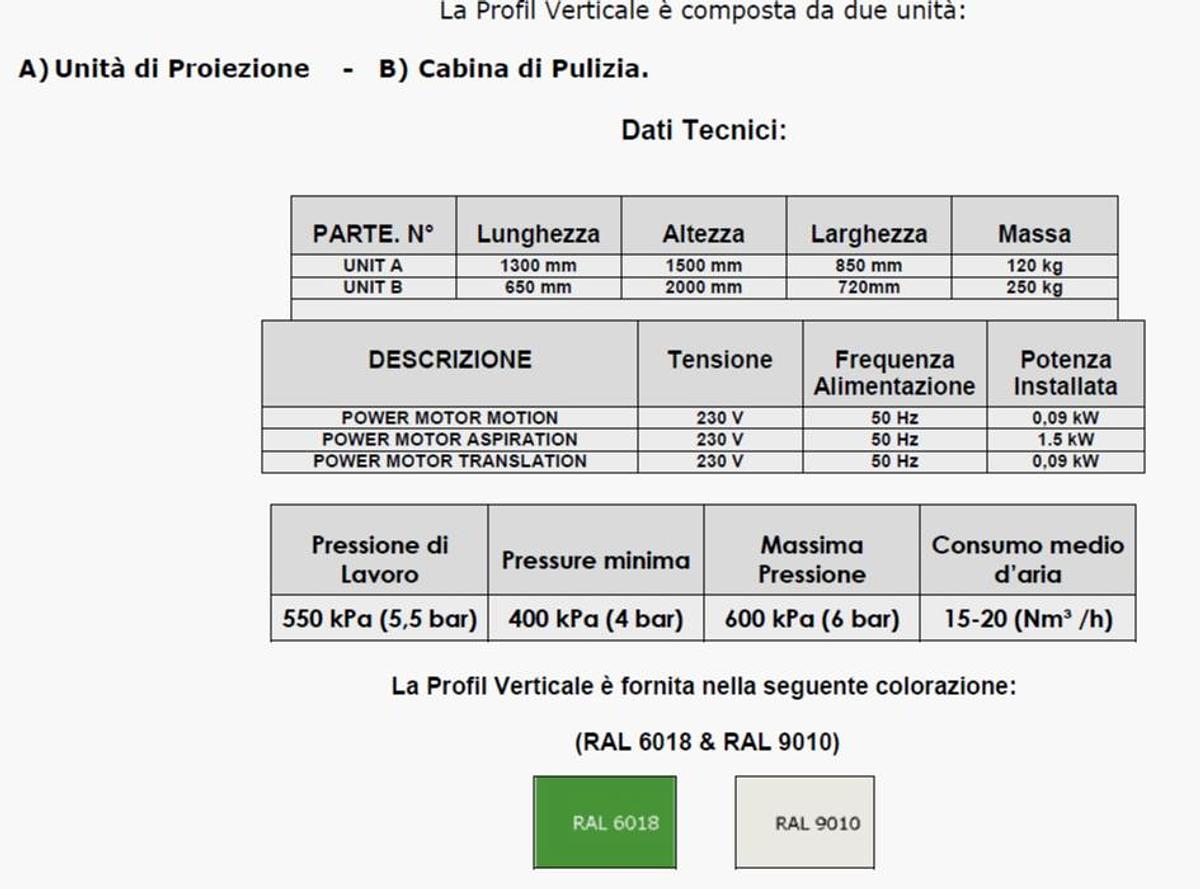

Specifications
| Manufacturer | SIMEC GROUP (Italy) |
| Model | Vertical line |
| Year | 2016 |
| Condition | Used |
| Sleeves width (Min . Max.) | 500 - 1730 mm |
| Sleeves diameter (Min. - Max.) | 80 - 250 mm |

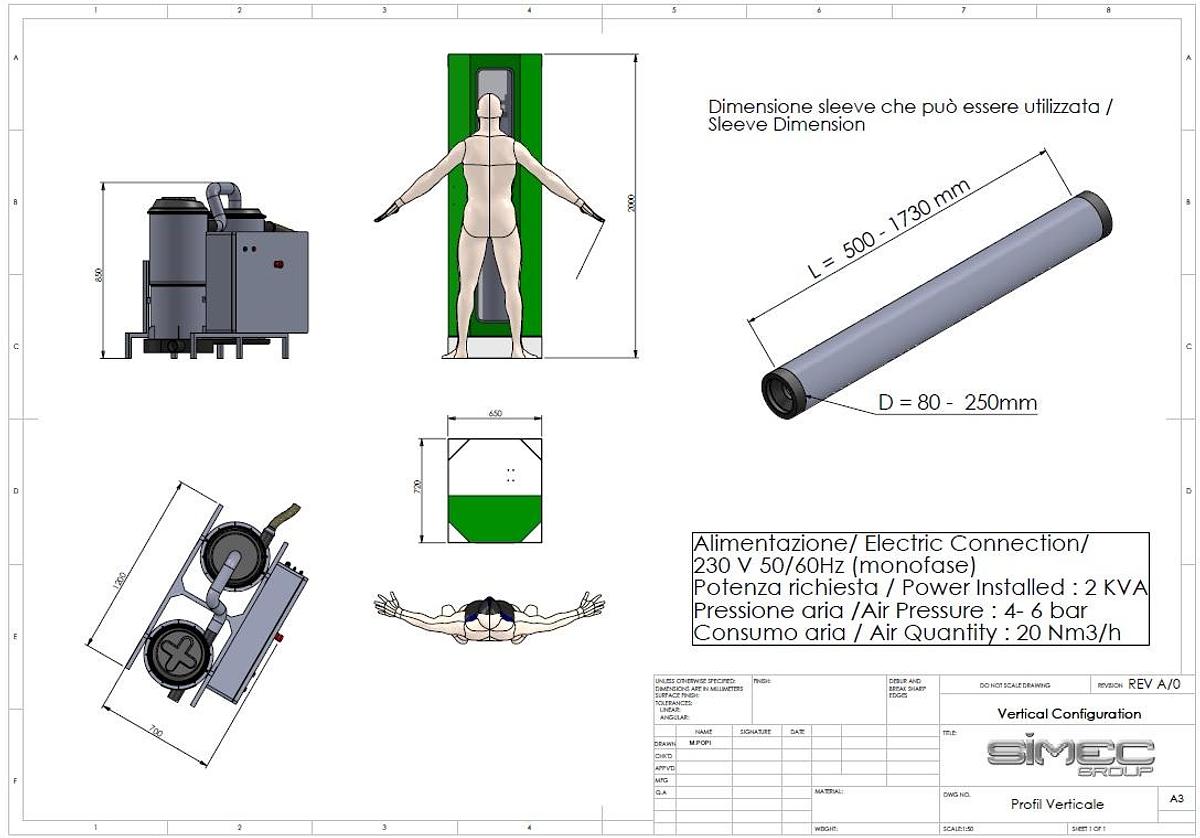

| Dimensions and weight of the machine | PROJECTION UNIT (A): Lenght 1300 mm x Height 1500 mm x Width 850 mm| LINEAR GUIDE (B) Lenght 650 mm x Height 2000 mm x Width 720 mm |
| Machine weight | PROJECTION UNIT (A): 120 Kg | LINEAR GUIDE (B): 250 Kg |
| Electric Connection | 230 V 50/60Hz (mono phase) |
| Power Installed | 2 KVA |
| Air Pressure | 4- 6 bar |
| Medium Air Comsumptiom | 15-20 Nm3/h |
