2018 Jianshe (Jiangsu FANGBANG) ZD-J13 | V bottom paper bag machine with 4 col. flexo

2018 Jianshe (Jiangsu FANGBANG) ZD-J13 | V bottom paper bag machine with 4 col. flexo

Location:Europe

Available quantity:1

Description

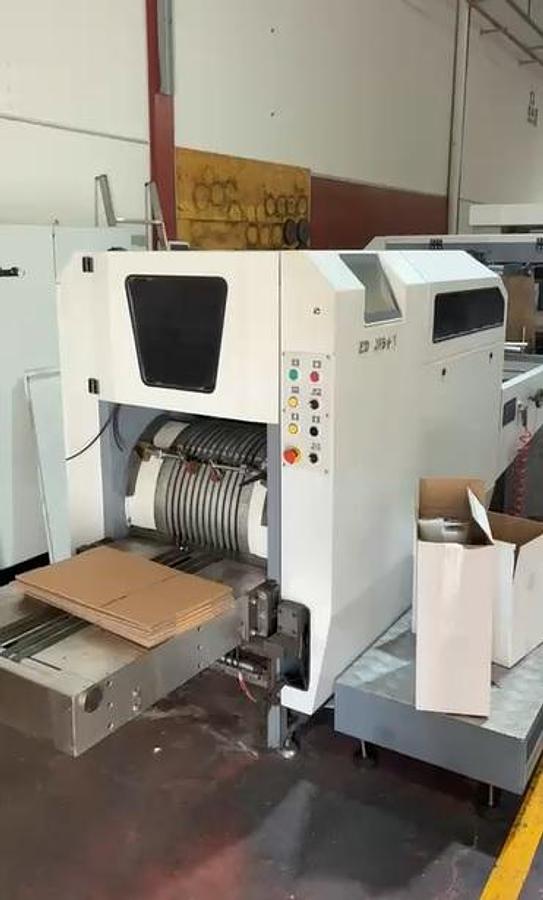

Pre-owned Jianshe (Jiangsu FANGBANG Machinery Co,Ltd.) ZD-J13 year 2018.

The Jianshe ZD-J13 is a roll-fed, V-bottom paper bag machine manufactured by Jiangsu FANGBANG Machinery Co,Ltd., designed for producing mid- to large-sized V bottom paper bags.

It handles paper thickness from 35 to 80 g/m² and produces bags between 80-320 mm wide and 160-700 mm long. The machine produce bags with a fully automatic process. It's particularly suitable for applications in the food and retail industries, especially for packaging items like bread paper bag, snack paper bag, food paper bag, fruit paper bag etc...

The machine can be prepared for a test in production in case of interest.

Specifications

ManufacturerJiangsu Fangbang Machinery Co,Ltd.
ModelZD-J13
Year2018
ConditionUsed
Paper Roll Width (min. - max.)170 ~ 900 mm
Max. Paper Roll DiameterФ 1000 mm
Paper Core DiameterФ 76 mm
Paper Thickness (min. - max.)35-80g/㎡
Bag Body Length (min. - max.)120 ~ 710 mm
Bag Body Width (min. - max.)80 ~ 320mm
Gusset Size (min. - max.)0 ~ 130mm
Max. mechanical speed500bags/min
