KAMPF Conslit II 20/085 | Slitter-Rewinder (2050 mm)
KAMPF Conslit II 20/085 | Slitter-Rewinder (2050 mm)
Location:Europe
Available quantity:1
Description

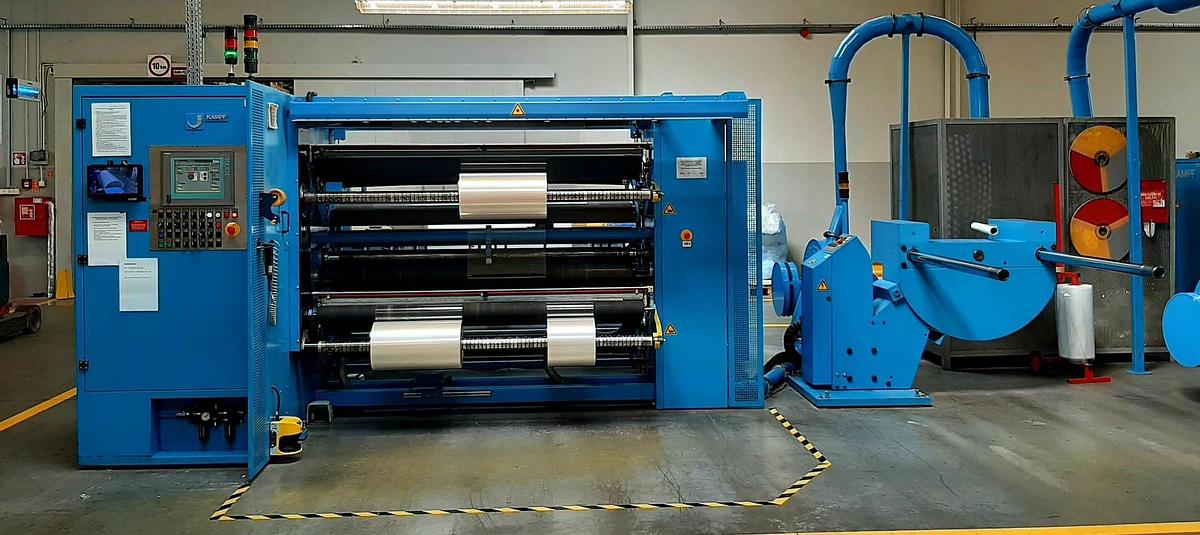

Pre-owned KAMPF KAMPF Conslit II 20/085 | Slitter-Rewinder (2050 mm) | year 2012.
This is a high-performance duplex slitter rewinder from renowned German manufacturer Kampf, model Conslit II 20/085, built in 2012. Known for its durability, precision, and ease of use, this machine remains a reliable choice for converters looking to increase capacity or add flexibility to their production line.
With a generous Max. working width of 2050 mm, this machine is capable of handling a wide range of materials, including plastic films, laminates, paper, and other flexible substrates.
This Kampf slitter-rewinder reflects a strong commitment to longevity and performance. It offers an excellent solution for companies that value efficiency, robust engineering, and reliable output quality.
Tha machine is available for sale and visible in operation.
Specifications
| Manufacturer | KAMPF |
| Model | Conslit II 20/085 |
| Year | 2012 |
| Condition | Used (visible in production) |
| Working Width | Min.: 500mm - Max.: 2050mm |
| Working speed (Max.) | Max. 800m/min, depending on the material, thickness, width and sleeve quality |
| Range of materials | Film: PE, PP, PA, PET, PVC; paper and laminate, including BOPET, BOPP, CPP 12-150um (depending on width, speed and material) |
| Max. UNWINDER reel diameter | 1300 mm |
| Max UNWINDER reel weight with sleeve | 2000 Kg |
| Fixing | Expansion heads |
| Min. fixing height | 250 mm |
| UNWIND sleeve | Outside diameter: Depending on equipment from 70mm Standard: 70-76,2mm (3”) | Tolerance: DIN 6748 or DIN 55470 | Length: Min. 500mm - Max. 2200mm |
| Max. REWINDER reel diameter | 850 mm |
| Type of WINDING | Contact winding |
| Max. tension during WINDING (altogether for both reels) | 650N |
| WINDING sleeve | Paper (optional: plastic or metal) | Inner diameter: Depending on equipment from 70mm | Tolerance: DIN 6748 or DIN 55470 | Lenght: According to current working width |
| Acoustic pressure level (without suction) | <78dB(A) ±2dB(A) according to DIN 45635 or ISO 3746 |
| Machine Dimensions (approx.) | Width: 5,4 m | Depth: 4,7 m |
