2001 FLEXOTECNICA TACHYS Gearless 8 col. C.I. Flexo
Featured
2001 FLEXOTECNICA TACHYS Gearless 8 col. C.I. Flexo
Location:Europe
Available quantity:1
or
Call +39 346 4948054
Description

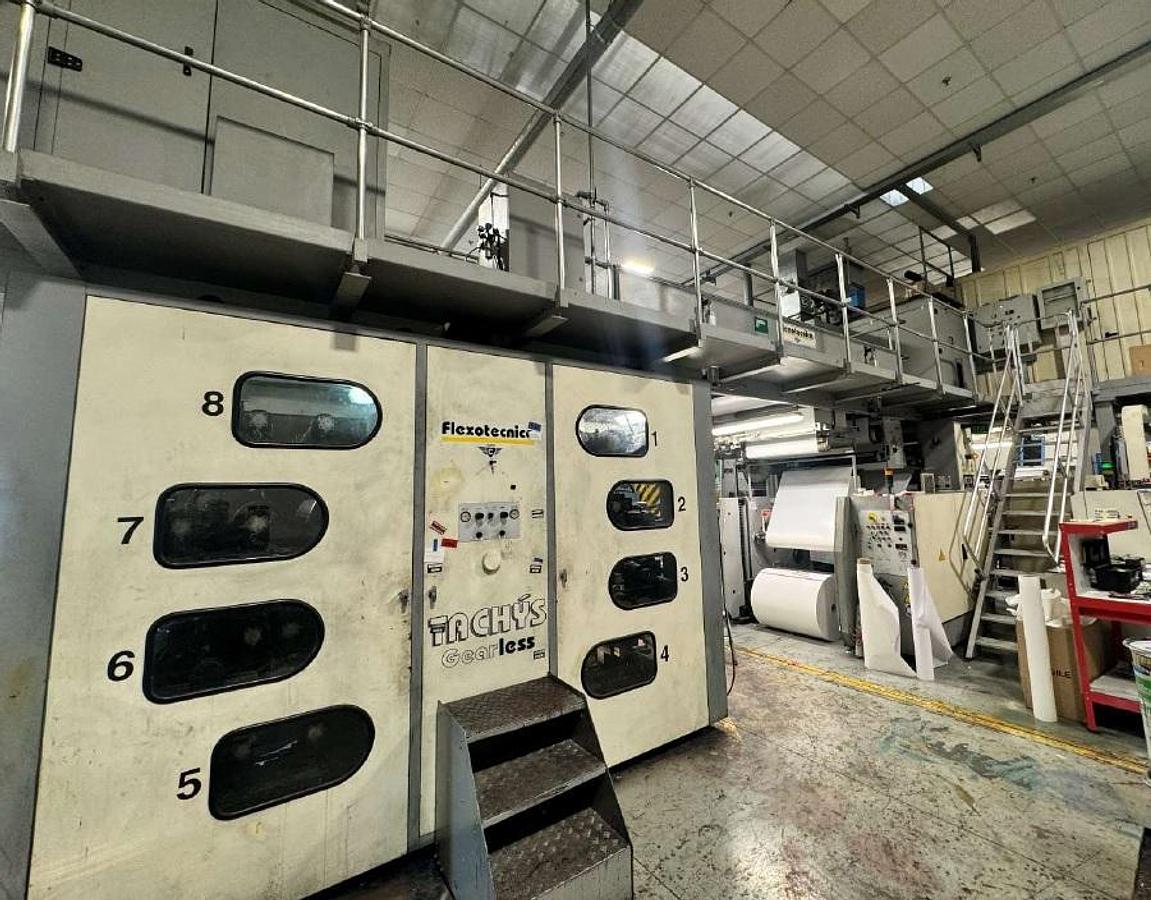

Manufactured in 2001, this Flexotecnica Tachys-G is a central drum flexographic printing press equipped with 8 colors and advanced gearless technology.
The machine can handle materials with width up to 1050 mm a printing with up to 1000 mm.
Renowned for its reliability and operational efficiency, this press remains a solid performer for high-quality flexible packaging production.
The machine is currently installed and in full operation, providing potential buyers the opportunity to inspect it during live production.
An ideal opportunity for companies looking to expand or upgrade their printing capabilities with a proven, cost-effective solution.
Specifications
| Manufacturer | FLEXOTECNICA |
| Model | TACHYS Gearless |
| Year | 2001 |
| Condition | Used |
| Print possibilities | 8+0 |
| Web width (Min. - Max.) | 550 - 1050 mm |
| Printing width (max.) | 1000 mm |
| printing cylinder circumference range | 340 - 740 mm |
| Max. Speed | 300 m/min |
| Inner core at unwinder and rewinder | Ø70/90 ±0.5 mm, Ø76/96±0.5 mm, Ø153/182 (adaptors)mm, plates 1.14 mm, adhesive tapes 0.55 mm |
| Central drum | double-walled cylinder in steel,diameter 1700 mm with water circulation for drum conditioning.The drum surface is protected with an Hastalloy coating. |
| Doctor blade units | reverse angle and with enclosed chamber ,they are in Aluminium,Teflon coated. The units are pneumatically contolled and with special and seals. Ink drop drainers in stainless steel. |
| Computerised system | FNC3000-R provides motorised positioning of the printing decks by means of stepping motors and automatic pre - registar. |
| Max. unwind reel diameter | 800 mm |
| Max. rewinder reel diameter | 800 mm |
| Voltage | 400 Volts/50 Hz/400 A /3 Phase (Auxiliary 110 Volts) |
| Water supply pressure | 2 bar or 30 psi |
| Compressed air pressure | 6/7 bar or 85/100 psi |
| Sleeve circumference (Plates 1,14) | 340, 360, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 500, 510, 520, 530, 540, 560, 580, 600, 610, 620, 640, 660, 670, 680, 690, 700. |
| Sleeve circumference (Plates 2,84) | 380 n.8 |
| dimension of machine | 16 m x 7.5 m x 5.2 m |
| Updates of New Parts on the Machine | BST Camera - 2018 | BST Film guide input output - 2018 | NSA Safety System for Fumes Crami - 2018-2022 | New Machine PC with Remote Assistance >| New Inline Cutting System Helios - 2020 | New Inking System Expert - 2018 | New Viscometer Selectra System | Corona treatment Softal- 2018 | SOCOMEC MASTERYS 4BC 15kVA 3/3 - IP20 |
| Plate mounting machine | DUPONT DuPont Cyrel Microflex 1320 (Included ) |
| Visible in operation | yes |
