1998 LAEM TR 305/06 | SLITTER-REWINDER 1300 mm
Featured
1998 LAEM TR 305/06 | SLITTER-REWINDER 1300 mm
Location:Europe
Available quantity:1
or
Call +39 346 4948054
Description
LAEM slitting and rewinding machine designed for the precise conversion of paper, plastic films and laminated foils
Engineered for industrial production environments, it features a 1300 mm working width and supports jumbo rolls with a maximum diameter of 1000 mm.

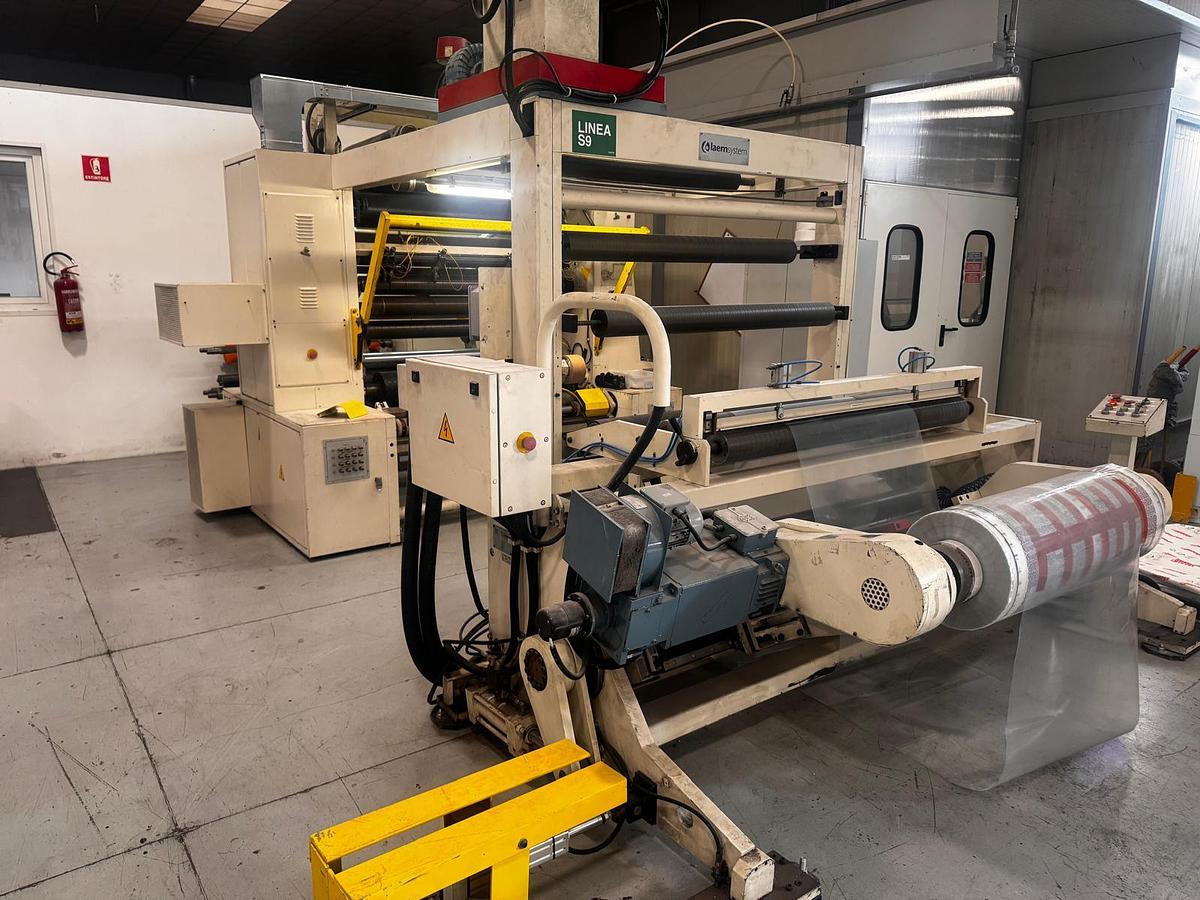

Visible in operation and available for sale.
Specifications
| Manufacturer | LAEM |
| Model | TR 305/06 SLITTER-REWIDER MODEL |
| Year | 1998 |
| Condition | Used (visible in production) |
| Working width | 1300 mm |
| Unwinder | Mod. SV301.10 Shaftless |
| Max. Unwinder reel diameter | 1000 mm |
| Max. reel weight (Unwinder) | 1500 kg |
| Max. speed | 400 m/min |
| rewinder | Center-surface and Center driven with independent arms | (n. 2 couple of BD.06F arms: • Max. diameter 600 mm. • Max. width 650 mm. • Min. width 170 mm) (n. 6 BS.05F arms: • Max. diameter 500 mm. • Max. width 210 mm. • Min. width 70 mm) |
| Materials | Flexible packaging film and laminated foils ranging from 15 ÷ 80, Paper. |
| Web guide | RE Smart-MWG10.1 |
| Cutting blades | Helios |
| Electrical power supply | 400 V | 50 Hz | 3 phases |
| Installe electrical power | 45 Kw |
| Noise emission | < 80 DBA |
| Visible in operation | yes |
