2006 REMAK Central Drum Printing Press (6 col.)
2006 REMAK Central Drum Printing Press (6 col.)
Location:Europe
Available quantity:1
or
Call +39 346 4948054
Description

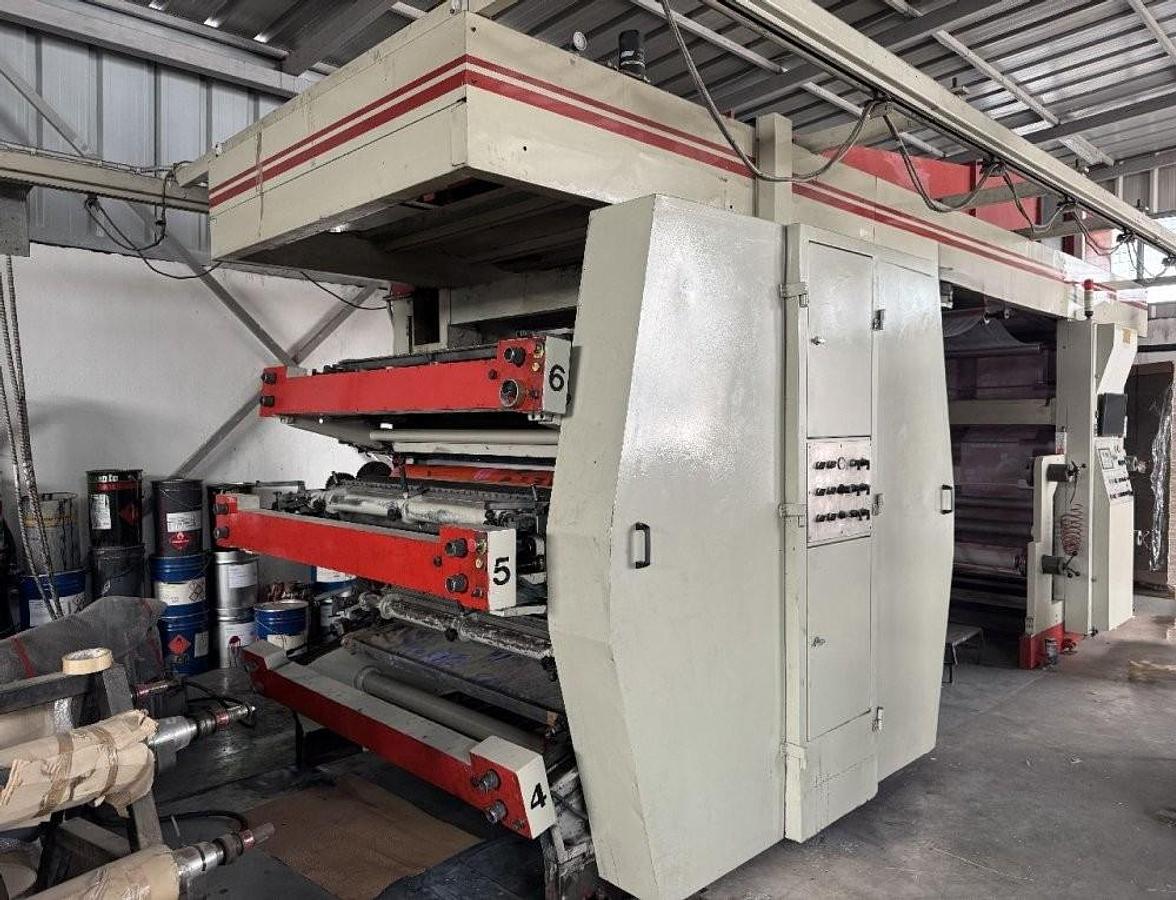

REMAK central drum flexographic printing press from 2006, equipped with 6 colors.
This versatile machine handles materials up to 1500 mm wide, using either solvent-based or water-based inks.
It features a 2-position unwinder, manual anilox sleeve system, 7 ink pumps, 12 sets of cliché sleeves, and 11 anilox rollers. The system includes hot air and resistor drying, FIFE web guide and camera, and a separate electrical control panel.
Visible in operation.
Specifications
| Manufacturer | REMAK |
| Model | Central Drum Printing Press (6 col.) |
| Year | 2006 |
| Condition | Used (visible in production) |
| Number of Colors | 6 |
| Maximum Material Width | 1500 mm |
| Maximum Print Area Width | 1350 mm |
| Ink Types | Compatible with solvent-based and water-based inks |
| Unwinder | 2-position with pneumatic shafts for 76 mm diameter core |
| Rewinder | Single unwinding roller with pneumatic rollers for 76 mm core, includes “ballerina” system for automatic tension adjustment |
| Tension Control | Yes |
| FIFE Web Guide | Positioned before the central drum |
| FIFE Camera | For print quality monitoring |
| Sleeve Cylinders | 35, 40, 42, 45, 46.5, 50, 53, 57, 61, 65, 68, 71 cm |
| Anilox Rollers (Lines/Volume) | 80/18, 80/14 (x2), 120/9, 120/14, 140/9, 180/7.5, 220/7, 280/5.2, 280/7 (x2) |
| Drying system | lectric resistors and hot air flow |
