2018 CURIONI SUN MASTER 540 - square bottom paper bag making machine with twisted handles unit
2018 CURIONI SUN MASTER 540 - square bottom paper bag making machine with twisted handles unit
EXW (dismantling and loading excluded)
Location:Europe
orCall +39 346 4948054
Description

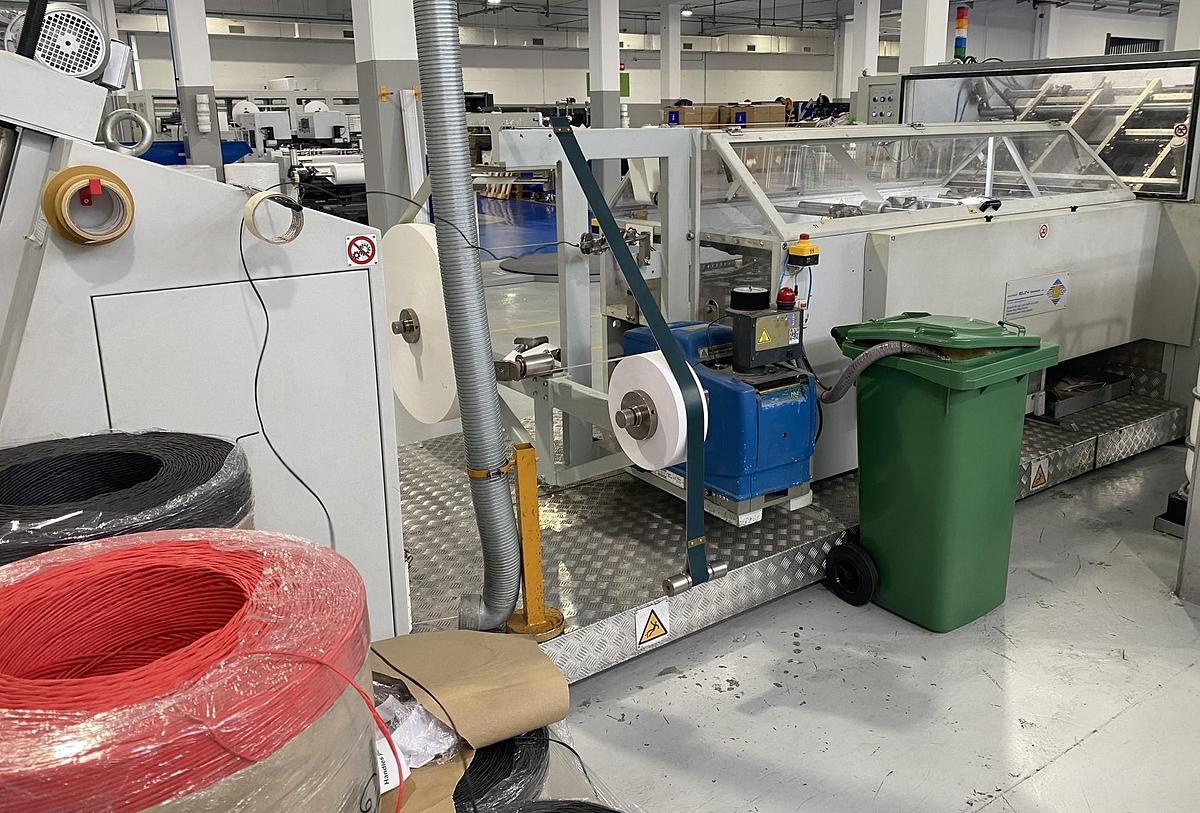

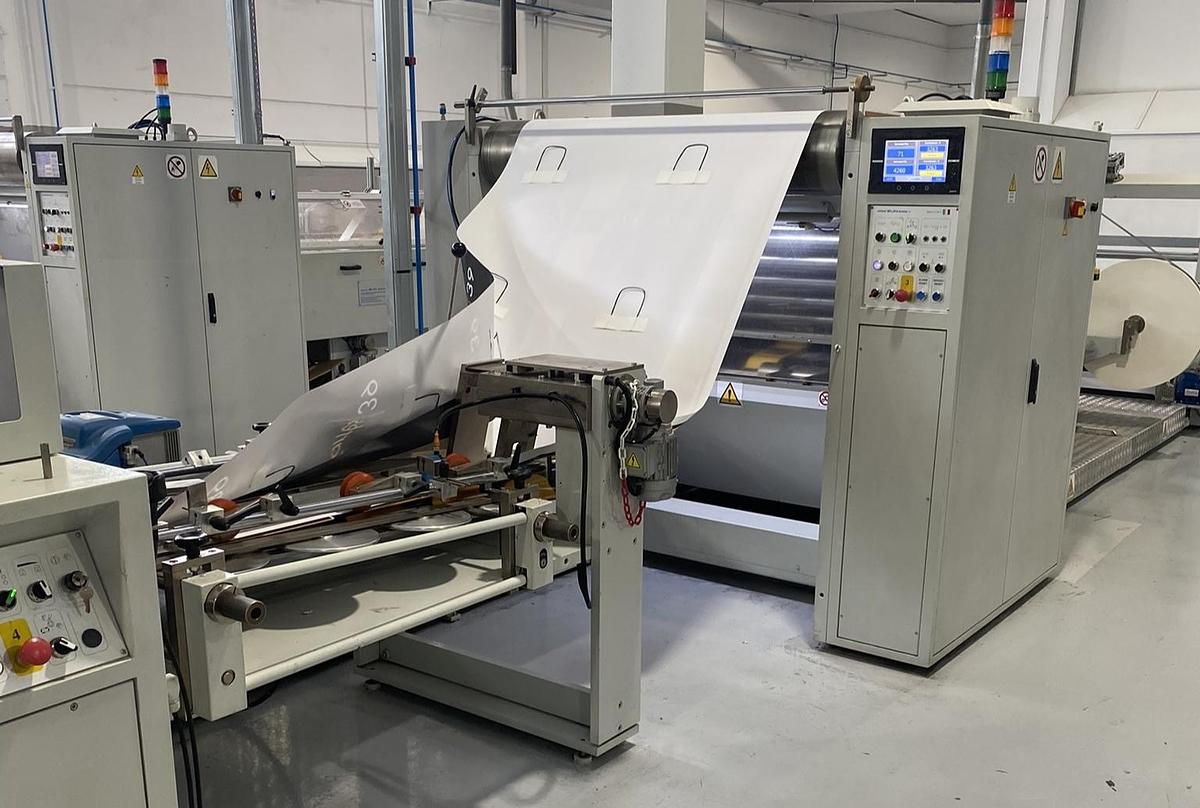

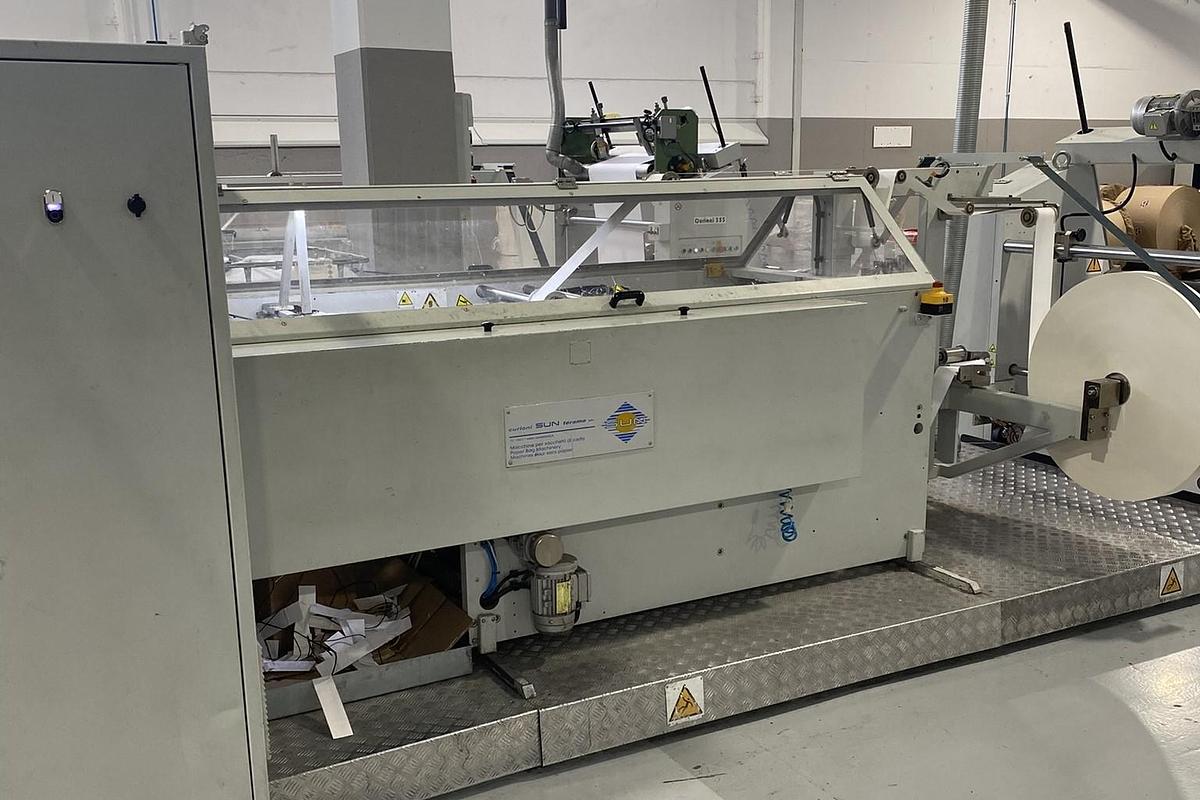

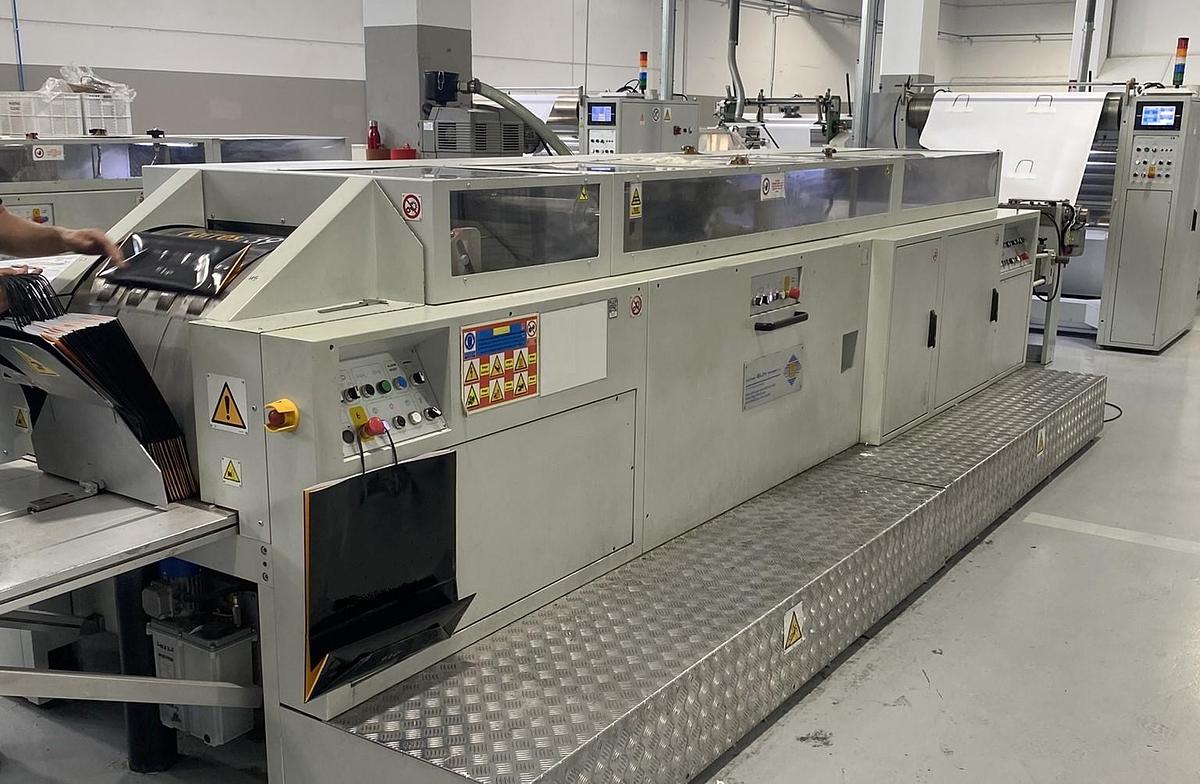

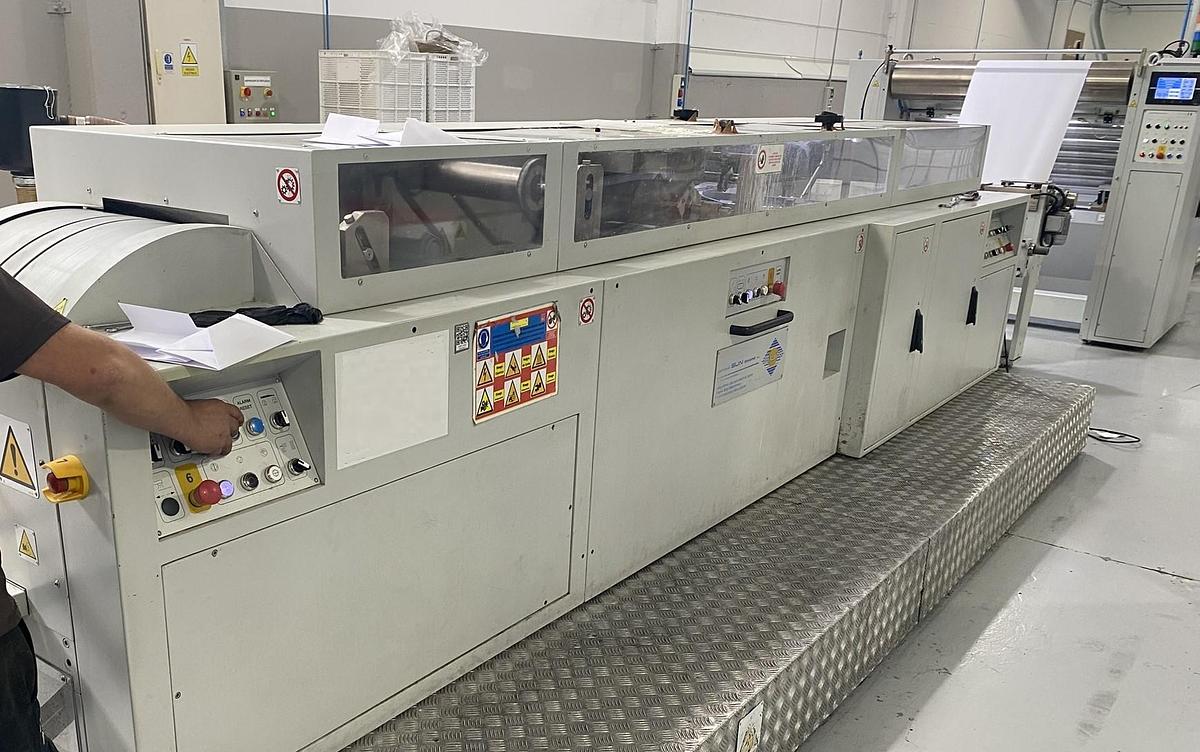

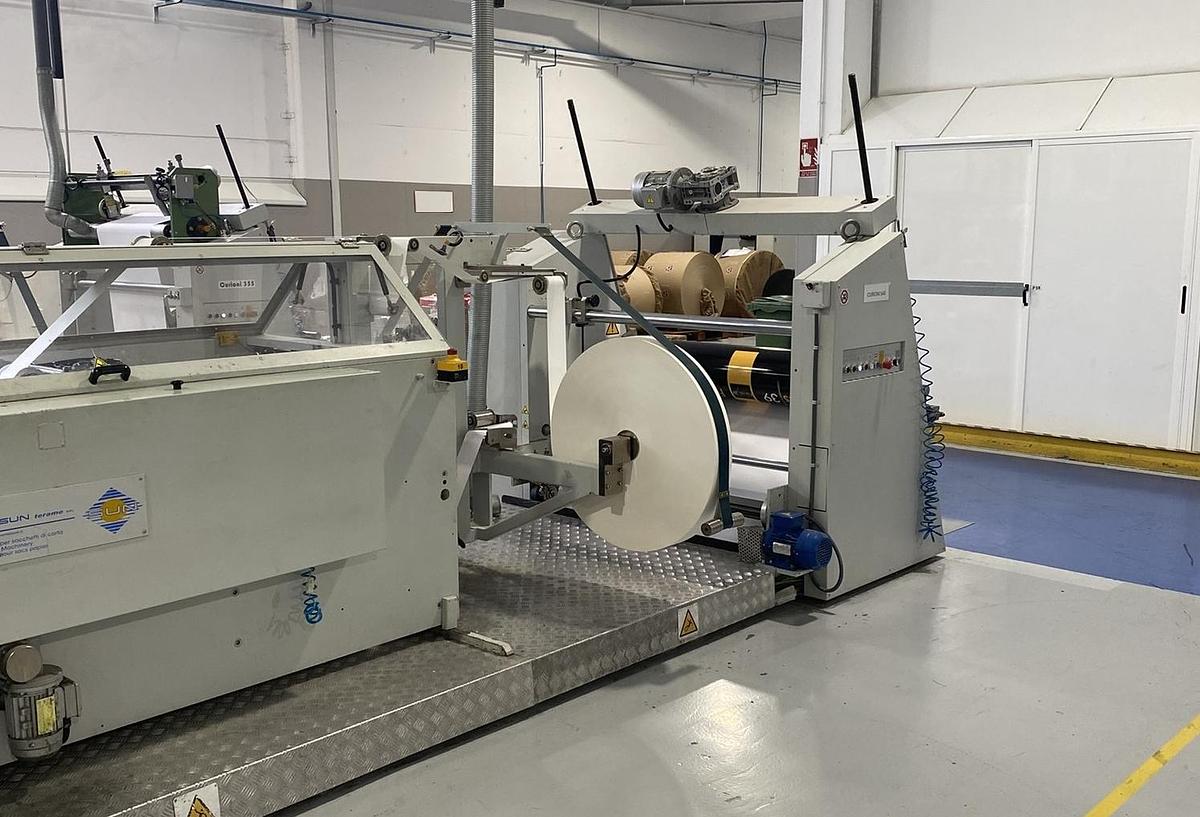

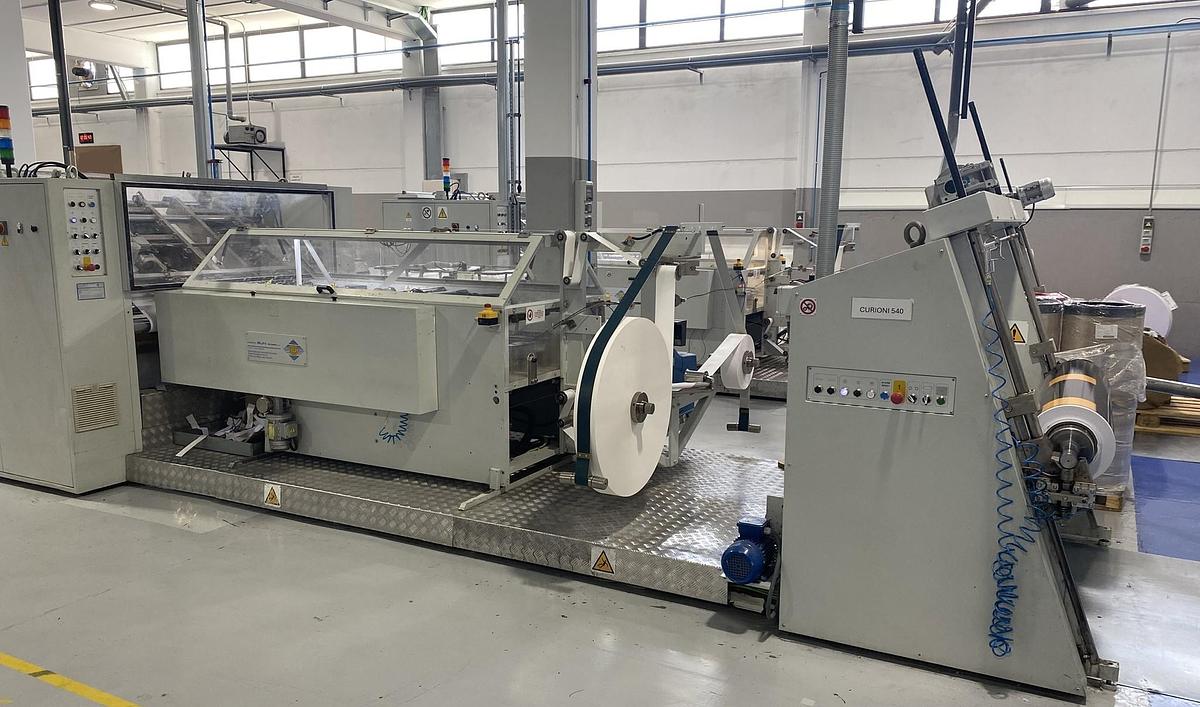

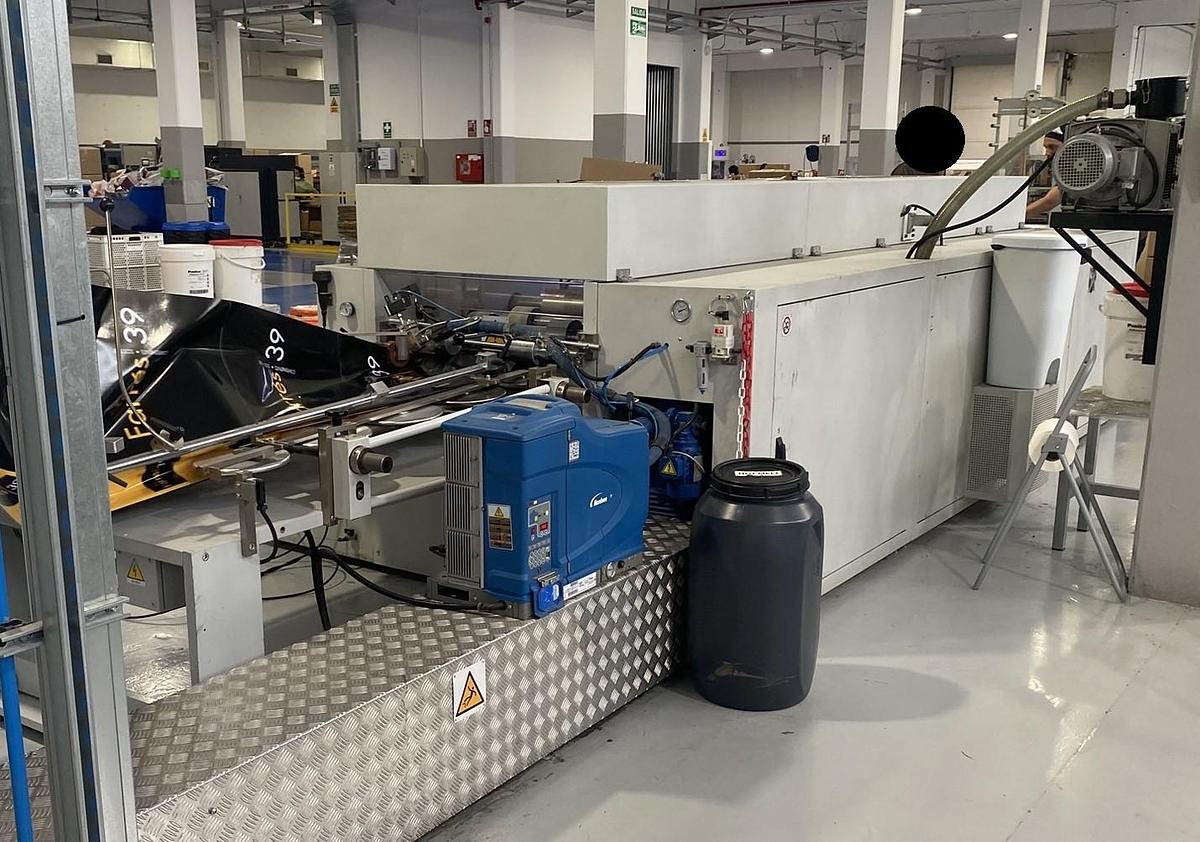

The paper bag making machine SUN MASTER 540 is fed by reel and it has been designed to manufacture square bottom paper bags with or without handles, from the medium up to the biggest formats.
This pre-owned CURIONI SUN MASTER 540 (for sale from the first owner) is equipped with twisted handle making unit for the manufacture and application of handles which is in line with the paper bag making machine (international Patent).
Machine in very good condition, visible in production and available if unsold.
Delivery time: 120 days from downpayment (or to be agreed).
Specifications
| Manufacturer | CURIONI SUN Teramo |
| Model | SUN MASTER 540 |
| Year | 2018 |
| Condition | Used (visible in production) |
| Bag width | Min. 220 mm - Max. 540 mm (Bag width with handles: Min. 240 – Max. 540 mm) |
| Bag lenght | Min. 320 mm - Max. 650 mm (Bag lenght with handles: Min. 320 - Max. 550 mm) |
| Bottom width | Min. 80 mm - Max. 200 mm |
| Cut lenght | Min. 400 mm - Max. 780 mm |
| Weight of paper | Min. 80 - Max. 130 gsm |
| Reel width: | Min. 720 - Max. 1430 mm |
| Diameter of the reel | Max. 1500 mm |
| Inner core diameter: | 76mm – 3” |
| Reel tension brake | Electromagnetic brake for reel tension |
| Slitting system implemented in line | In line longitudinal cutting system implemented in line. It is ideal in case of having a wider coil than that required for converting the width of the material required by the bag format to be produced. |
| Handle unit M100 (TWISTED) | Type of handle: twisted-paper cord or cotton with a twisted paper core | Twisted paper cord diameter: 4 - 5 mm | Handle width: 100 mm | Handle Patch height: 50 mm | Handle Patch length: 200 mm | Reels width for paper rhandles: 100 mm | Max. diameter of paper reels for patches: 1050 mm | Inner core diameter of paper reels for patches: 76 mm | Weight of usable paper for handle patches: 90 -130 gsm |
| General information | Total gross weight kg 21000 | Total installed electrical power: Kw 35 | Power supply three-phase 400 V + NEUTRE + GROUND at 50 Hz + 5% | Compressed air supply 600/700 kPa, dry and clean | Compressed air consumption: 100 Nl/min | Dimensions of the machine: length 15500 mm, width 2800 mm, height 2130 mm | Machine color grey RAL 7035 |
| Visible in operation: | Yes |
