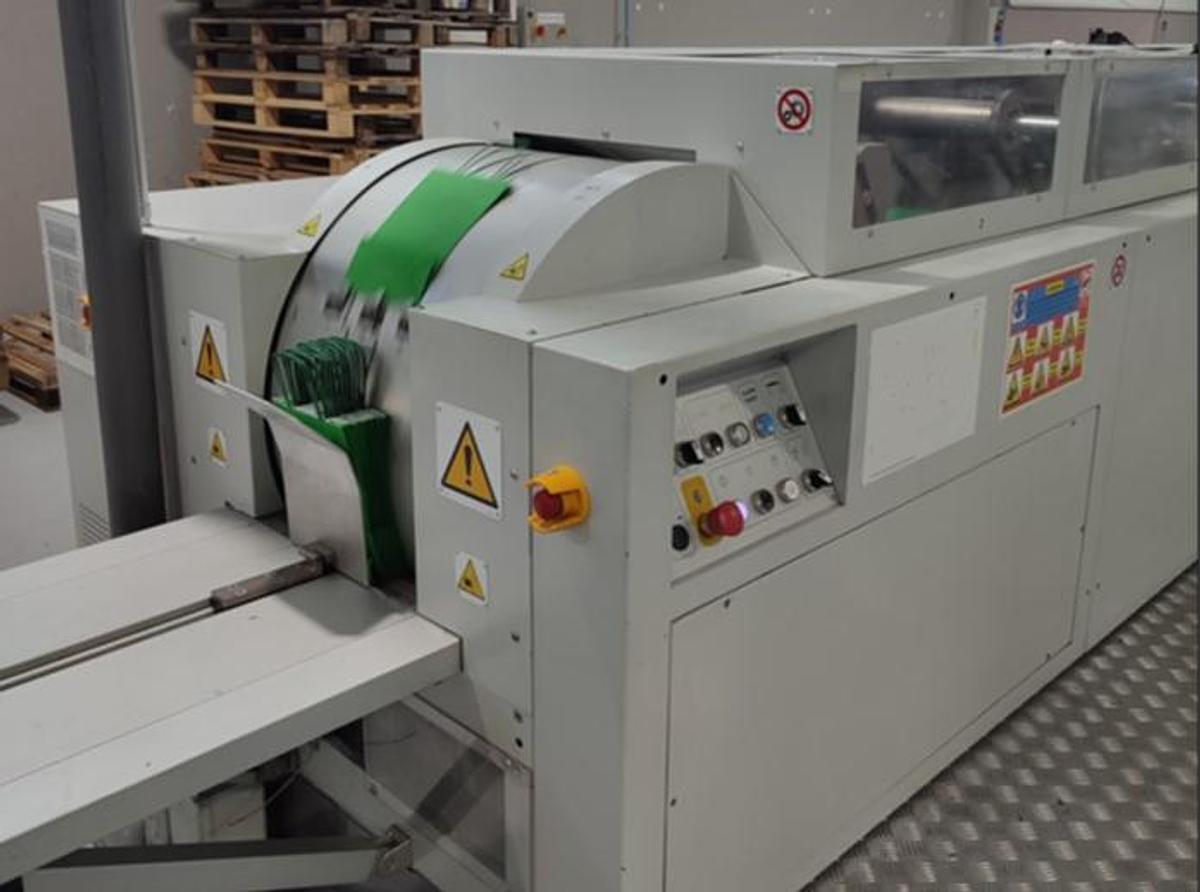

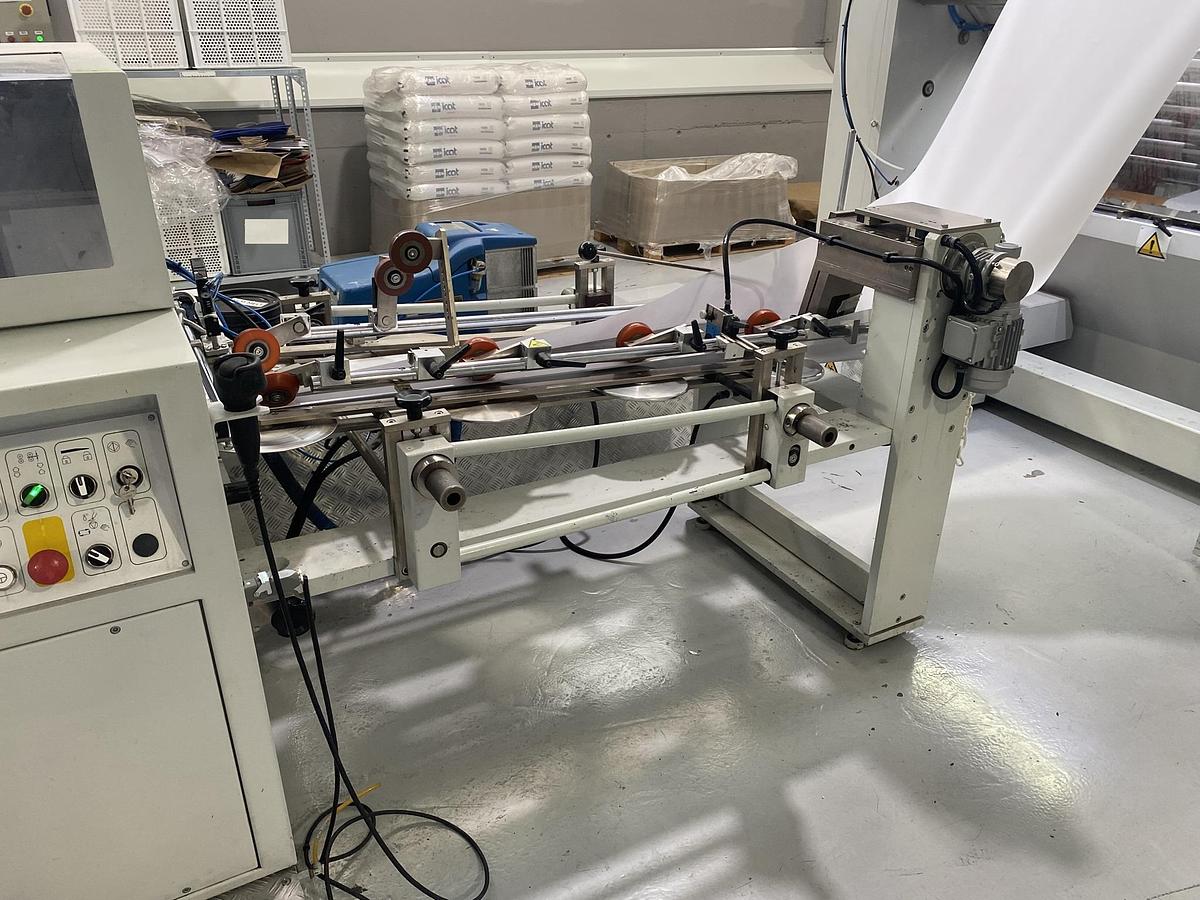

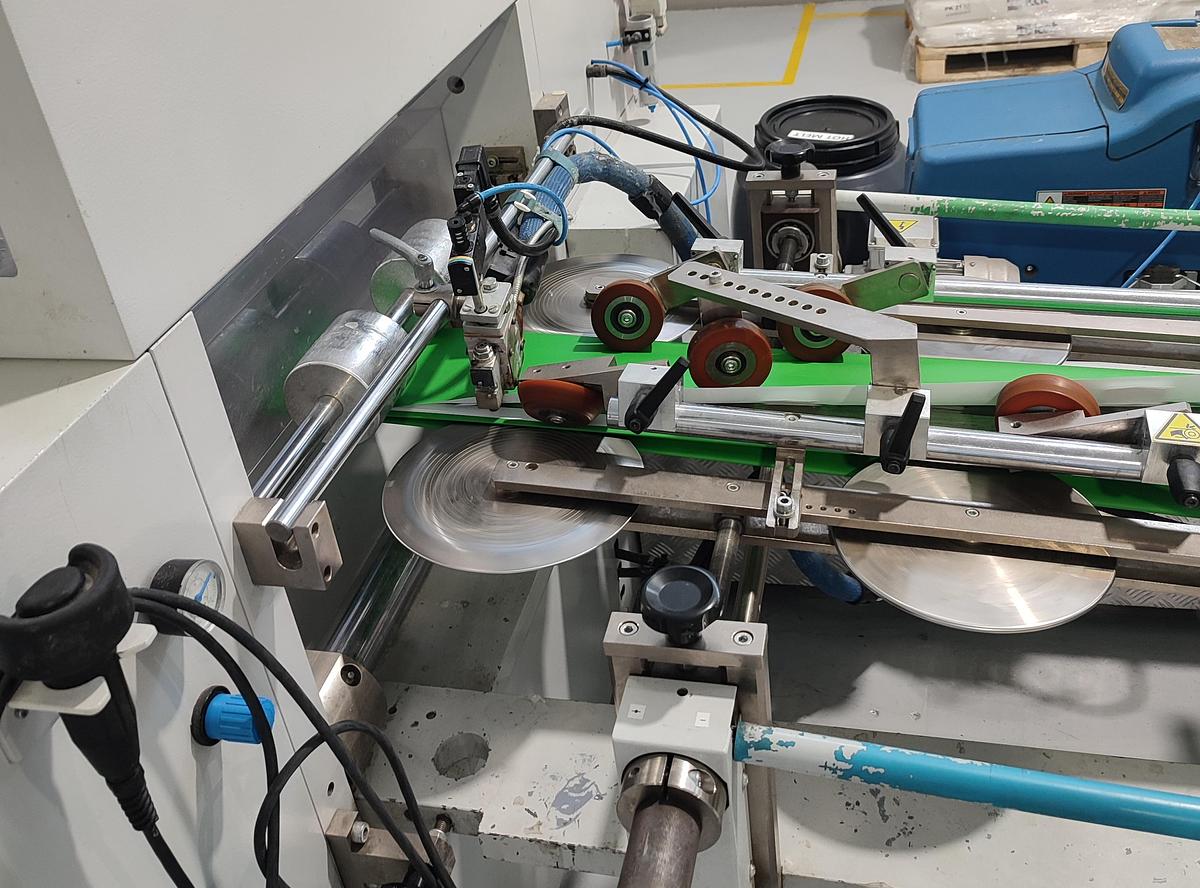

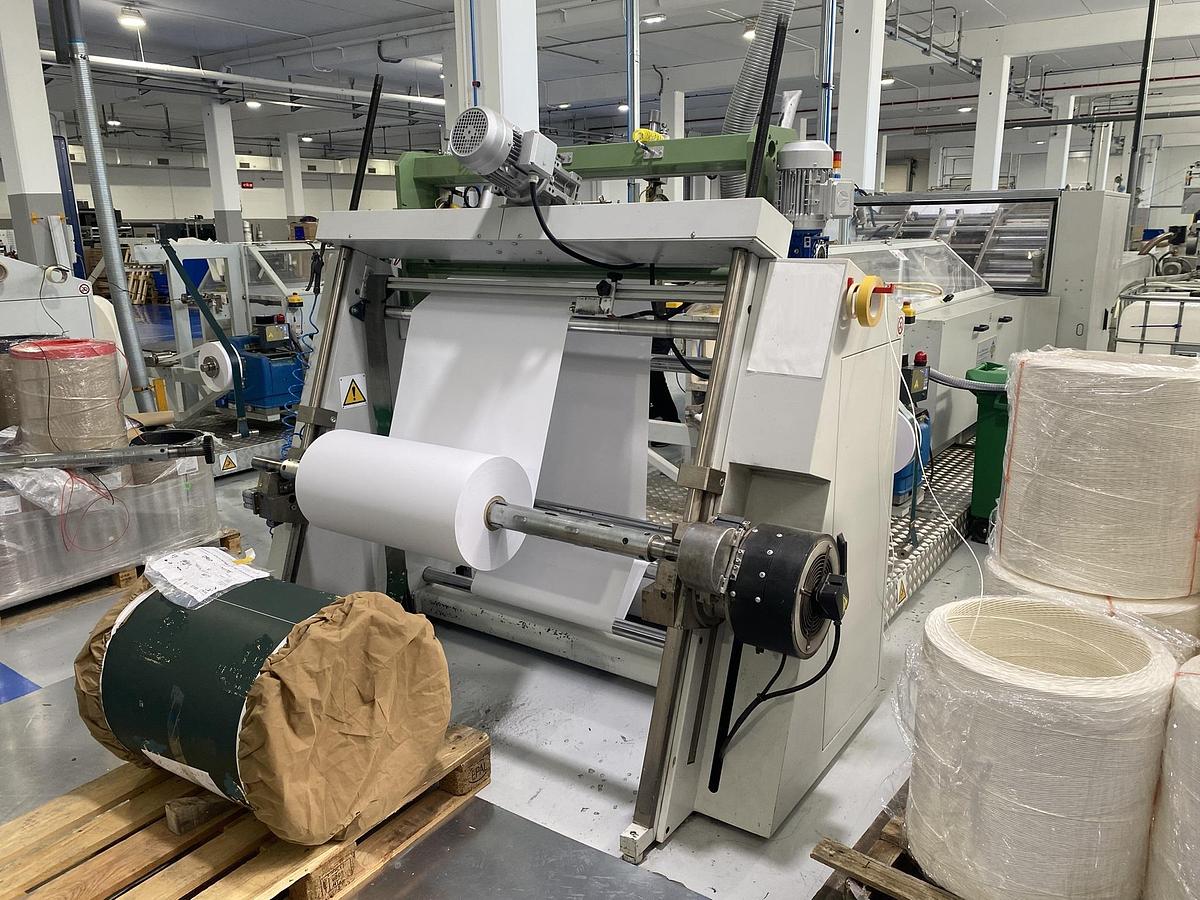

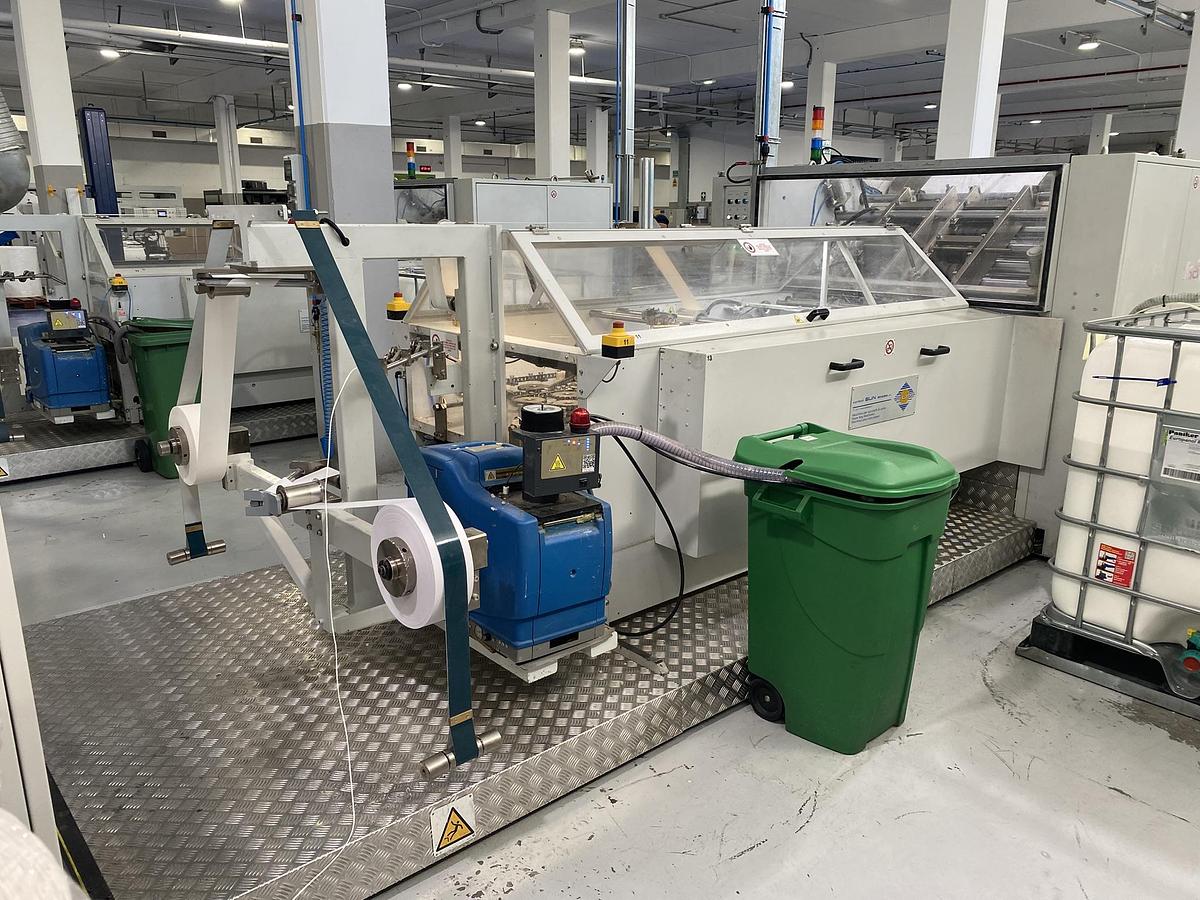

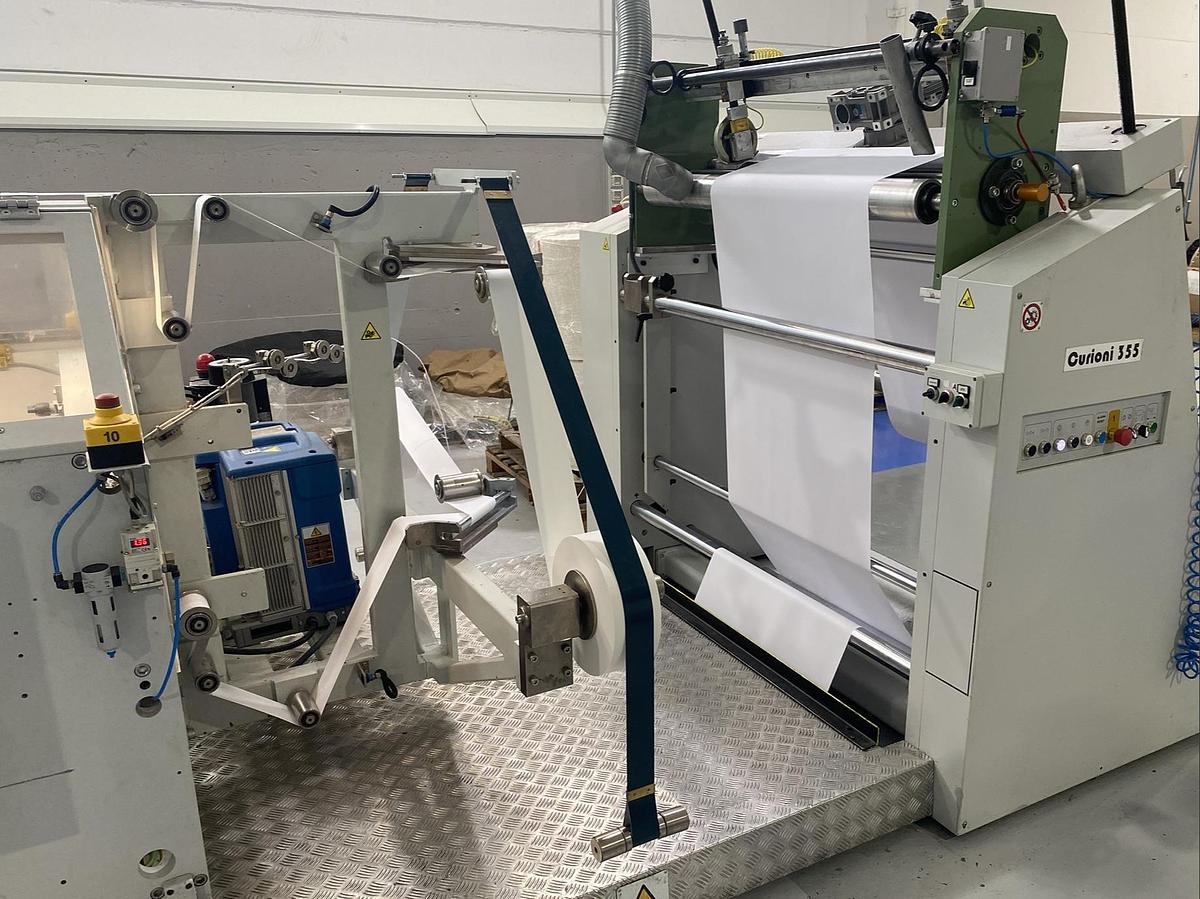

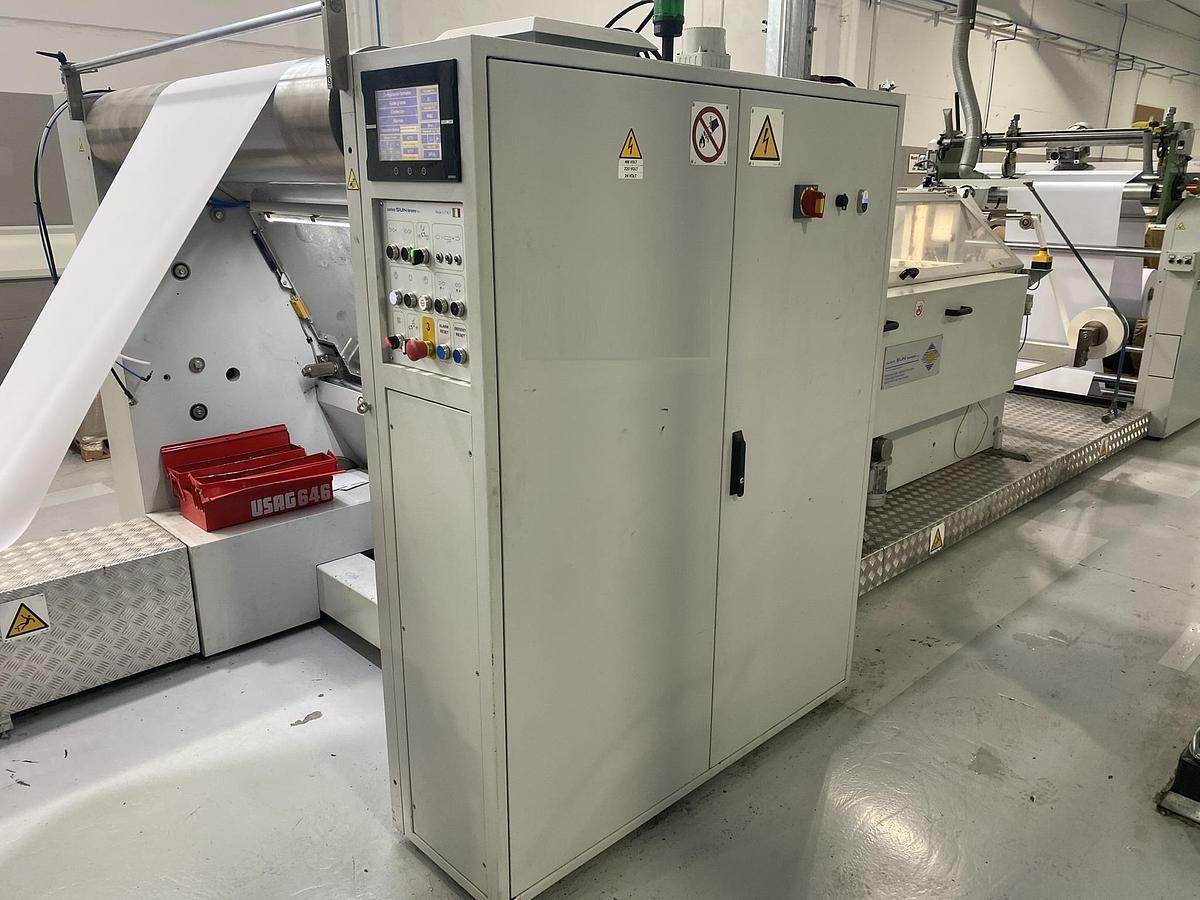

2019 CURIONI SUN MASTER 355 - square bottom paper bag making machine with twisted handles unit
2019 CURIONI SUN MASTER 355 - square bottom paper bag making machine with twisted handles unit
EXW (dismantling and loading excluded)
Location:Europe
orCall +39 346 4948054
Description
The paper bag making machine SUN MASTER 355 is fed by reel and it has been designed to manufacture square bottom paper bags with or without handles, from the small up to the medium formats.
This pre-owned CURIONI SUN MASTER 355, for sale from the first owner, is equipped with twisted handle making unit for the manufacture and application of handles which is in line with the paper bag making machine (international Patent).
Machine in very good condition, visible in production and available if unsold.
Delivery time: 120 days from downpayment (or to be agreed).
Specifications
| Manufacturer | CURIONI SUN Teramo |
| Model | SUN MASTER 355 |
| Year | 2019 |
| Condition | Used (visible in production) |
| Type | square bottom paper bag making machine with twisted handles unit |
| Bag width | Min. 110 - Max. 350 mm (Bag width with handles: Min. 180 – Max. 350 mm) |
| Bag lenght | Min. 220 - Max. 450 mm |
| Bottom width (min - max) | Min. 60 - Max. 150 mm |
| Cut lenght | Min. 270 - Max. 500 mm |
| Weight of usable paper | Min. 80 - Max. 130 gsm |
| Reel width | Min. 370 - Max. 1030 mm |
| diameter of the reel | Max. 1500 mm |
| Inner core diameter | 76 mm |
| Reel tension brake | Electromagnetic brake for reel tension |
| Mechanical speed | 160 cycles/min |
| Slitting system implemented in line | Slitting system (rotating blade) implemented in line, to adapt/reduce the paper web width according to the production format (suction system not included). |
| handles unit (twisted) | Type of handle: twisted-paper cord or cotton with a twisted paper core | Twisted paper cord diameter: 4 - 5 mm | Handle width: 76 mm | Handle Patch height: 50 mm | Handle Patch length: 152 mm | Reels width for paper handles 100 mm | Max. diameter of paper reels for patches: 1050 mm | Inner core diameter of paper reels for patches: 76 mm | Weight of usable paper for handle patches: 90 -130 gsm |
| Dimensions and gross weight of the machine (approx) | Dimensions of the machine (approx): Length 15500 mm, Width 2660 mm, Height 2130 mm | Gross weight (approx): 2100 Kg | Total installed electrical power: three-phase 400 V + NEUTRE + GROUND at 50 Hz + 5% 35 Kw | Compressed air supply: 600/700 kPa, dry and clean | Compressed air consumption: 100 Nl/min | Machine color: Grey RAL 7035 |
| Visible in operation | Yes |
