A flexographic printing press designed for already made bags is the smart solution for printing small and medium runs of paper or plastic bags. The machine is available in 1 to 3 colors, making it suitable for various applications.

Applications

A flexographic printing press designed for already made bags is ideal for printing on various types of bags, including:

  • Square bottom bags.
  • Shopping bags.
  • Pastry boxes.
  • Pizza boxes.

Materials:

Suitable substrates include:

  • Paper or plastic bags.
  • Woven and non-woven bags.
  • Thin corrugated board.
  • Compact board.

Key Operational Features:

  • Feeding

a)      Manual: Bags are manually positioned in front of the locating indexes before being fed into the press.

b)      Stream Feeder – Authomatic: The operator places bags into the automatic stream feeder, which holds up to 200 bags.

A set of suction pads then picks up each bag and places it onto a conveyor belt. Once in position, the front fingers retract, and the nip rollers pull the sheet into the machine. The stream feeder operates in sync with the machine's speed.

  • Good Print Registration: the bags are transferred onto a conveyor belt that moves them between the printing units for precise color registration. This ensures that each print layer aligns correctly on the bag.
  • Drying Process: After each printing pass, the bags are temporarily stacked on a sliding table or as optional into four rotating trays, allowing sufficient time for drying between color applications.
  • Ink Types: The press is compatible with both water-based and alcohol-based inks, offering flexibility depending on the desired finish, substrate type, and environmental requirements.

Main specification

  • Number of printing units: 1, 2 or 3 colours
  • Maximum printing surface (Width): 480 mm
  • Maximum printing surface (Length): 500 mm
  • Maximum product Width (without stream feeder): 520 mm
  • Maximum product Length (without stream feeder): 600 mm
  • Maximum thickness of the handle: 15 mm
  • Maximum handle height: 120 mm



A flexo for already made bags offer several advantages, making it an efficient choice for printing. The machine is designed for easy operation, enabling a single operator to run it with minimal effort. Setup is quick and straightforward, reducing downtime and increasing productivity. With low maintenance requirements and energy-efficient operation, it is cost-effective over time. Its compact design also makes it ideal for facilities with limited space.

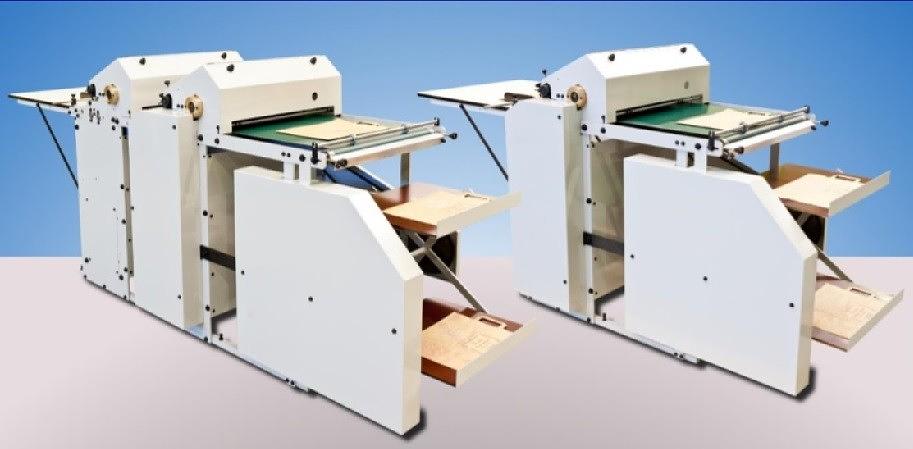

The flexographic solution for printing small and medium runs of paper bags
