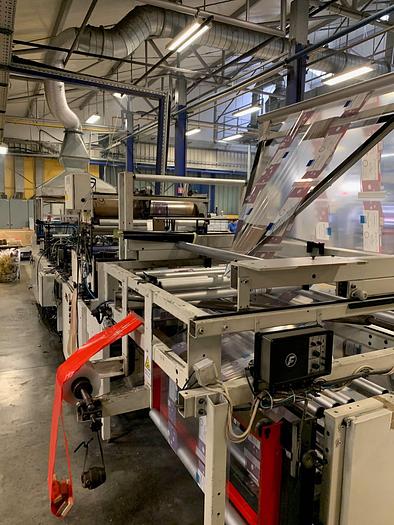

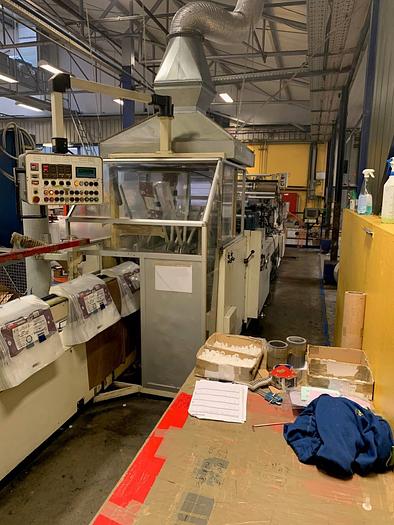

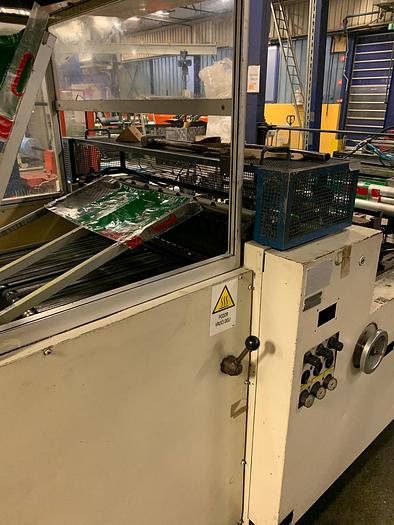

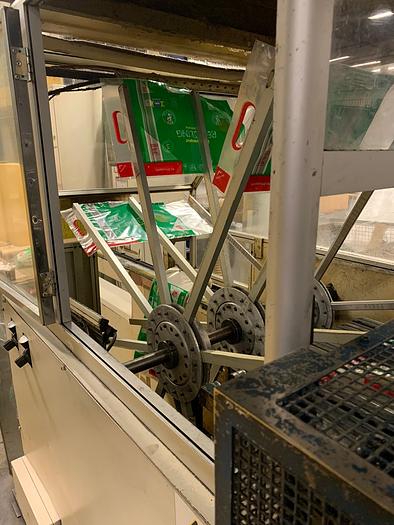

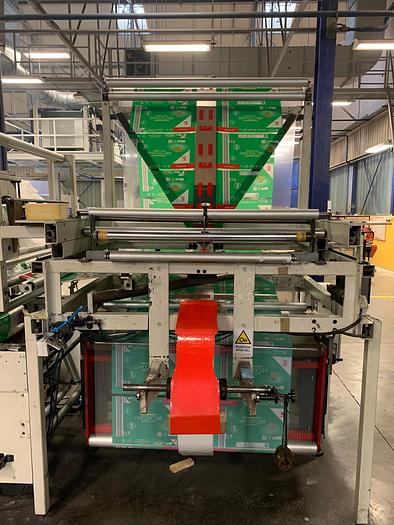

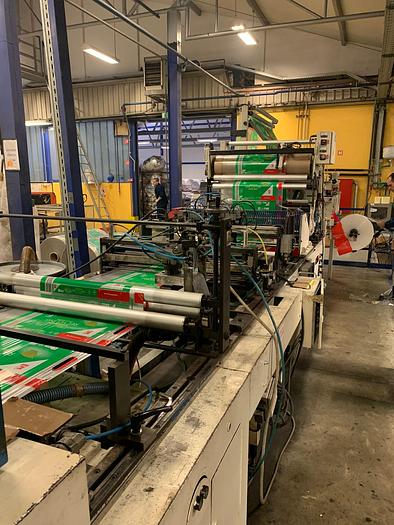

1994 STIEGLER R U 900 W-SBT/L [V1] – WICKET BAG – Punch
![Used 1994 STIEGLER R U 900 W-SBT/L [V1] – WICKET BAG – BLOCKED BAGS – Punch](https://i.machineryhost.com/5d238598c14badbad72045bb616b5809/large-used-1994-stiegler-r-u-900-w-sbt-l-v1-wicket-bag-blocked-bags-punch.jpg)
1994 STIEGLER R U 900 W-SBT/L [V1] – WICKET BAG – Punch
Available quantity: 1
Description
Material type: LDPE; LLDPE (Borstar); HDPE; pp Cast
Foil type: sleeve, half sleeve, foil, bottom gusset, fold; perforatin
Bag type: punch, longitudinally sealing; adhesive tape

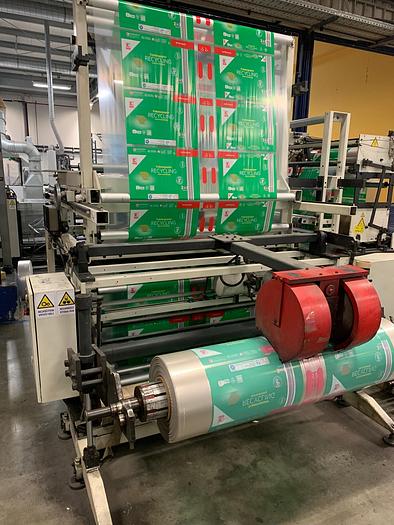

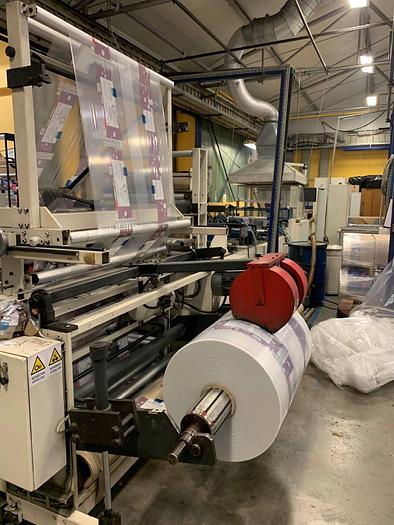

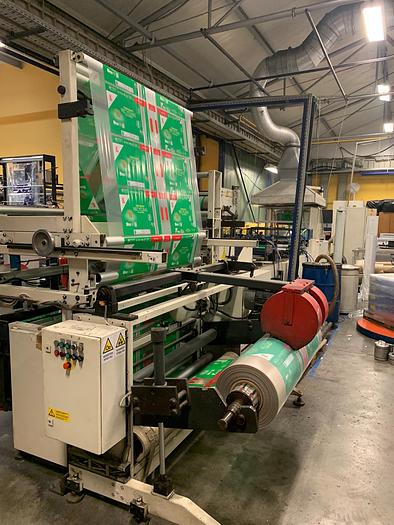

Unwinder: width max.1.350 mm
Sealing type: welding strip 1,4 mm
Width of the sealing bar: 950 mm
Speed of Machine: min. 40 pcs/min – max. 150 pcs/min
Bag width: - min. - 120 mm - max. - 670 mm
Thickness: - min. - 22 my- max. - 150 my
Bag height: - min. – 250 mm - max. - 750 mm
Botttom gusset: - min. 27 mm – max. 100 mm
Keeping the foil trough the machine: double-sided FIFE (on the machine)
Foil trim: YES
Core diameter: Ø 76 mm
Roll diameter: max. 800 mm
Printed foil: photocell
Product ventialtion: a) hole – YES b) cross - YES
Techical documentation:- Electrical plan- Instructions for use - drawings
Specifications
Manufacturer | STIEGLER |
Model | R U 900 W-SBT/L [V1] – WICKET BAG – Punch |
Year | 1994 |
Condition | Used (visible in production) |
