2012 4MREFAI CSS - Cut Size Sheeter for logitudinal and transversal cutting

No longer available

2012 4MREFAI CSS - Cut Size Sheeter for logitudinal and transversal cutting

Available quantity: 1

Europe

Description

Manufacturer: 4MREFAI (Italy)

Model: SECOND-HAND SHEETER MODEL CSS 10-04

Only one sheeter for logitudinal and transversal and cutting: CSS can cut paper directly in the final size without using the usual linear cutters.

Reel max width: 1000 mm

Max weight of he reel: 1000 kg

Core reel diameter: 70 / 76 mm

Min. cutting width: 250 mm

Max. cutting width: 500 mm

Min. cutting lenght: 200 mm

Max. cutting lenght: 400 mm

Max. speed: 500 sheets/min - 400 m/min

Material: CSS works well with a wide range of materials:Paper, tissue paper, wrapping and gift paper, coupled paper, PE, PET, BOPP etc. (14-60 g/sm)

Max. electrical power: 15 KW

Noise emission: < 70 dB(A)

Std dimensions: 4,4X6 m

Sheeter total weight: 3200 kg

CSS sheeters have an innovative production system ensuring the output of finished products directly from reels.

Motors: 7 action-controls, brushless motors in electric axis (gantry) between them

Movements: 10 pneumatic axis controlled by an HMI panel

Check systems: Double register control, performed by a sensor for mark detection

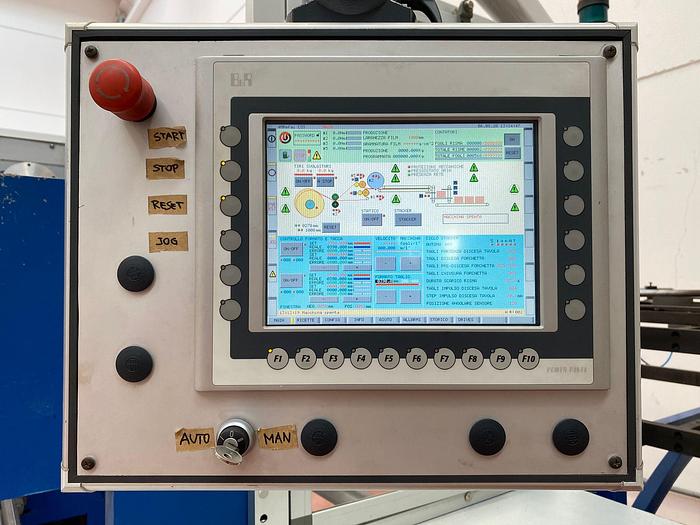

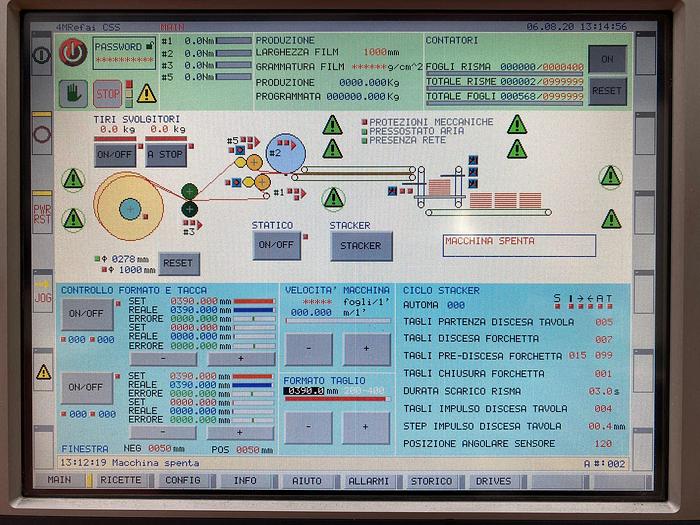

Controls: 10.4” color touchscreen panel, with database to manage cut programs

Collection system: Reams automatically stacked through a motorized belt

Specifications

Manufacturer4MREFAI (Itay)
ModelCSS 10-04 - Cut Size Sheeter
Year2012
ConditionUsed
