2017 GARANT MATADOR NG/SERVO (with window unit)| Flat and satchel paper bag machine

Featured

Description

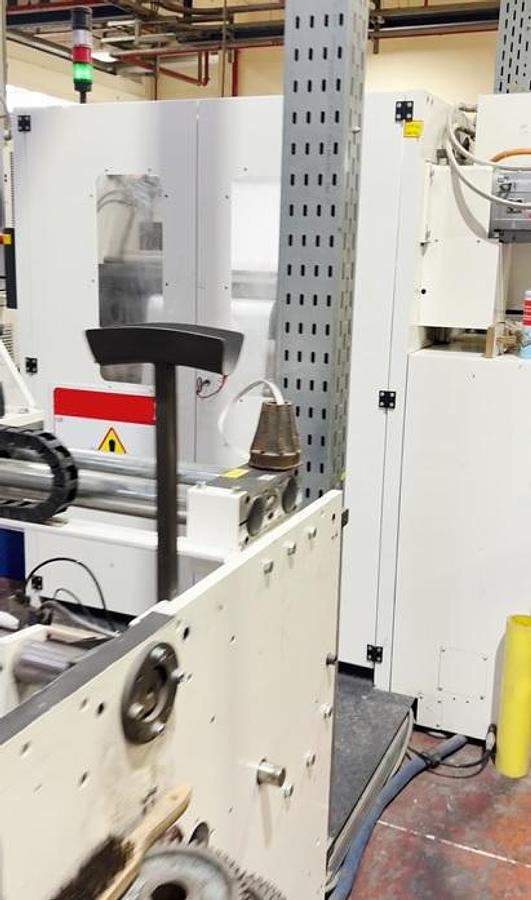

Pre-owned GARANT MATADOR NG/SERVO 6805G year 2017 – Automatic Flat & Satchel Paper Bag Making Machine

High-performance servo-driven machine for the production of flat and side-gusseted paper bags with perforated edges, directly from paper rolls.

Equipped with Siemens servo motors and S7 PLC control, automatic registration system for pre-printed paper, Nordson gluing units, and a dedicated sight strip unit for producing paper bags with transparent windows.

Bag width: 60–380 mm | Cut-off length: 160–760 mm | Maximum open gusset: 140 mm | Maximum reel width: 1,060 mm.

Year: 2017 – Currently in production (visible in middle-east) and available for sale.

Specifications

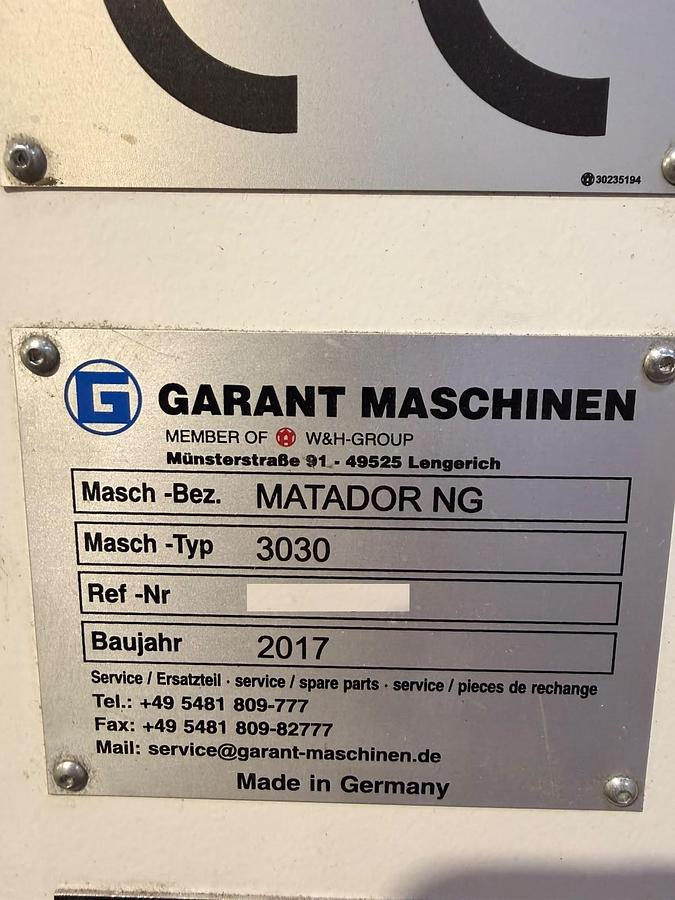

Manufacturer	Garant Maschinen
Model	Matador NG/SERVO
Year	2017
Condition	Used (visible in production)
Bag types	Flat paper bags and side-gusseted (satchel) paper bags
Max. paper reel diameter	1300 mm
Max. paper reel width	1060 mm
Bag width (min - max)	60–380 mm
Cut-off length with 2 stations	160–380 mm
Cut-off length with 1 station	381–760 mm
Max. side gusset depth	70 mm
Maximum opened side gusset	140 mm

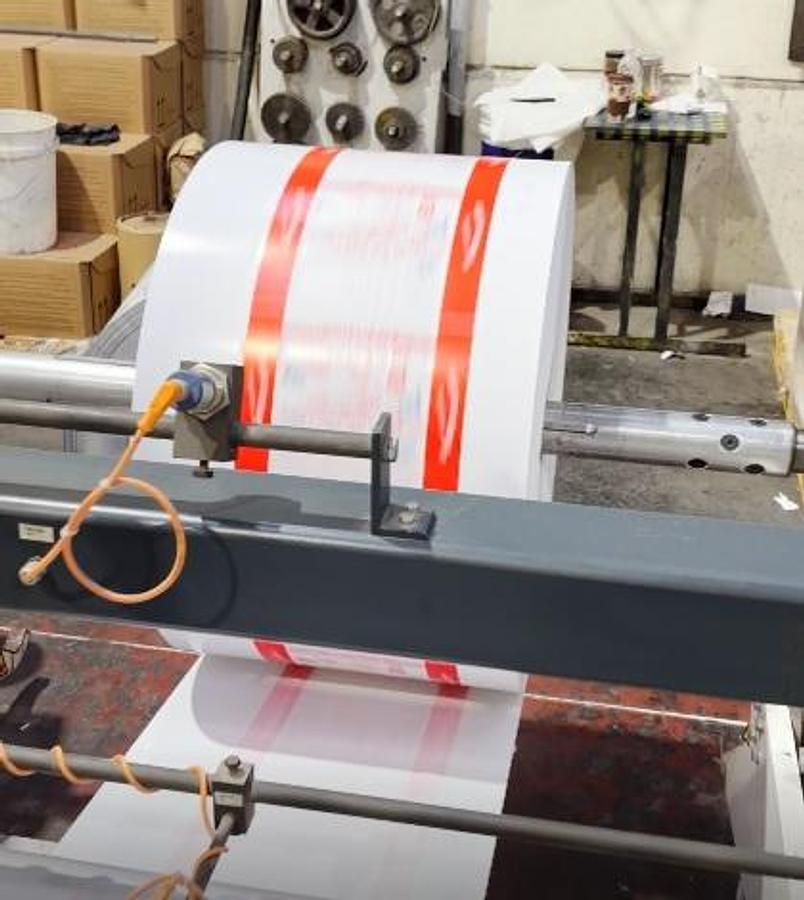

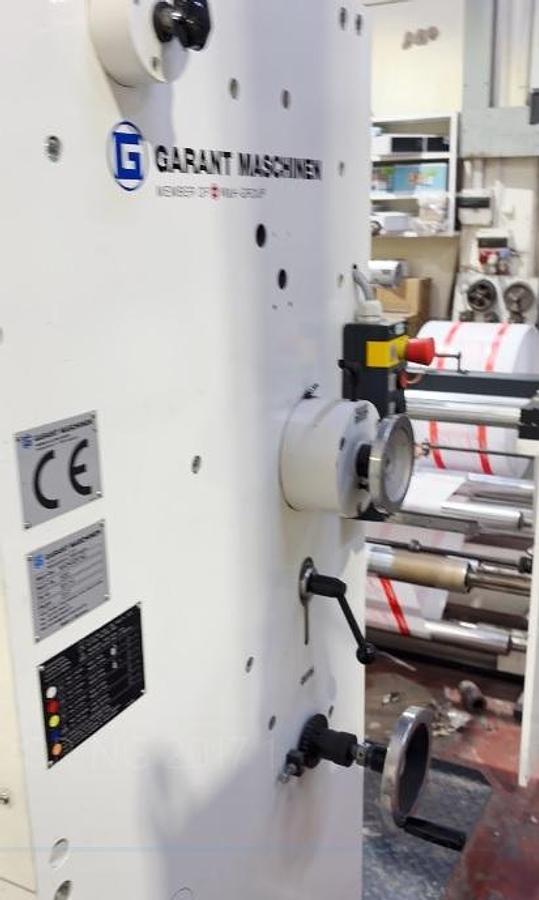

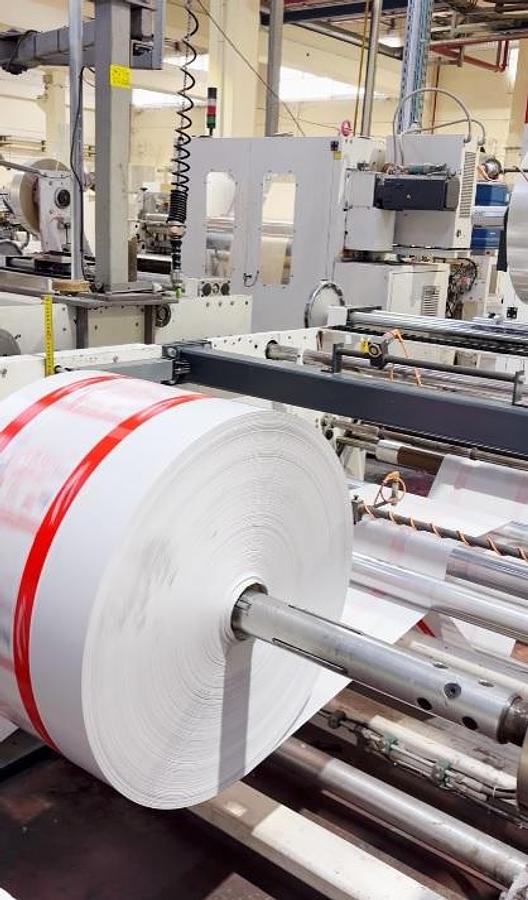

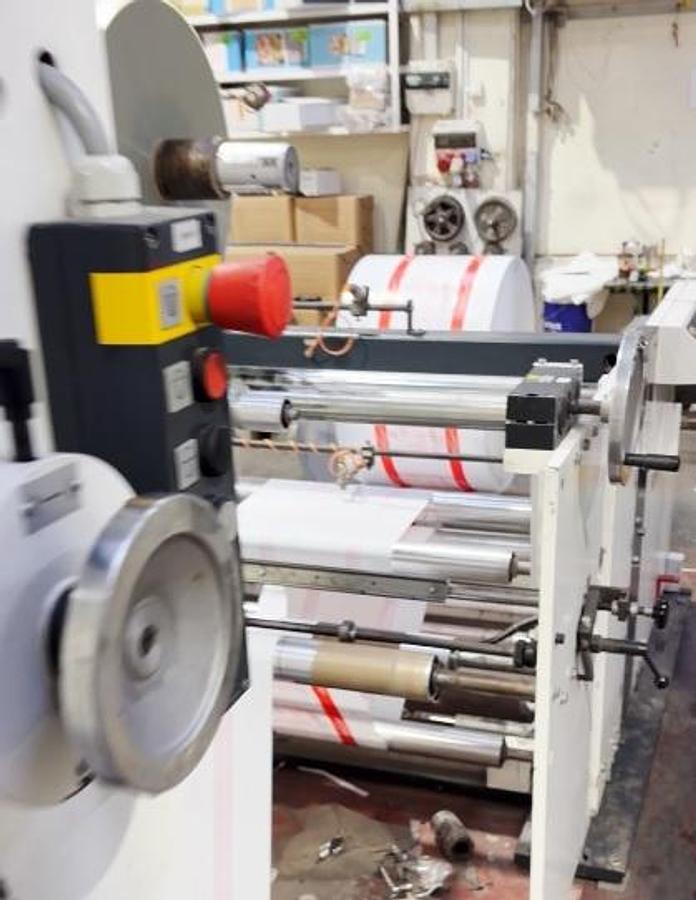

UNWIND	or rolls up to a diameter of 1,300 mm \| Motorized lateral adjustment \| Automatic web tension control \| Servomotor-driven brake for paper unwind with suspended dancer roller \| Precise and continuous web tension control over the entire paper roll diameter \| Remote diagnostics via modem integrated in the bag machine \| Hydraulic reel lift-in \| 1 pneumatic unwind shaft, diameter 76 mm

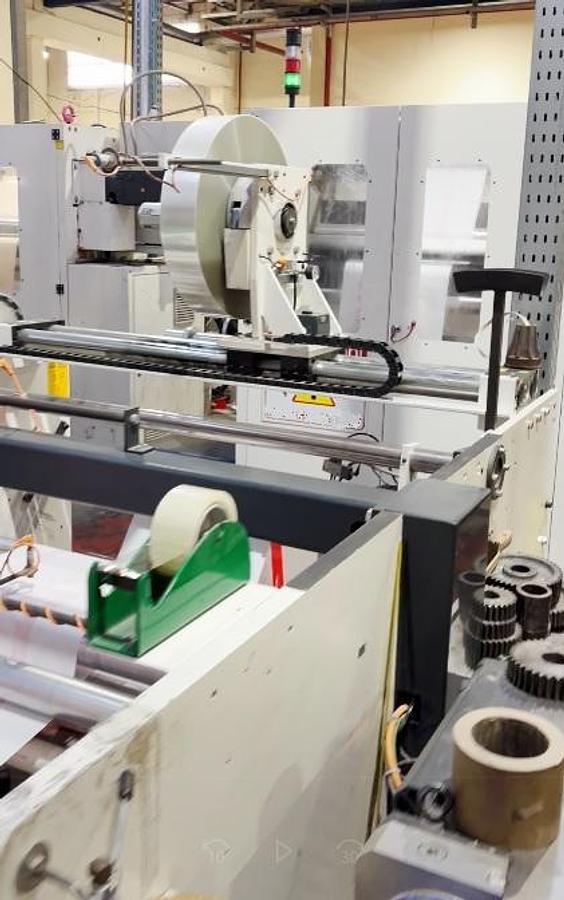

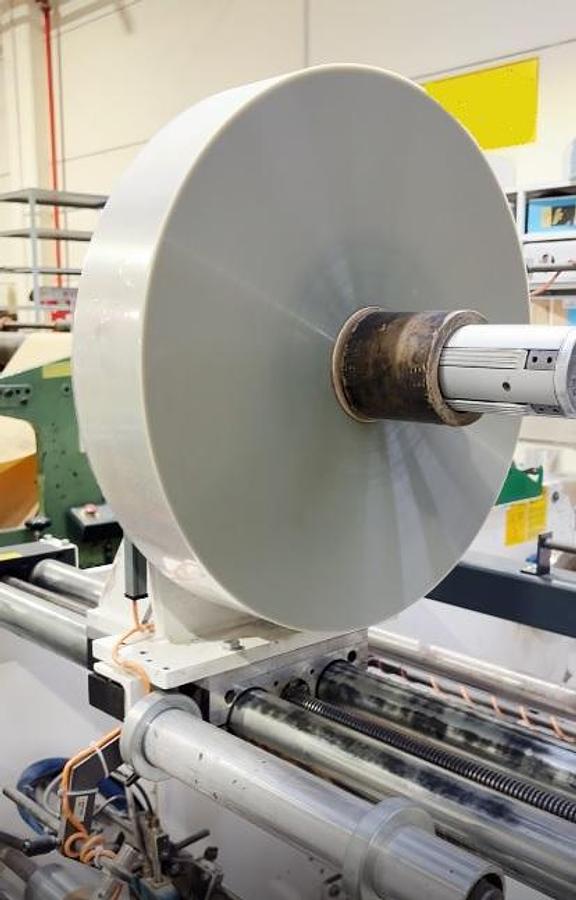

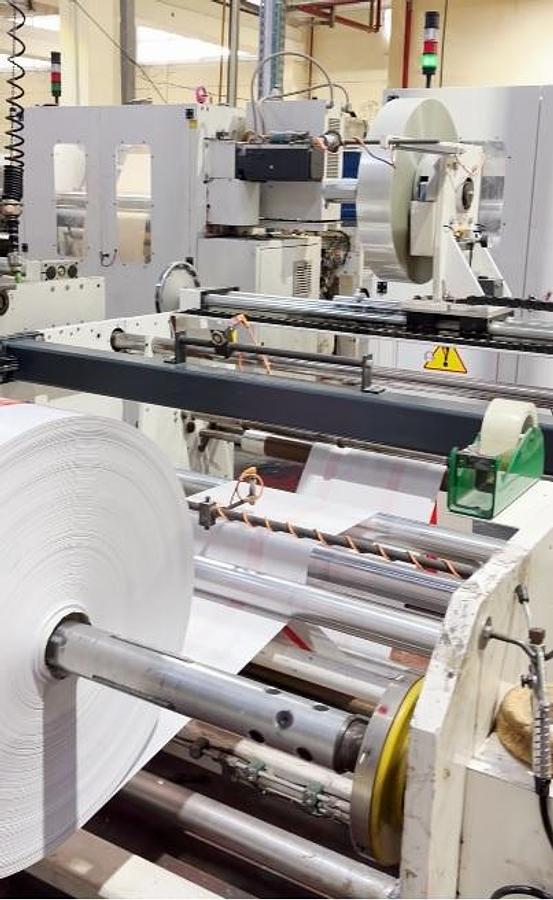

SIGHT STRIP ARRANGEMENT / WINDOW APPLICATION UNIT	For producing windowed bags (paper/film) \| Max. film width: 340 mm \| Max. roll diameter: 600 mm \| Pneumatic winding shaft with one-sided bearing for 76 mm core diameter \| Web break sensor \| Diameter detection \| Automatically controlled electro-pneumatic brake \| Manually adjustable winding position across the entire working width by spindle \| Web guiding parts \| Nordson hotmelt unit with 2 nozzles for gluing sight strip to paper web, including connecting parts
DRAW UNIT (REAR SECTION)	Wear-resistant servo drive \| Flexible web tension adjustment between main machine and rear section \| Pneumatic draw rolls
SERVO-PERFORATING SHAFT	Web perforation system \| Water-cooled servo drive \| Cooling unit \| Cuff/flap height: 15 mm
ELECTRIC EYE WEB SENSOR	Automatic machine shutdown in case of web break or end of web

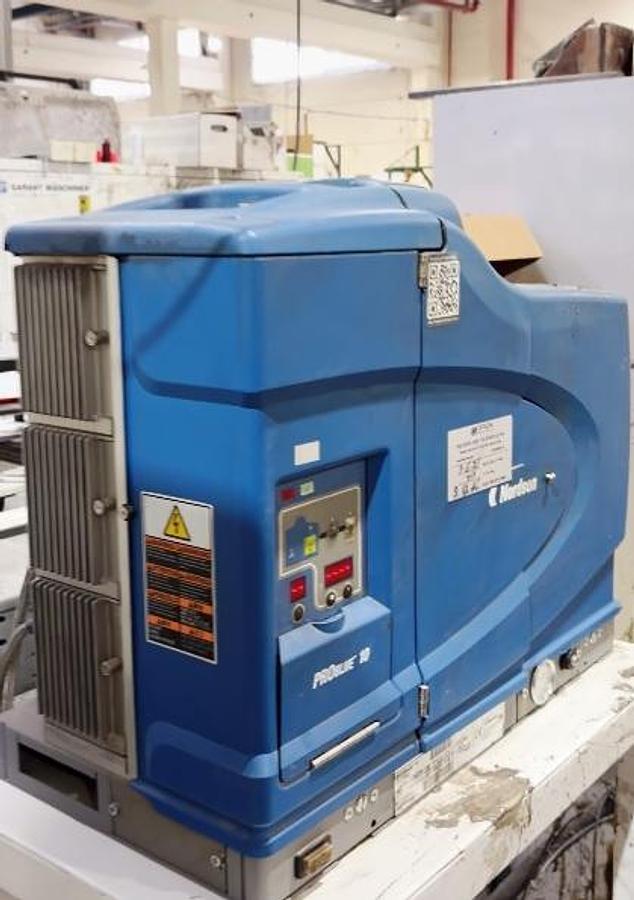

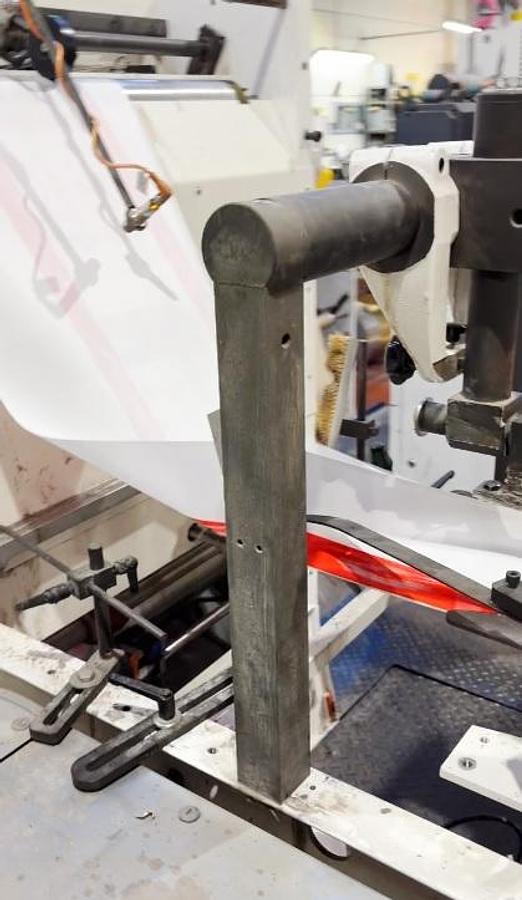

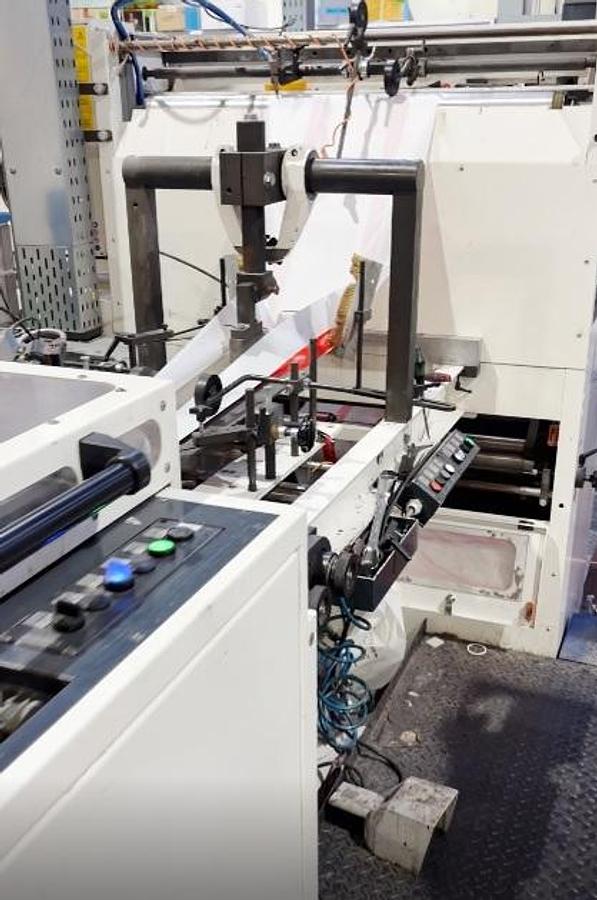

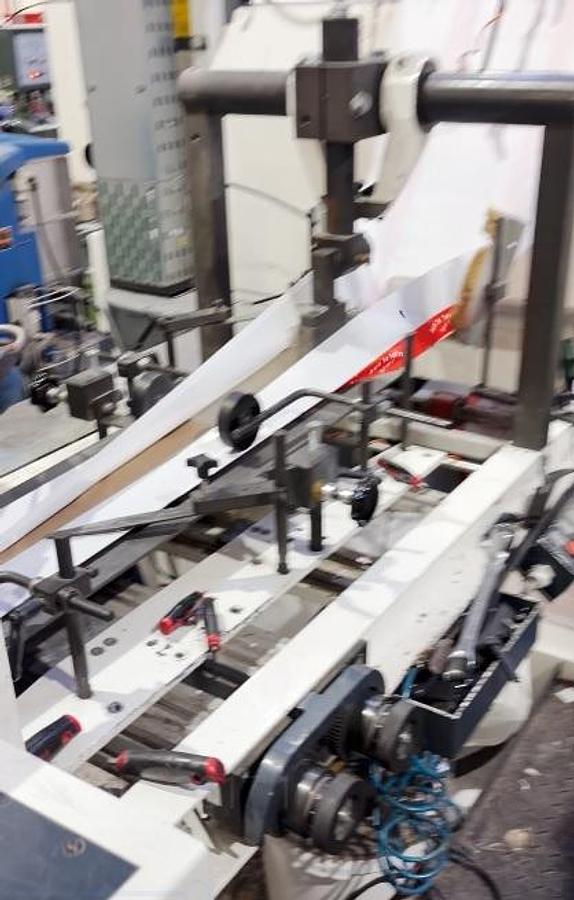

NORDSON SEAM PASTING	Contactless application nozzle with lateral adjustment during operation \| Electro-pneumatic pump control \| Automatic glue quantity adjustment according to web speed
TUBE FORMING	Tube forming table \| Size plate holder for interchangeable size plates \| Side gusset blades \| Pressing rollers and guide rails with parallel adjustment
DRAW UNIT (AFTER TUBE FORMING	Servo-driven direct drive without change gears \| Quick duplication of repeat orders \| Long-lasting drive system \| Cut-off length adjustment in 1 mm increments \| Cut-off length setting via touchscreen \| Web tension adjustment through cut-off length modification in 0.1 mm increments \| Quick-change system for draw units \| Pneumatic draw unit lift-off
ELECTRIC EYE CONTROL UNIT (Photocell)	For processing pre-printed rolls \| Integrated into Siemens PLC control system \| Sensor with lateral adjustment during operation \| Cutting position adjustment via touchscreen
TEAR-OFF UNIT	Nip roll \| Auxiliary draw \| Tear-off roller \| Tear-off position adjustable during production \| Motorized 360° tear-off unit adjustment for bottom cuff dimension setting during production
TOP FOLDING CYLINDER	Cam-controlled folding blade \| Paste pad
BOTTOM FOLDING CYLINDER	Designed for low-viscosity adhesives \| Glue pump \| Servo-driven paste roller \| Pneumatic lift-off and continuous glue roller operation when machine stops \| Glue application segment \| Width adjustment by lateral wipers \| Automatic glue refill and level control

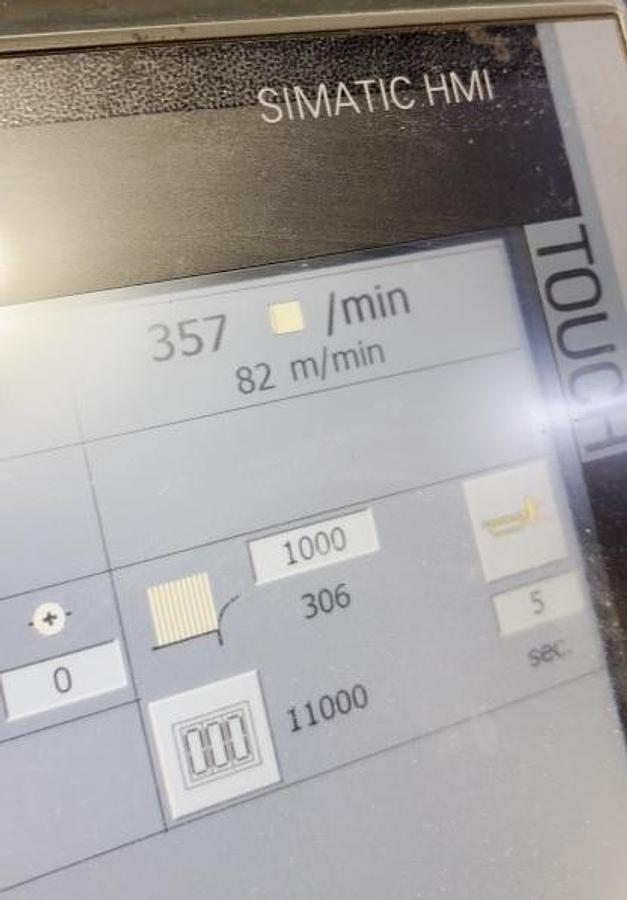

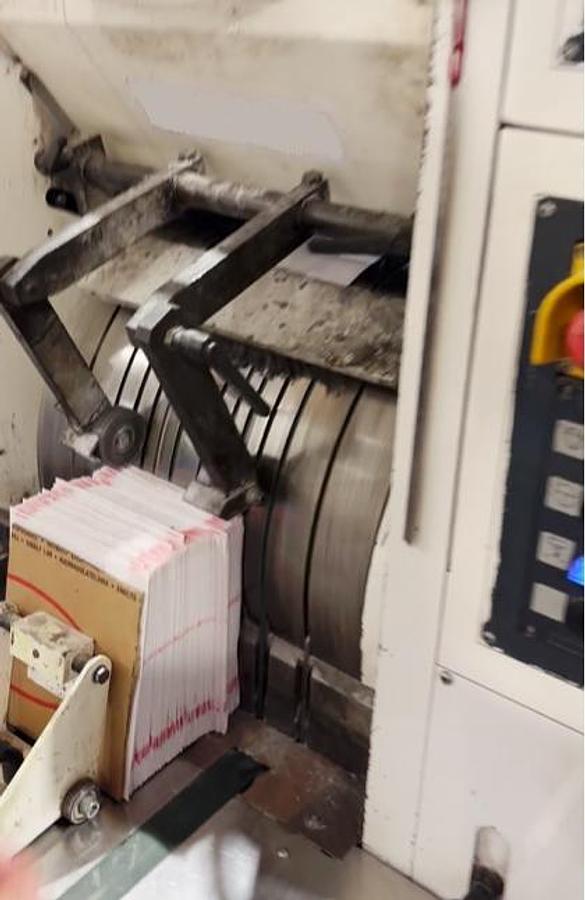

TOUCH PANEL	Entry of job-related parameters \| Speed indicator \| Operating controls \| Error indicator
JOB STORAGE & RETRIEVAL SYSTEM	Quick setup of repeat orders \| Storage capacity up to 100 jobs \| Storage of job-specific parameters \| Automatic parameter adjustment when recalling repeat orders
DRIVE TECHNOLOGY / CONTROL	Siemens S7 PLC control system \| Siemens servo motors \| Wear-resistant, low-maintenance timing belt drives \| Electronic line shaft synchronization between main machine and rear frame
DELIVERY SECTION	Height-adjustable delivery table \| Belt drive for bag packages \| Infinitely adjustable counter
Electrical connection	400 V, 50/60 cycles
Installed load	75 kVA
Visible in operation	Yes
