NANJIANG WFD-550 | Roll Fed Paper Bag machine with 2 handle unit (Flat & Twisted)
NANJIANG WFD-550 | Roll Fed Paper Bag machine with 2 handle unit (Flat & Twisted)
Location:Europe
Available quantity:1
Description

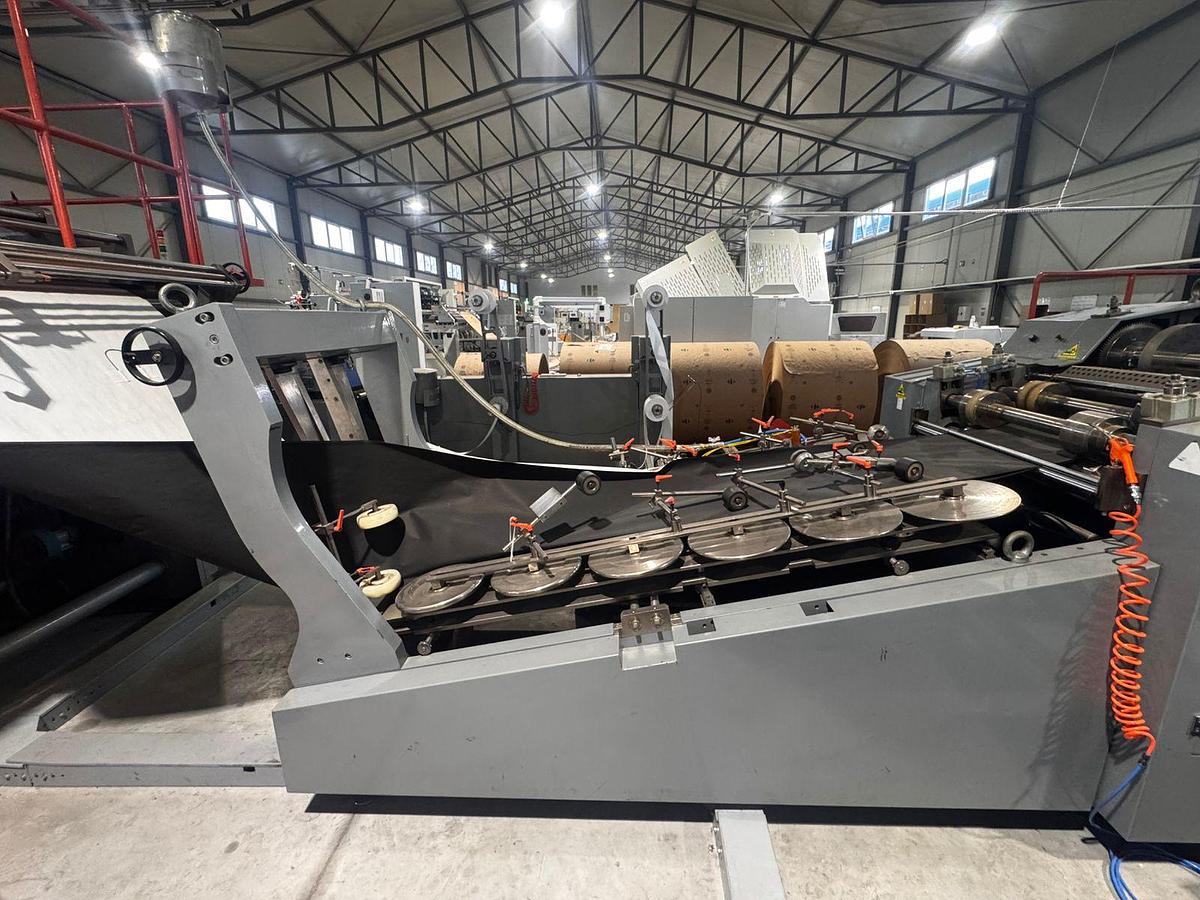

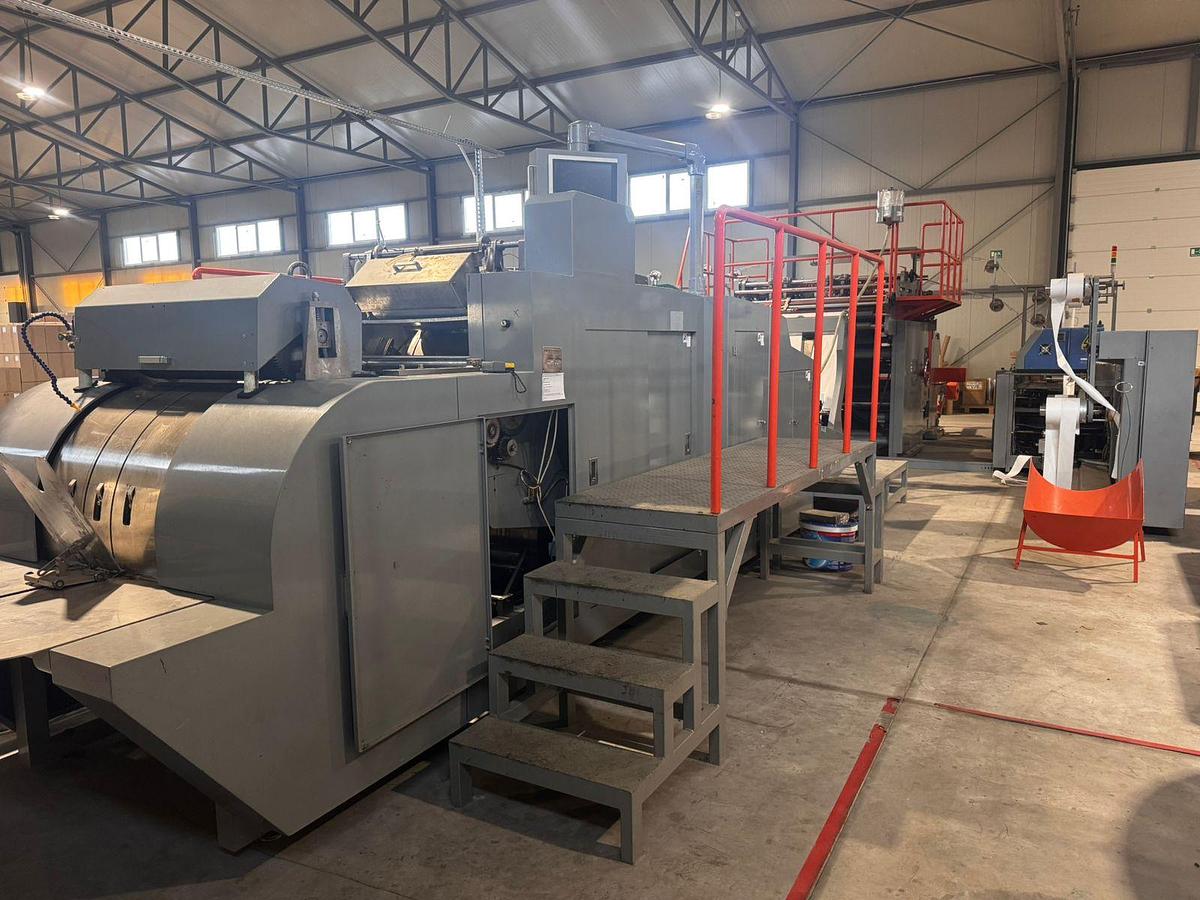

Pre-owned NANJIANG WFD-550 | Roll Fed Paper Bag machine with 2 handle unit (Flat & Twisted).

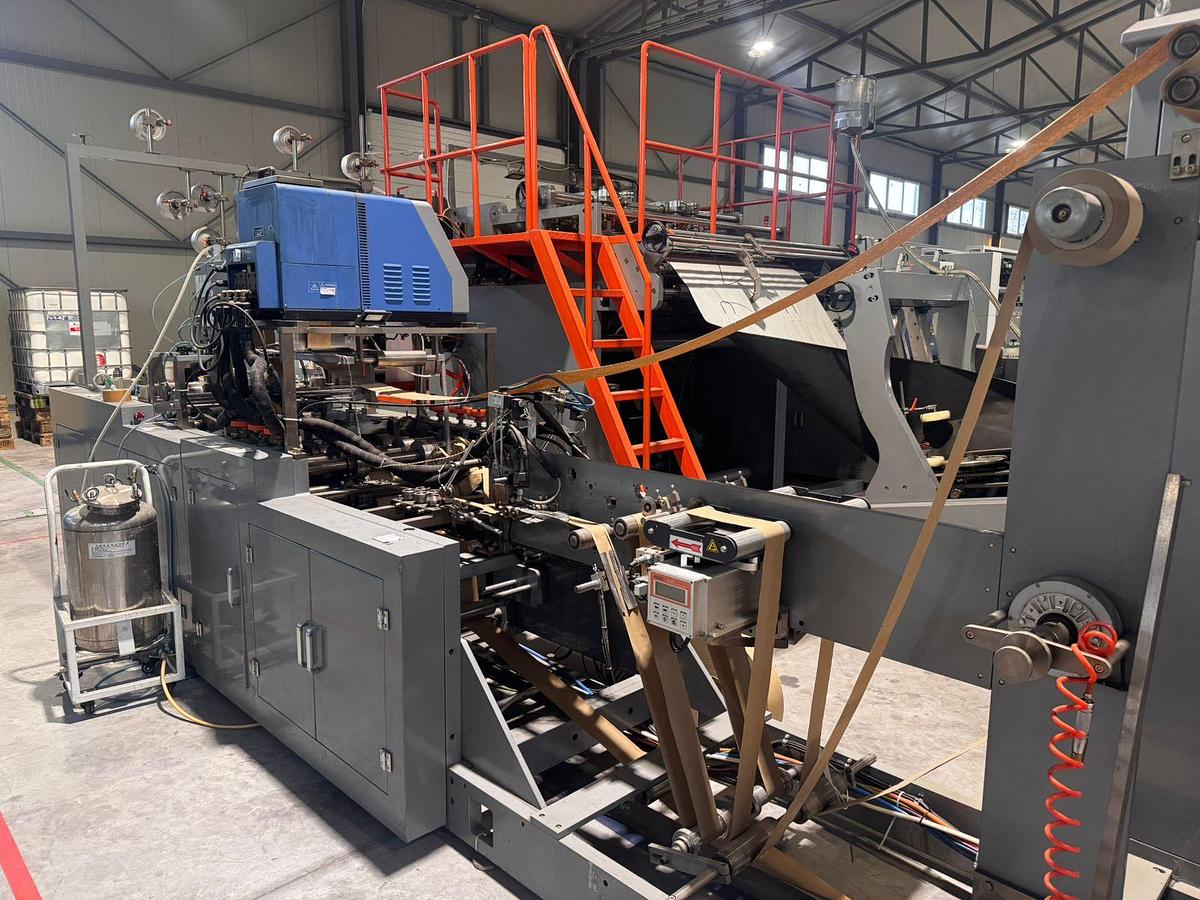

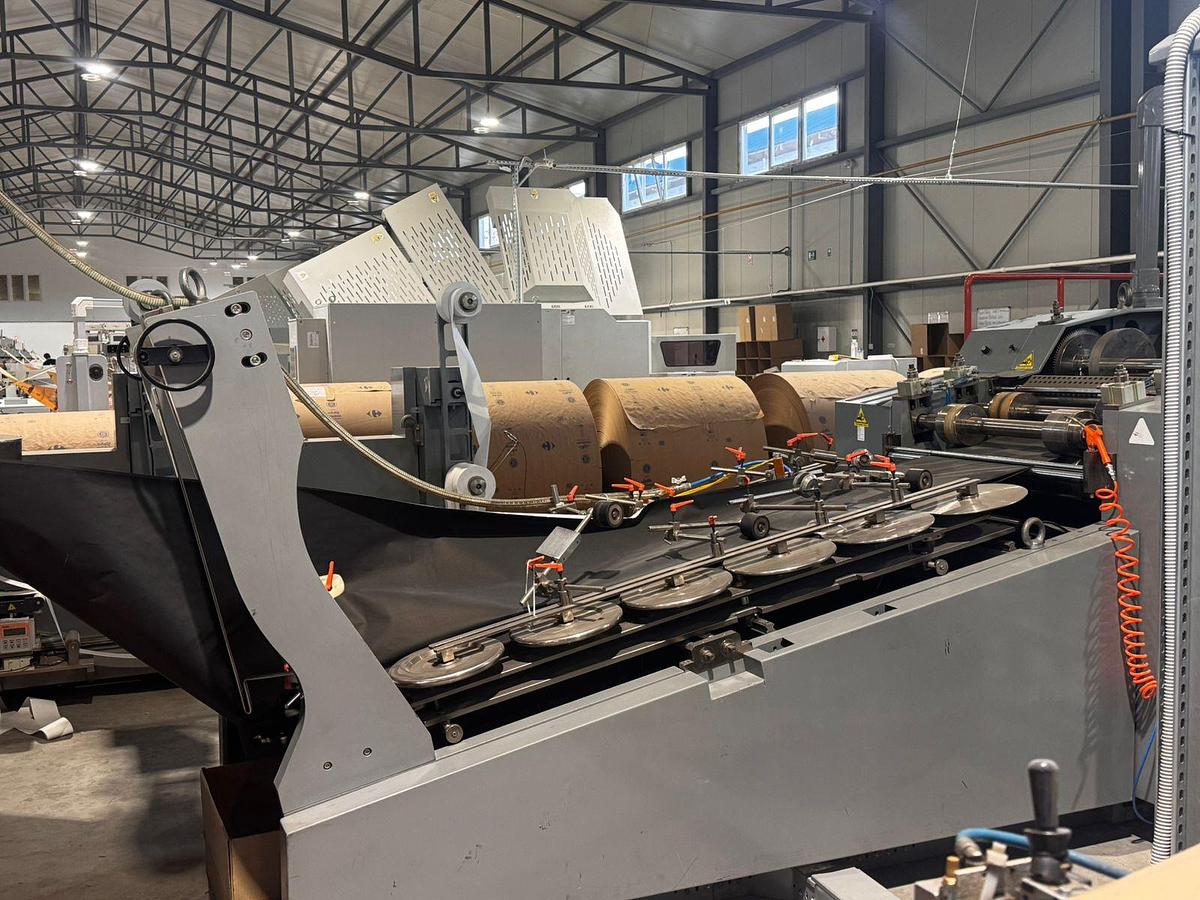

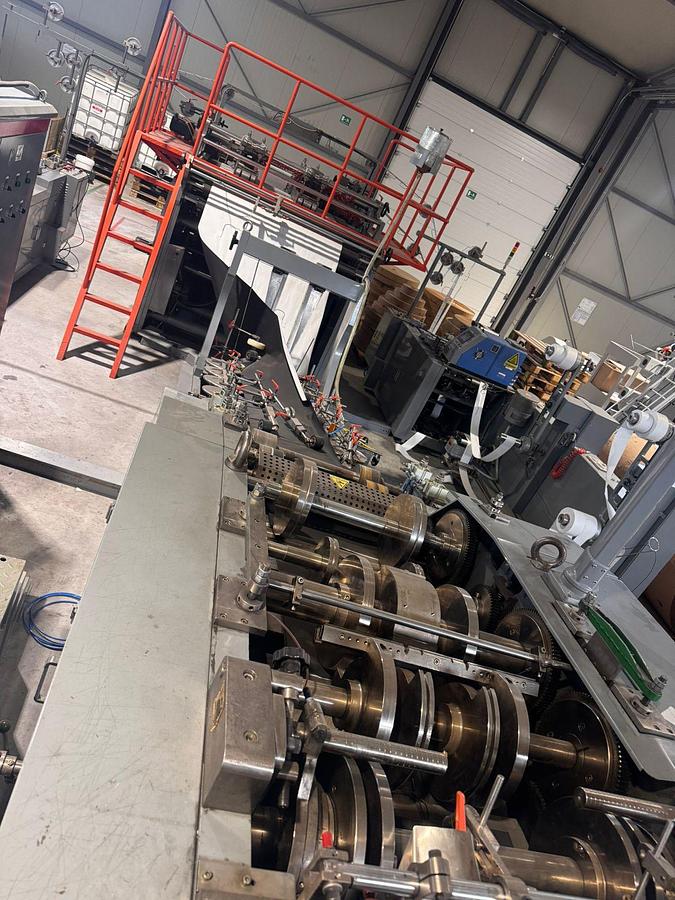

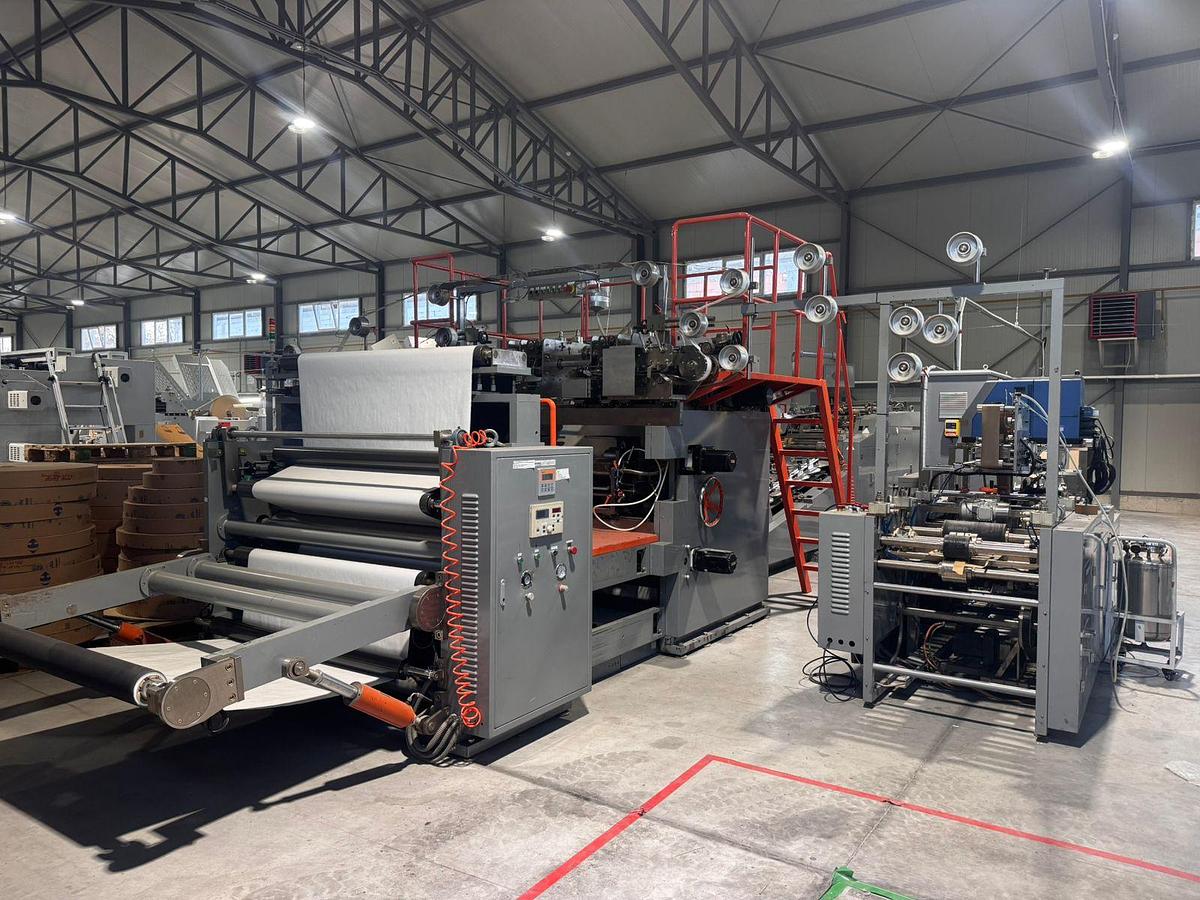

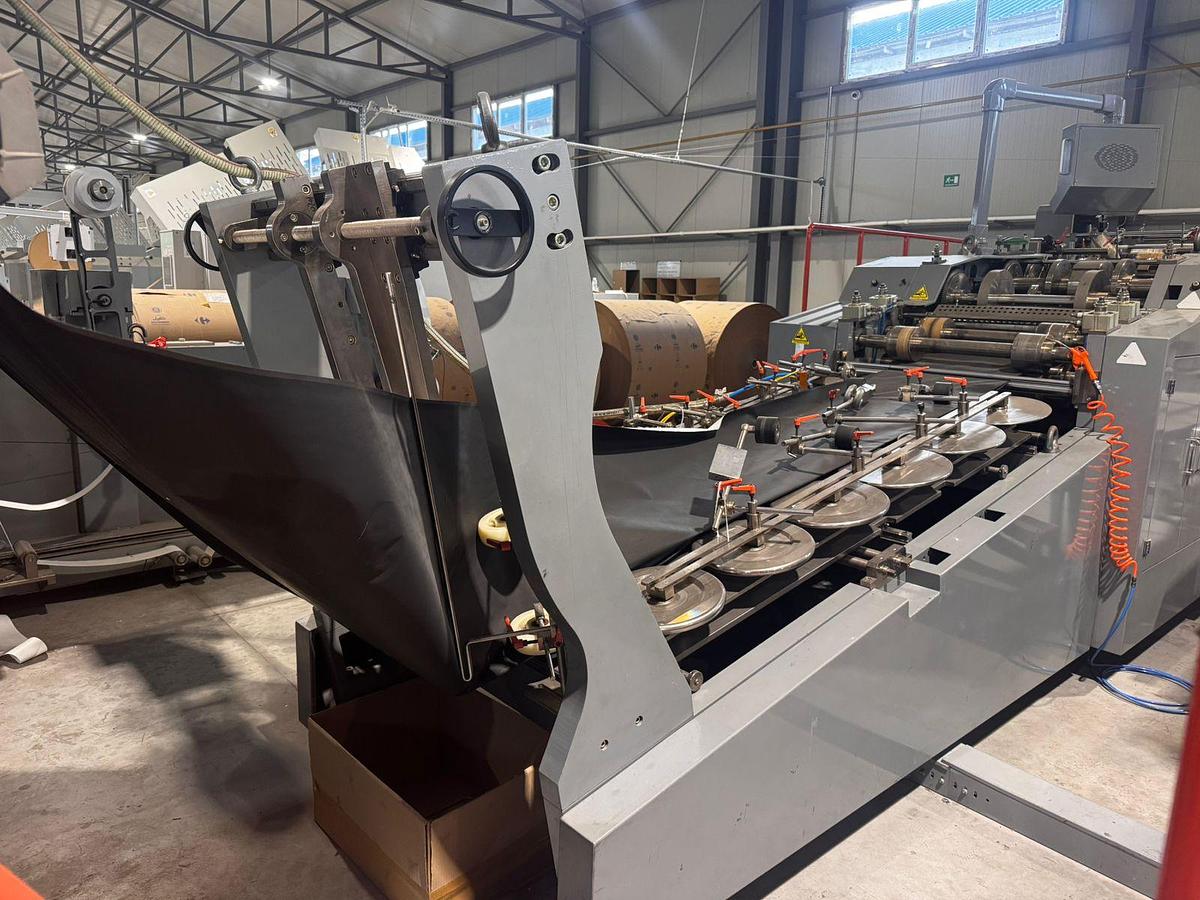

The NANJIANG WFD-550 is a fully automatic roll-fed paper bag making machine designed for the production of square-bottom shopping bags.

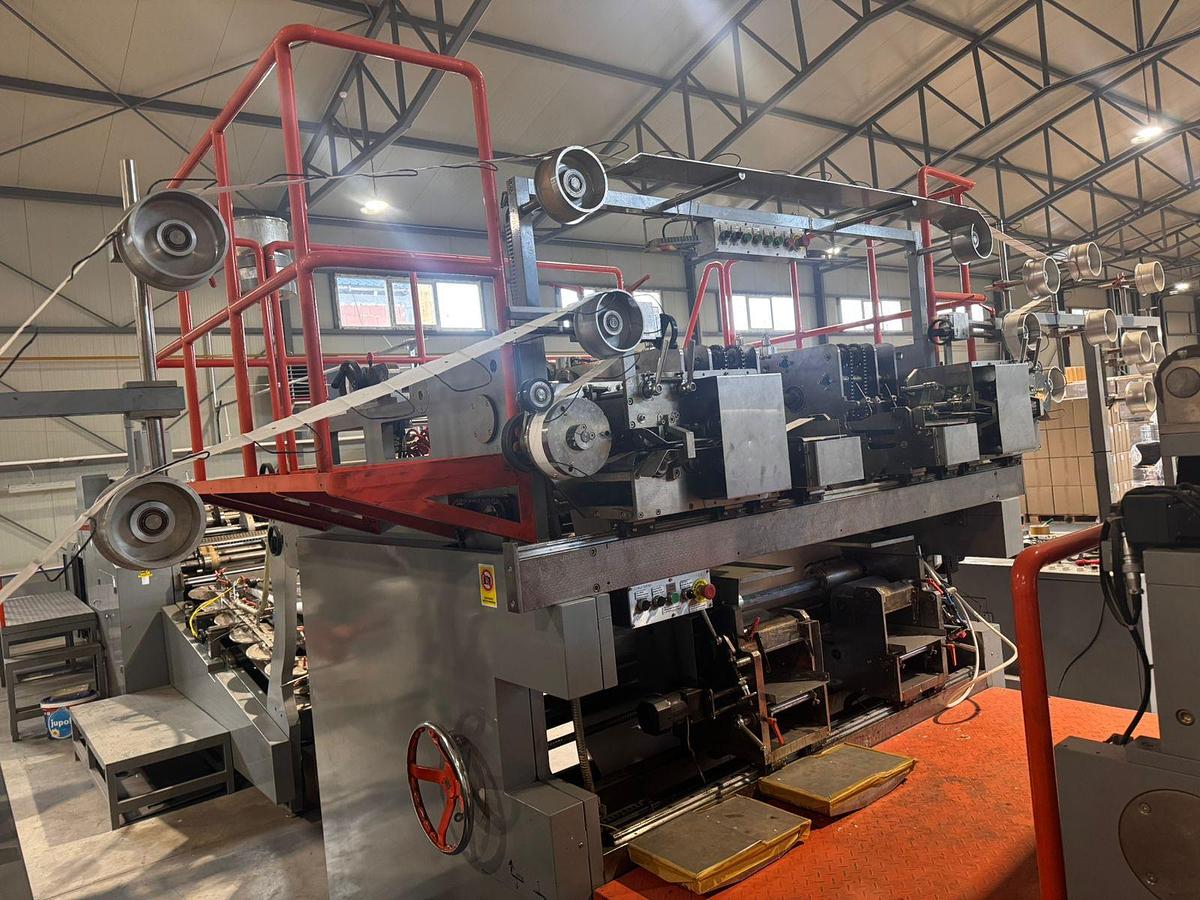

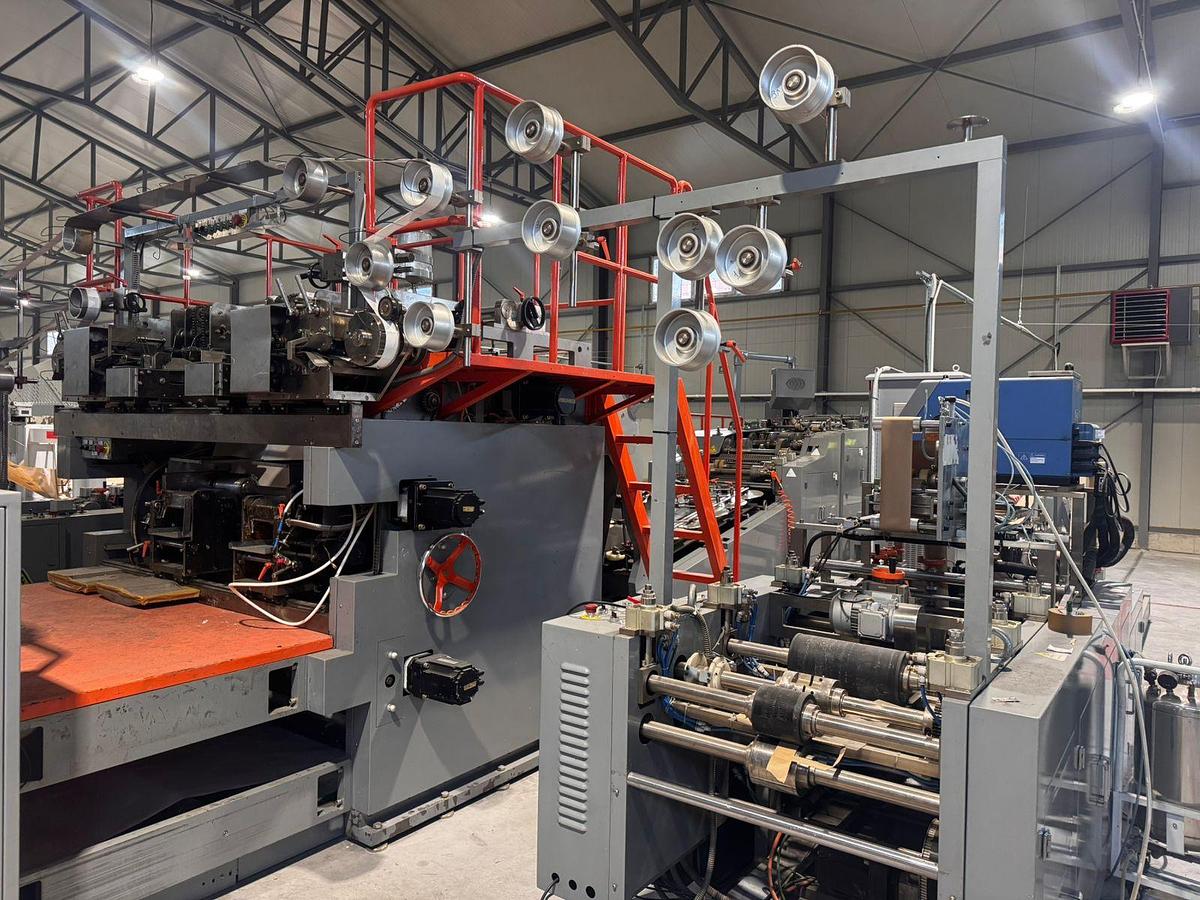

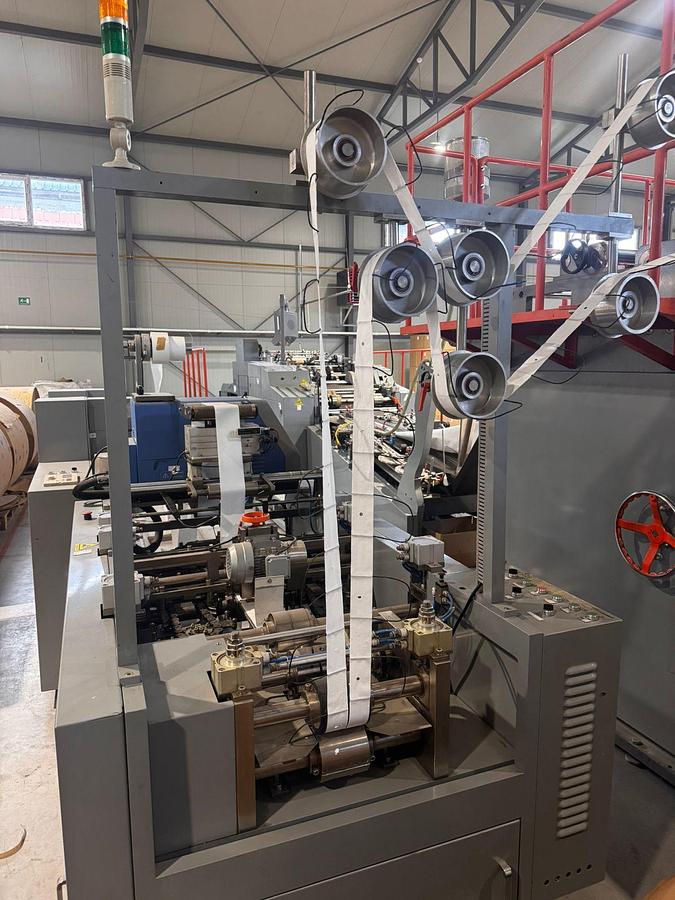

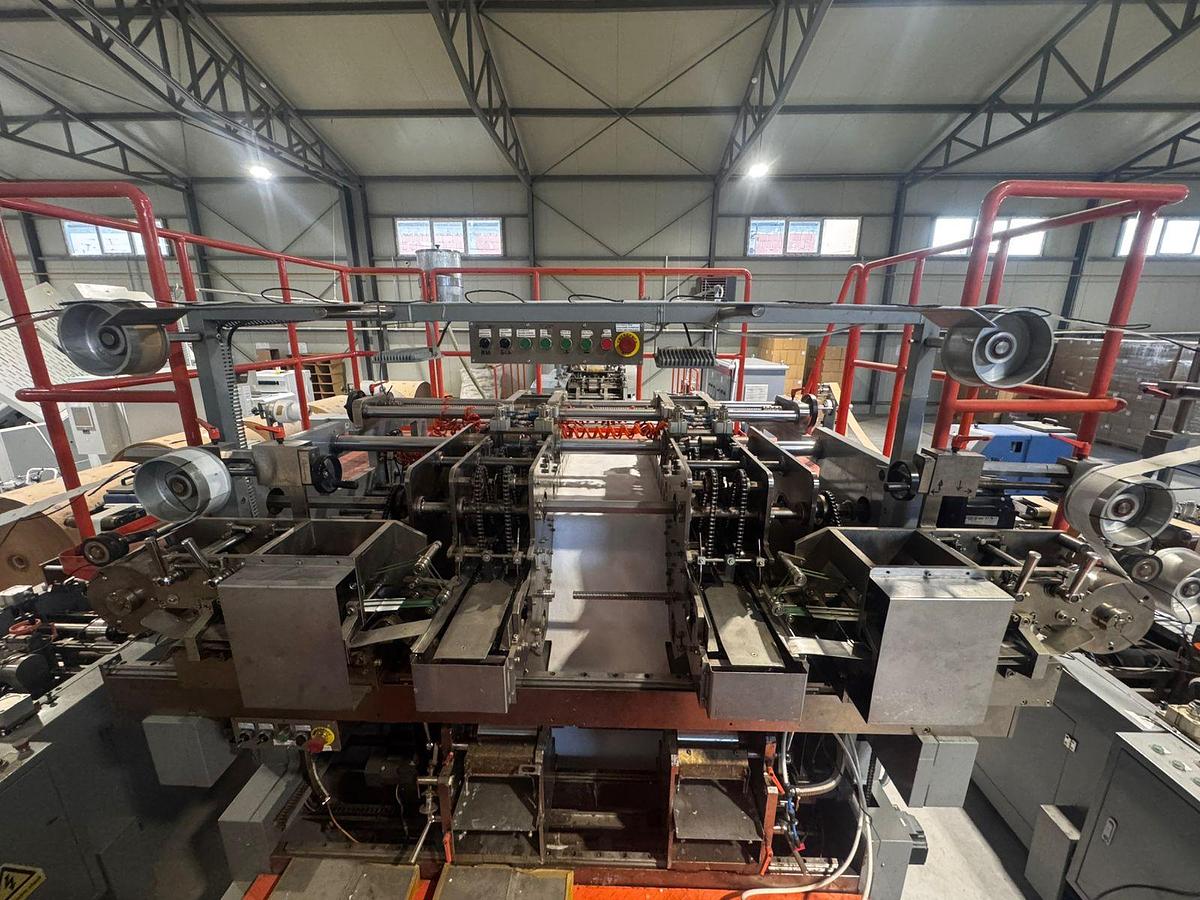

The machine is equipped with two handle-making and attaching units (Flat & Twisted), allowing the production of different types of paper shopping bags according to customer requirements.
Suitable for processing both plain and pre-printed paper rolls, the WFD-550 performs the entire bag-making process automatically, including paper feeding, tube forming, cutting, bottom forming, gluing, handle application and finished bag delivery. The machine features a computerized central control system with touch screen and servo motor control for precise bag length adjustment.
The NANJIANG WFD-550 offers a fully integrated solution for the efficient production of big size paper shopping bags with different handle configurations.
Specifications
| Manufacturer | NANJIANG Machinery |
| Model | WFD-550 |
| Year | 2020 |
| Condition | Used |
| Paper Roll Width (min - max) | 630 - 1450 mm |
| Max. Roll material diameter | 1200 mm |
| Roll Core Diameter | 76mm (3″) |
| Bag width (min - max) | 220 - 550 mm (if without handle 190-450 mm) |
| Bag Bottom Width (min - max) | 80 - 250 mm |
| Paper Tube Length (min - max) | 330 - 720mm (if without handle 330-750 mm) |
| Paper Thickness (min - max) | 100 - 150gsm (if without handle 80-150 gsm) |
| Handle unit | Yes - 2 handle unit: 1 Flat handle and 1 Twisted handle |
