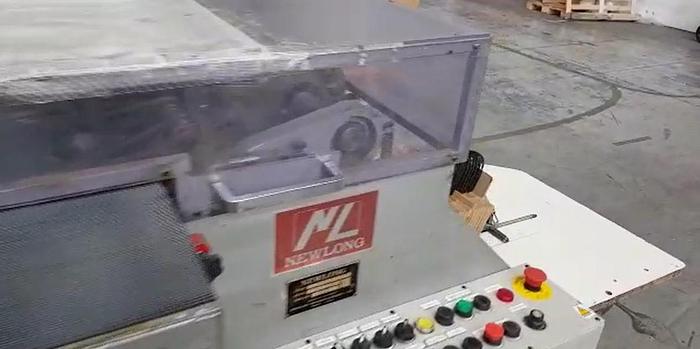

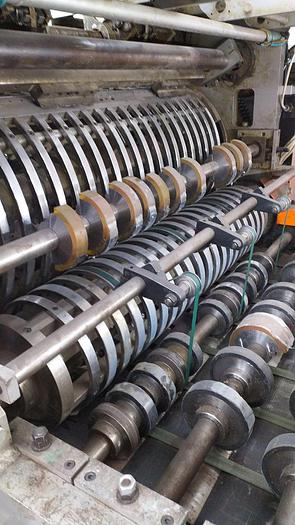

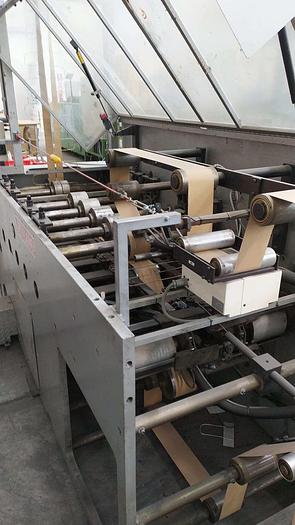

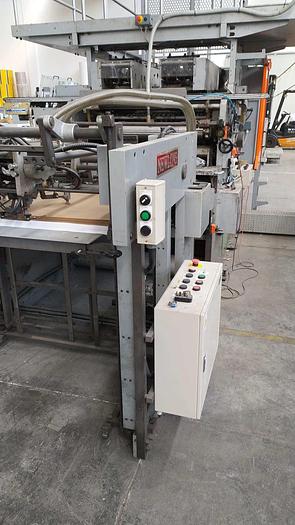

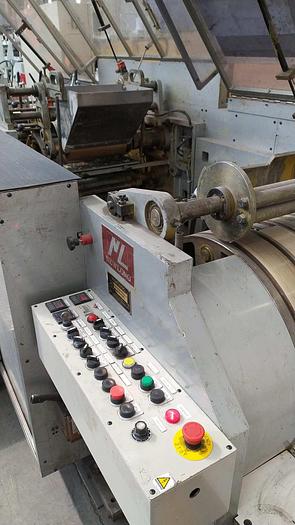

2007 NEWLONG 335T+504TH - Sheet fed paper bag machine with top fold and twisted loop handles

Manufacturer: NEWLONG

Model: 335T+504TH

Type: SHEET FED paper bag making machine bag machine for bags with top fold and twisted loop handles

 Year: 2007

BAG SIZES

With Handle

Tube length 280 – 540mm

Bag width 210 – 350mm

Bottom width 60 – 160mm

Top folding height 40 – 60mm

Without Handle

Tube length 280 – 600mm

Bag width 150 – 350mm

Bottom width 60 – 160mm

SHEET SIZE & WEIGHT

With Handle

Sheet width: 570 – 1,050mm

Sheet length : 320 – 600mm

Without Handle

Sheet width: 410 – 1,050mm

Sheet length 280 – 600mm

Sheet basis weight: 80 - 120 g/m2

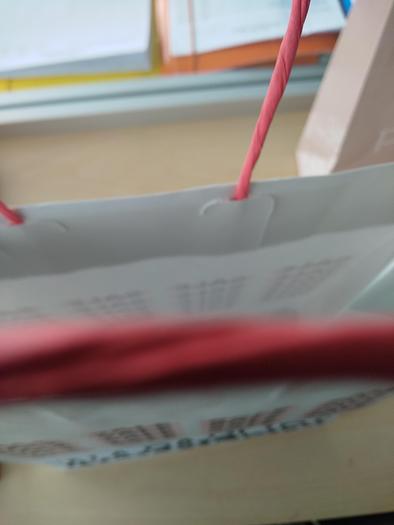

HANDLE & HANDLE PATCH

Sealing Method: Acetid Acid Vinyl Glue

Patch Width: Approx. 190.5mm

Patch Cutting Length: 50mm (Fixed) Patch Paper of 100mm

is slit into 2 lines)

Patch Paper Weight: 100 – 120 g/m2

Patch Paper Roll Dia.: Max. 1,000mm

Patch Paper Roll Stand: 2 stands

Patch Paper Roll ID.: 76mm Dia. (Core Inside Dia.)

Handle Height: 170mm including 50mm Patch Width

Material of Handle: Twisted Paper Rope or

Twisted PP Rope (should have adequate rigidity)

MACHINE (Mechanical) SPEED

Max. 70 bags/min. for bags with handle

NOTE: Speed depends on paper quality, basis weight, print accuracy,

bag formation including bag sizes, applications, etc.

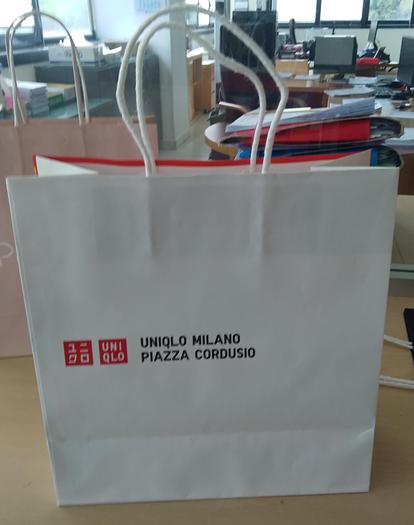

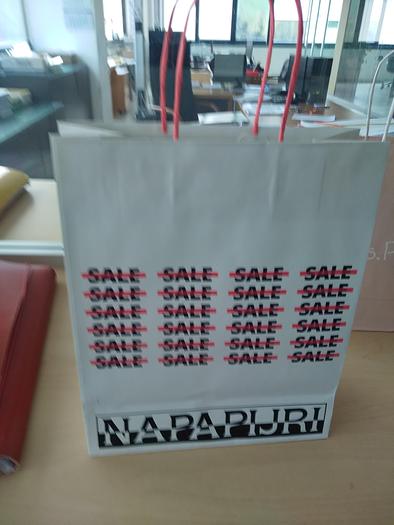

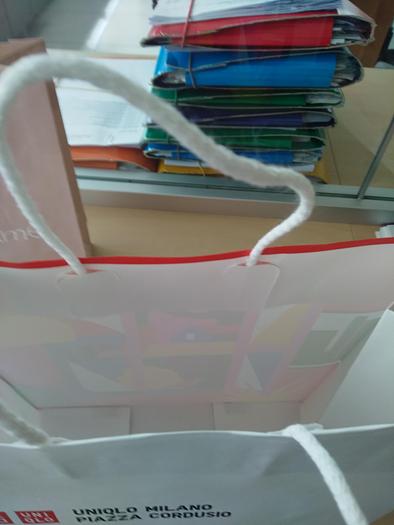

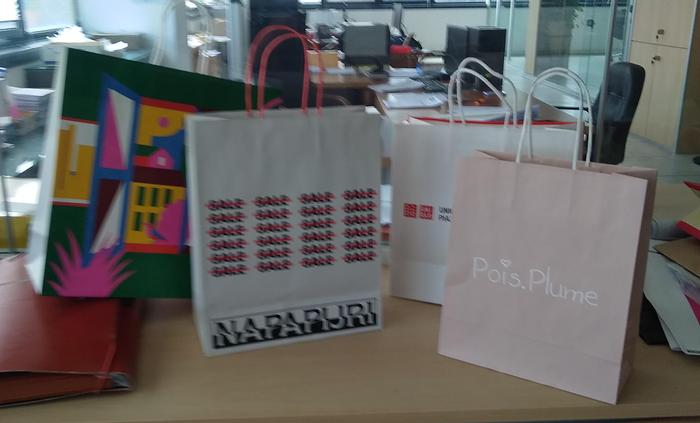

Designed to manufacture self opening square-bottom bags with

twisted paper handles in a fully automated process, which is enabled by

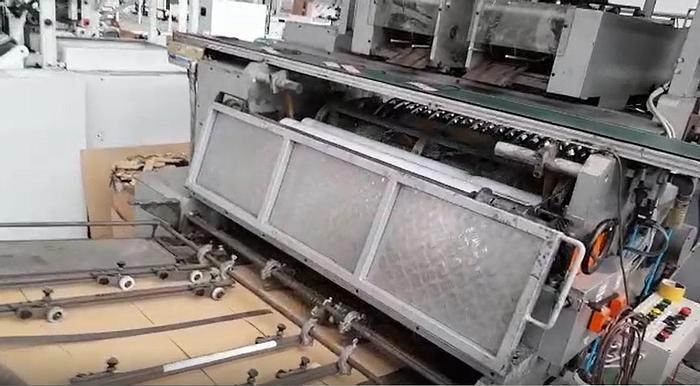

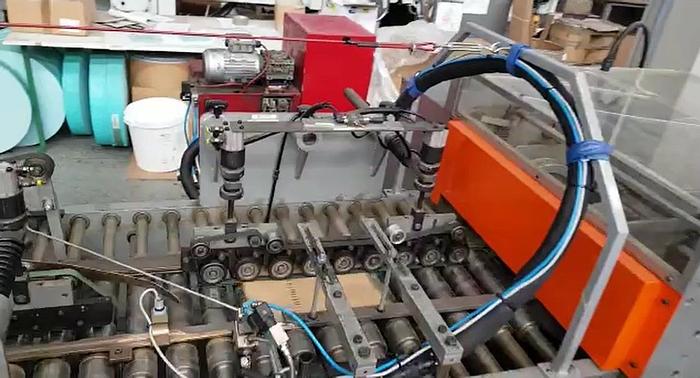

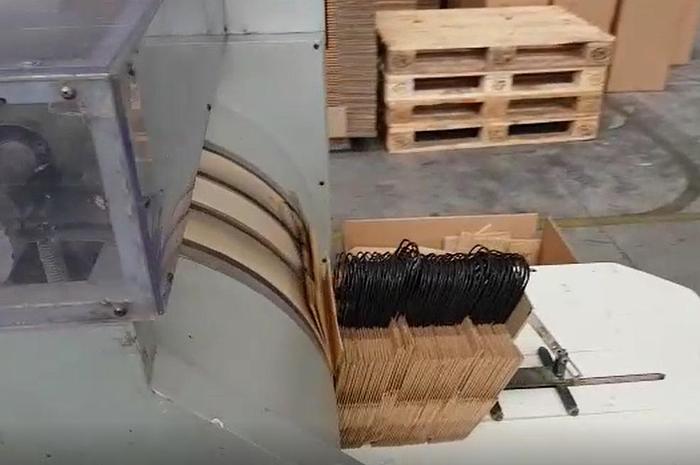

an Automatic Sheet Feeder and Twisted Paper Handle Making &

Attaching Unit.

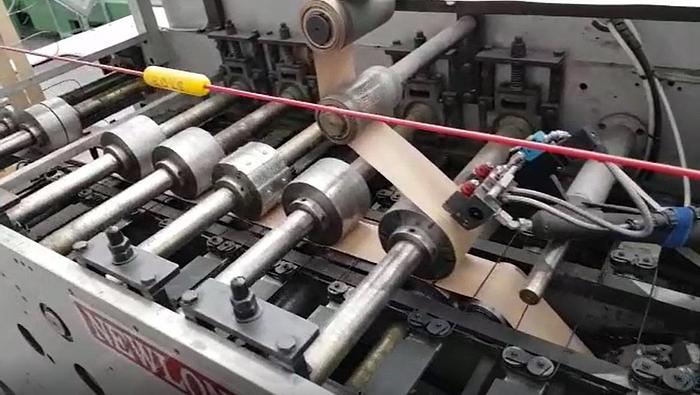

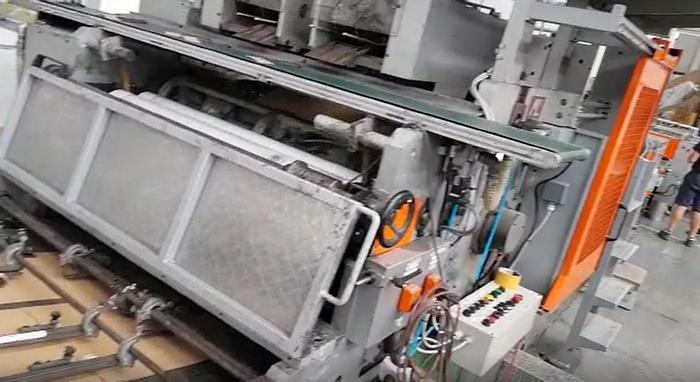

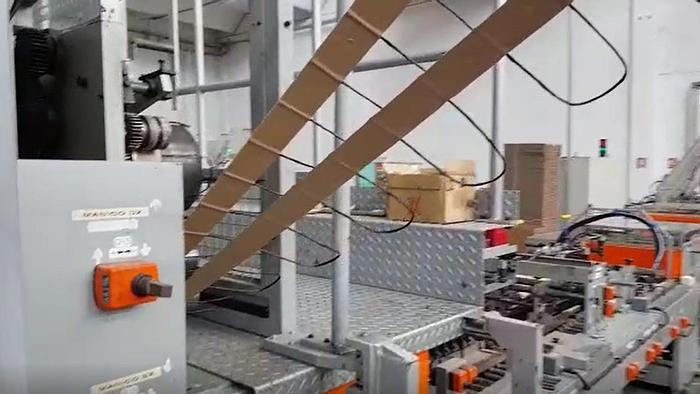

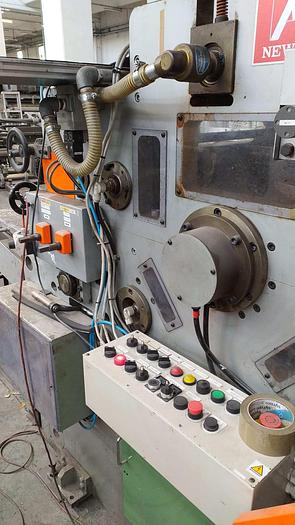

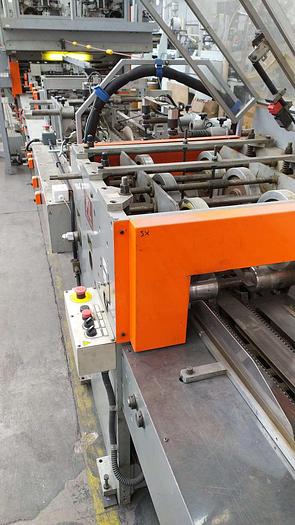

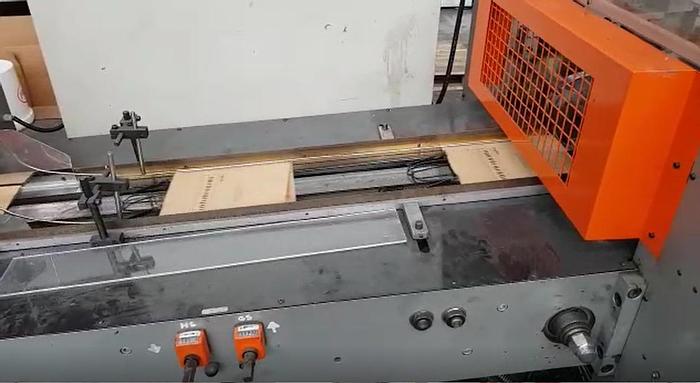

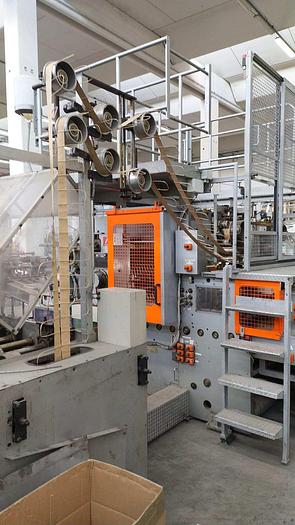

Machine visible in production.
