2021 MAGRAF KO-50x70 PLUS | SEMIAUTOMATIC CASE-MAKER

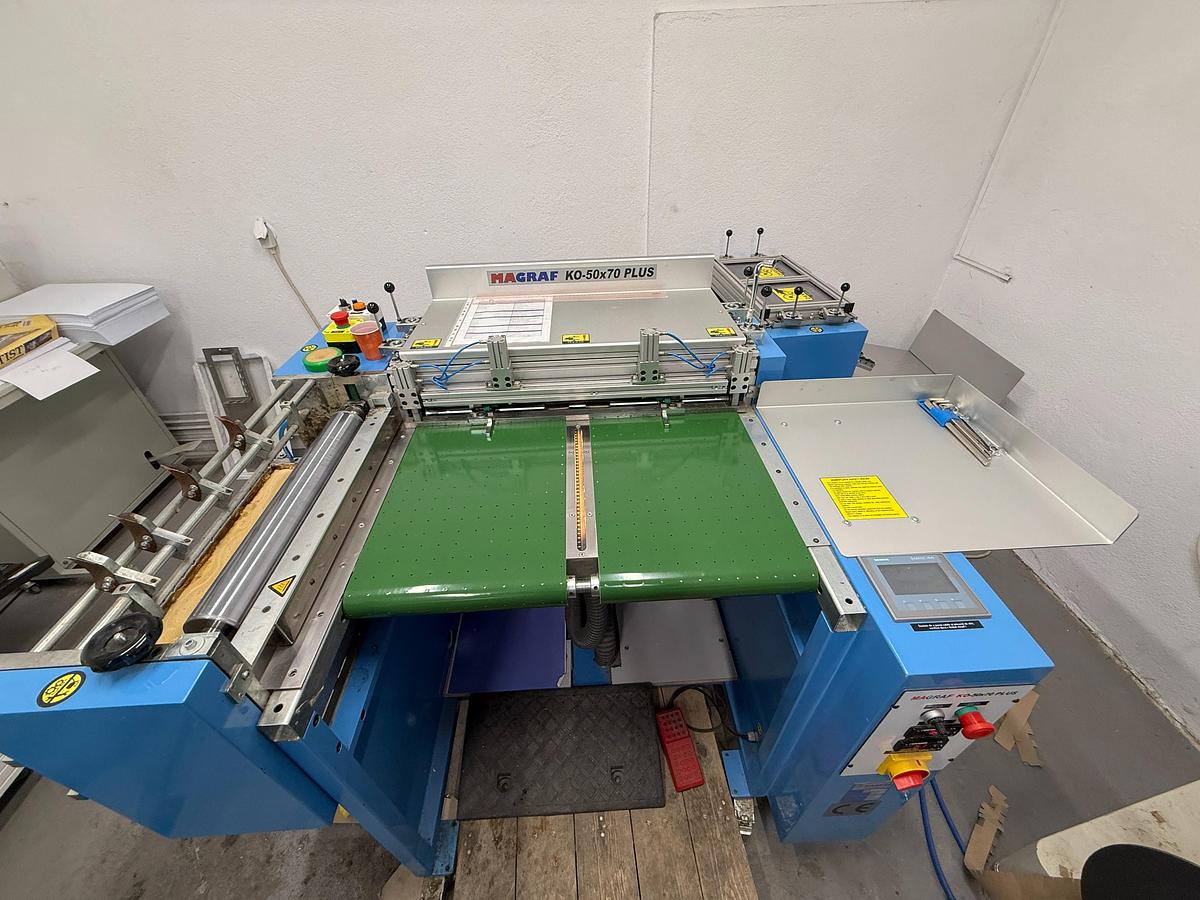

Pre-owned Magraf KO-50x70 PLUS semiautomatic hard cover making machine (1 pass- 4 fold)

The machine is in production and in good working order. It was made in 2021.

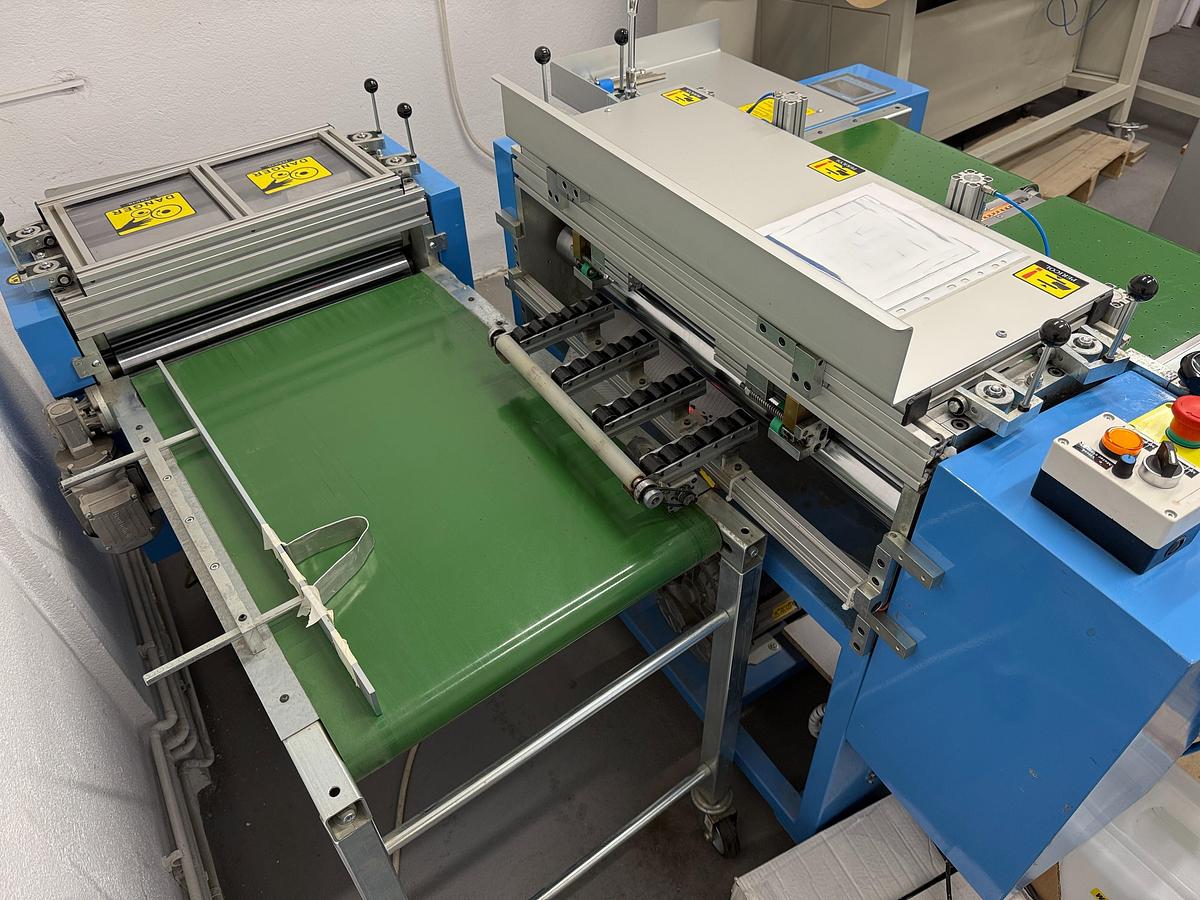

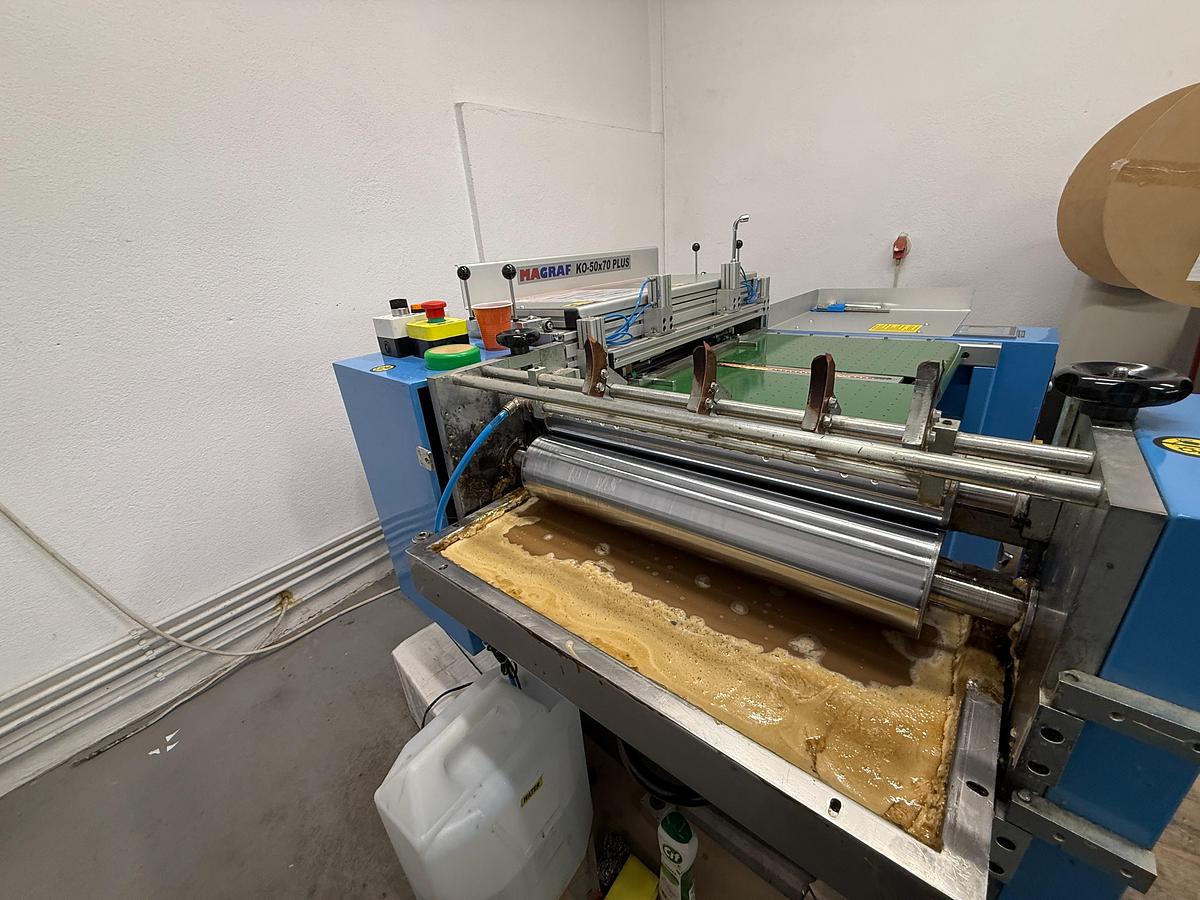

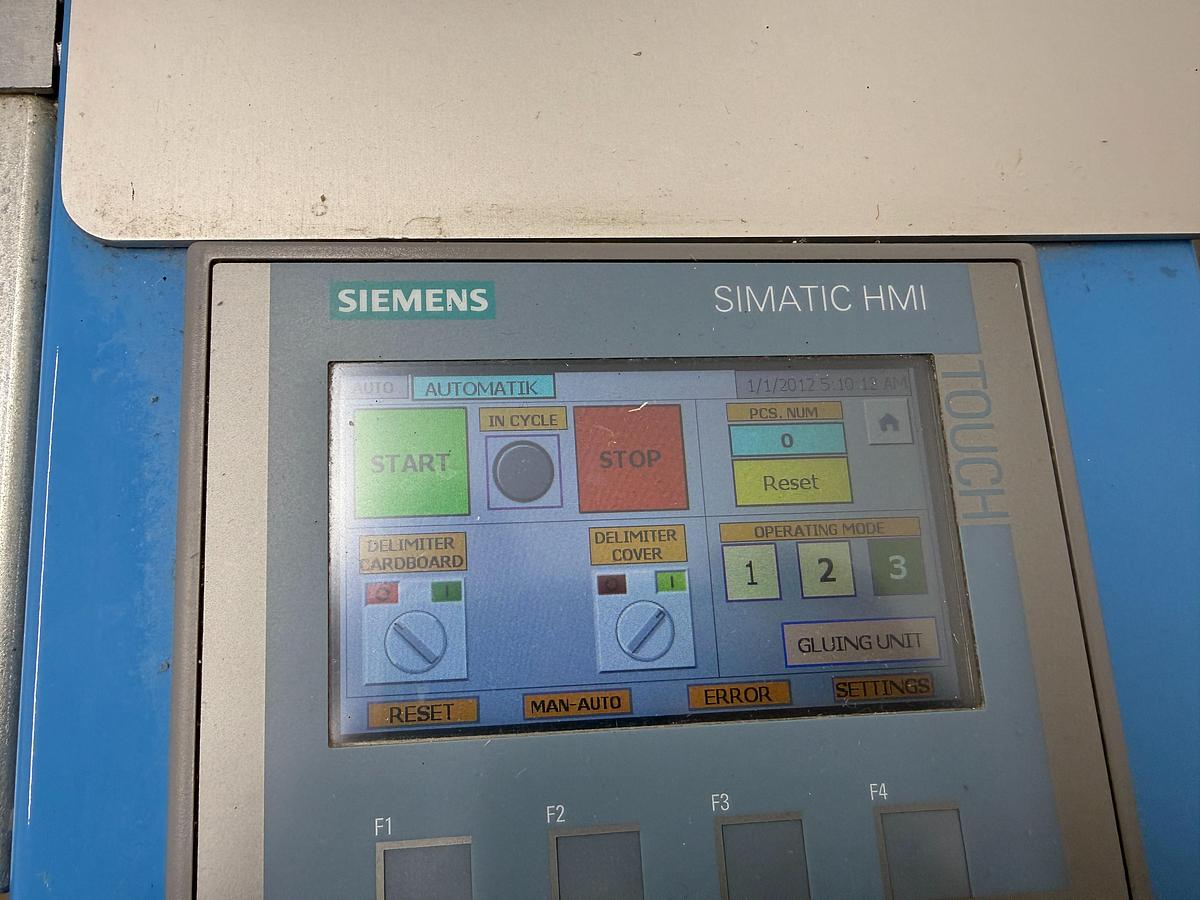

All the operations are executed by the operator seated in front of the machine. The operator passes the cover material into the gluing unit where it receives an even coating of hot gelatin glue. Utilising manual switches, the operator controls the air suction plate for perfect registering of the cover material. After placement of board the cover passes in to the turning unit automatically. The machine is designed with two units. In the first turning unit 2 side folding and 4 corner tucking in takes places automatically and the cover moves to second turning unit where other 2 side folding takes place and final case delivered rear end
