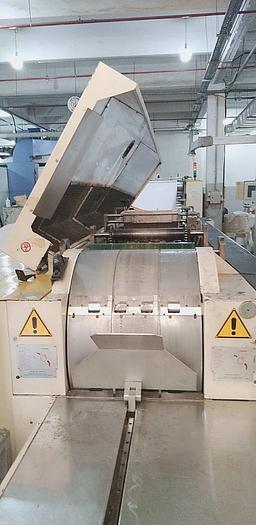

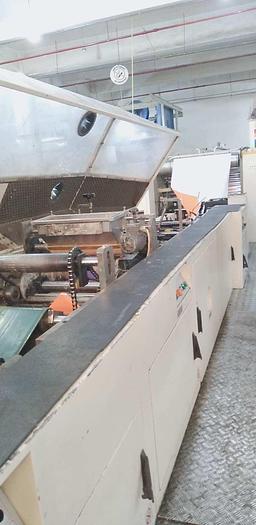

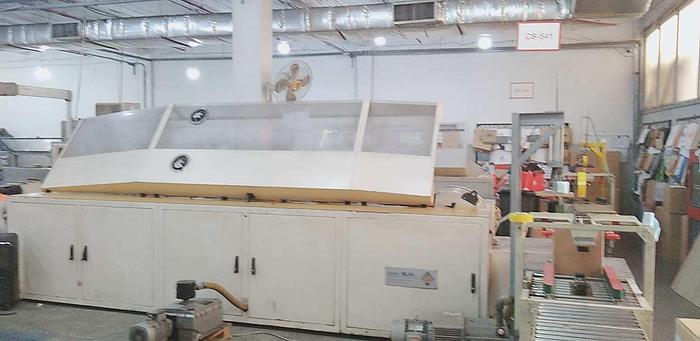

2003 CURIONI SUN MASTER 541 (SERVO) Paper bag making machine with twisted handles unit

2003 CURIONI SUN MASTER 541 (SERVO) Paper bag making machine with twisted handles unit

Available quantity: 1

orCall +39 346 4948054

Description

Manufacturer: CURIONI SUN

Model: SUN MASTER 541 (SERVO / GEARLESS)

Year: 2003

Type: Reel fed square bottom paper bag making machine with in line handles unit

Type of handles: Twisted handles


TECHNICAL SPECIFICATION OF THE PAPER BAG MAKING MACHINE:

Bag width: mm 220 – 540 (8.66” - 21.26”)

Bag length: mm 270 - 650 (10.64” - 25.61”)

Bottom width: mm 70 - 200 (2.75” - 7.88”)

Cut length: mm 350 - 780 (13.79” - 30.73”)

Reel width: mm 610 - 1430 (24.03” - 56.33”)

Max. diameter of the reel: mm 1500 (59”)

Inner core diameter: mm 76 (3”)

Weight of paper: 80 -130 gsm

Mechanical speed: 200 cycles/minute

Total gross weight: kg 22000.

Total installed electrical power: Kw 47.

Power supply: three-phase 400 V + NEUTRE + GROUND at 50 Hz + 5%.

Compressed air supply: 600/700 kPa, dry and clean.

Compressed air consumption: 100 Nl/min

Dimensions of the machine: length 15650 mm, width 2930 mm, height 2445 mm.


Possibility to have the support of the manufacturer (remantling, documentation, training etc…).


GENERAL DESCRIPTION:

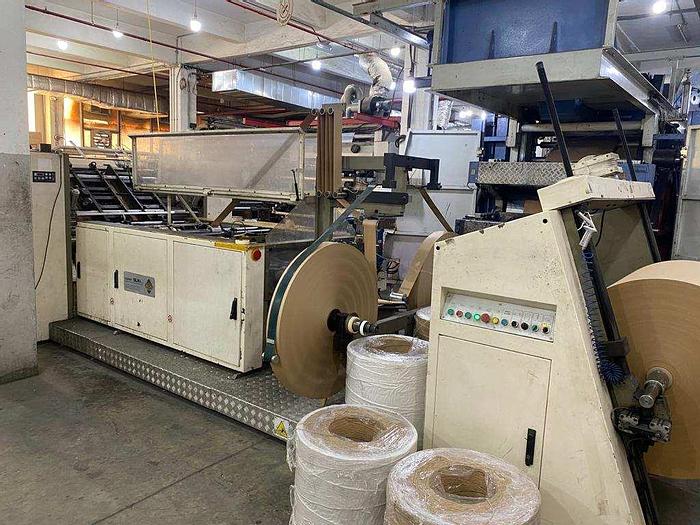

The paper bag making machine CURIONI SUN MASTER 541 is fed by reel and it has been designed to manufacture square bottom paper bags with handles, from the medium up to the biggest formats.

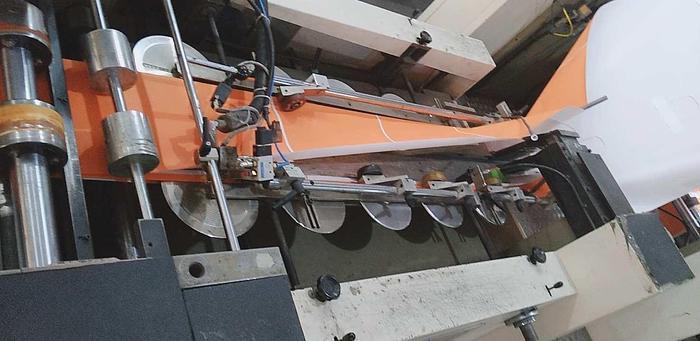

This SUN MASTER 541 is equipped with Twisted handles making unit handles which is in line with the paper bag making machine.

Sun Master 541 is completely realized with GEARLESS TECHNOLOGY that means driven by electronically

controlled by brushless motors.

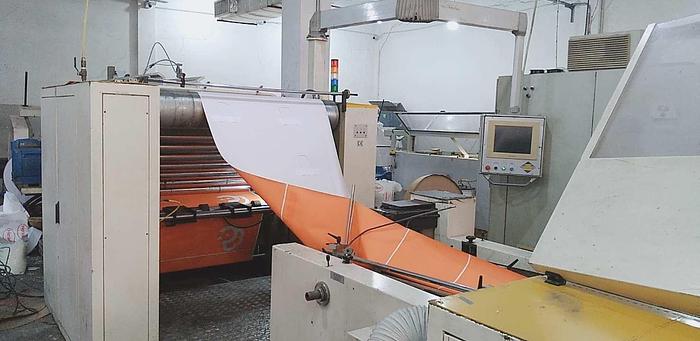

Most of changeover operations of the Sun Master 541 are fully automatic thanks to the electronic control of motors through a PC. The presence of touch screen digital display allows to choose the type of size you want to produce and the machine sets up automatically for the new paper bag sizes.

Some setting are completely automatic, as: positioning of the handle making unit, handle application, ressure unit rolls, paper tube formation unit, paper bag bottom opening unit.


Machine available for dismantling in August 2021 (The machine can be reserved).


Specifications

ManufacturerCURIONI
ModelSUN MASTER 541 (SERVO) Paper bag making machine with twisted handles unit
Year2003
ConditionUsed
