2005 FISCHER & KRECKE FLEXPRESS 16S-8 | 8 colours C.I. flexo
2005 FISCHER & KRECKE FLEXPRESS 16S-8 | 8 colours C.I. flexo
Location:Europe
Available quantity:1
Description

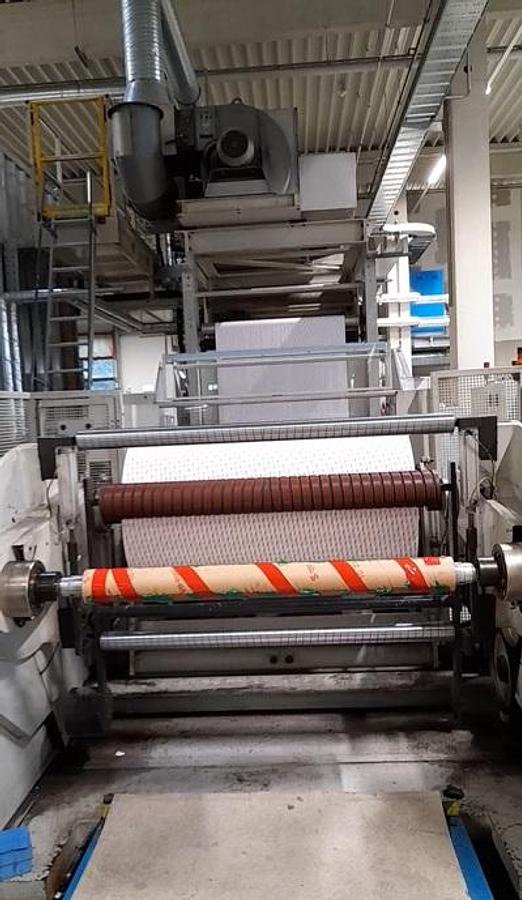

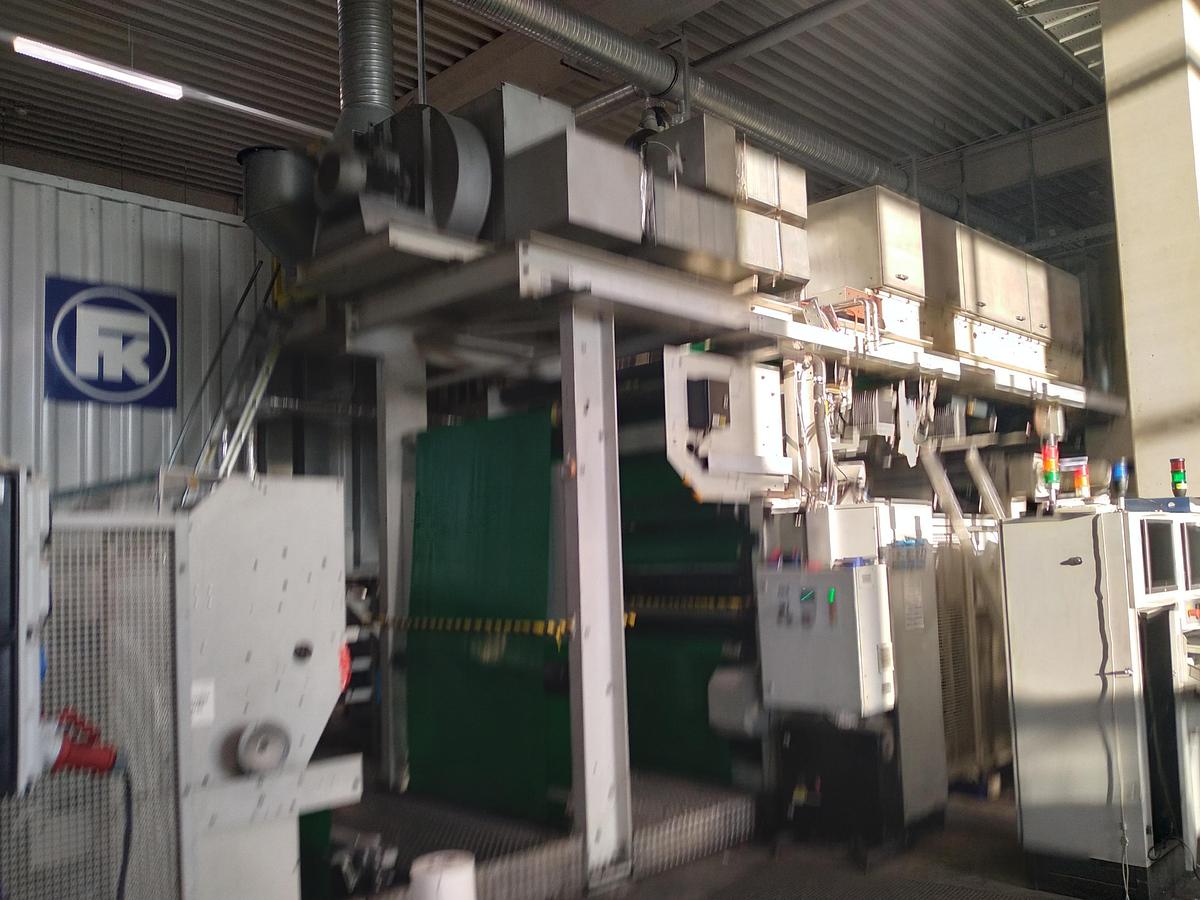

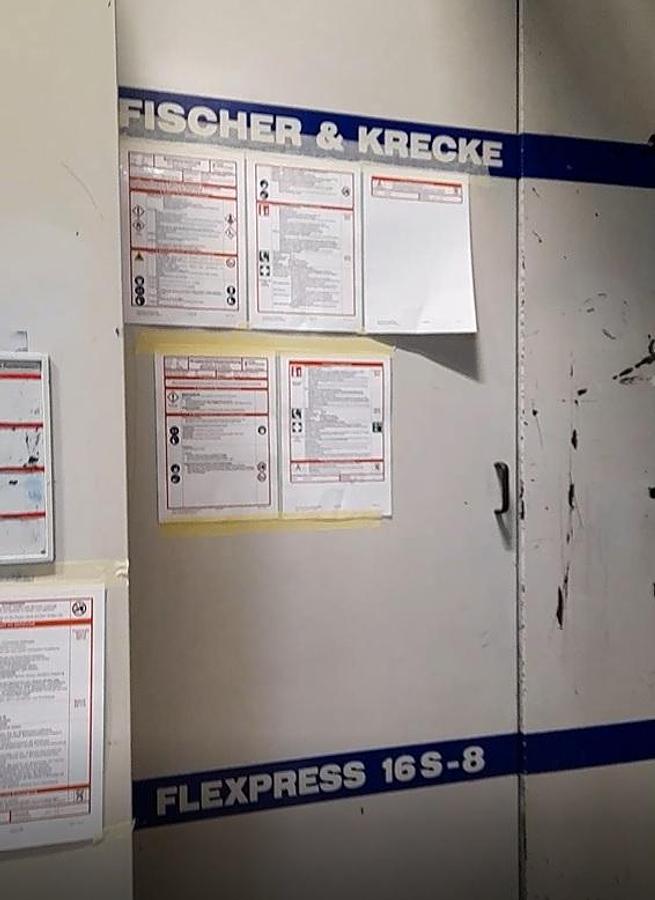

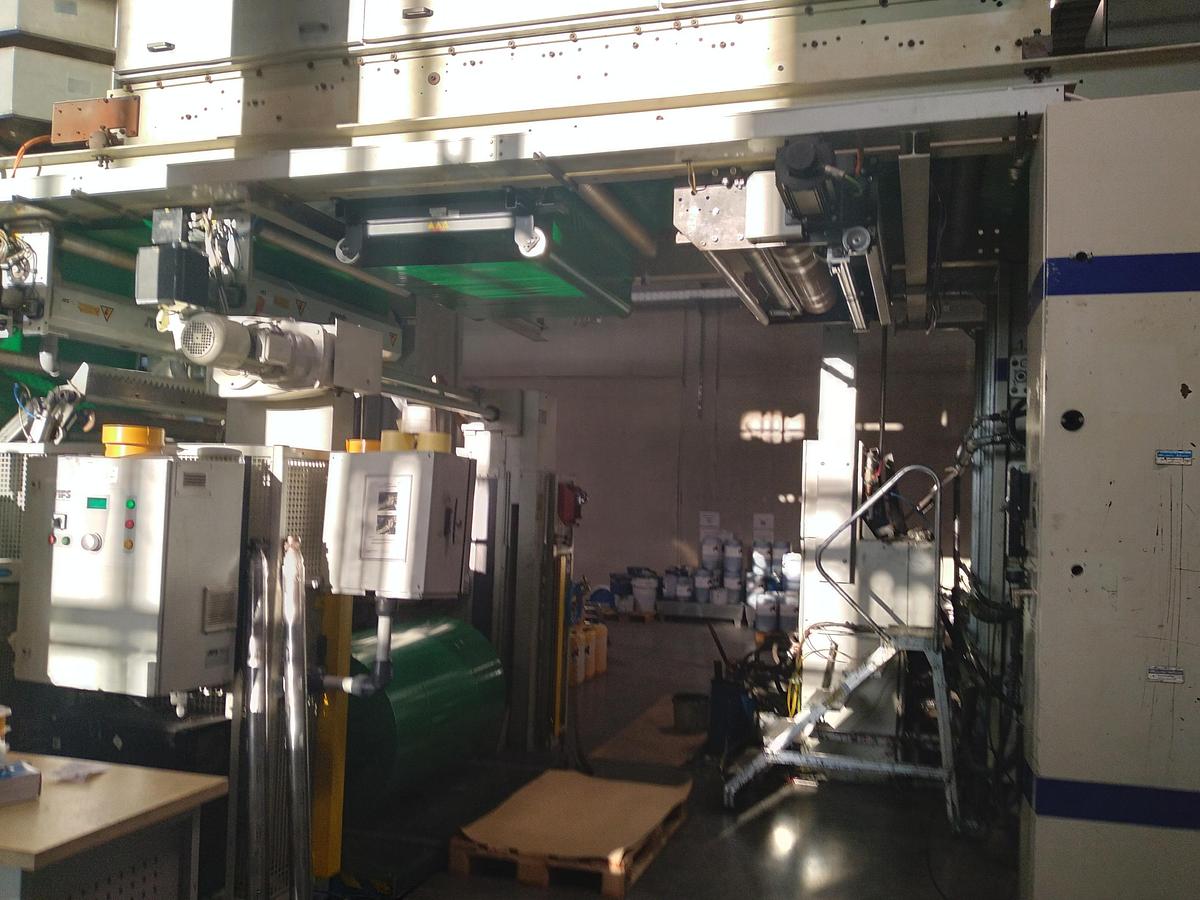

Pre-Owned Fischer & Krecke Flexpress 16S-8 central impression (CI) flexographic printing press, year 2005, available for sale.
This central drum flexo press is designed for flexible packaging applications and ensures excellent print quality with precise register control.
The maximum print width is 1,250 mm and the maximum material width is 1,300 mm. The repeat print length ranges from 320 mm to 800 mm

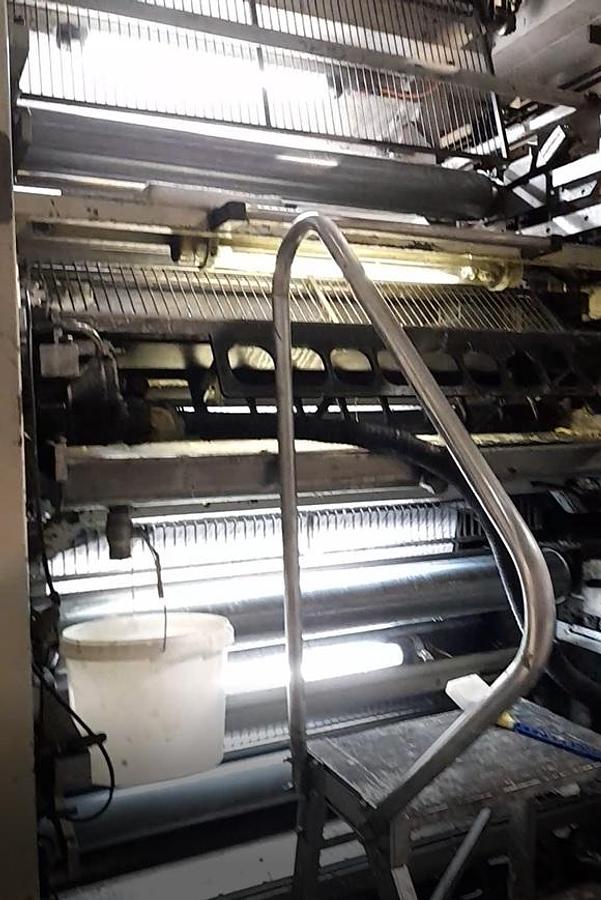

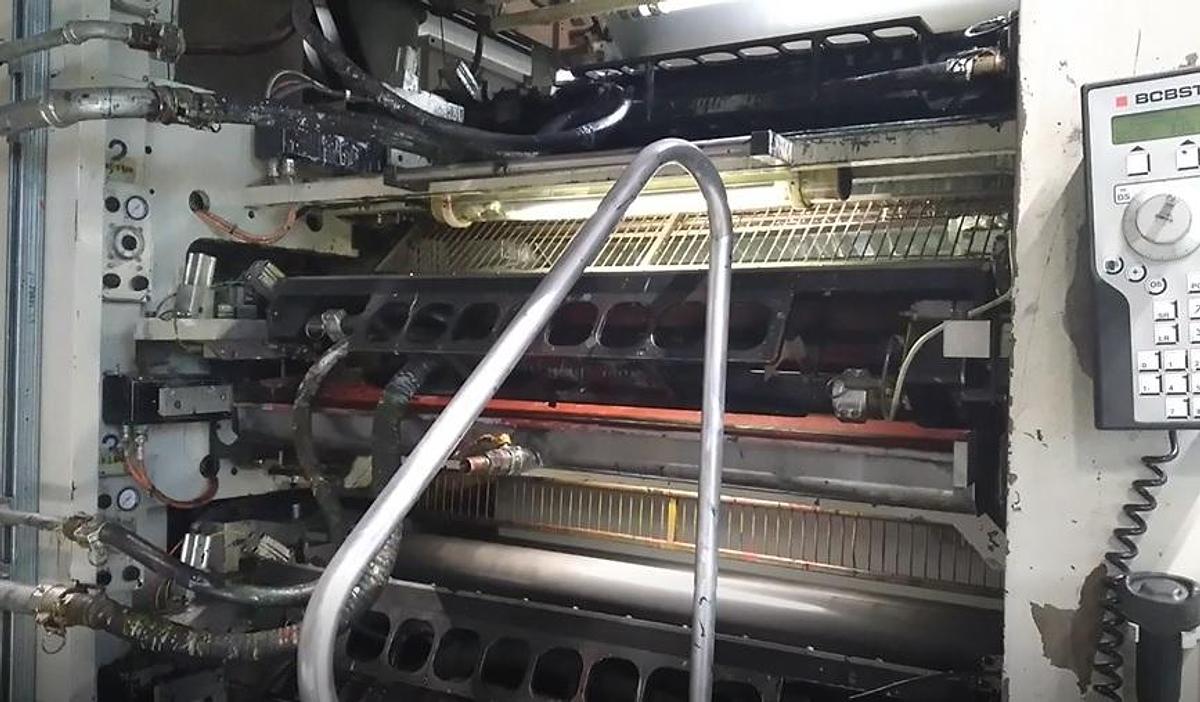

Equipped with 8 printing units, automatic Autoclean ink system, and a sleeve technology for fast changeovers, the press offers high productivity and reduced downtime.

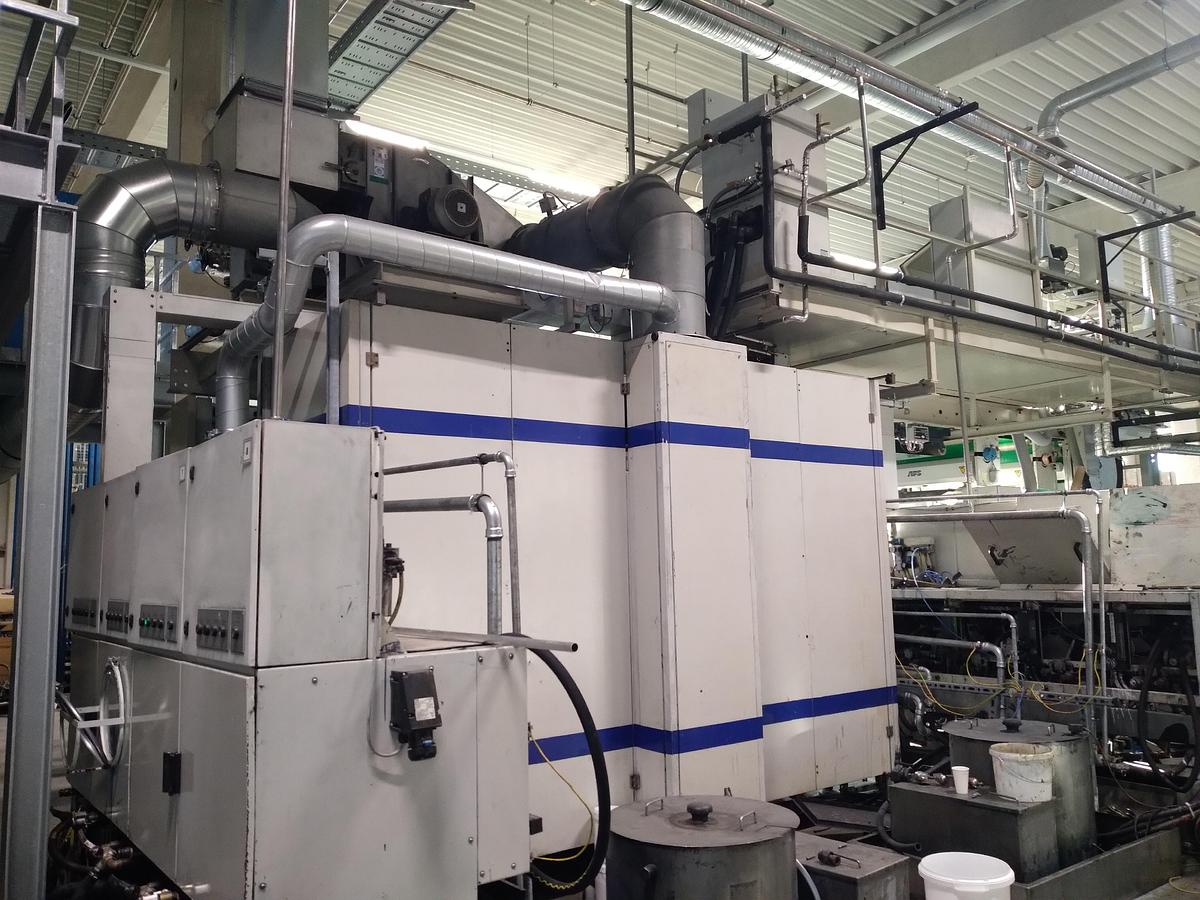

The integrated thermal drying system ensures efficient solvent-based ink drying, making it suitable for demanding production environments.
The machine is capable of handling a wide range of substrates including PET, PP, OPP, LDPE, and laminates, making it a versatile solution for packaging converters.
The machine can be inspected in operation.
Specifications
| Manufacturer | FISCHER & KRECKE |
| Model | FLEXPRESS 16S-8 |
| Year | 2005 |
| Condition | Used (visible in production) |
| Nr. of colours | 8 |
| Web width ( Max.) | 1300 mm |
| Printing width (Max.) | 1250 mm |
| Print repeat (Min. - Max.) | 320 - 800 mm |

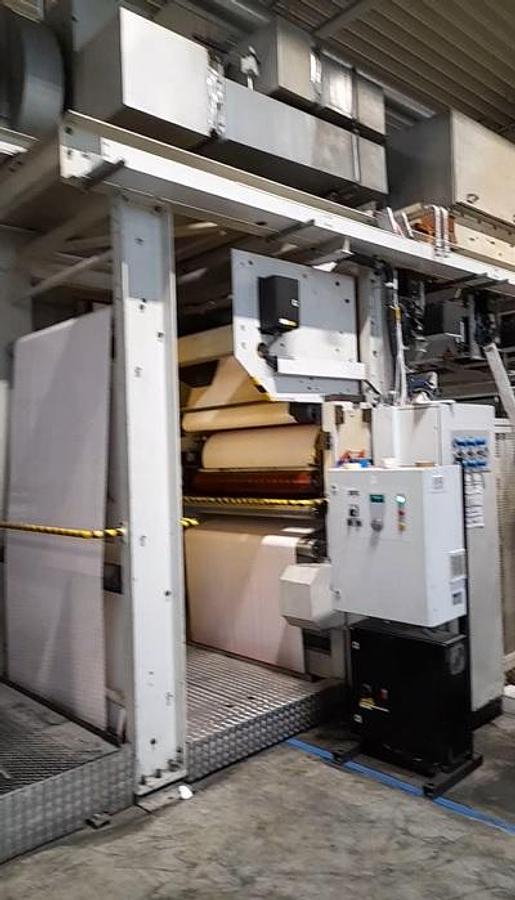

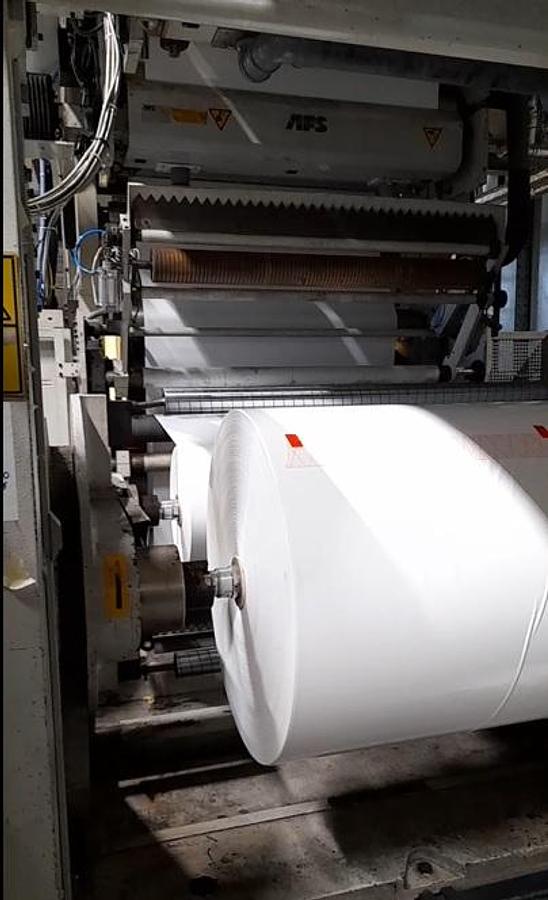

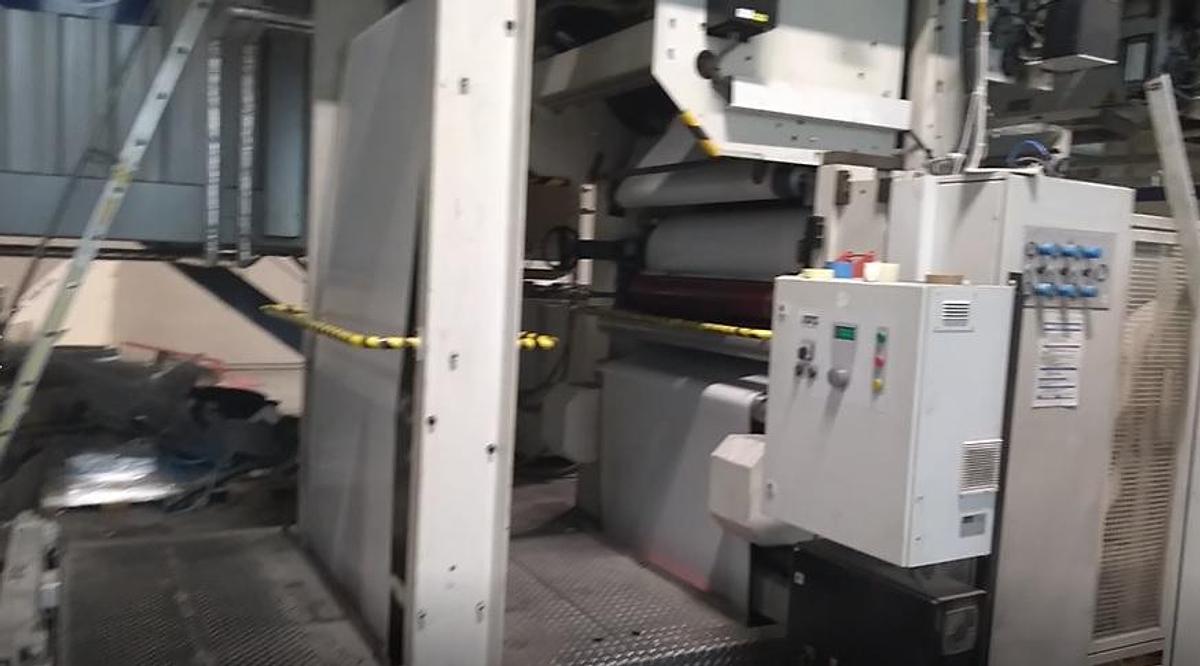

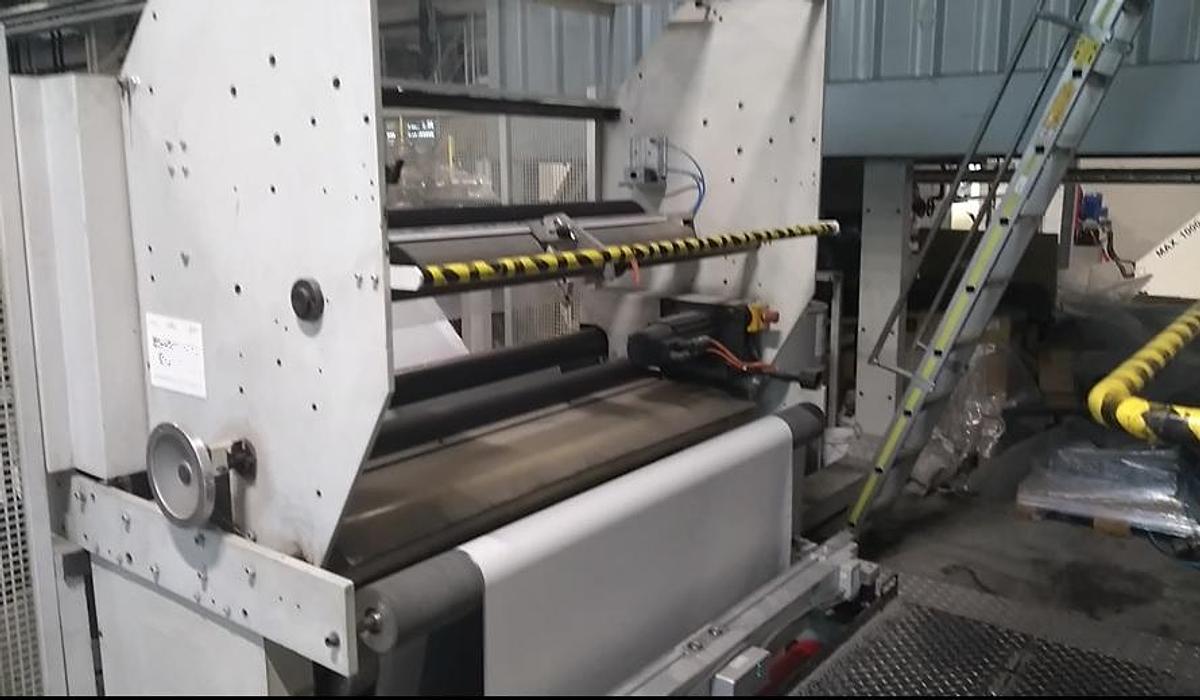

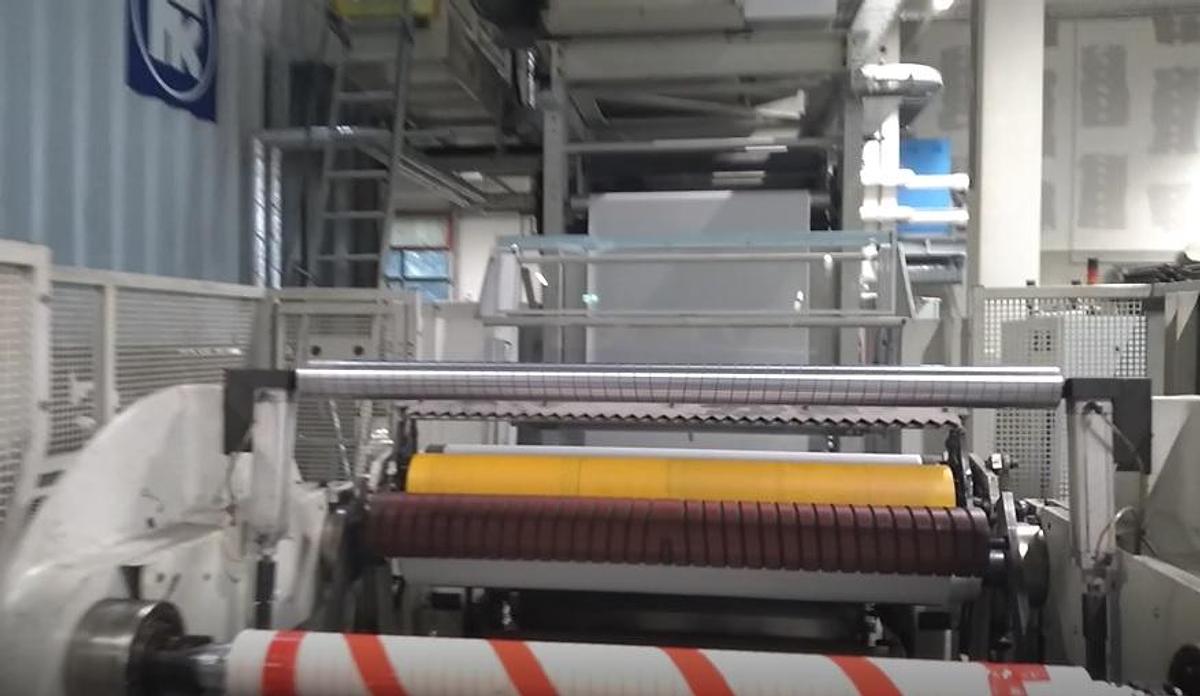

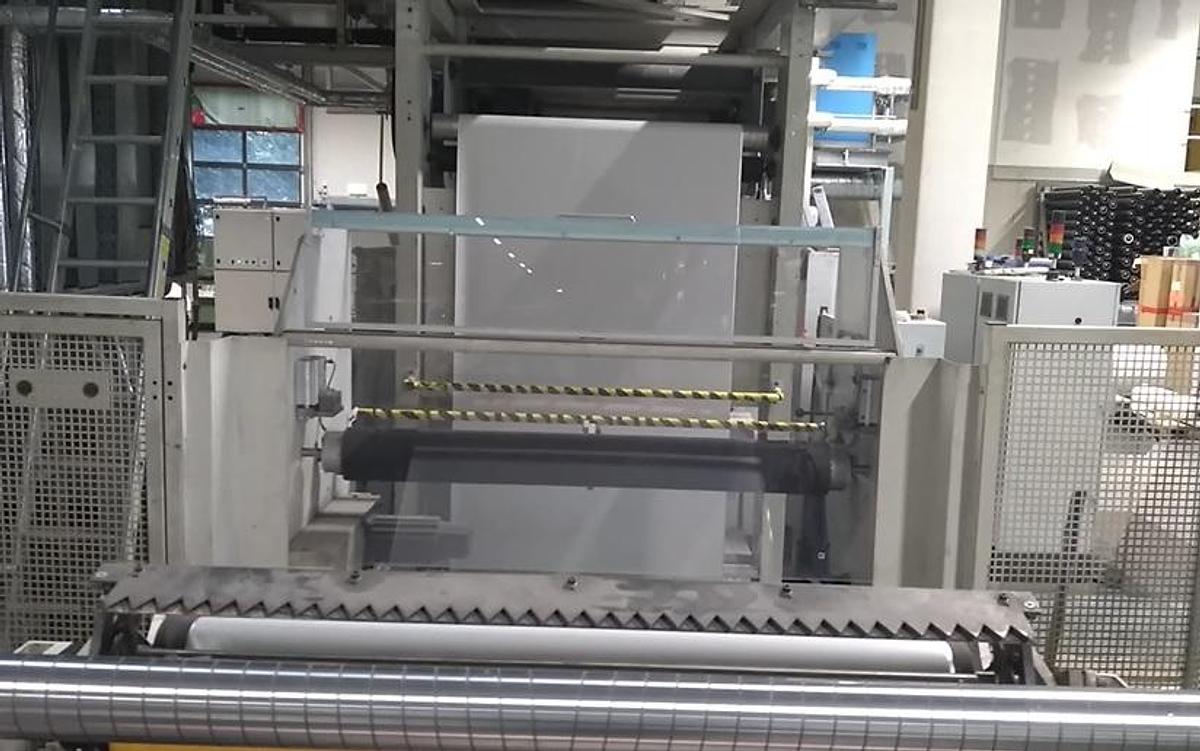

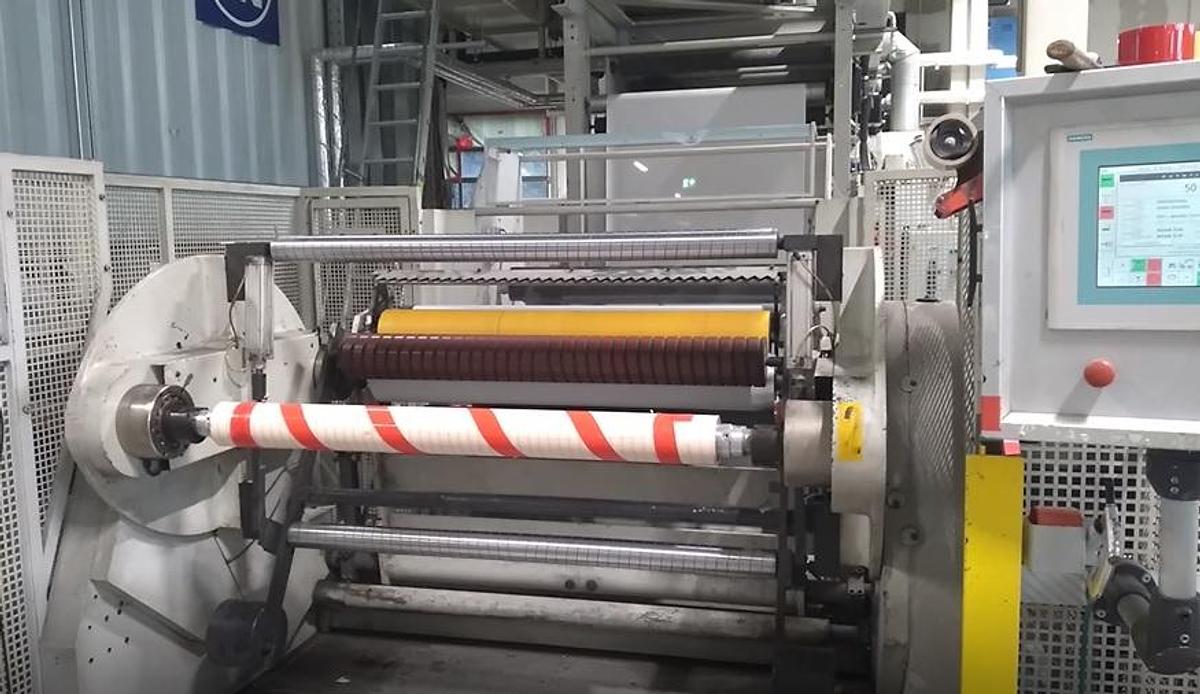

| Winding System | automatic sequence (flying splice) |
| Unwinding and rewinding max. roll diameter | 800 mm |
| Unwinding and rewinding Core inside diameter | 76 or 152 mm |
| Web tension range (Min. - Max.) | 10 N - 250 N |
| Materials to be printed | PET (min. 12 ym), PP, OPP, LDPE and laminates withwidth and thickness inaccordance withweb tension range |
| Ink to be converted | Solvent based ink |
| Max mechanical speed | 360 m/min (Printing speed depending on inks, stereos, design and material) |
| Drying system | Thermo oil | Equipped with dryer Between-color and a final dryer |
| Servo motors | CI Main Drive | Anilox Roll Motor | Plate Cylinder Motor | Side Register Motor | Plate Cylinder to CI Adjustment Motor | Anilox Roll to Plate Cylinder Adjustment Motor |

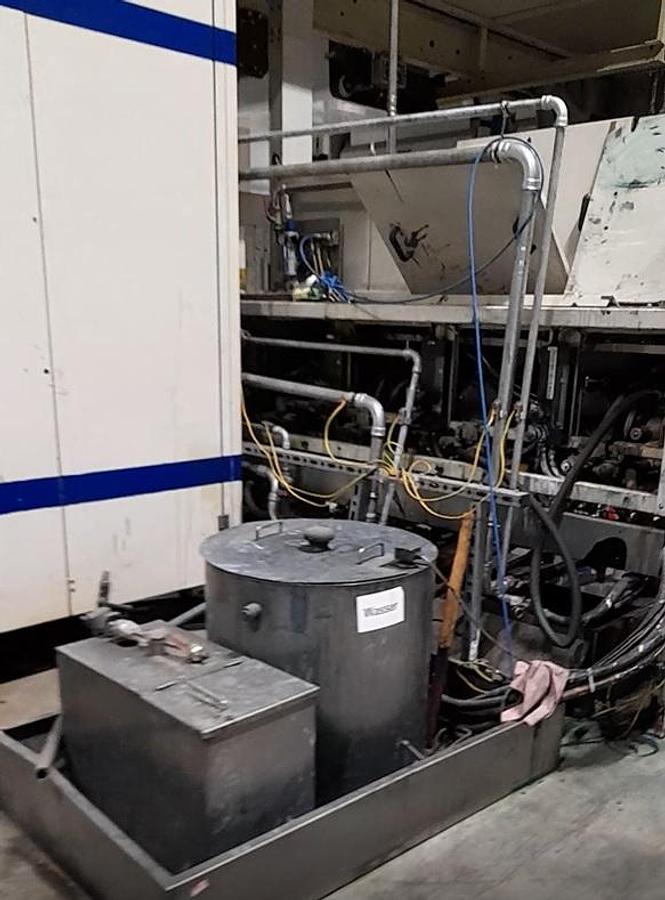

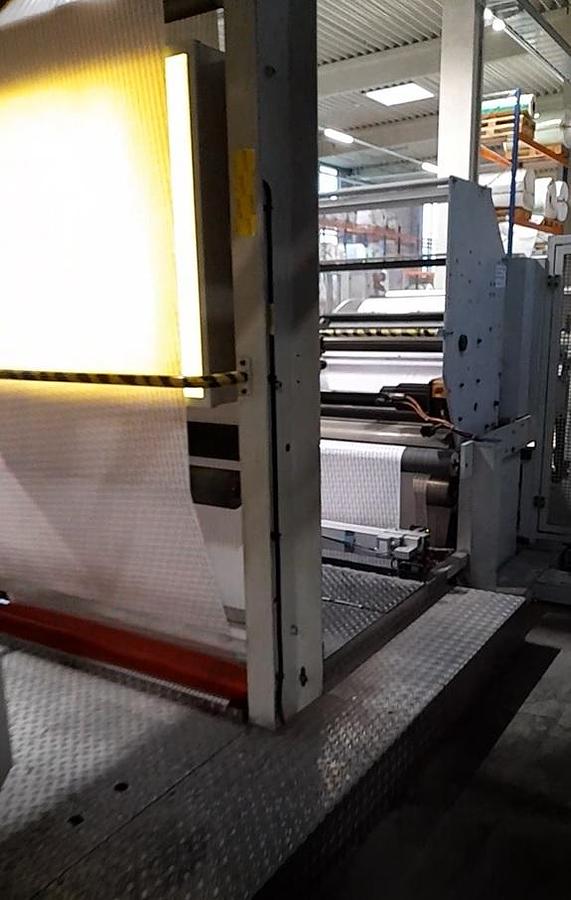

| Other information | Central impression drum for high register accuracy | Sleeve system for quick job change | Temperature control system | video inspection system | Chamber doctor blade with Autoclean ink system | Web tension control system | Web guiding system (edge control) | automatic register preadjustment for all print units |
| Water connections | Flow volume temperature control unit (CI drums and frames: approx. 2,0 m*h | Flow volume chill roller: 1,0 m°/h | Water temperature inlet: 12-15 °C | Chill water pressure: Max, 36.2 PSI |
| Pneumatic system | Required supply pressure 102 PSI | Air consumption (with printing press and autoclean in operation): 2950 Nl/min | Additinal air consumptiuon at sleeve change: 600 Nl/min |
| Noise emission | In accordance with VBG 121 85 dBA |
