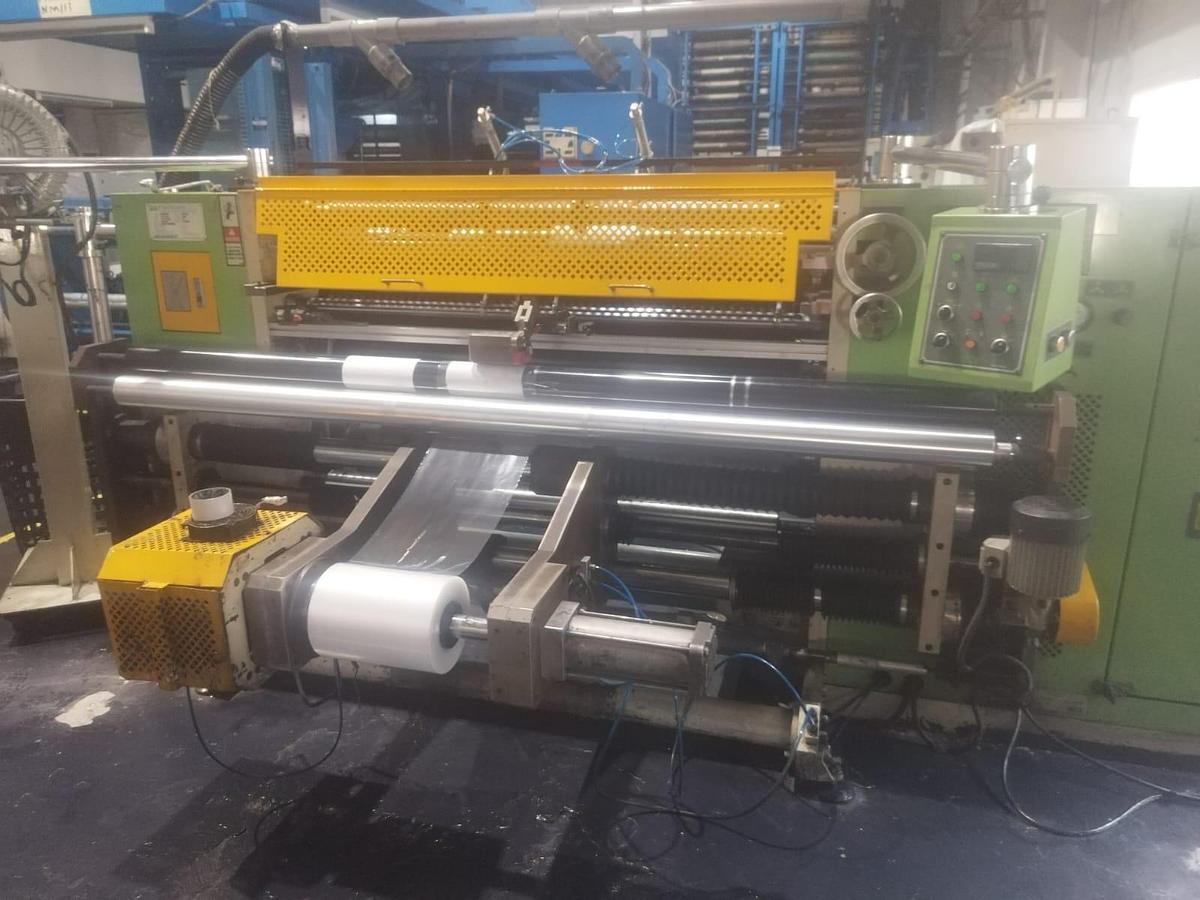

2010 HCI (Taiwan) SLITTER- REWINDER (1100 mm) for film

Description

This HCI (Taiwan) slitting machine, manufactured in 2010, is designed for cutting LDPE, LLDPE, and BOPP films using a razor cutting system (available 12 knives). It offers a slitting width from 50 to 1100 mm and operates at speeds of up to 300 m/min. The machine is equipped with a hydraulic and pneumatic shaftless unwinder suitable for rolls up to 800 mm in diameter, 1100 mm in width, and 120 kg in weight, and a shaft-type winder with a maximum winding width of 1100 mm and roll diameter of 500 mm. It supports 3” and 6” paper cores. The machine is in excellent working condition, currently in production, and offered for sale “as is, where is,” subject to prior sale.

Specifications

Manufacturer	HCI
Model	SLITTER- REWINDER (1100 mm) for film
Year	2010
Condition	Used
Material to cut	LDPE/LLDPE/BOPP
Cutting type	Razor blades
Number of cutting knives	12
Mother reel width (min - Max)	50 - 1100mm
Max. unwind reel diameter	800 mm
Unwinder Max roll width	1100 mm
Unwinder Max roll weight	120 kg
Winder Max winding width	1100mm
Winder Max roll diameter	500 mm
Max working speed	300 m/min
Paper core diameter(s)	3” and 6”
