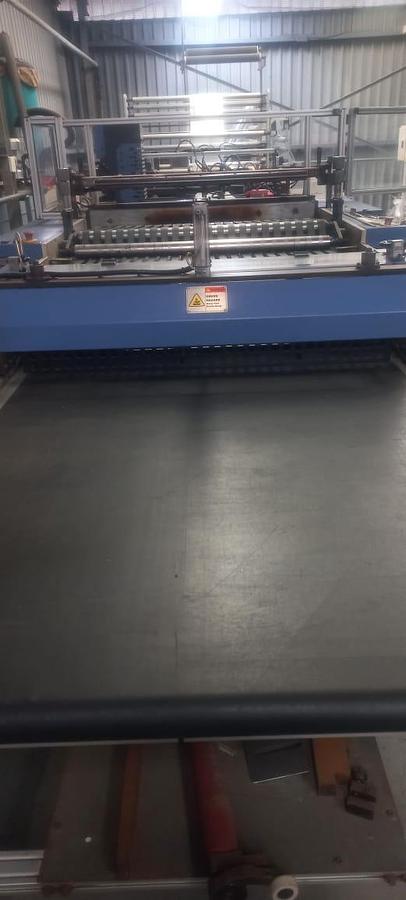

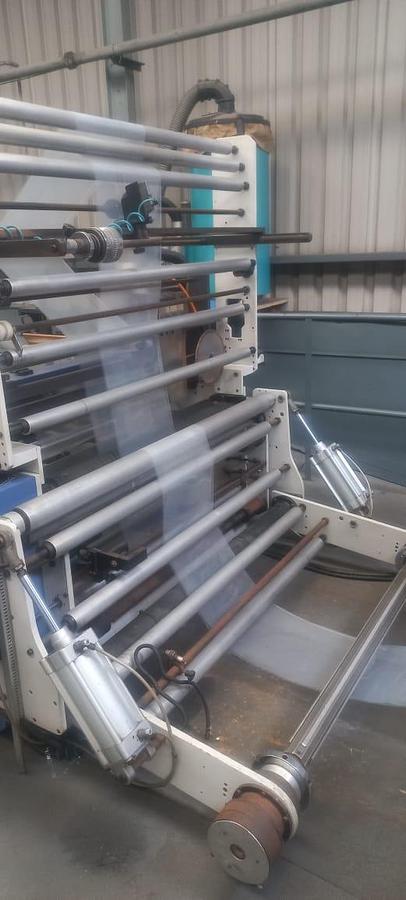

2020 GUR-IS MAKINA TY-1050 MT - Side weld bag making machine
2020 GUR-IS MAKINA TY-1050 MT - Side weld bag making machine
Location:South Africa
Description
This GUR IS TY-1050 MT, manufactured in 2020, is a versatile side weld bag making machine for PE films from 20 to 100 microns. It produces a wide range of bags, including patch handle, safety, side weld and bottom seal, bottom gusset, open or closed lip, round bottom, and header seal bags. The machine handles LDPE, HDPE, and recycled materials, with a sealing width up to 1050 mm and a draw length of 80 to 600 mm. With a linear speed of up to 300 m/min, it can produce up to 200 bags per minute.
Equipped with PLC control, operator interface, print registration, and servo-driven sealing, it also features a 1600 mm driven un-winder, gusseters, handle systems, longitudinal and cross sealers, V- and G-fold units, web guide, and anti-static bars. In good working condition, it can be seen in production
Specifications
| Manufacturer | GUR-IS MAKINA |
| Model | TY-1050 MT |
| Year | 2020 |
| Condition | Used |
| Type | Side weld bag making machine - PE film 20-100mcm |
| Type of production | Side weld bags: Patch handle bags with handle cut off - Safety bags - Different type of side-weld bags - Side weld & Bottom seal bags - Bottom Gusset bags - Open/Closed lip bags. - Round Bottom Bags - Header Seal Bags |
| Material that can be processed | LDPE, HDPE, and recycled extracts |
| Sealing width (bag length) | Up to 1050 mm |
| Draw length (bag width) | From 80 to 600 mm |
| Linear speed | Up to 300m/min |
| Bags per min. | Up to 200 Cpm |
| Driving system | PLC controlled - Operator interface terminal - Print registration control - Servo motor driven (input nip rollers, sealing bar) |
| Attachments and accessories | Driven un-winder 1600 mm wide - Gusseters including - Handle insertion - Longitudinal sealer - Presealers - Angle sealers -Cross sealers Handle cut-out Banana-hole puncher - Patch handle, glue and heat seal - String and flanged zipper attachment - Photocell for printed film - Automatic one-step conveyor / index conveyor - Handel punch unit G- folding unit V-fold station Web guide unit 1600mm - Anti-static bars |
