2018 NORDMECCANICA SIMPLEX SL 1100 | Duplex Solventless laminator
2018 NORDMECCANICA SIMPLEX SL 1100 | Duplex Solventless laminator
Location:Europe
Description
Pre-owned Nordmeccanica SIMPLEX SL Laminating machine - year 2018. Visble in operation and available for sale.
The basic manufacturing process consists of laminating two webs, generally made of different materials.

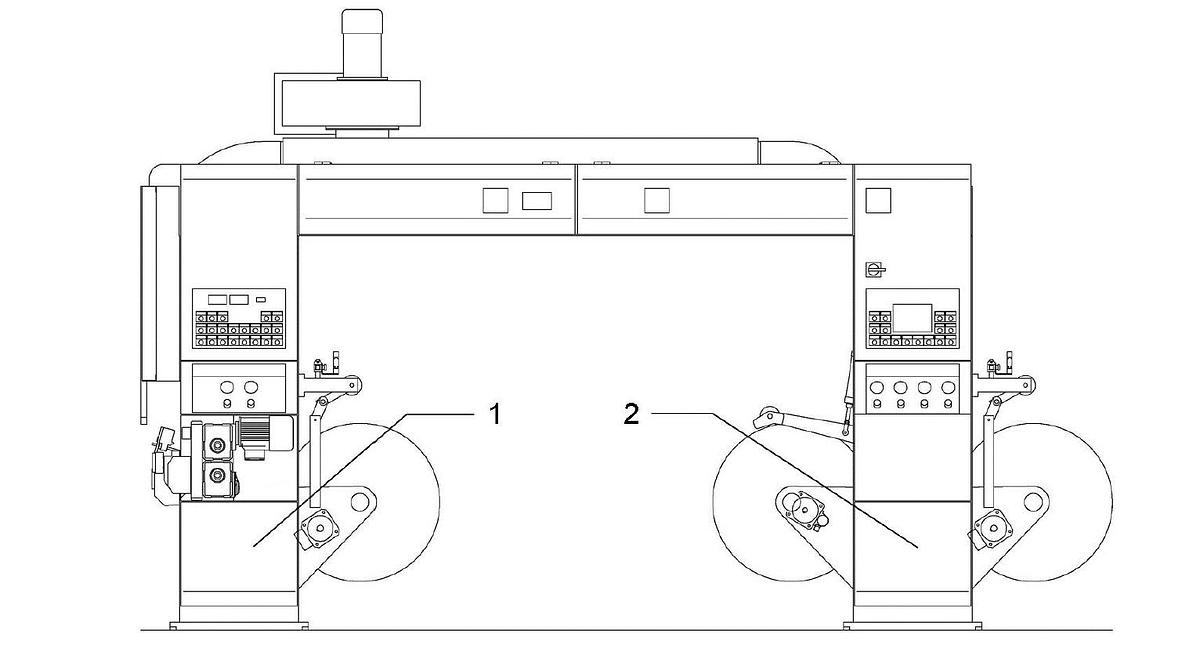

The two webs are initially contained in large reels mounted on unwinders A and B, and the web resulting from the lamination is then rewound onto a new roll mounted on the rewinder.
Lamination is carried out by pressing the two webs against each other as they pass between two tangential rollers; the bonding is achieved thanks to the adhesive applied to one side of the web coming from coil A.
When using the solventless application technique, the treated web does not need drying, and therefore the oven remains off. The laminated material is free from solvent residues, making the process more environmentally friendly overall
Specifications
| Manufacturer | NORDMECCANICA |
| Model | SIMPLEX SL 1100 |
| Year | 2018 |
| Condition | Used |
| Type | Duplex lamination (A + B) |
| Max web width (Min-max) | 550 - 1130 mm |
| Nominal width | 1100 mm |
| Max possible application width | 1115 mm |
| Materials that can be processed for the application (unwinder A) | ALU 12 ÷ 40 μm | BOPP 12 ÷ 80 μm | CALENDERED PAPER 40 ÷ 300 g/m2 | LDPE, LLDPE 30 ÷ 200 μm | NYLON CAST 30 ÷ 80 μm | OPA 12 ÷ 18 μm | PETP 10 ÷ 30 μm | PP CAST 60 ÷ 150 μm |
| Materials that can be laminated (unwinder B) | ALU 7 ÷ 40 μm | BOPP 12 ÷ 80 μm | CALENDERED PAPER 40 ÷ 300 g/m2 | VARIOUS COEXTRUDED MATERIALS 25 ÷ 200 μm | EVOH 12 ÷ 20 μm | LDPE, LLDPE 20 ÷ 200 μm | NYLON CAST 20 ÷ 80 μm | OPA 12 ÷ 18 μm | PETP 8 ÷ 30 μm | PP CAST 20 ÷ 150 μm | PVC 20 ÷ 300 μm |
| 1st & 2nd unwinder - Type | Shaftless |
| 1st & 2nd unwinder - Reel diameter Ø | 850 mm |
| 1st & 2nd unwinder inner core diameter Ø | 3” and 6" |
| Unwinders (1st and 2nd) Max. reel weight | 600 Kg |
| Unwinders Min-max web tension | 2 - 20 Kg (20 - 200 N) |
| Rewinder - Type | Shaftless (with motor) |
| Rewinder inner core diameter Ø | 6" |
| Rewinder Reel diameter Ø | 850 mm |
| Rewinder Max. reel weight | 600 Kg |
| Rewinder Min-max web tension | 4 - 25 Kg (40 - 250 N) |
| Additional information | MIXER VEA (two-component) |
| Mechanical speed | 10 ÷ 315 m/min |
| Noise emission | < 80 dBA |
