2003 Fischer & Krecke Combi 23 BB | Square bottom bag making machine (1 or 2 plies bags)
Reduced price
2003 Fischer & Krecke Combi 23 BB | Square bottom bag making machine (1 or 2 plies bags)
Location:Europe
Available quantity:1
or
Call +39 346 4948054
Description
Square bottom paper bag making machine FISCHER & KRECKE COMBI 23 BB, year 2003, for the production of handle-free square bottom bags from reel.
Suitable for 1 or 2-ply production and equipped with two unwinding units, transverse gluing for 2-ply bags, longitudinal cold glue and hot-melt gluing systems, bottom gluing and reinforced bottom system.
Wide format range from 70 to 230 mm bag width and from 40 to 140 mm bottom width.
Machine visible in production and immediately available for sale.
Specifications
| Manufacturer | Fischer & Krecke |
| Model | Combi 23 BB |
| Year | 2003 |
| Condition | Used (visible in production) |
| Bag width | 70 - 230 mm |
| Tube length | 180 - 490 mm |
| Bottom width | 40 - 140 mm |

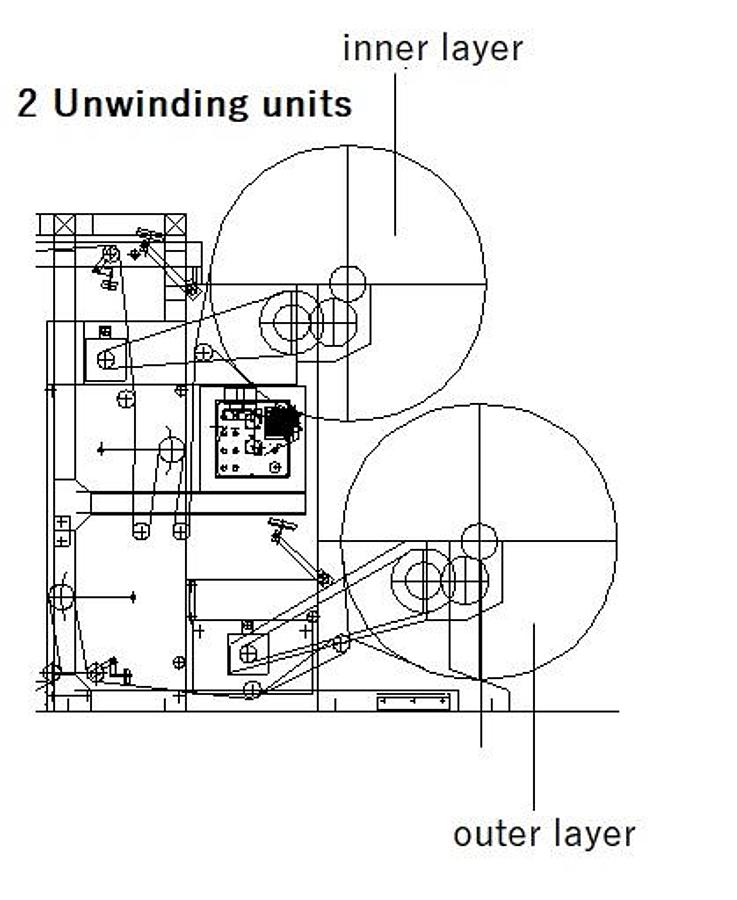

| Unwinders | 2 unwinding units (possibility to produce 1 or 2-ply bags) |
| Max. reel width | 760 mm |
| Web tension | Web tension / roll pressure adjustment system on both unwinding units |
| Output - Max. Bag/minutes | 300 |
| Materials | Paper, film, paper/aluminium, paper/film |
| Photocell | Yes |
| Additional information | System for reinforced bottom |
| Gluing system | Transverse gluing for 2-ply bag production | Longitudinal cold glue system | Hot-melt longitudinal gluing system | Bottom gluing unit |
| Electrical power | 400 V 50 Hz 3 Ph |
| Dimensions of the machine (approx) | Height: 2 m x Lenght: 11,5 m x Width: 3,3 m |
| Documentation | Available |
