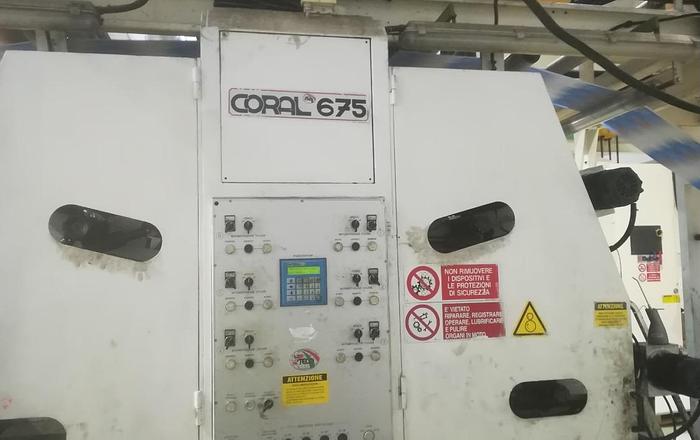

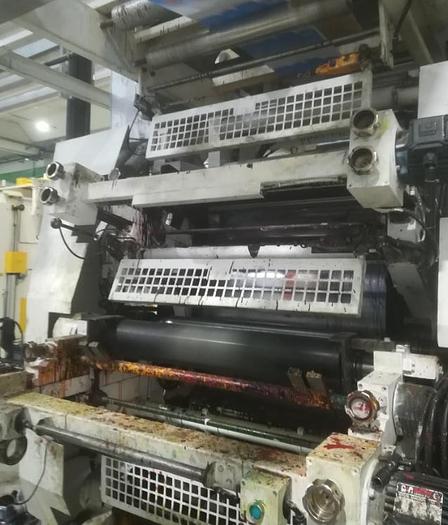

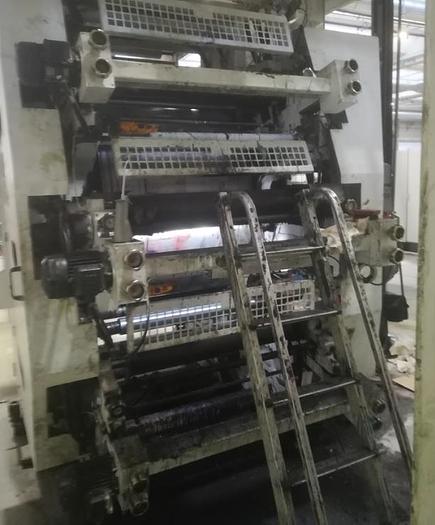

4x UTECO Coral 675 mod. 80 (in line C.I flexo)

No longer available

4x UTECO Coral 675 mod. 80 (in line C.I flexo)

Location:Italy

Available quantity:4

Description

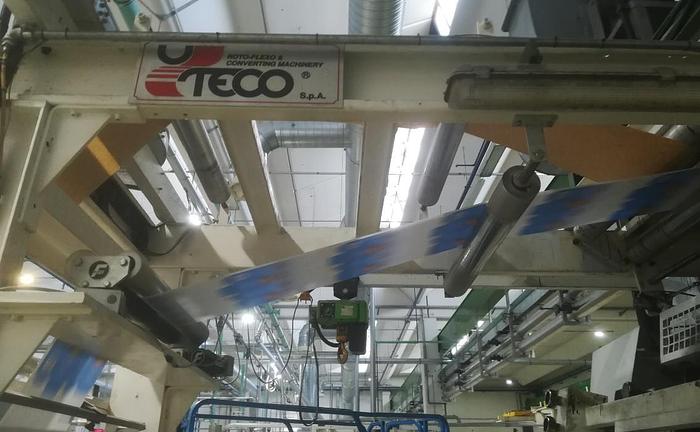

These 4 printers were installed inside a production line between the unwinder and the bag making machine, are now dismantled stored in the warehouse.


- Nr. 1 flexo printing machine - UTECO Coral 675 mod. 80 - year 1996

- Nr. 1 flexo printing machine - UTECO Coral 675 mod. 80 - year 2001

- Nr. 1 flexo printing machine - UTECO Coral 675 mod. 80 - year 2001

- Nr. 1 flexo printing machine - UTECO Coral 675 mod. 80  - year 2003


Technical datas:

- Number of colors: 6 colors

- Web width: max mm. 850

- Print width: max mm. 800

- Printing repeat: min. 280 mm - max. 800 mm

- Speed: up to 120 m/min (according to the quality and type of material, the inks used, the cliches and the desired print quality).

- Materials: paper from 50 gr/m2 to 140 mg/m2

- cliches thickness : 3 mm. with double adhesive

- gears: 10 mm.

- cylinders: 30, 31, 32, 33, 34, 36, 38, 40, 42, 43, 44, 46, 50, 52, 54, 56 e 58 (approx 200 cylinders in total to be divided for the 4 machines).

- Sleeves: 38, 40, 42, 44, 46, 48 e 50 per un totale di circa (approx 40 sleeves in total to be divided for the 4 machines)

Specifications

ManufacturerUTECO
ModelCoral 675 mod. 80
ConditionUsed
