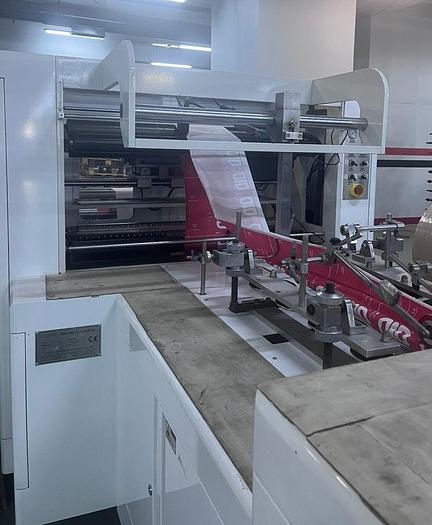

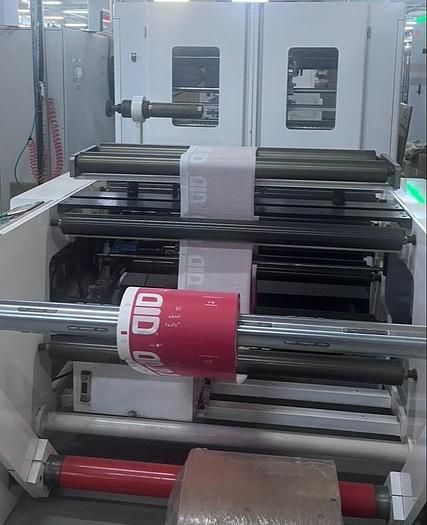

2019 JianShe ZD-J13 - V bottom paper bag making machines

Manufacturer: JianShe (Jiangsu Fangbang machinery Co., Ltd)

Model: ZD-J13

Year: 2019

Type: V bottom paper bag making machines

Paper Bag Width: 80 - 320mm

Paper Bag Length: 160 - 700mm

Paper Thickness: 35~80g/m2

Paper Width: 200 - 920mm

Speed: 500bags/min

Inserting depth Range: 0 - 60mm

Side Folding Range: 0 - 120mm

Film thickness: 0.01 - 0.03gsm (option device)

Film width: 50 - 200mm (option device)

Machine Dimension (WxLxH): L7600×W2200×H2100mm

Machine Weight: 6500kg

Total Power: 15kw

This machine is designed to manufacture V bottom paper bags without handles from paper roll, and it is an ideal equipment for producing mid-size and big-size paper bags.
