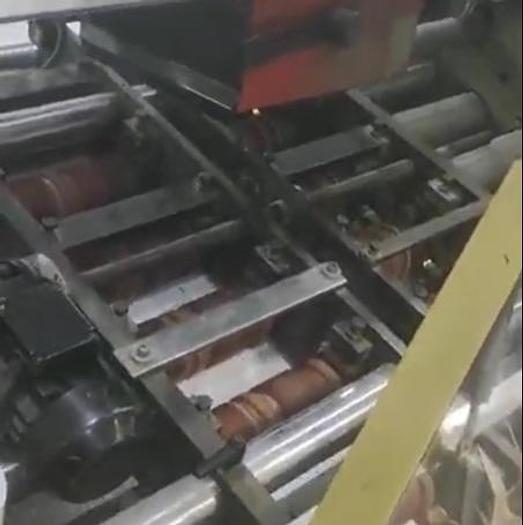

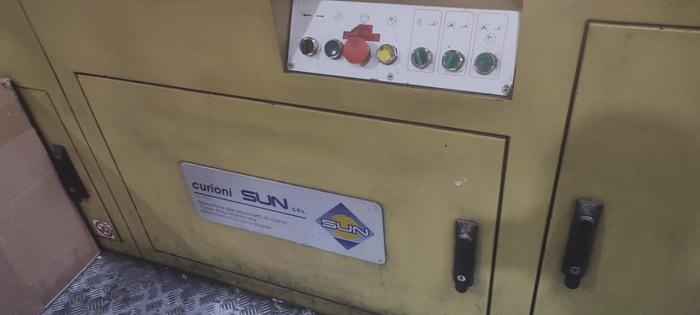

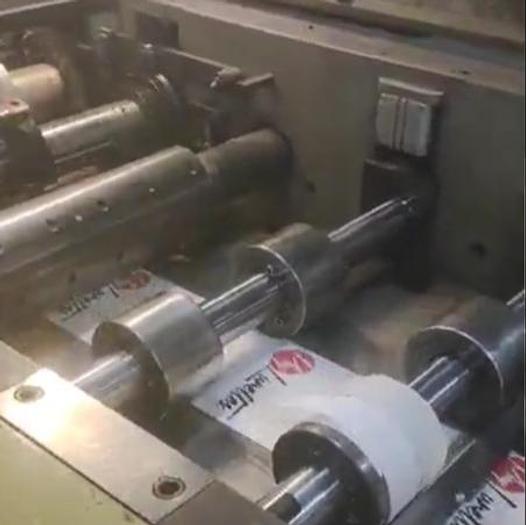

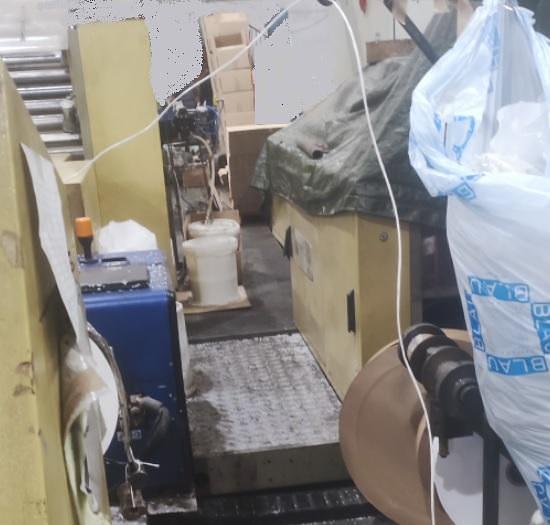

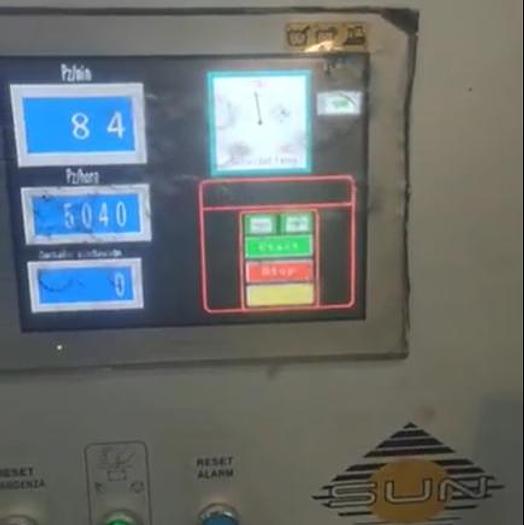

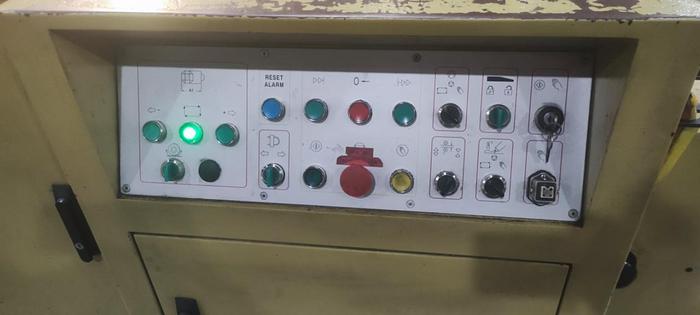

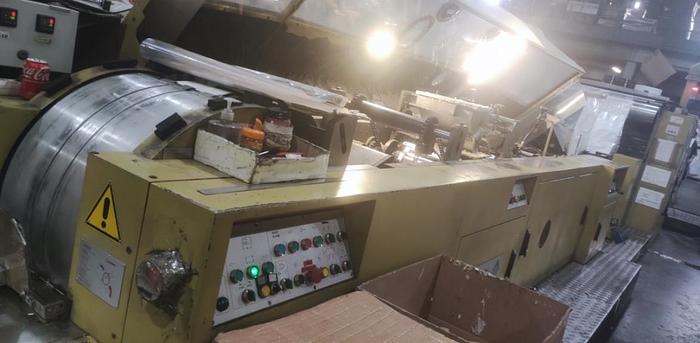

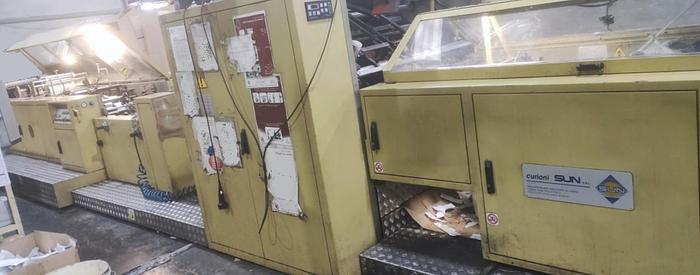

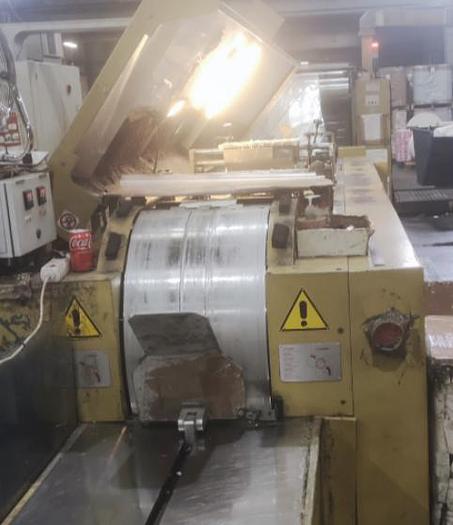

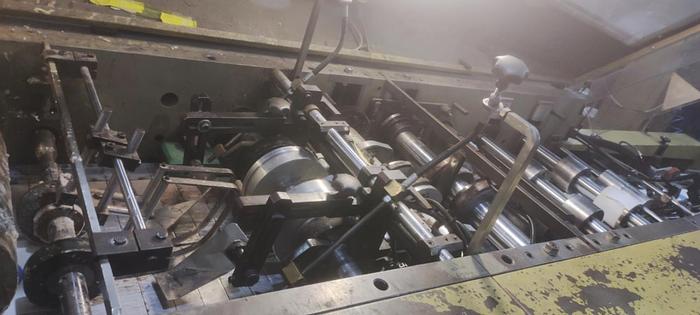

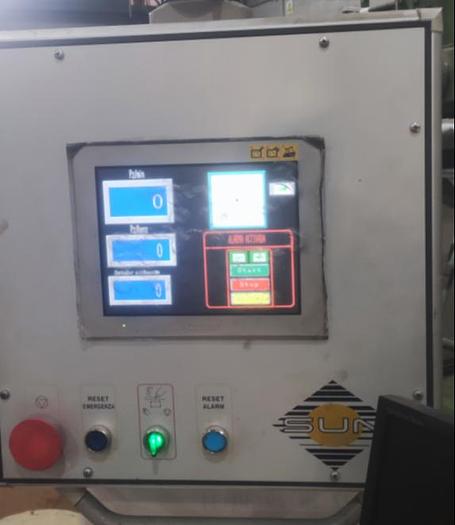

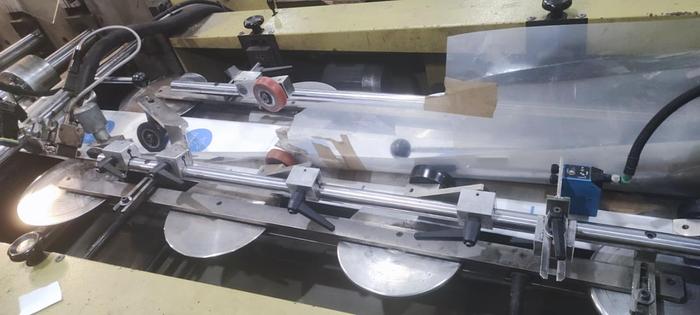

2007 CURIONI SUN MASTER 350 (Gearless/Servo) paper bag making machine with twisted handles units

Manufacturer: CURIONI

Model: SUN MASTER 350

Type: Reel fed square bottom paper bag making machine with in-line twisted handles unit (Gearless/Servo)

Year: 2007

Technical specification of the paper bag making machine (SM350)

Bag width: mm 110 - 350

Minimum bag width with handles: 180 mm

Bag length: mm 220 - 450

Bottom width: mm 60 - 150

Cut length: mm 270 - 500

Reel width: mm 370 - 1030

Max. diameter of the reel: mm 1500

Inner core diameter: mm 76

Weight of paper: 80 -130 gsm

This machine is equipped with 2 twisted handles unit (M80 and M101) for different twisted handles dimensions

(The machine is actually in operation with the handles unit for smaller handles M80, the other handles unit is to be reviewed because not in use for some time).

Technical specification of the in line twisted cord handle making unit (M80)

Type of handle twisted-paper cord or cotton with a twisted paper core

Twisted paper cord diameter: mm 4 - 5

Handle width: mm 76

Patch height: mm 50

Patch length: mm 152

Reels width: mm 100

Max. diamete

r of paper reels for patches: mm 1050

Inner core diameter: mm 76

Weight of usable paper for patches: 90 -130 gsm

Technical specification of the in line twisted cord handle making unit M101

Twisted paper cord diameter mm 4 - 5

Handle width mm 100

Patch height mm 50

Patch length mm 200

Reels width mm 100

Max. diameter of paper reels for patches mm1050

Inner core diameter mm 76

Weight of usable paper for patches 90 -130 gsm

General technical features

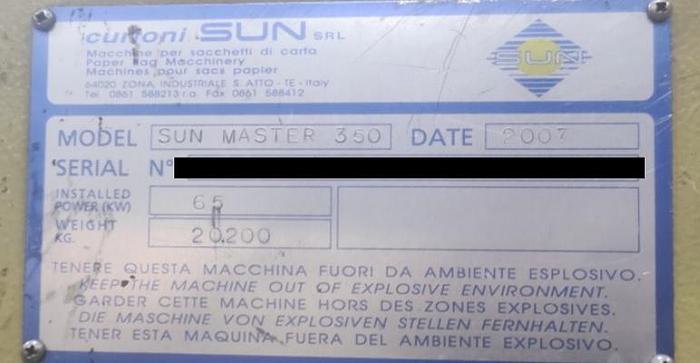

Total installed electrical power: Kw 65 .

Power supply three-phase 400 V + NEUTRE + GROUND at 50 Hz + 5%.

Compressed air supply 600/700 kPa, dry and clean.

Compressed air consumption: 100 Nl/min

Full documentation available.

Machine visible in operation and available for sale.
