2007 WINDMÖLLER & HÖLSCHER (W&H) AD 2390 + 9350

2007 WINDMÖLLER & HÖLSCHER (W&H) AD 2390 + 9350

Africa

orCall +39 346 4948054

Description

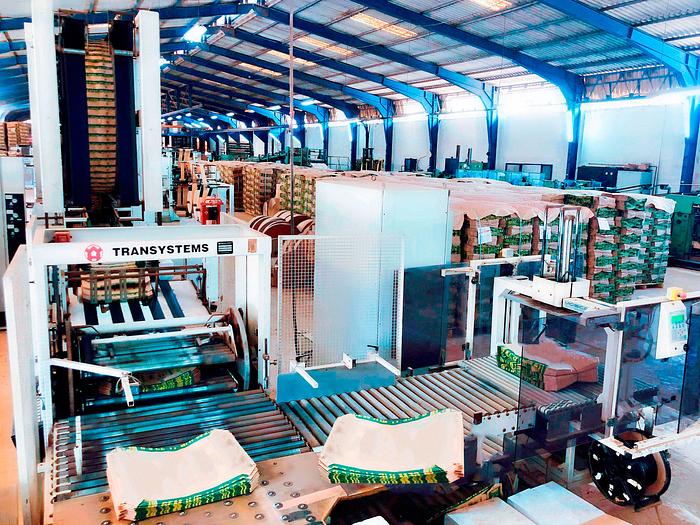

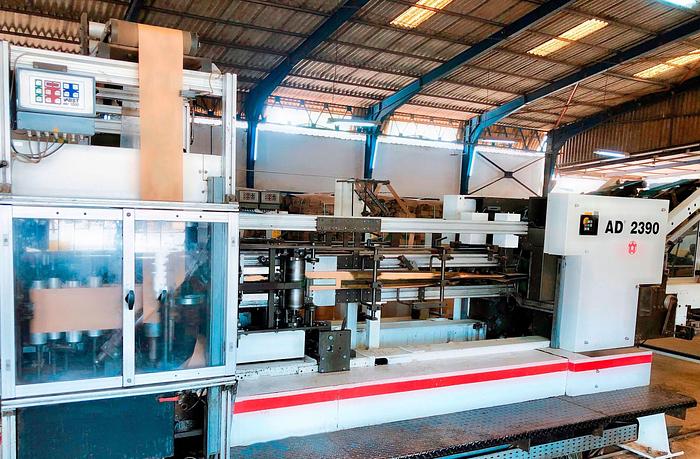

1) W&H BOTTOMER AD 2390 Year of production: 2007 (Installed in mid. 2008) - SACK: Sack length : 41 – 74 cm, Bottom width : 9 – 14 cm, Sack width: 32 – 55 cm,Open bottom width: 18 – 34 cm, Tube length: 54 – 94 cm. - VALVE: Cutting length: 8 – 25 cm, Length: 8 – 24 cm, Valve width: 10 – 30 cm - BOTTOM PATCH: Length: 18 – 45 cm, Width: 8 – 18 cm. Output : (Sacks à 300 sacks/min, 18 000 sacks/hour), (2-drums delivery packets à 25 packages/min) 2-drum delivery, 2 colors bottom patch printing unit , Venthole perforator, Rotary feeder, Tube aligner , Conveyo, Creasing station, venthole perforation , tube end slitting unit , Sucker station, Spreader assembly ,Open bottom check, Valve unit , Valve patch unwinders, Bottom creasing station, Bottom pasting station, Control PC, Bottom closing station, Folded edges pressing station , Bottom patch unwinders , Foldover unit, Turning station, Reject gate, Transfer belt, 2-Drum delivery, Counting station, Packet forming station. 2) TRANSYSTEM 1: WINDMÖLLER & HÖLSCHER 9350 • (for the interconnection from a tuber to the bottomer) 3) TRANSYSTEM 2: WINDMÖLLER & HÖLSCHER 9350 • (for the interconnection from the two drum delivery to the to palletization) In operation untill October 2019. Machine now dismantled and stored in warehouse. Possible to offer remantling service. VIDEO: https://www.youtube.com/watch?v=XAtItwdmRpw

Specifications

ManufacturerWINDMÖLLER & HÖLSCHER (W&H)
ModelAD 2390 + 9350
Year2007
ConditionUsed
