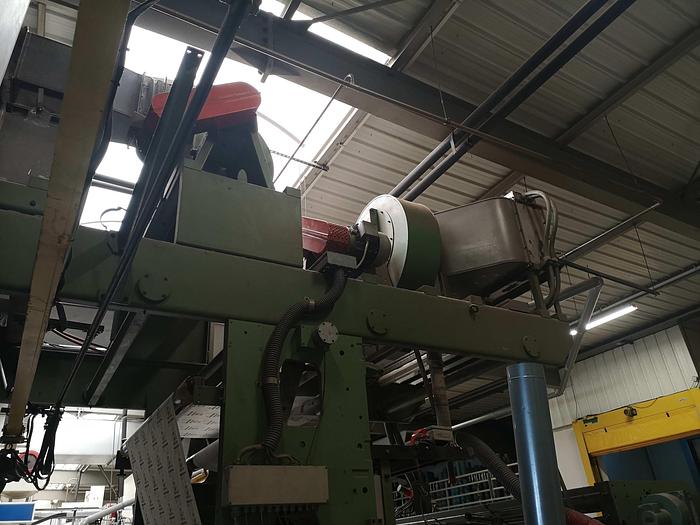

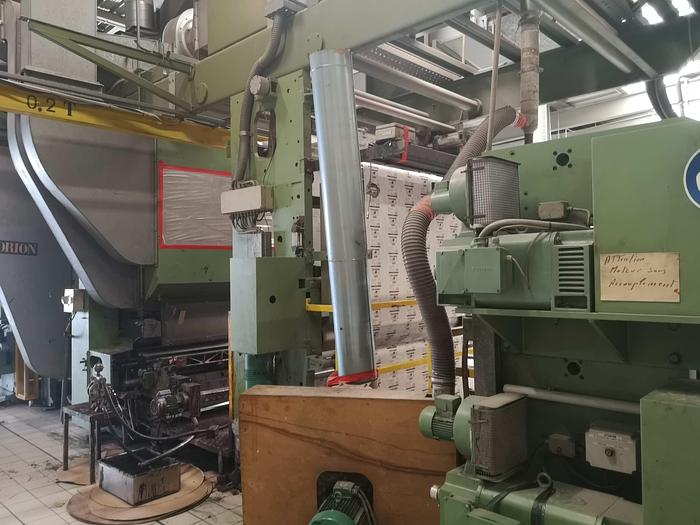

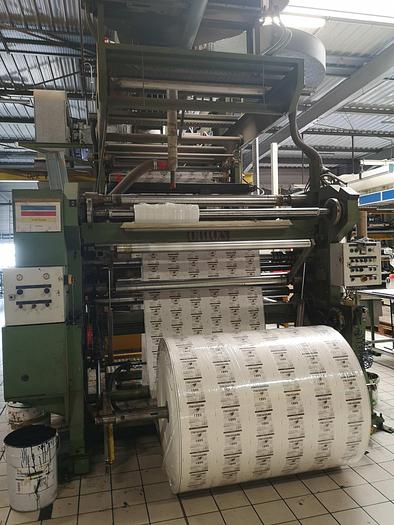

MAF ORION 7 COL STACK FLEXO – year 1992
No longer available
MAF ORION 7 COL STACK FLEXO – year 1992
Milan, Italy
Description
Manufacturer: MAF
Model: ORION
Type: FLEXO STACK
Year 1992
Numbers of colours 6 +1 Printing possibility 6+0, 7+0, 6+1
Web width 1650 mm
Printing width mini-maxi 1600 mm
Printing repeat mini maxi 350 mm – 900 mm
Unwind reel diameter 1200 mm
Rewind reel diameter 1000 mm
Speed (mechanical /Production) 200 m / min Electricity –
Products to be printed Papers 40 – 350 g / m2
Unwinder:
Mono unwind, pneumatic ventilate brake, dancing rolls for tension control, pick up from the floor, mandrel diameter 70, 76, max weight of the reel : 1500 Kg
Rewinder:
2 independent stations Dancing rolls for tension control Lower station : 1000 mm, pick up from the floor Higher station : 800 mm
Printing unit 6 colours, chambers doctor blades, hydraulic continuous running
Longitudinal register Motorised at 360°
Side register Manual
Drive system Gear pitch 10 mm
Web guide Before printing
Specifications
Manufacturer | Orion |
Condition | Used |
