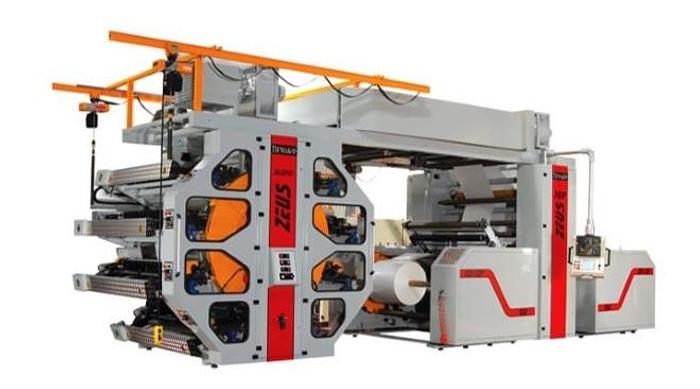

TIFMAK ZEUS 148 – 8 Colors C.I Flexo

Contact us for price

orCall +39 346 4948054

Description

Printing Width: 1450 mm
Web Width: 1500 mm
Printing Repeat (Max): 800 mm
Printing Repeat (Min): 340 mm
Plate-Cylinder Gear-Pitch Module: 1.14 mm
Drying System: Electrical
Colors: 8 colors printing machine with quickly change of anilox and sleevs into the machine
Max. Mechanical speed: 200 m/min. Depending on the ink type, cliché, design and material qualities; printing speed can be approximately 100 – 200 m / min.
Drying system: with electric heating, through the 2 piece group of fans at a capacity of maximum 60 kW
Materials:
PAPER: 60-180gms
PE ; in a thickness range of 25-100 microns
OPP ; in a thickness range of 18-180 microns
Double automatic rewinder and unwinder for reels with diam. max 800 mm. Shafts 76 mm
Cliché rollers are fixed by pin bearings and it is possible to make the print adjustment at 10 mm for right–left and 7,50 mm for top to top.
Print separation is done by pneumatically opening cliché bearings.

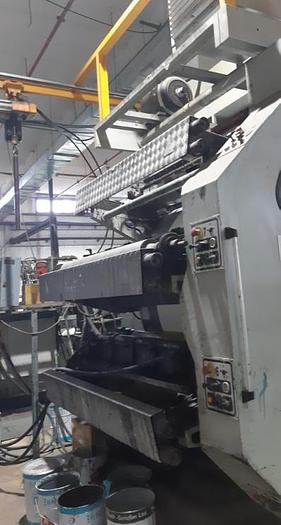

Visible in production.
Video: https://youtu.be/p7Iv1dwOx1g

Specifications

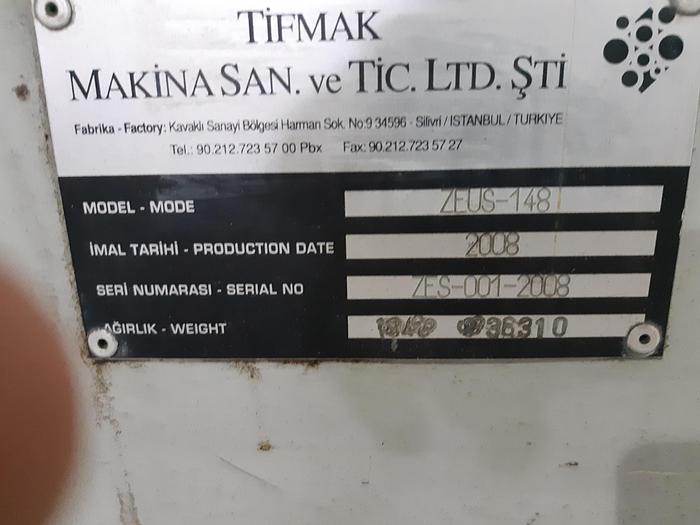

ManufacturerTIFMAK
ModelZEUS 148
Year2008
ConditionUsed
