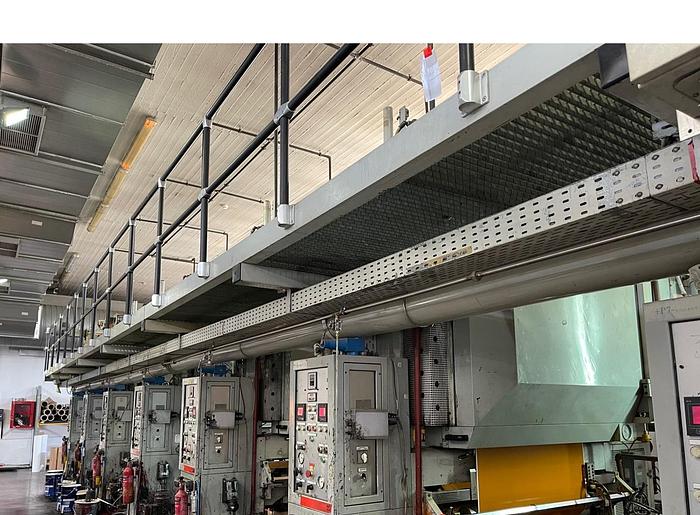

KRONERT GRAVURE 1996 - 8 colours gravure printing machine

Manufacturer:  KRONERT

Model name: GRAVURE 1996

Number of colours: 8

MAIN SPECIFICATION:

Max. web width: 1020mm

Min web width: 500mm

Max. Printing width: 1000mm

Reverse print facility: YES/NR8

Printing width cylinder: 1100mm

Printing circumference: 500-960mm

Max reel diameter winding and unwinding: 1000mm

Web tension: 40-160N

Max web speed: 400m/min

PRINTING UNITS

Reverse printing units: nr. 8

Driven by mech. shaft

Length register type: yes

Side register type: yes

Drying: oil

Single dryer hoods on print units: 1 to 7

Double dryer hoods on print unit: 8

Heating source: oil

DOCTOR BLADE

Doctor blade group supporting assembly: yes

Doctor blade holder: yes

Doctor blade oscillation driven by independent yes

Doctor blade stoke length: 10-25mm

Doctor blade pressure: regulated

UNWINDER:

Max reel diameter:1000mm

Max reel weight: 900kg

Web tension: 40-200N

Web tension control by dancing roller

Electric drive by siemens

Chucks for 70 - 76 - 150 mm: 76/152

PULLING UNIT UNWINDER

Web tension: 40-140

Web tension control by dancing roller

Pulling cilinder driven by DC motor: yes

Impression roller (rubber): yes

REWINDER

Max reel diameter: 1000mm

Max reel weight: 900kg

Electric drive by siemens

Web tension: 40-200N

Web tension control by motor torque

Core length: 1100mm

PULLING UNIT REWINDER

Web tension: 40-140N

Web tension control by dancing roller

Pulling cilinder driven by DC motor: yes

Impression roller: yes

OTHER:

Web inspection system: ELTROMAT

Register control: ELTROMAT

Viscosity measurement: GAMMA

Video camara & monitor: BST

Spare parts         YES

Machine visible in operation (Available for delivery in January 2023).
