2018 Jianshe (Jiangsu FANGBANG) ZD-J13 | V bottom paper bag machine with 4 col. flexo
In primo piano
2018 Jianshe (Jiangsu FANGBANG) ZD-J13 | V bottom paper bag machine with 4 col. flexo
Posizione:Europa
Disponibilità in magazzino:1
o
Chiama +39 346 4948054
Descrizione

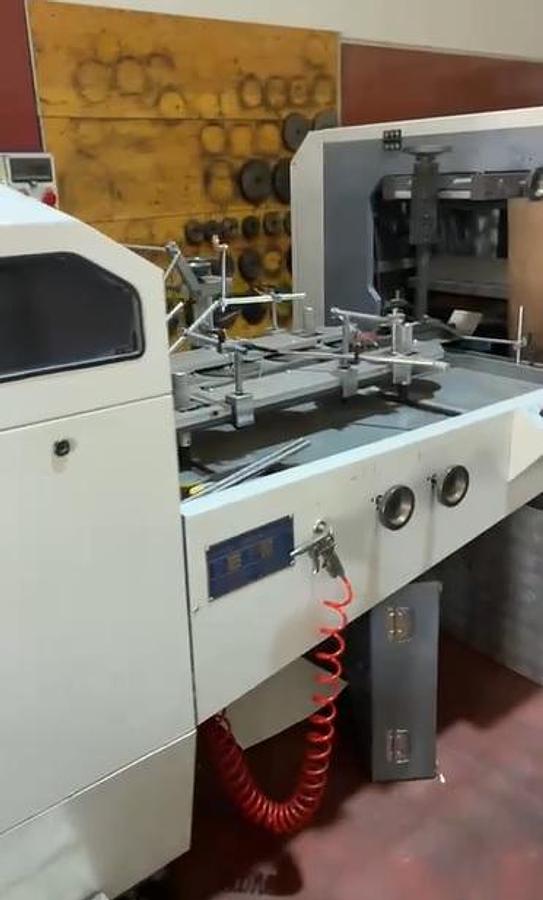

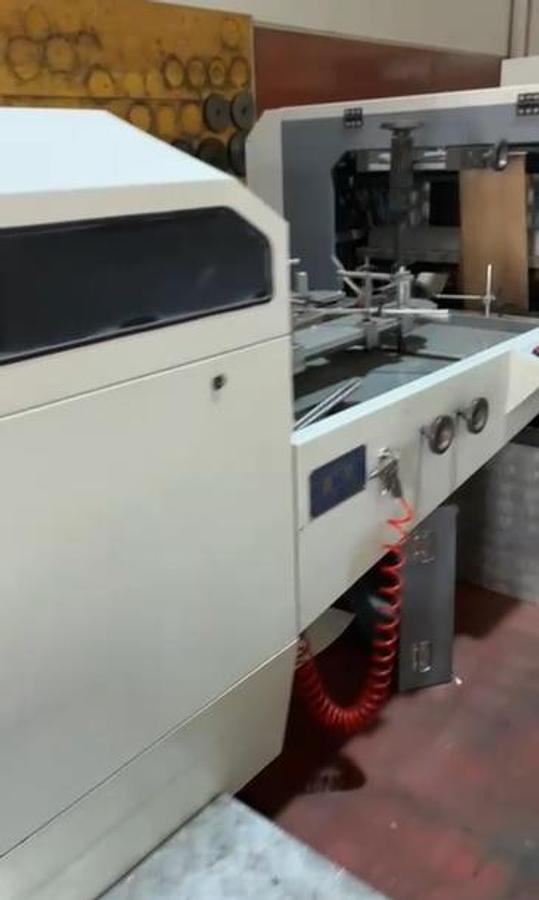

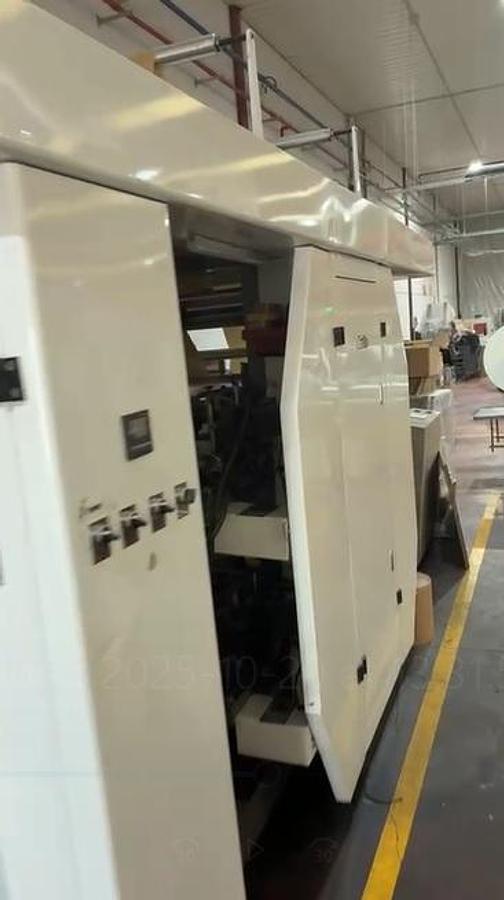

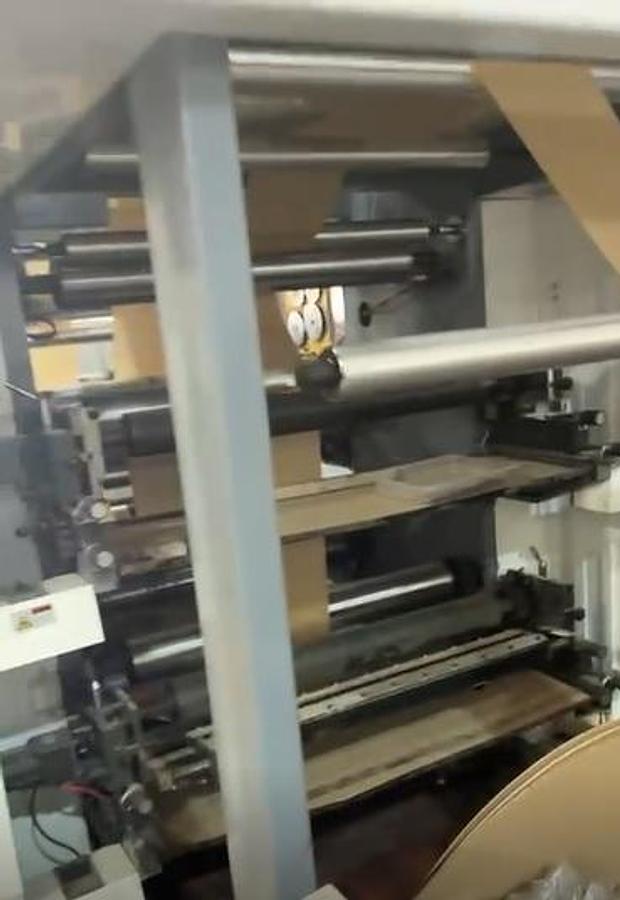

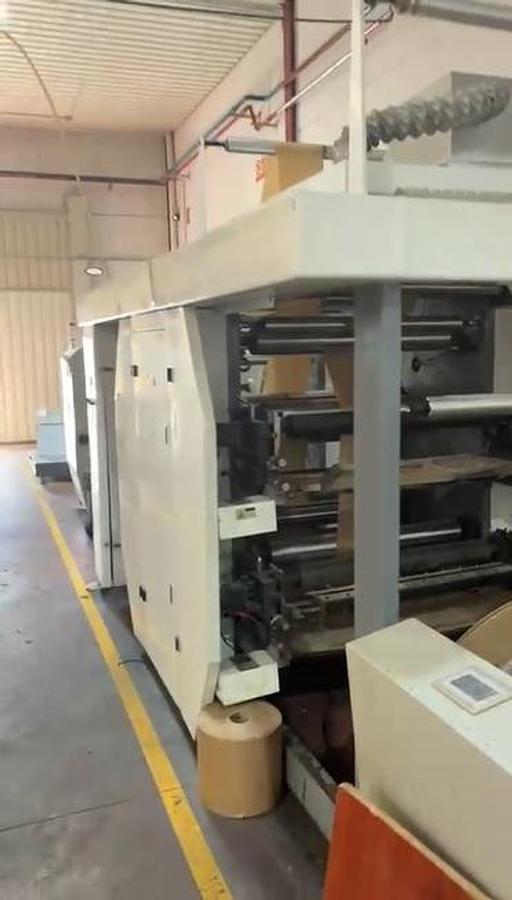

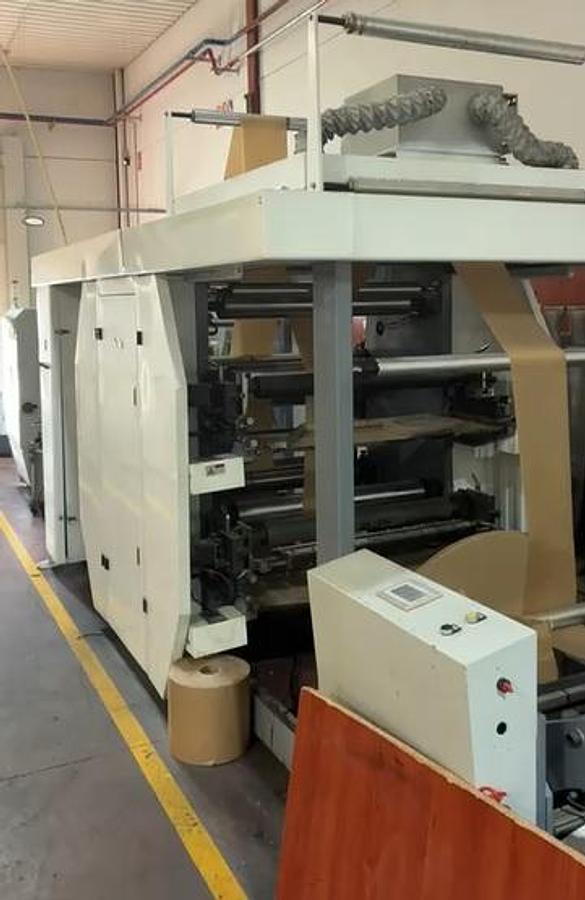

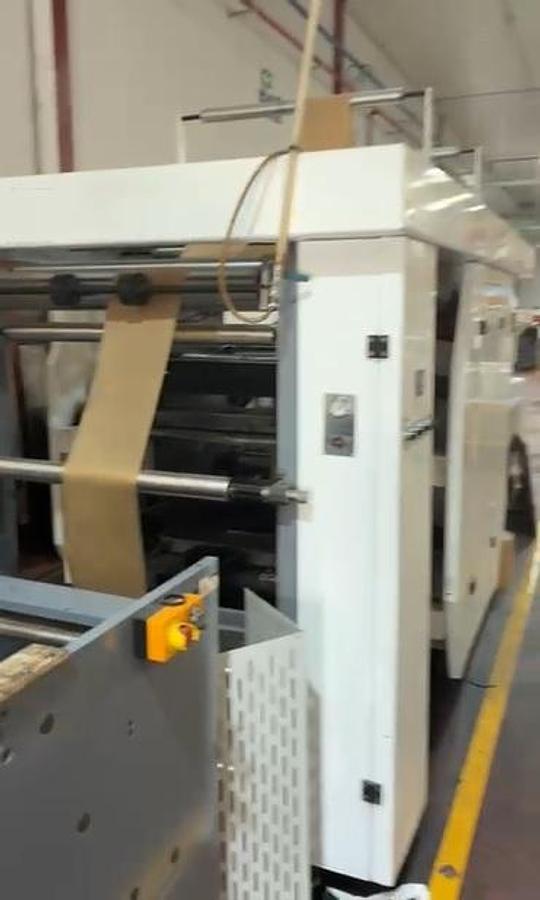

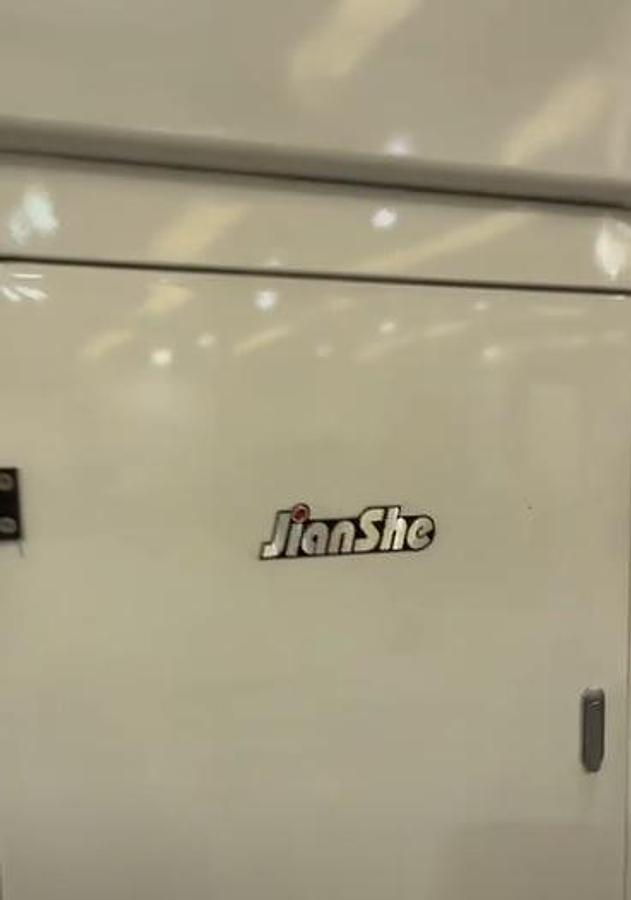

Pre-owned Jianshe (Jiangsu FANGBANG Machinery Co,Ltd.) ZD-J13 year 2018.

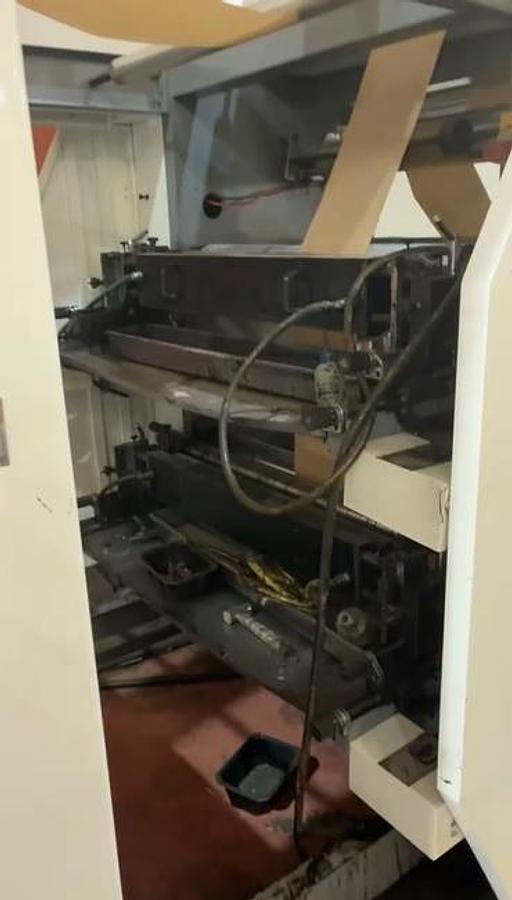

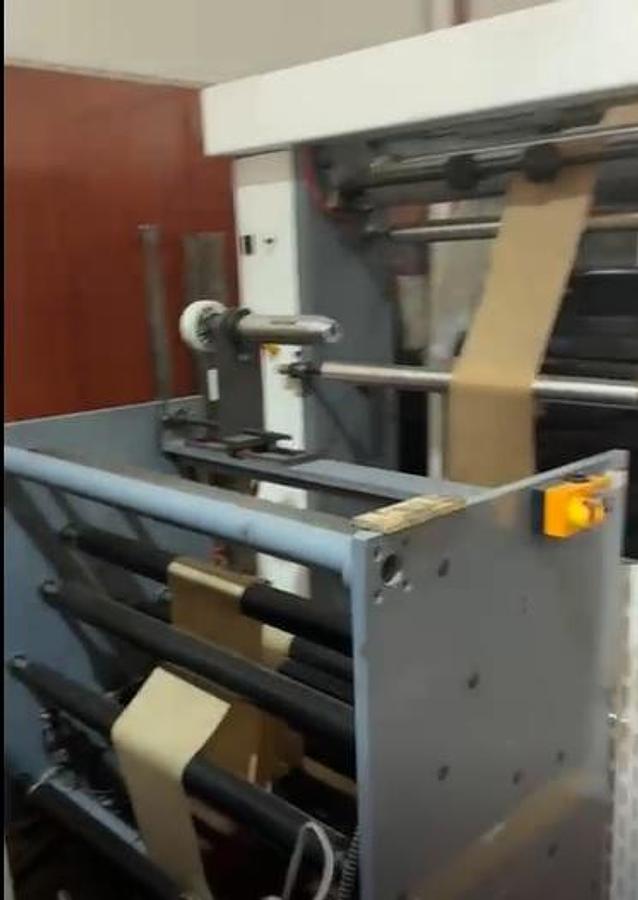

The Jianshe ZD-J13 is a roll-fed, V-bottom paper bag machine manufactured by Jiangsu FANGBANG Machinery Co,Ltd., designed for producing mid- to large-sized V bottom paper bags.
It handles paper thickness from 35 to 80 g/m² and produces bags between 80-320 mm wide and 160-700 mm long. The machine produce bags with a fully automatic process. It's particularly suitable for applications in the food and retail industries, especially for packaging items like bread paper bag, snack paper bag, food paper bag, fruit paper bag etc...
The machine can be prepared for a test in production in case of interest.
Specifiche

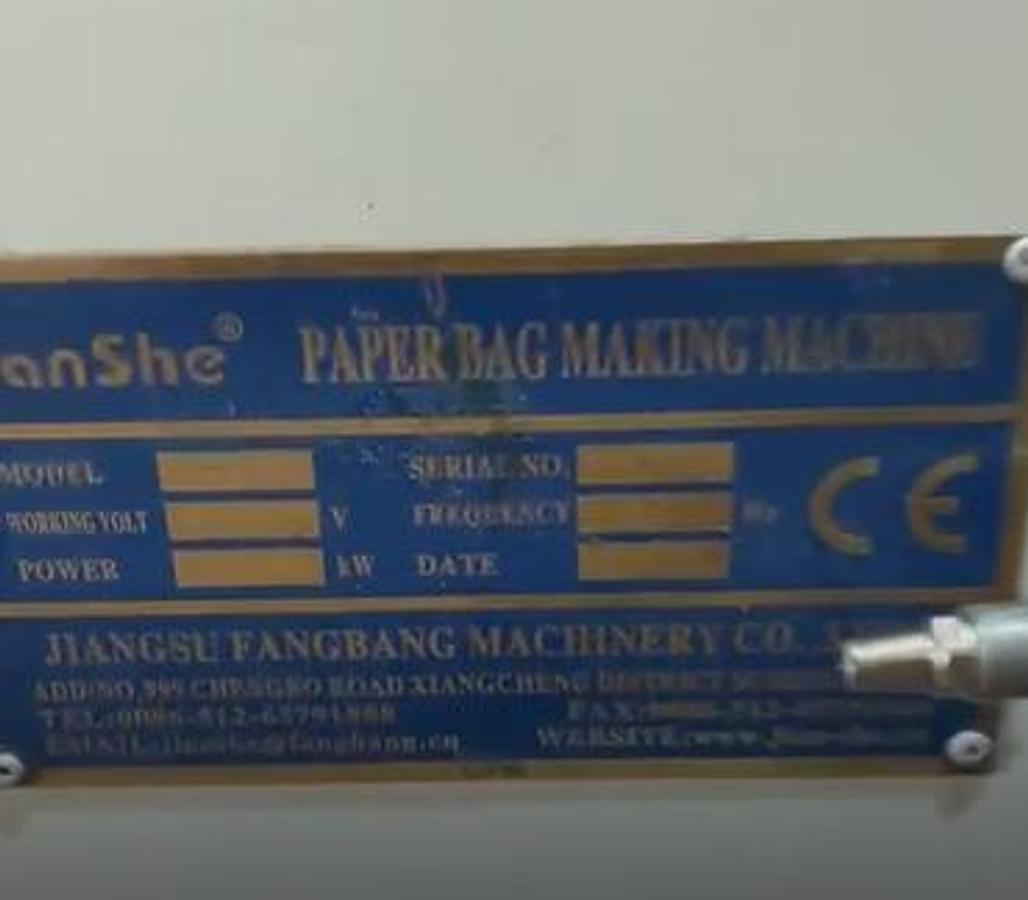

| Produttore | Jiangsu Fangbang Machinery Co,Ltd. |
| Modello | ZD-J13 |
| Anno | 2018 |
| Condizione | Usato |
| Paper Roll Width (min. - max.) | 170 ~ 900 mm |
| Max. Paper Roll Diameter | Ф 1000 mm |
| Paper Core Diameter | Ф 76 mm |
| Paper Thickness (min. - max.) | 35-80g/㎡ |
| Bag Body Length (min. - max.) | 120 ~ 710 mm |
| Bag Body Width (min. - max.) | 80 ~ 320mm |
| Gusset Size (min. - max.) | 0 ~ 130mm |
| Max. mechanical speed | 500bags/min |
